Coaxial connectors provide low loss paths between RF system, subassemblies or components. One of the important values to select a coax connection is the form factor. Starting from small UMRF up to the solid TNC connectors there is a solution for many applications.
Coax connectors for different frequencies
Coax connectors for different frequencies

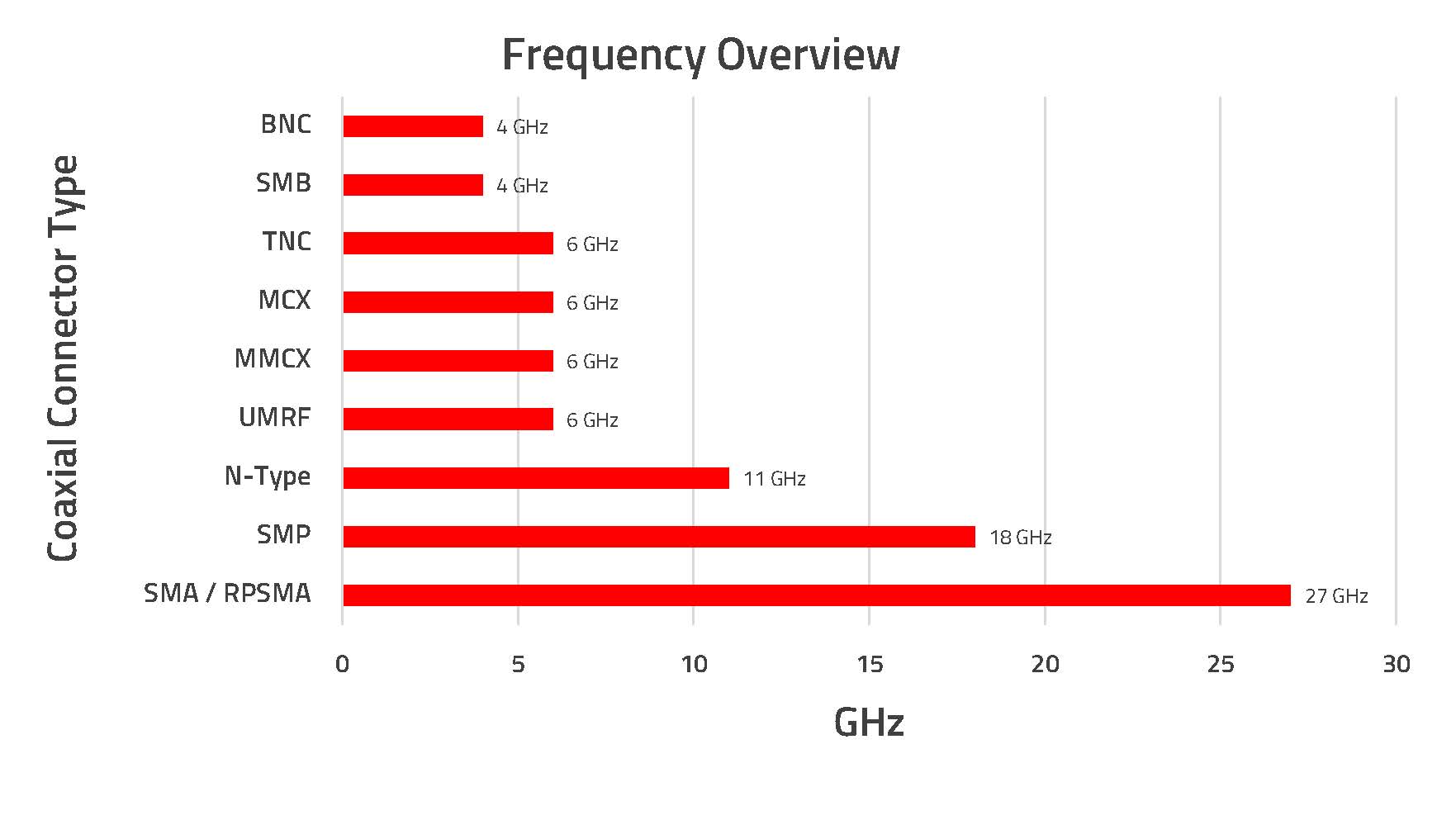

Besides form factor, the frequency range is an important value to select the right coax connector solution for individual applications. Würth Elektronik Coax connectors cover a wide frequency range from DC up to 27 GHz.
Coaxial PCB Connector - PCB-Transmission Line Design Guide
Coaxial PCB Connector - PCB-Transmission Line Design Guide
The function of a RF (Radio Frequency) transmission line is a directing RF signal from a source to a load with minimal loss and distortion. Impedance plays an important role in signal transmission. Even if the trace impedance already matches, adding a connector can cause an impedance mismatch and thus signal distortions due to reflections. The purpose of this application note is to outline methods for improving signal transmission when a connector is added on a PCB.
