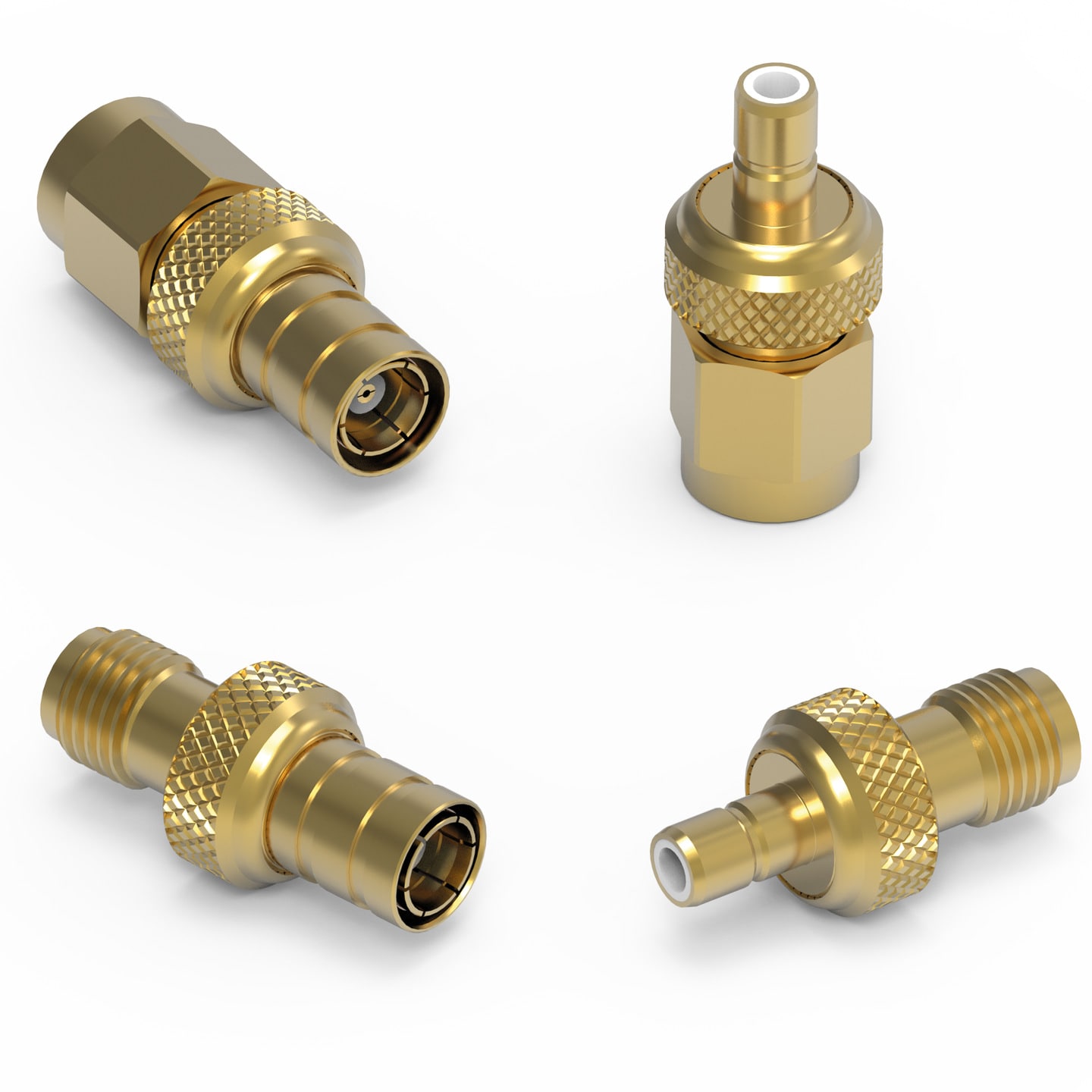

WR-ADPT SMA to SMB

Size	Dimensions
SMA Plug \| SMB Plug
SMA Plug \| SMB Jack
SMA Jack \| SMB Plug
SMA Jack \| SMB Jack

Characteristics

Interface: MIL-STD-348
Mating Cycle: 500 Cycles
Impedance: 50Ω
Plating: Gold

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
Outdoor or humidity environment

Products

All

SMA Plug | SMB Plug

SMA Plug | SMB Jack

SMA Jack | SMB Plug

SMA Jack | SMB Jack

Filter article data

show article in 4 product lines

article in 4 product lines

	Order Code	Datasheet	Downloads	Status	Connector Type 1	Gender 1	Connector Type 2	Gender 2	f	Orientation Type	Operating Temperature	Samples
	64403216211000	SMA, Plug, SMB	Downloads3 files CAD files ZIP 3D 3D_64403216211000 (rev1).pdf \| 1.1 MB IGS IGS_64403216211000 (rev1).igs \| 11.1 MB STP STP_64403216211000 (rev1).stp \| 3.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Gender 1Plug	Connector Type 2SMB	Gender 2Plug	Frequency RangeDC~4 GHz	Orientation TypeStraight	Operating Temperature -65 °C up to +165 °C
	64403216111000	SMA, Plug, SMB	Downloads3 files CAD files ZIP 3D 3D_64403216111000 (rev1).pdf \| 747.4 KB IGS IGS_64403216111000 (rev1).igs \| 9.3 MB STP STP_64403216111000 (rev1).stp \| 3.1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Gender 1Plug	Connector Type 2SMB	Gender 2Jack	Frequency RangeDC~4 GHz	Orientation TypeStraight	Operating Temperature -65 °C up to +165 °C
	64403116211000	SMA, Jack, SMB	Downloads3 files CAD files ZIP 3D 3D_64403116211000 (rev1).pdf \| 857.1 KB IGS IGS_64403116211000 (rev1).igs \| 10.9 MB STP STP_64403116211000 (rev1).stp \| 3.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Gender 1Jack	Connector Type 2SMB	Gender 2Plug	Frequency RangeDC~4 GHz	Orientation TypeStraight	Operating Temperature -65 °C up to +165 °C
	64403116111000	SMA, Jack, SMB	Downloads3 files CAD files ZIP 3D 3D_64403116111000 (rev1).pdf \| 1.4 MB IGS IGS_64403116111000 (rev1).igs \| 9.1 MB STP STP_64403116111000 (rev1).stp \| 3.2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Gender 1Jack	Connector Type 2SMB	Gender 2Jack	Frequency RangeDC~4 GHz	Orientation TypeStraight	Operating Temperature -65 °C up to +165 °C
