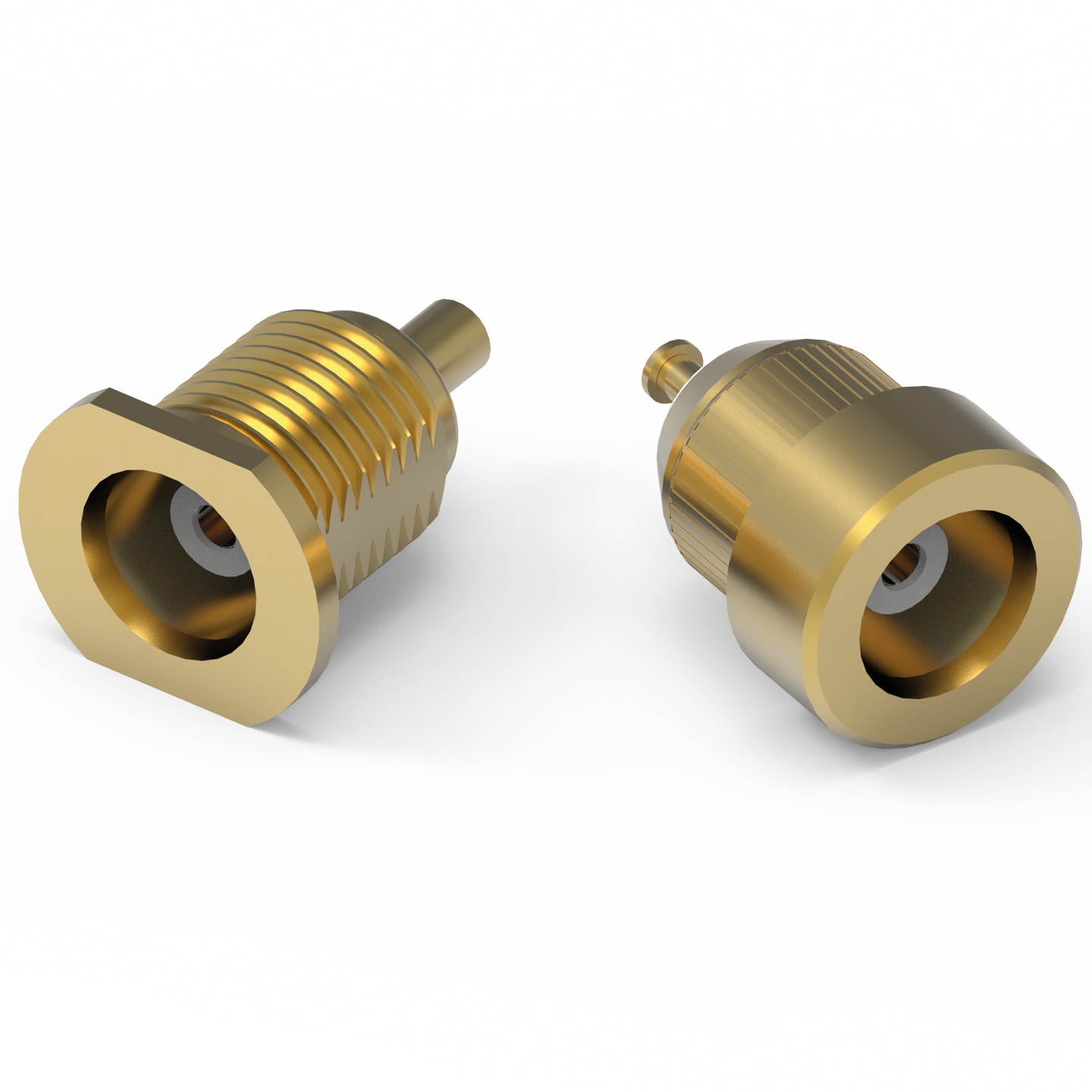

WR-MCX Panel Connectors
| Size | Dimensions | Mount | |
|---|---|---|---|
Straight Jack | Press-In |
Characteristics
- Interface: IEC 61169-36
- Mating Cycle: 500 Cycles
- Impedance: 50Ω
- Insulation Resistance: 1000M Ω (min.)
- Withstanding Voltage: 750Vrms (min.)
- Mating: Snap on
Applications
- Network and communications
- RF Test and measurement equipment
- Industrial applications
- Electronic consumers and devices
Products
Straight Jack
Filter by
show in
article in 1 product lines
Reset allOrder Code | Datasheet | Downloads | Status | t max(mm) | f | Mount | Center Contact | Operating Temperature | Design Kit | SamplesAvailability & Sample | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

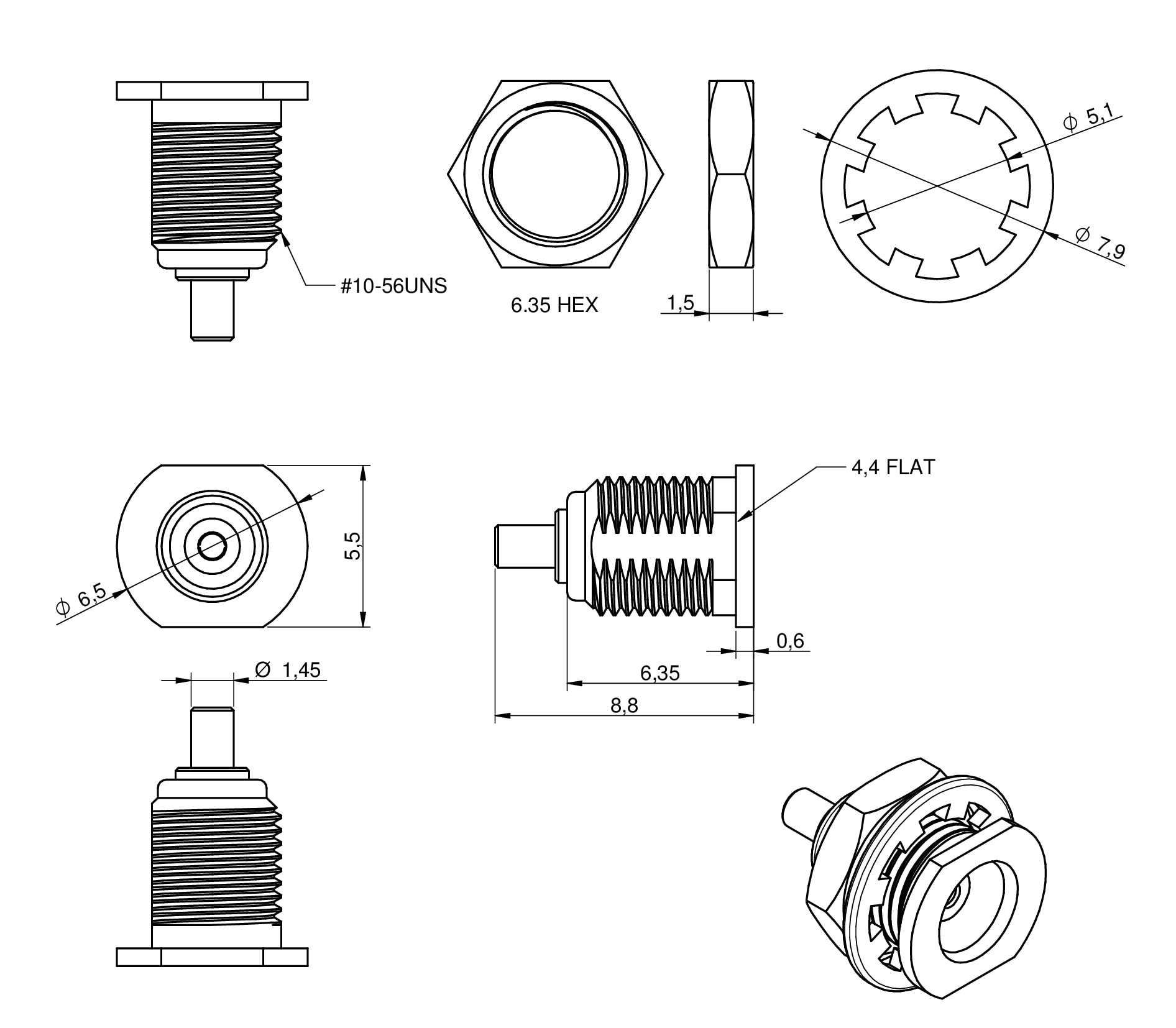

 | 60612432111512 | SPEC2.6 mm, DC~6 GHz, – | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | Panel Thickness [max.]2.6 mm | Frequency RangeDC~6 GHz | – | Center ContactØ 1.45 | Operating Temperature -55 °C up to +155 °C | –Check availability | ||
 | 60612702111513 | SPEC–, DC~6 GHz, Press-In | Availability – | Status Activei| Production is active. Expected lifetime: >10 years. | – | Frequency RangeDC~6 GHz | MountPress-In | Center ContactØ 1.2 | Operating Temperature -55 °C up to +155 °C | Design Kit | –Check availability |
Availability Forecast
WE item number Packaging unitsLead time
––– weeks
| Expected Availability | Opening inventory | Quantity |
|---|---|---|
| Current Availability | – | – |
There is no forecast for this quantity request.
Does it just not fit? Please contact us.Simply contact our service team for special orders and bulk quantities.Contact us
Mates with
WR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-174/U Flexible Cable / 152.4mm length
WR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-178/U Flexible Cable / 152.4mm length
WR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-316/U Flexible Cable / 152.4mm length
WR-CXASY RPSMA Bulkhead Jack to MCX Straight Plug / RG-174/U Flexible Cable / 152.4 mm length
WR-CXASY RPSMA Bulkhead Jack to MCX Straight Plug / RG-178/U Flexible Cable / 152.4 mm length
WR-CXASY RPSMA Bulkhead Jack to MCX Straight Plug / RG-316/U Flexible Cable / 152.4 mm length
WR-CXASY MCX to MCX
WR-ADPT SMA to MCX
