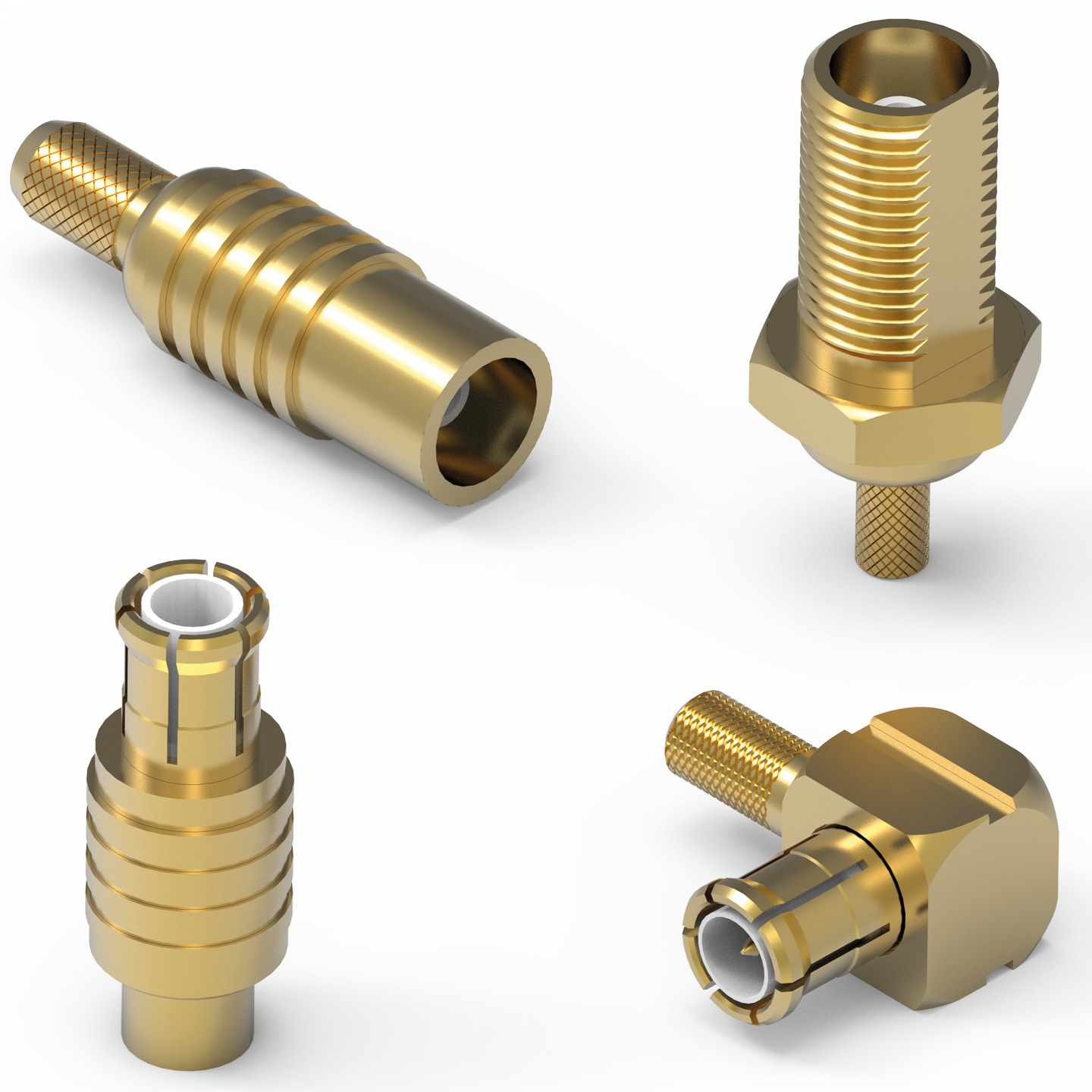

WR-MCX Cable Connectors

Size	Dimensions

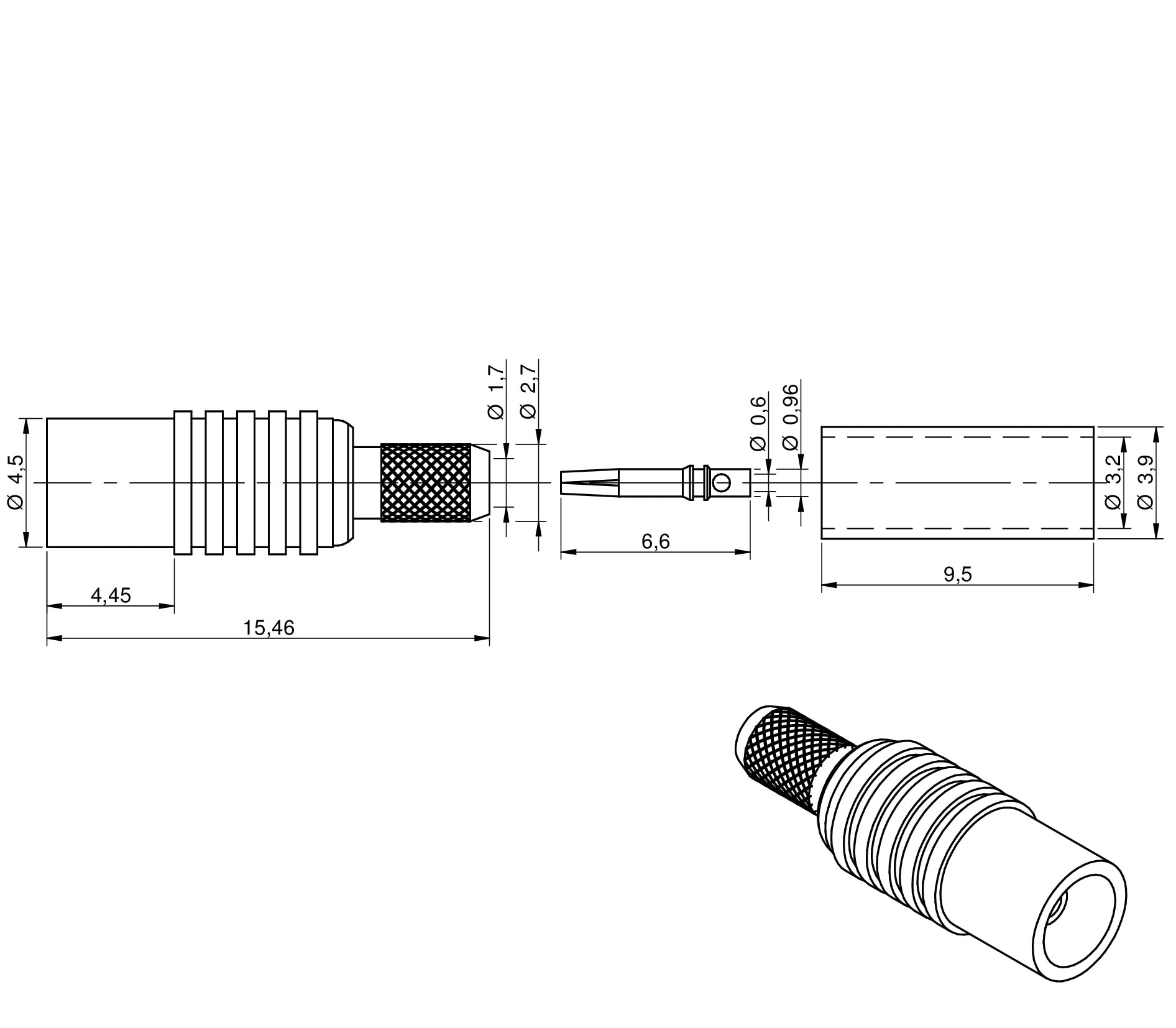

Straight Jack

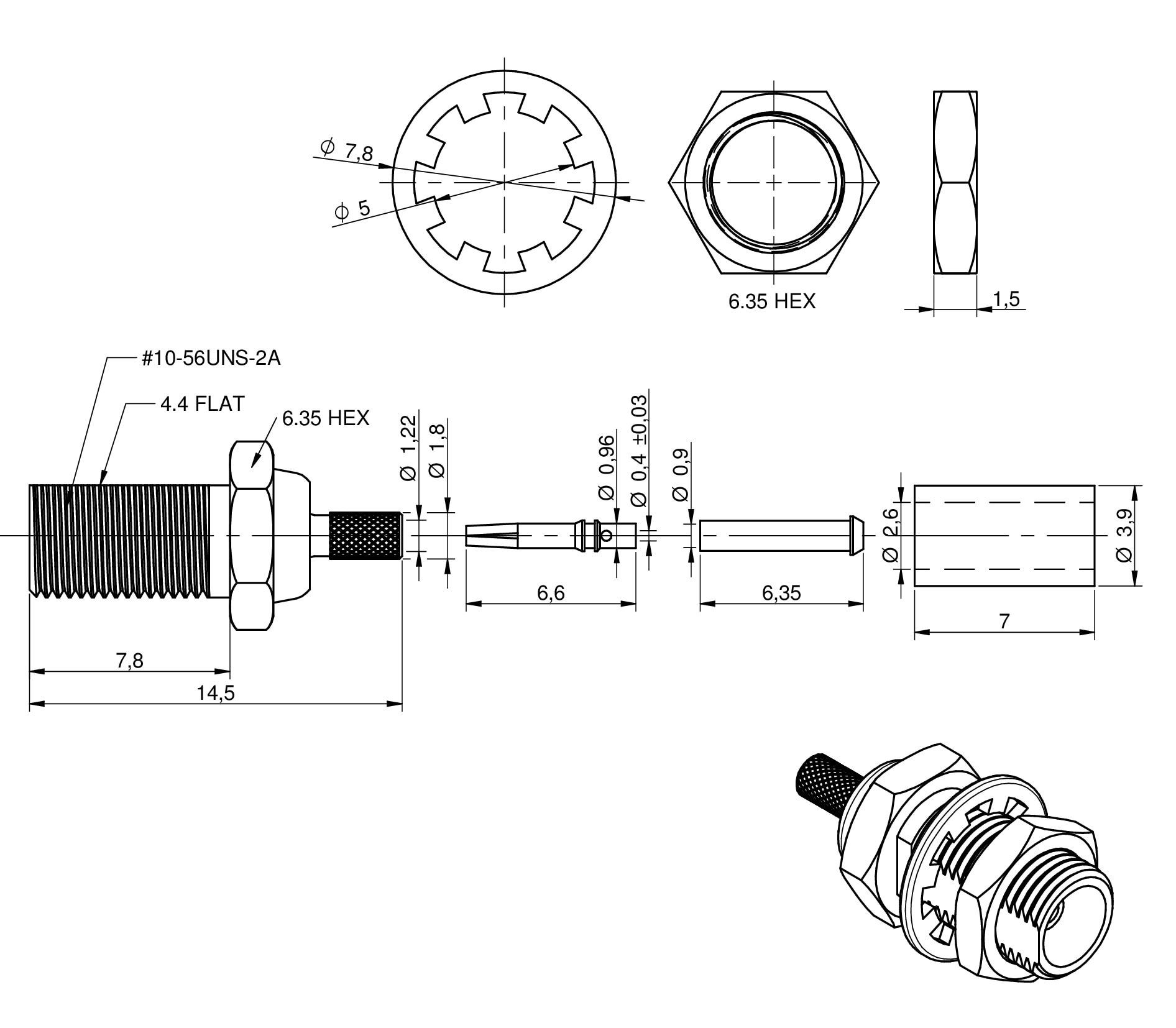

Straight Bulkhead Jack
EXT.Straight Plug
EXT.Right Angle Plug

Characteristics

Interface: IEC 61169-36
Mating Cycle: 500 Cycles
Impedance: 50 Ω
Insulation Resistance: 1000 MΩ (min.)
Withstanding Voltage: 750 Vrms (min.)
Mating: Snap on

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
Electronic consumers and devices

Application Notes

Products

All

Straight Jack

Straight Bulkhead Jack

Straight Plug

Right Angle Plug

Reset all

Filter article data

show articles in 4 product lines

articles in 4 product lines

Reset all

	Order Code	Datasheet	Manual	Downloads	Status	Cable	Cable Type	Mount	Center Contact	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	60626021110420	SPECRG178/RG196, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D Download_3D_60626021110420 (rev1).pdf \| 1.3 MB IGS Download_IGES_60626021110420 (rev1).iges \| 13.7 MB STP Download_STEP_60626021110420 (rev1).stp \| 6.7 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG178/RG196	Cable TypeFlexible	MountCrimp	Center ContactØ 0.4	Design Kit 606001	–Check availability
	60626021110320	SPECRG174/RG316/RG188, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D Download_3D_60626021110320 (rev1).pdf \| 1.3 MB IGS Download_IGES_60626021110320 (rev1).iges \| 13.5 MB STP Download_STEP_60626021110320 (rev1).stp \| 6.6 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG174/RG316/RG188	Cable TypeFlexible	MountCrimp	Center ContactØ 0.6	Design Kit 606001	–Check availability
	60626021110620	SPECRG316 Double Braid, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D Download_3D_60626021110620 (rev1).pdf \| 1.3 MB IGS Download_IGES_60626021110620 (rev1).iges \| 13.5 MB STP Download_STEP_60626021110620 (rev1).stp \| 6.6 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG316 Double Braid	Cable TypeFlexible	MountCrimp	Center ContactØ 0.6	Design Kit 606001	–Check availability
	60629021110820	SPECRG405/.085", Hand-Formable, Solder	Manual	Availability –	Downloads3 files 3D Download_3D_60629021110820 (rev1).pdf \| 189.1 KB IGS Download_IGES_60629021110820 (rev1).iges \| 1.3 MB STP Download_STEP_60629021110820 (rev1).stp \| 219.1 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG405/.085"	Cable TypeHand-Formable	MountSolder	Center ContactØ 0.6	Design Kit 606001	–Check availability
	60626421110420	SPECRG178/RG196, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D Download_3D_60626421110420 (rev1).pdf \| 1.8 MB IGS Download_IGES_60626421110420 (rev1).iges \| 15.4 MB STP Download_STEP_60626421110420 (rev1).stp \| 8.6 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG178/RG196	Cable TypeFlexible	MountCrimp	Center ContactØ 0.4	Design Kit 606001	–Check availability
	60626421110320	SPECRG174/RG316/RG188, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D Download_3D_60626421110320 (rev1).pdf \| 1.7 MB IGS Download_IGES_60626421110320 (rev1).iges \| 12.2 MB STP Download_STEP_60626421110320 (rev1).stp \| 6.9 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG174/RG316/RG188	Cable TypeFlexible	MountCrimp	Center ContactØ 0.6	Design Kit 606001	–Check availability
	60626421110620	SPECRG316 Double Braid, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D Download_3D_60626421110620 (rev1).pdf \| 1.7 MB IGS Download_IGES_60626421110620 (rev1).iges \| 12.2 MB STP Download_STEP_60626421110620 (rev1).stp \| 6.9 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG316 Double Braid	Cable TypeFlexible	MountCrimp	Center ContactØ 0.6	Design Kit 606001	–Check availability
	60629421110820	SPECRG405/.085", Hand-Formable, Solder	Manual	Availability –	Downloads3 files 3D Download_3D_60629421110820 (rev1).pdf \| 762.6 KB IGS Download_IGES_60629421110820 (rev1).iges \| 3.2 MB STP Download_STEP_60629421110820 (rev1).stp \| 2.2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG405/.085"	Cable TypeHand-Formable	MountSolder	Center ContactØ 0.6	Design Kit 606001	–Check availability
	60646031210420	SPECRG178/RG196, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D Download_3D_60646031210420 (rev1).pdf \| 2.5 MB IGS Download_IGES_60646031210420 (rev1).iges \| 20.5 MB STP Download_STEP_60646031210420 (rev1).stp \| 31.2 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG178/RG196	Cable TypeFlexible	MountCrimp	Center ContactØ 0.4	Design Kit 606001	–Check availability
	60646031210320	SPECRG174/RG316/RG188, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D Download_3D_60646031210320 (rev1).pdf \| 2.9 MB IGS Download_IGES60646031210320 (rev1).iges \| 24.7 MB STP Download_STEP_60646031210320 (rev1).stp \| 44.4 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG174/RG316/RG188	Cable TypeFlexible	MountCrimp	Center ContactØ 0.6	Design Kit 606001	–Check availability
	60646031210620	SPECRG316 Double Braid, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D Download_3D_60646031210620 (rev1).pdf \| 2.9 MB IGS Download_IGES_60646031210620 (rev1).iges \| 24.7 MB STP Download_STEP_60646031210620 (rev1).stp \| 44.4 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG316 Double Braid	Cable TypeFlexible	MountCrimp	Center ContactØ 0.6	Design Kit 606001	–Check availability
	60636031210420	SPECRG178/RG196, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D Download_3D_60636031210420 (rev1).pdf \| 2.2 MB IGS Download_IGES_60636031210420 (rev1).iges \| 20.3 MB STP Download_STEP_60636031210420 (rev1).stp \| 36.9 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG178/RG196	Cable TypeFlexible	MountCrimp	–	Design Kit 606001	–Check availability
	60636031210320	SPECRG174/RG316/RG188, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D Download_3D_60636031210320 (rev1).pdf \| 2.3 MB IGS Download_IGES_60636031210320 (rev1).iges \| 20.3 MB STP Download_STEP_60636031210320 (rev1).stp \| 36.8 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG174/RG316/RG188	Cable TypeFlexible	MountCrimp	–	Design Kit 606001 630690	–Check availability
	60636031210620	SPECRG316 Double Braid, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D Download_3D_60636031210620 (rev1).pdf \| 2.3 MB IGS Download_IGES_60636031210620 (rev1).iges \| 20.3 MB STP Download_STEP_60636031210620 (rev1).stp \| 36.8 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG316 Double Braid	Cable TypeFlexible	MountCrimp	–	Design Kit 606001	–Check availability
	60639031210820	SPECRG405/.085", Hand-Formable, Solder	Manual	Availability –	Downloads3 files 3D Download_3D_60639031210820 (rev1).pdf \| 374.5 KB IGS Download_IGES_60639031210820 (rev1).iges \| 3.5 MB STP Download_STEP_60639031210820 (rev1).stp \| 1.9 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG405/.085"	Cable TypeHand-Formable	MountSolder	–	Design Kit 606001	–Check availability
	60649031210820	SPECRG405/.085", Hand-Formable, Solder	Manual	Availability –	Downloads3 files 3D Download_3D_60649031210820 (rev1).pdf \| 269.4 KB IGS Download_IGES_60649031210820 (rev1).iges \| 1.1 MB STP Download_STEP_60649031210820 (rev1).stp \| 570.1 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	CableRG405/.085"	Cable TypeHand-Formable	MountSolder	Center ContactØ 0.6	Design Kit 606001	–Check availability
	60646030212120	SPEC1.13, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D 3D_WR-SMA_60646030212120 (rev1).pdf \| 383.5 KB IGS IGES_WR-SMA_60646030212120 (rev1).iges \| 1.3 MB STP STP_WR-SMA_60646030212120 (rev1).stp \| 185.9 KB	Status NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years. iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable1.13	Cable TypeFlexible	MountCrimp	Center ContactØ 0.4	Design Kit –	–Check availability
	60646030212220	SPEC1.32, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D 3D_WR-SMA_60646030212220 (rev1).pdf \| 389.4 KB IGS IGES_WR-SMA_60646030212220 (rev1).iges \| 1.3 MB STP STP_WR-SMA_60646030212220 (rev1).stp \| 186.7 KB	Status NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years. iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable1.32	Cable TypeFlexible	MountCrimp	Center ContactØ 0.4	Design Kit –	–Check availability
	60646030212320	SPEC1.37, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D 3D_WR-SMA_60646030212320 (rev1).pdf \| 390 KB IGS IGES_WR-SMA_60646030212320 (rev1).iges \| 1.3 MB STP STP_WR-SMA_60646030212320 (rev1).stp \| 186.8 KB	Status NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years. iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable1.37	Cable TypeFlexible	MountCrimp	Center ContactØ 0.4	Design Kit –	–Check availability
	60636030212120	SPEC1.13, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D 3D_WR-SMA_60636030212120 (rev1).pdf \| 479.4 KB IGS IGES_WR-SMA_60636030212120 (rev1).iges \| 3.6 MB STP STP_WR-SMA_60636030212120 (rev1).stp \| 591.5 KB	Status NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years. iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable1.13	Cable TypeFlexible	MountCrimp	–	Design Kit –	–Check availability
	60636030212220	SPEC1.32, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D 3D_WR-SMA_60636030212220 (rev1).pdf \| 468.1 KB IGS IGES_WR-SMA_60636030212220 (rev1).iges \| 3.6 MB STP STP_WR-SMA_60636030212220 (rev1).stp \| 584.5 KB	Status NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years. iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable1.32	Cable TypeFlexible	MountCrimp	–	Design Kit –	–Check availability
	60636030212320	SPEC1.37, Flexible, Crimp	Manual	Availability –	Downloads3 files 3D 3D_WR-SMA_60636030212320 (rev1).pdf \| 505.1 KB IGS IGES_WR-SMA_60636030212320 (rev1).iges \| 3.7 MB STP STP_WR-SMA_60636030212320 (rev1).stp \| 596.9 KB	Status NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years. iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable1.37	Cable TypeFlexible	MountCrimp	–	Design Kit –	–Check availability
