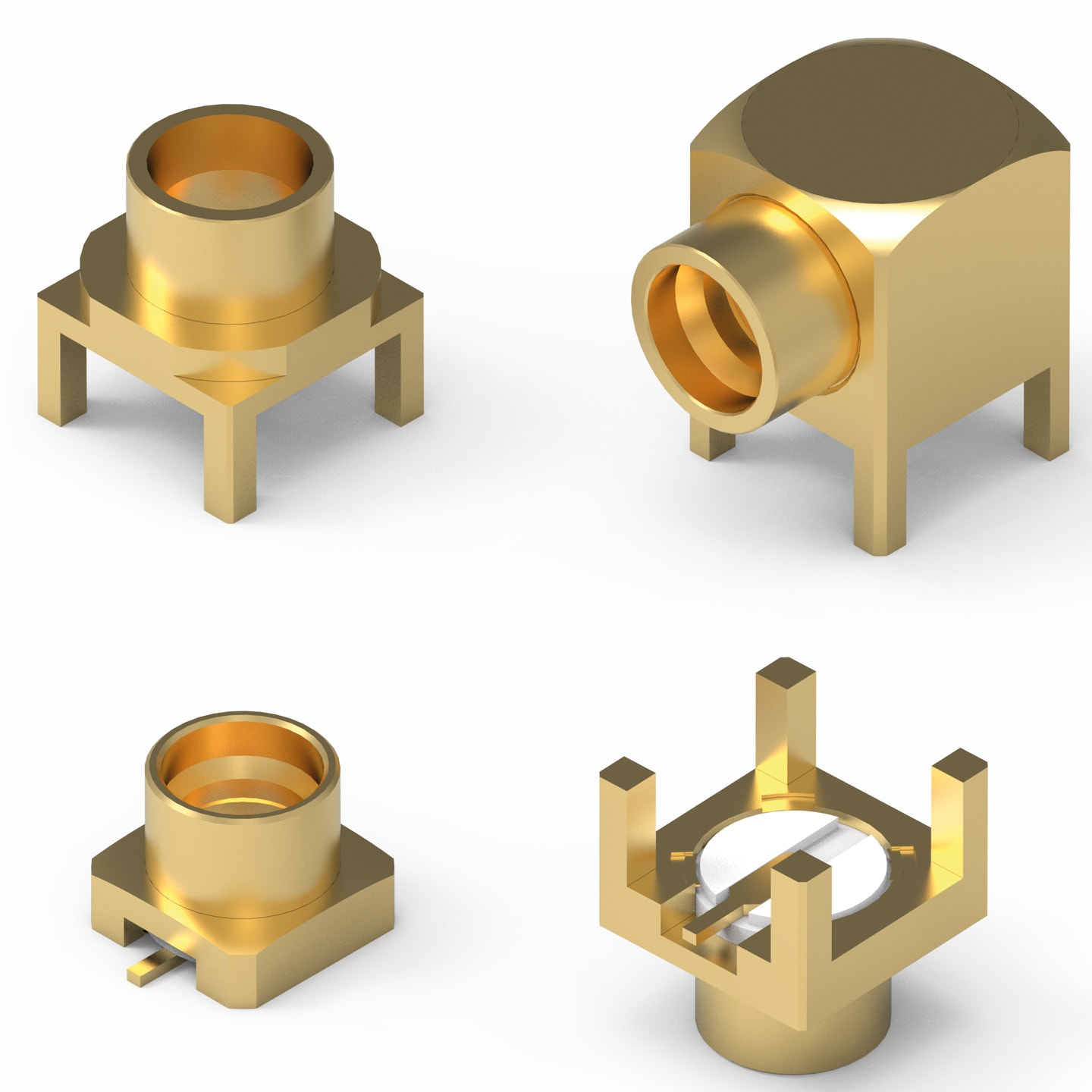

Size	Dimensions	Mount
Straight Plug		-
Right Angle Plug		THT

Characteristics

Interface: MIL-STD-348
Mating Cycle: 500 Cycles(Limited Detent), 1000 Cycles(Smooth Bore)
Impedance: 50Ω
Insulation Resistance: 5000MΩ(min.)
Withstanding Voltage: 500Vrms(min.)
Mating: Snap on

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
Electronic consumers and device

Application Notes

Products

All

Straight Plug

Right Angle Plug

Order Code	Datasheet	Downloads	Status	Retention Type	f	Mount	Center Contact	Operating Temperature	Design Kit

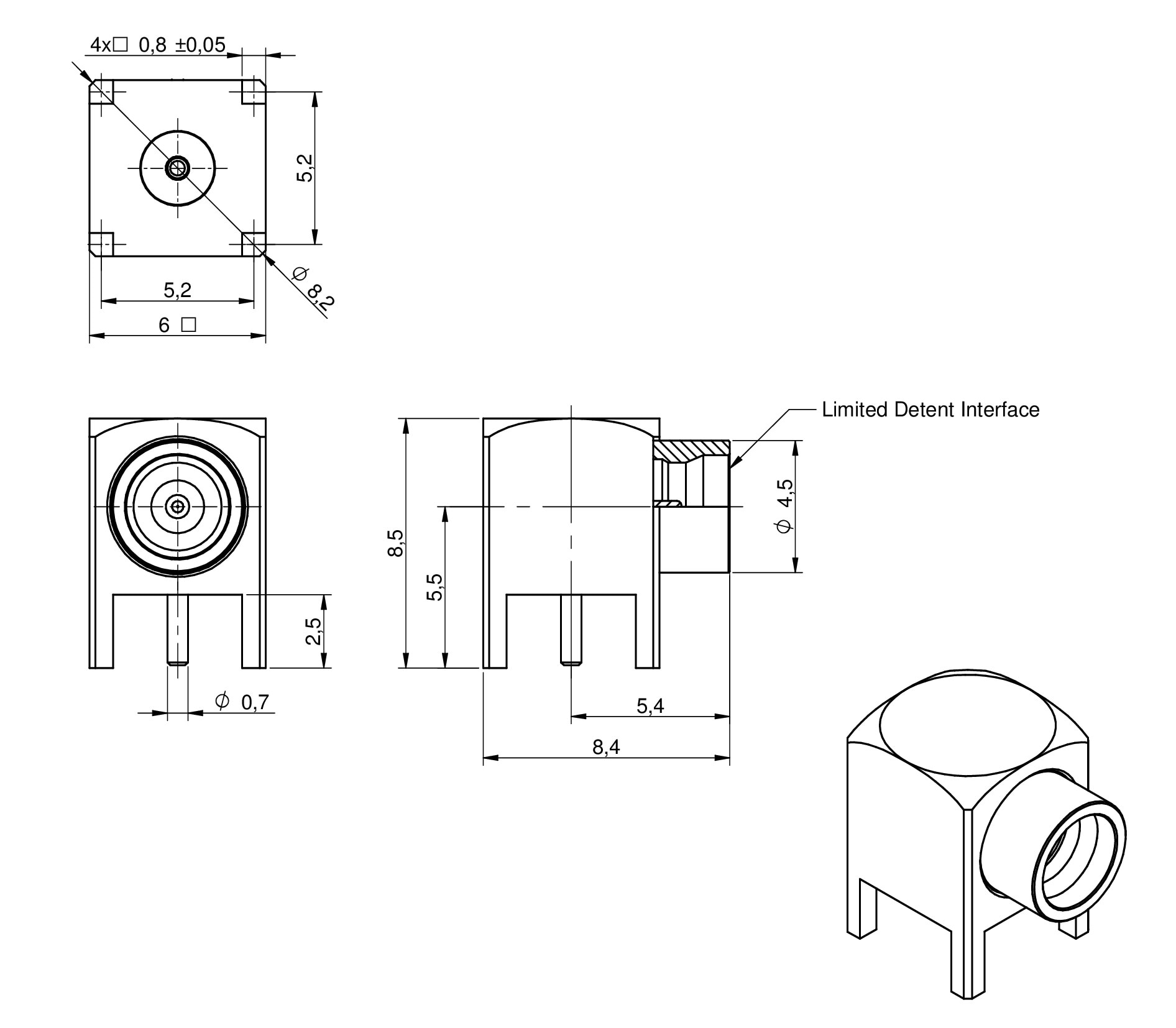

60123002122501	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-SMP (rev22a).IntLib \| 243.5 KB CDS Cadence_WR-SMP (rev20a).zip \| 1.8 MB EAG Eagle_WR-SMP (rev25a).lbr \| 92.5 KB CAD files ZIP 3D 3D_60123002122501 (rev1).pdf \| 1.2 MB IGS IGES_60123002122501 (rev1).iges \| 1.7 MB STP STEP_60123002122501 (rev1).stp \| 373.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Limited Detent	DC~12 GHz	THT	Ø 0.7	-65 °C up to +165 °C	601001 612690
60124002122502	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-SMP (rev22a).IntLib \| 243.5 KB CDS Cadence_WR-SMP (rev20a).zip \| 1.8 MB EAG Eagle_WR-SMP (rev25a).lbr \| 92.5 KB CAD files ZIP 3D 3D_60124002122502 (rev1).pdf \| 689.5 KB IGS IGES_60124002122502 (rev1).iges \| 364.7 KB STP STEP_60124002122502 (rev1).stp \| 75.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Limited Detent	DC~12 GHz	THT	Ø 0.7	-65 °C up to +165 °C	601001 612690
60124102122403	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-SMP (rev22a).IntLib \| 243.5 KB CDS Cadence_WR-SMP (rev20a).zip \| 1.8 MB EAG Eagle_WR-SMP (rev25a).lbr \| 92.5 KB CAD files ZIP 3D 3D_60124102122403 (rev1).pdf \| 160 KB IGS IGES_60124102122403 (rev1).iges \| 696.3 KB STP STEP_60124102122403 (rev1).stp \| 150.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Limited Detent	DC~12 GHz	SMT	0.4	-65 °C up to +165 °C	601001
60124602122404	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-SMP (rev22a).IntLib \| 243.5 KB CDS Cadence_WR-SMP (rev20a).zip \| 1.8 MB EAG Eagle_WR-SMP (rev25a).lbr \| 92.5 KB CAD files ZIP 3D 3D_60124602122404 (rev1).pdf \| 134.3 KB IGS IGES_60124602122404 (rev1).iges \| 742.6 KB STP STEP_60124602122404 (rev1).stp \| 166.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Limited Detent	DC~12 GHz	THR	0.4	-65 °C up to +165 °C	601001

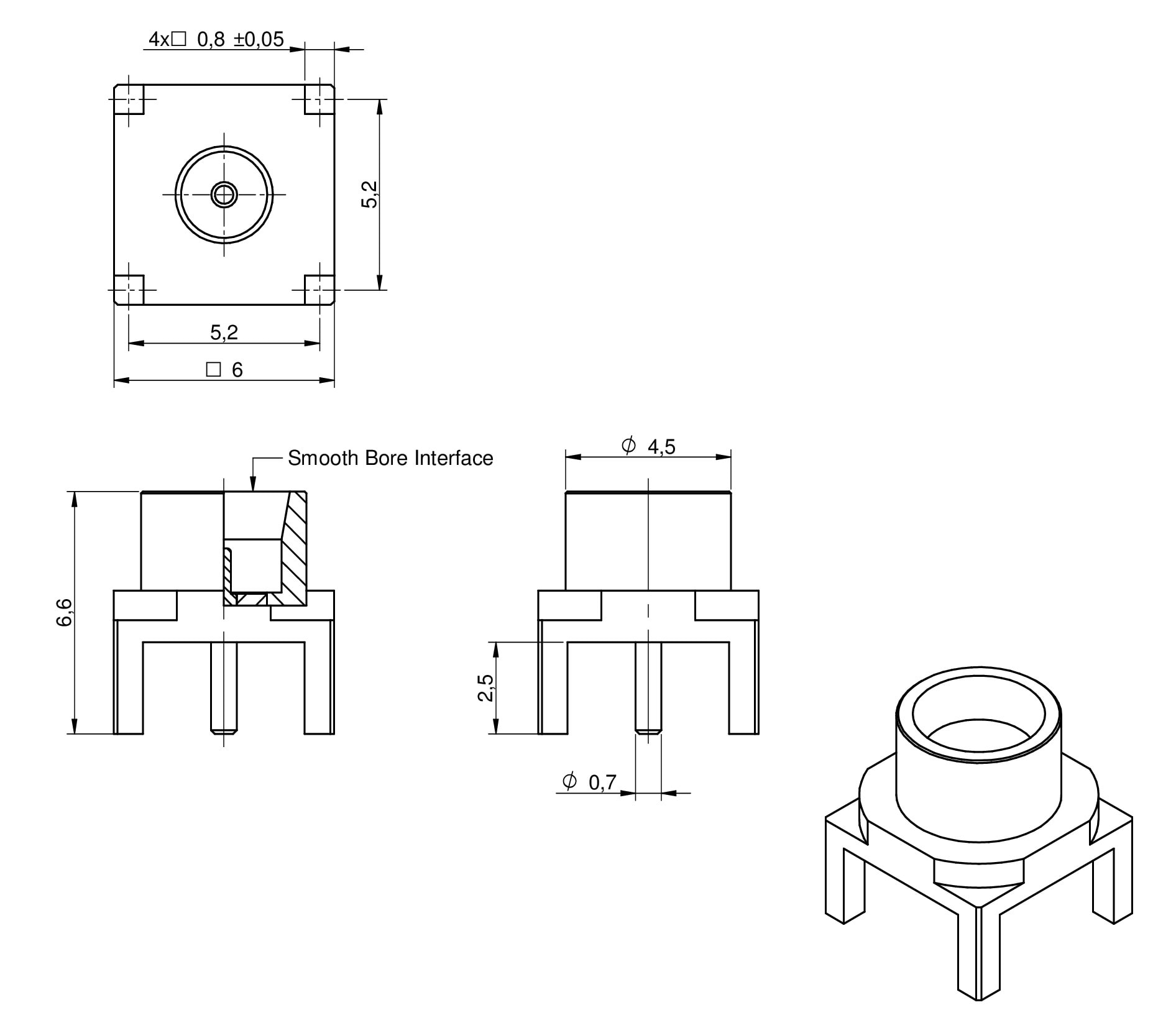

60114002122502	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-SMP (rev22a).IntLib \| 243.5 KB CDS Cadence_WR-SMP (rev20a).zip \| 1.8 MB EAG Eagle_WR-SMP (rev25a).lbr \| 92.5 KB CAD files ZIP 3D 3D_60114002122502 (rev1).pdf \| 127.2 KB IGS IGES_60114002122502 (rev1).iges \| 338.4 KB STP STEP_60114002122502 (rev1).stp \| 72.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Smooth Bore	DC~12 GHz	THT	Ø 0.7	-65 °C up to +165 °C	601001
60114102122403	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-SMP (rev22a).IntLib \| 243.5 KB CDS Cadence_WR-SMP (rev20a).zip \| 1.8 MB EAG Eagle_WR-SMP (rev25a).lbr \| 92.5 KB CAD files ZIP 3D 3D_60114102122403 (rev1).pdf \| 150.1 KB IGS IGES_60114102122403 (rev1).iges \| 673.5 KB STP STEP_60114102122403 (rev1).stp \| 147.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Smooth Bore	DC~12 GHz	SMT	0.4	-65 °C up to +165 °C	601001
60114602122404	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-SMP (rev22a).IntLib \| 243.5 KB CDS Cadence_WR-SMP (rev20a).zip \| 1.8 MB EAG Eagle_WR-SMP (rev25a).lbr \| 92.5 KB CAD files ZIP 3D 3D_60114602122404 (rev1).pdf \| 117 KB IGS IGES_60114602122404 (rev1).iges \| 708.4 KB STP STEP_60114602122404 (rev1).stp \| 162.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Smooth Bore	DC~12 GHz	THR	0.4	-65 °C up to +165 °C	601001
