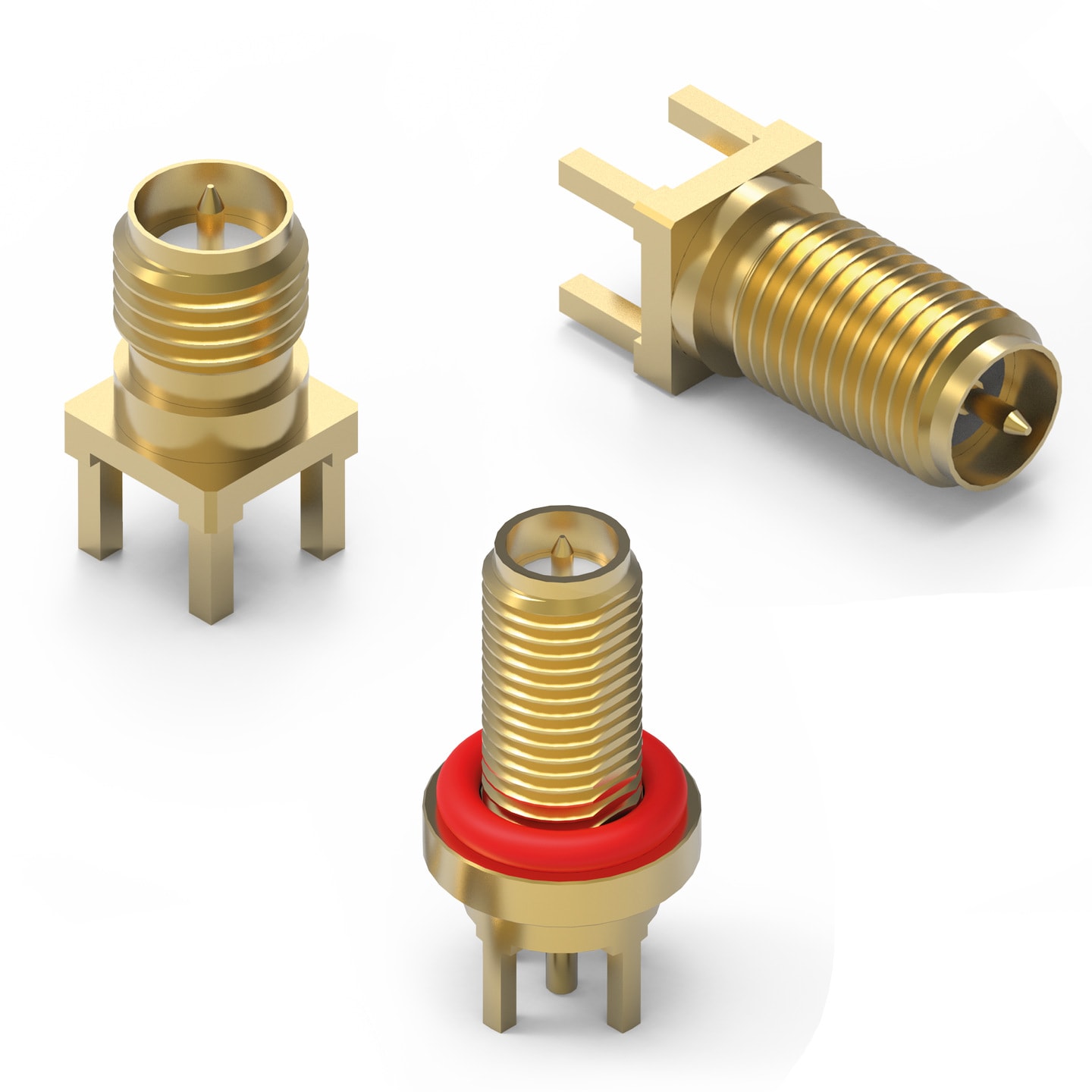

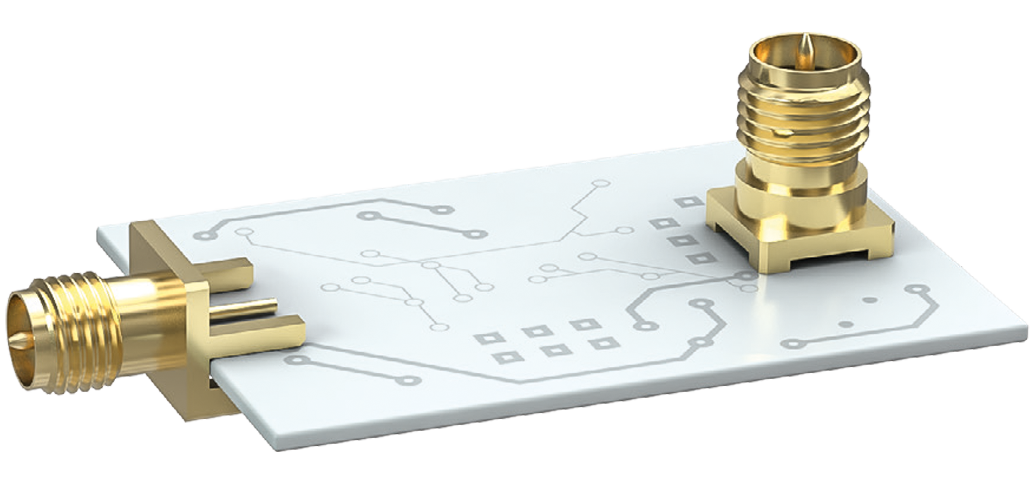

WR-RPSMA PCB THT Connectors

Size	Dimensions	Mount
Straight Jack		THT
Right Angle Jack		THT

Characteristics

Interface: MIL-STD-348
Mating Cycle: 500 Cycles
Impedance: 50 Ω
Insulation Resistance: 5000 MΩ (min.)
Withstanding Voltage: 1000 Vrms (min.)
Ingress Protection: None / IP67
Mating: Screw (Recommended by torque wrench tool)

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
Electronic device
Outdoor or humidity environment

Application Notes

Products

All

Straight Jack

Right Angle Jack

Filter article data

show articles in 2 product lines

articles in 2 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Class	Ingress Protection Code	t _min(mm)	t _max(mm)	Mount	Center Contact	Operating Temperature	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	63011002124501	SPECIndustrial, None, –	Availability –	Downloads7 files ALT Altium_WR-RPSMA (rev22a).IntLib \| 701 KB CDS Cadence_WR-RPSMA (rev21a).zip \| 7.1 MB EAG Eagle_WR-RPSMA (rev21a).lbr \| 56.5 KB KIC KiCad_WR-RPSMA (rev26a).zip \| 1.5 MB 3D 3D_63011002124501 (rev1).pdf \| 413.5 KB IGS Download_IGES_63011002124501 (rev1).iges \| 1.3 MB STP Download_STP_63011002124501 (rev1).stp \| 265.7 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	ClassIndustrial	Ingress Protection CodeNone	–	–	MountTHT	Center ContactØ 1.27	Operating Temperature -65 °C up to +165 °C	Design Kit 603301 612690 630690	–Check availability
	63011042124502	SPECIndustrial, None, –	Availability –	Downloads7 files ALT Altium_WR-RPSMA (rev22a).IntLib \| 701 KB CDS Cadence_WR-RPSMA (rev21a).zip \| 7.1 MB EAG Eagle_WR-RPSMA (rev21a).lbr \| 56.5 KB KIC KiCad_WR-RPSMA (rev26a).zip \| 1.5 MB 3D 3D_63011042124502 (rev1).pdf \| 823.6 KB IGS Download_IGES_63011042124502 (rev1).igs \| 3.1 MB STP Download_STP_63011042124502 (rev1).stp \| 1.1 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	ClassIndustrial	Ingress Protection CodeNone	–	Panel Thickness [max.]2.9 mm	MountTHT	Center ContactØ 1.27	Operating Temperature -65 °C up to +165 °C	Design Kit 603301	–Check availability
	63012002124503	SPECIndustrial, None, –	Availability –	Downloads7 files ALT Altium_WR-RPSMA (rev22a).IntLib \| 701 KB CDS Cadence_WR-RPSMA (rev21a).zip \| 7.1 MB EAG Eagle_WR-RPSMA (rev21a).lbr \| 56.5 KB KIC KiCad_WR-RPSMA (rev26a).zip \| 1.5 MB 3D 3D_63012002124503 (rev1).pdf \| 355.1 KB IGS Download_IGES_63012002124503 (rev1).iges \| 738.4 KB STP Download_STP_63012002124503 (rev1).stp \| 164.1 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	ClassIndustrial	Ingress Protection CodeNone	–	–	MountTHT	Center ContactØ 1.27	Operating Temperature -65 °C up to +165 °C	Design Kit 603301 630690	–Check availability
	63012042124504	SPECIndustrial, None, 1.6 mm	Availability –	Downloads7 files ALT Altium_WR-RPSMA (rev22a).IntLib \| 701 KB CDS Cadence_WR-RPSMA (rev21a).zip \| 7.1 MB EAG Eagle_WR-RPSMA (rev21a).lbr \| 56.5 KB KIC KiCad_WR-RPSMA (rev26a).zip \| 1.5 MB 3D 3D_63012042124504 (rev1).pdf \| 701.5 KB IGS Download_IGES_63012042124504 (rev1).iges \| 1.8 MB STP Download_STP_63012042124504 (rev1).stp \| 427.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	ClassIndustrial	Ingress Protection CodeNone	Panel Thickness [min.]1.6 mm	Panel Thickness [max.]2.4 mm	MountTHT	Center ContactØ 1.27	Operating Temperature -65 °C up to +165 °C	Design Kit 603301	–Check availability
	63011052121510	SPECIndustrial, IP67, –	Availability –	Downloads7 files ALT Altium_WR-RPSMA (rev22a).IntLib \| 701 KB CDS Cadence_WR-RPSMA (rev21a).zip \| 7.1 MB EAG Eagle_WR-RPSMA (rev21a).lbr \| 56.5 KB KIC KiCad_WR-RPSMA (rev26a).zip \| 1.5 MB 3D 63011052121510_3D (rev1).pdf \| 1.2 MB IGS IGES_63011052121510 (rev1).iges \| 6.4 MB STP STP_63011052121510 (rev1).stp \| 1.9 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	ClassIndustrial	Ingress Protection CodeIP67	–	Panel Thickness [max.]2.8 mm	MountTHT	Center ContactØ 1.27	Operating Temperature -65 °C up to +165 °C	Design Kit 603301	–Check availability
	63012052121509	SPECIndustrial, IP67, –	Availability –	Downloads6 files ALT Altium_WR-RPSMA (rev22a).IntLib \| 701 KB CDS Cadence_WR-RPSMA (rev21a).zip \| 7.1 MB EAG Eagle_WR-RPSMA (rev21a).lbr \| 56.5 KB KIC KiCad_WR-RPSMA (rev26a).zip \| 1.5 MB IGS IGES_63012052121509 (rev1).iges \| 1.5 MB STP STP_63012052121509 (rev1).stp \| 1 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	ClassIndustrial	Ingress Protection CodeIP67	–	Panel Thickness [max.]4.4 mm	MountTHT	Center ContactØ 1.27	Operating Temperature -65 °C up to +165 °C	Design Kit 603301 612690	–Check availability

Design Kits

Design Kit Connectors WR-SMA / WR-RPSMA

Use with

Plastic Caps for SMA Jack Connector Cover

Mates with

RP SMA Combinations

WR-ADPT RP SMA to SMA

WR-RPSMA Cable Connectors

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit Connectors WR-SMA / WR-RPSMA

Design Kit Coaxial Solutions
