| Size | Dimensions | |
|---|---|---|
| Straight Jack |
Characteristics
- Interface: MIL-STD-348
- Mating Cycle: 500 Cycles
- Impedance: 50 Ohm
- Plating: Nickel and Gold
- Mating: Screw (Recommended: Torque wrench tool)
- Ingress Protection: IP67
Applications
- Network and communications
- RF Test and Measurement Equipment
- Industrial application
- High power machinery
- Outdoor or humid environment
Application Notes
Products
Straight Jack
| Order Code | Datasheet | Downloads | Status | Ingress Protection Code | f | Mounting Type | Center Contact Type | Center Contact | Operating Temperature | Design Kit | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

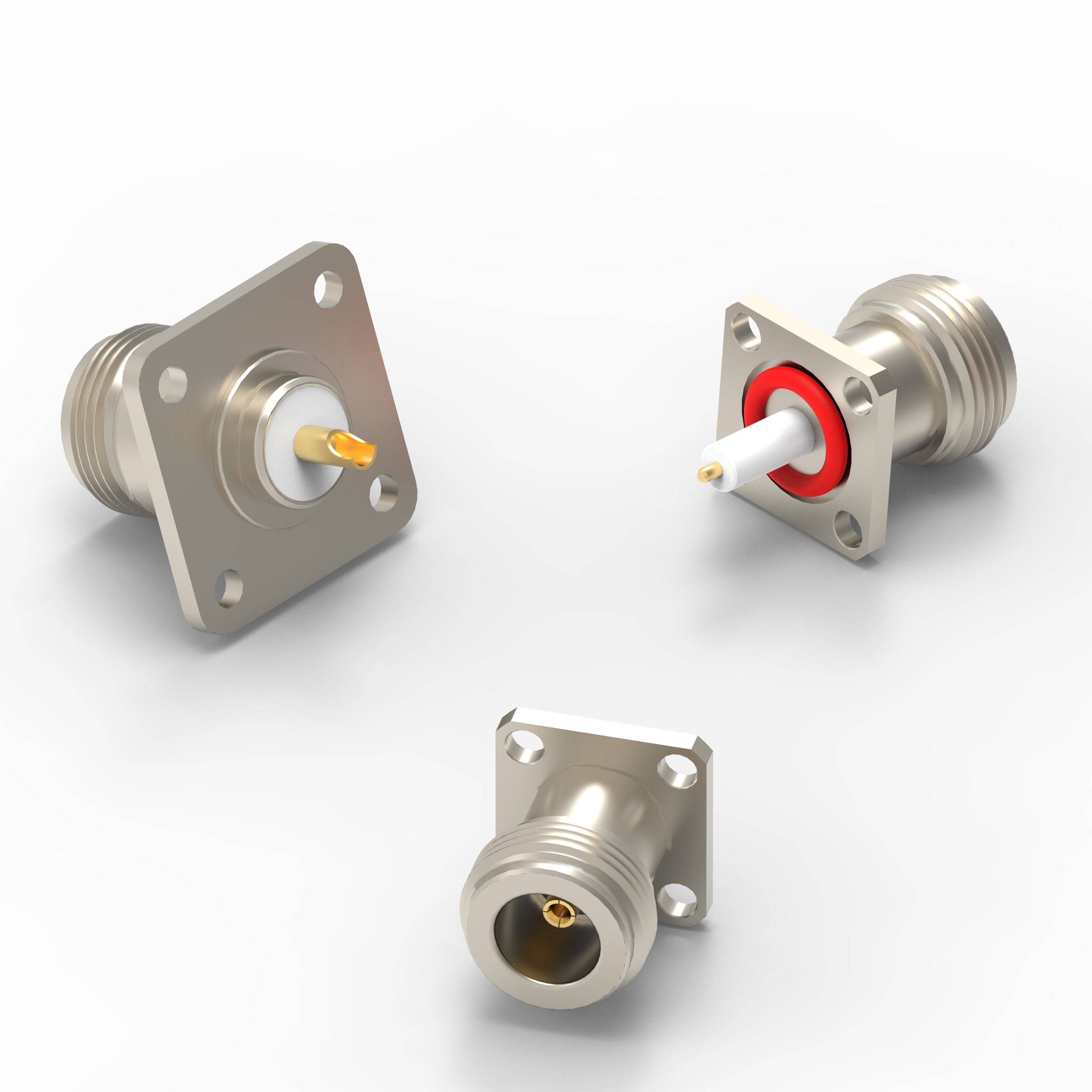

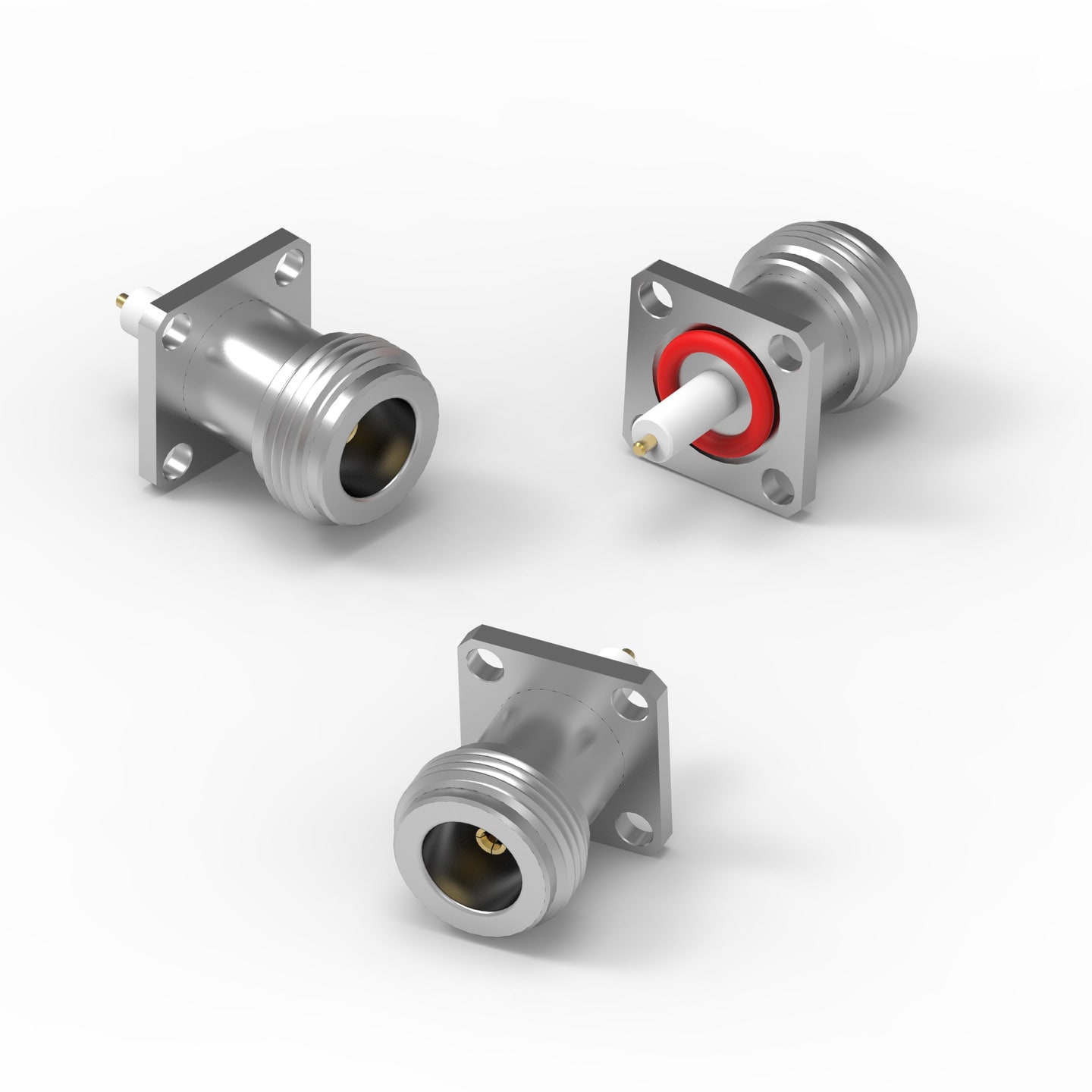

 | 60412422241505 | SPEC | 3 files | Active i| Production is active. Expected lifetime: >10 years. | IP67 | DC~6 GHz | 4-Hole Flange | Round Post | Ø1.27 | -65 °C up to +165 °C | 604001 612690 630690 | |

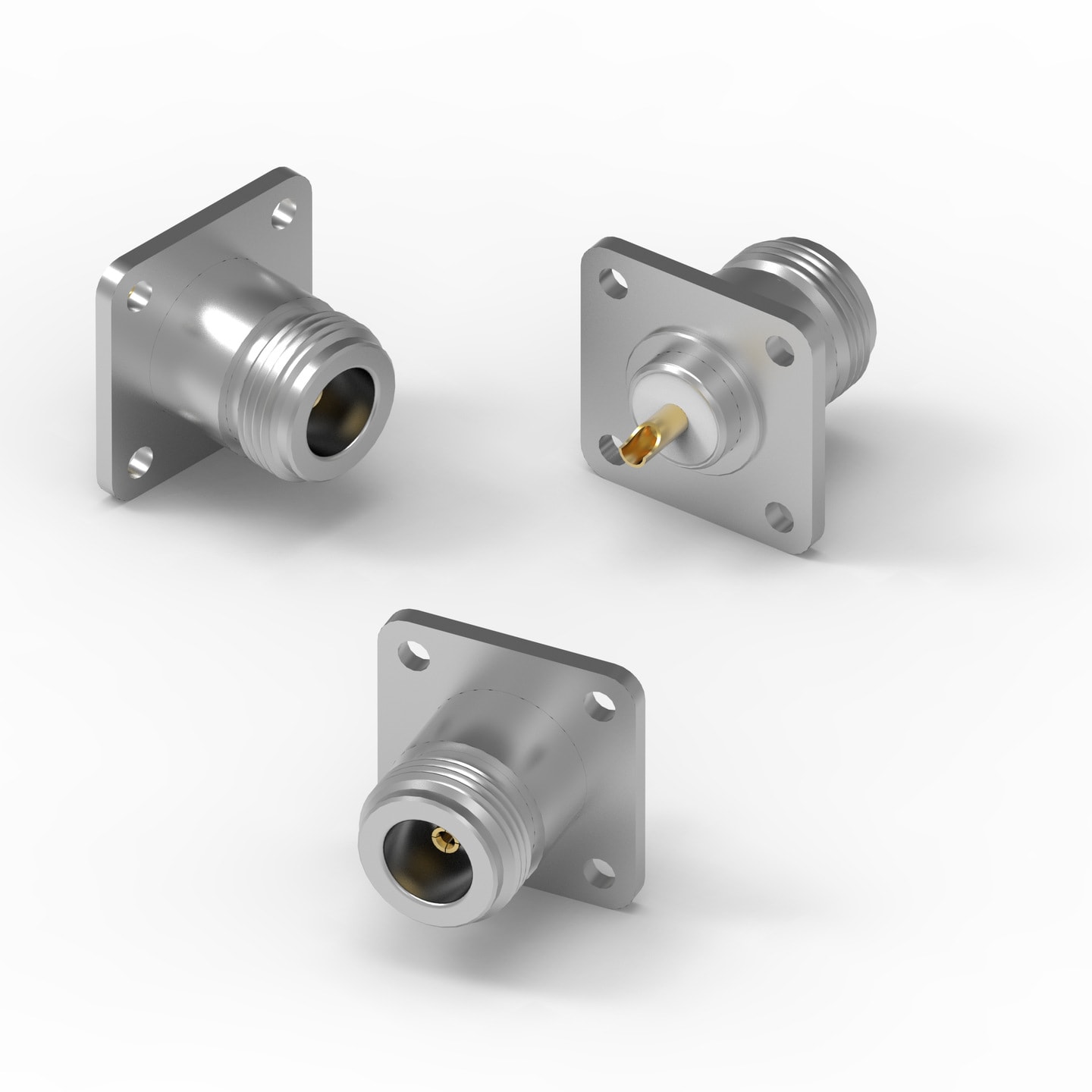

 | 60412522241506 | SPEC | 3 files | Active i| Production is active. Expected lifetime: >10 years. | None | DC~6 GHz | 4-Hole Flange | Solder Cup | Ø3 | -65 °C up to +165 °C | 604001 |
| Samples |
|---|
| Order Code | Datasheet | Downloads | Status | Ingress Protection Code | f | Mounting Type | Center Contact Type | Center Contact | Operating Temperature | Design Kit | Samples |
|---|
Assortments
Articles from this product series can be found in the following assortments:
