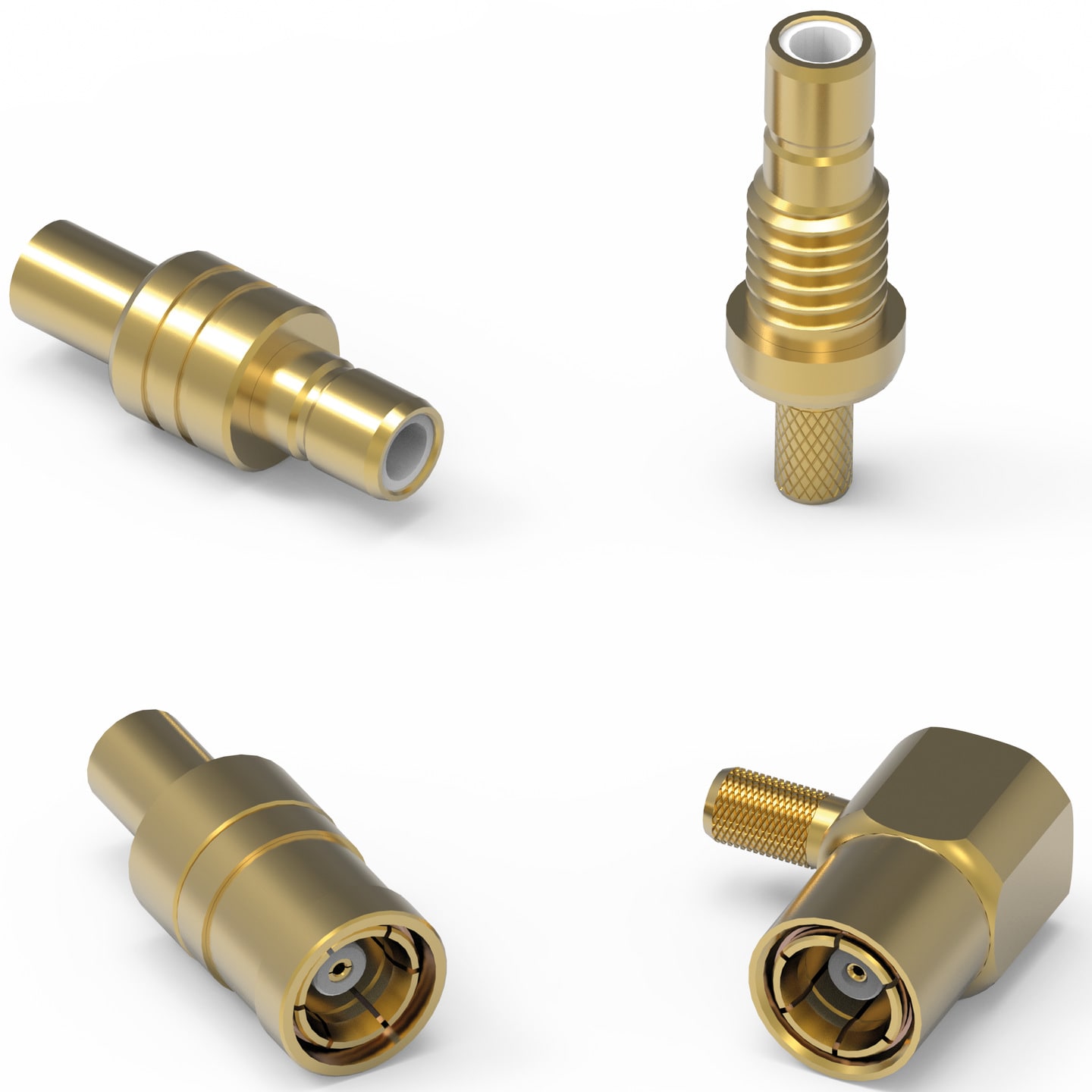

WR-SMB Cable Connectors | Electromechanical Components | Würth Elektronik Product Catalog

WR-SMB Cable Connectors. Interface: MIL-STD-348. Insulation Resistance: 1000M Ω (min.)

Size	Dimensions	Mount
Straight Jack		Crimp
Straight Bulkhead Jack		Crimp
EXT.Straight Plug		Crimp
Right Angle Plug		Crimp

Characteristics

Interface: MIL-STD-348
Mating Cycle: 500 Cycles
Impedance: 50 Ω
Insulation Resistance: 1000 MΩ (min.)
Withstanding Voltage: 750 Vrms (min.)
Mating: Snap on

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
Electronic consumers and device

Application Notes

Products

All

Straight Jack

Straight Bulkhead Jack

Straight Plug

Right Angle Plug

Filter article data

show articles in 4 product lines

articles in 4 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Manual	Downloads	Status	t _min(mm)	Cable	Cable Type	Mount	Center Contact	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	61626021210420	SPEC–, RG178/RG196, Flexible	Manual	Availability –	Downloads3 files 3D 3D_61626021210420 (rev1).pdf \| 226.3 KB IGS IGES_61626021210420 (rev1).iges \| 1.5 MB STP STEP_61626021210420 (rev1).stp \| 607.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	–	CableRG178/RG196	Cable TypeFlexible	MountCrimp	Center ContactØ 0.4	Design Kit 616001	–Check availability
	61626021210320	SPEC–, RG174/RG316/RG188, Flexible	Manual	Availability –	Downloads3 files 3D 3D_61626021210320 (rev1).pdf \| 861.2 KB IGS IGES_61626021210320 (rev1).iges \| 9.4 MB STP STEP_61626021210320 (rev1).stp \| 8.7 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	–	CableRG174/RG316/RG188	Cable TypeFlexible	MountCrimp	Center ContactØ 0.6	Design Kit 616001	–Check availability
	61626021210620	SPEC–, RG316 Double Braid, Flexible	Manual	Availability –	Downloads3 files 3D 3D_61626021210620 (rev1).pdf \| 861.9 KB IGS IGES_61626021210620 (rev1).iges \| 9.4 MB STP STEP_61626021210620 (rev1).stp \| 8.7 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	–	CableRG316 Double Braid	Cable TypeFlexible	MountCrimp	Center ContactØ 0.6	Design Kit 616001	–Check availability
	61626421210420	SPEC2.5 mm, RG178/RG196, Flexible	Manual	Availability –	Downloads3 files 3D 3D_61626421210420 (rev1).pdf \| 401.7 KB IGS IGES_61626421210420 (rev1).iges \| 2.8 MB STP STEP_61626421210420 (rev1).stp \| 1.8 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Panel Thickness [min.]2.5 mm	CableRG178/RG196	Cable TypeFlexible	MountCrimp	Center ContactØ 0.4	Design Kit 616001	–Check availability
	61626421210320	SPEC2.5 mm, RG174/RG316/RG188, Flexible	Manual	Availability –	Downloads3 files 3D 3D_61626421210320 (rev1).pdf \| 1.4 MB IGS IGES_61626421210320 (rev1).iges \| 10.6 MB STP STP_61626421210320 (rev1).stp \| 9.8 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Panel Thickness [min.]2.5 mm	CableRG174/RG316/RG188	Cable TypeFlexible	MountCrimp	Center ContactØ 0.6	Design Kit 616001	–Check availability
	61626421210620	SPEC2.5 mm, RG316 Double Braid, Flexible	Manual	Availability –	Downloads3 files 3D 3D_61626421210620 (rev1).pdf \| 1.4 MB IGS IGES_61626421210620 (rev1).iges \| 10.6 MB STP STEP_61626421210620 (rev1).stp \| 9.9 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Panel Thickness [min.]2.5 mm	CableRG316 Double Braid	Cable TypeFlexible	MountCrimp	Center ContactØ 0.6	Design Kit 616001	–Check availability
	61646021110420	SPEC–, RG178/RG196, Flexible	Manual	Availability –	Downloads3 files 3D 3D_61646021110420 (rev1).pdf \| 229 KB IGS IGES_61646021110420 (rev1).iges \| 2.3 MB STP STEP_61646021110420 (rev1).stp \| 861.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	–	CableRG178/RG196	Cable TypeFlexible	MountCrimp	Center ContactØ 0.4	Design Kit 616001	–Check availability
	61646021110320	SPEC–, RG174/RG316/RG188, Flexible	Manual	Availability –	Downloads3 files 3D 3D_61646021110320 (rev1).pdf \| 229 KB IGS IGES_61646021110320 (rev1).iges \| 2.3 MB STP Step_61646021110320 (rev1).stp \| 861.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	–	CableRG174/RG316/RG188	Cable TypeFlexible	MountCrimp	Center ContactØ 0.6	Design Kit 616001	–Check availability
	61646021110620	SPEC–, RG316 Double Braid, Flexible	Manual	Availability –	Downloads3 files 3D 3D_61646021110620 (rev1).pdf \| 1.3 MB IGS IGES_61646021110620 (rev1).iges \| 11.1 MB STP STEP_61646021110620 (rev1).stp \| 9.6 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	–	CableRG316 Double Braid	Cable TypeFlexible	MountCrimp	Center ContactØ 0.6	Design Kit 616001	–Check availability
	61636021110420	SPEC–, RG178/RG196, Flexible	Manual	Availability –	Downloads3 files 3D 3D_61636021110420 (rev1).pdf \| 2.2 MB IGS IGES_61636021110420 (rev1).iges \| 19.2 MB STP STEP_61636021110420 (rev1).stp \| 25.5 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	–	CableRG178/RG196	Cable TypeFlexible	MountCrimp	–	Design Kit 616001	–Check availability
	61636021110320	SPEC–, RG174/RG316/RG188, Flexible	Manual	Availability –	Downloads3 files 3D 3D_61636021110320 (rev1).pdf \| 2.2 MB IGS IGES_61636021110320 (rev1).iges \| 19.2 MB STP STEP_61636021110320 (rev1).stp \| 25.3 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	–	CableRG174/RG316/RG188	Cable TypeFlexible	MountCrimp	–	Design Kit 616001	–Check availability
	61636021110620	SPEC–, RG316 Double Braid, Flexible	Manual	Availability –	Downloads3 files 3D 3D_61636021110620 (rev1).pdf \| 2.2 MB IGS IGES_61636021110620 (rev1).iges \| 19.2 MB STP STEP_61636021110620 (rev1).stp \| 25.3 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	–	CableRG316 Double Braid	Cable TypeFlexible	MountCrimp	–	Design Kit 616001	–Check availability
	61646020112120	SPEC–, 1.13, Flexible	Manual	Availability –	Downloads3 files 3D 3D_WR-SMA_61646020112120 (rev1).pdf \| 482.6 KB IGS IGES_WR-SMA_61646020112120 (rev1).iges \| 3.1 MB STP STP_WR-SMA_61646020112120 (rev1).stp \| 548.1 KB	Status NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years. iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.	–	Cable1.13	Cable TypeFlexible	MountCrimp	Center ContactØ 0.4	Design Kit –	–Check availability
	61646020112220	SPEC–, 1.32, Flexible	Manual	Availability –	Downloads3 files 3D 3D_WR-SMA_61646020112220 (rev1).pdf \| 483 KB IGS IGES_WR-SMA_61646020112220 (rev1).iges \| 3.1 MB STP STP_WR-SMA_61646020112220 (rev1).stp \| 540 KB	Status NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years. iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.	–	Cable1.32	Cable TypeFlexible	MountCrimp	Center ContactØ 0.4	Design Kit –	–Check availability
	61646020112320	SPEC–, 1.37, Flexible	Manual	Availability –	Downloads3 files 3D 3D_WR-SMA_61646020112320 (rev1).pdf \| 488.9 KB IGS IGES_WR-SMA_61646020112320 (rev1).iges \| 3.2 MB STP STP_WR-SMA_61646020112320 (rev1).stp \| 551.4 KB	Status NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years. iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.	–	Cable1.37	Cable TypeFlexible	MountCrimp	Center ContactØ 0.4	Design Kit –	–Check availability

Use with

WR-ToolRF Crimping Tool for RF Cable Connector

Mates with

WR-SMB PCB End Launch

WR-SMB PCB THT/SMT

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-SMB PCB & Cable Connectors
