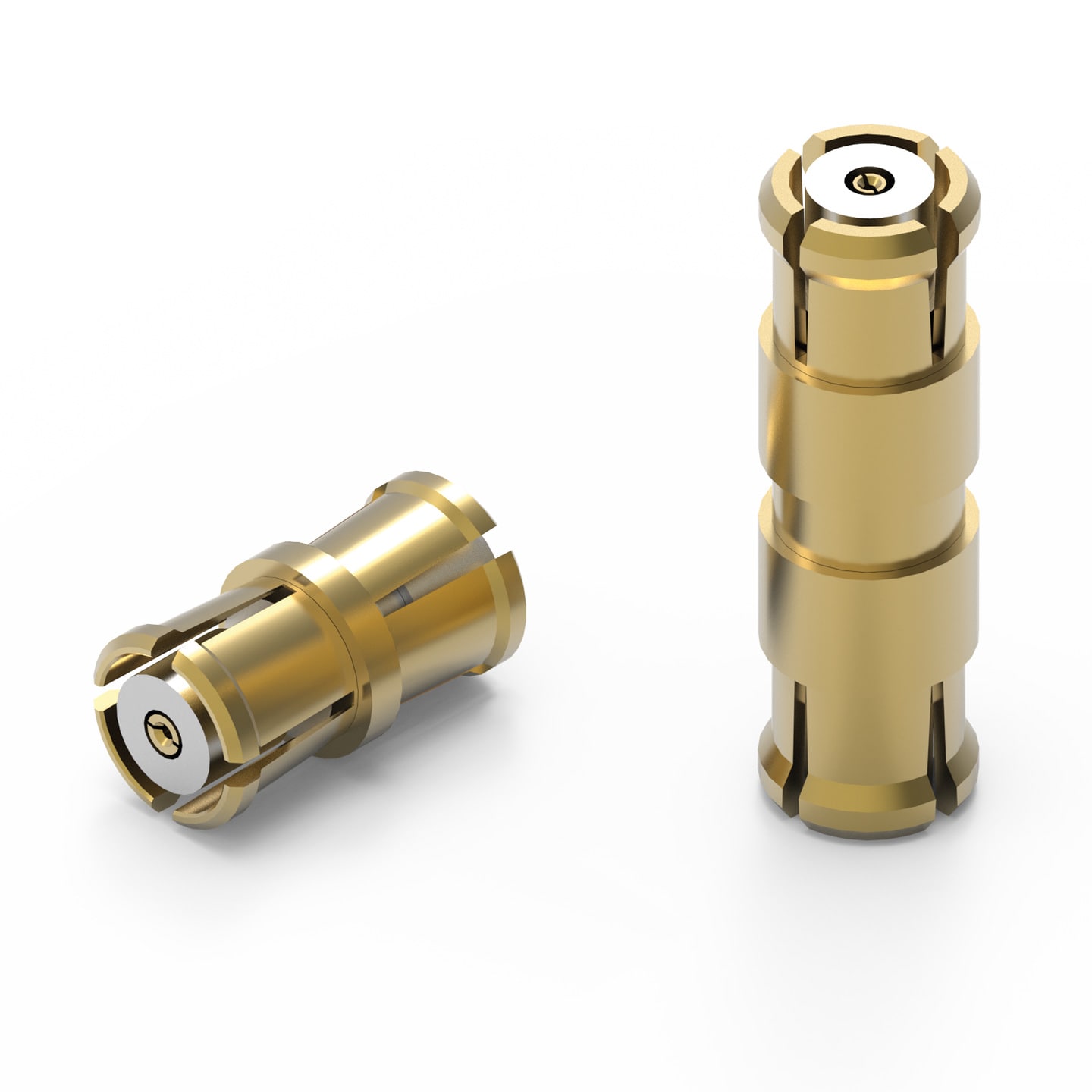

WR-ADPT SMP Bullet Adaptors

WR-ADPT SMP Bullet Adaptors
SizeDimen­sions
SMP Jack I SMP Jack 6.45mm
SMP Jack I SMP Jack 11.4mm

Characteristics

  • Interface: MIL-STD-348
  • Mating Cycle Full Detent: 100 Cycles
  • Mating Cycle Limited Detent: 500 Cycles
  • Mating Cycle Smooth Bore: 1000 Cycles
  • Impedance: 50Ω
  • Plating: Gold

Applications

  • Network and communications
  • RF Test and measurement equipment
  • Industrial applications
  • Outdoor or humidity environment

Products

All
SMP Jack I SMP Jack 6.45mm
SMP Jack I SMP Jack 11.4mm
Reset all
Filter article data
Filter by
Delete all
 show  article in 2 product lines
 article in 2 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Connector Type 1
Gender 1
Connector Type 2
Gender 2
f
Orientation Type
Operating Temperature
Suitable for
Design Kit
Samples
WR-ADPT SMP Bullet Adaptors
64401101121002
SMP, Jack, SMP
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Connector Type 1SMP
Gender 1Jack
Connector Type 2SMP
Gender 2Jack
Frequency RangeDC~18 GHz
Orientation TypeStraight
Operating Temperature -65 °C up to +165 °C
Suitable for
WR-ToolRF SMP Extraction Tool
Design Kit
601001630690
WR-ADPT SMP Bullet Adaptors
64401101121003
SMP, Jack, SMP
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Connector Type 1SMP
Gender 1Jack
Connector Type 2SMP
Gender 2Jack
Frequency RangeDC~18 GHz
Orientation TypeStraight
Operating Temperature -65 °C up to +165 °C
Suitable for
WR-ToolRF SMP Extraction Tool
Design Kit
601001

Use with

WR-ToolRF SMP Extraction Tool

Mates with

WR-SMP PCB THT/ THR/ SMT Connectors
WR-SMP PCB End Launch

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-SMP PCB & Cable Connectors
Design Kit Coaxial Solutions
