WR-SMP PCB End Launch

WR-SMP PCB End Launch
SizeDimen­sionsMount
Straight Plug
 End Launch

Characteristics

  • Interface: MIL-STD-348
  • Mating Cycle: 500 Cycles(Limited Detent), 1000 Cycles(Smooth Bore)
  • Impedance: 50Ω
  • Insulation Resistance: 5000MΩ(min.)
  • Withstanding Voltage: 500Vrms (min.)
  • Mating: Snap on

Applications

  • Network and communications
  • RF Test and measurement equipment
  • Industrial applications
  • Electronic consumers and device

Application Notes

Products

Straight Plug
Reset all
Filter article data
Filter by
Delete all
 show  article in 1 product lines
 article in 1 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Retention Type
PCB Thickness(mm)
f
Center Contact
Operating Temperature
Design Kit
Samples
WR-SMP PCB End Launch

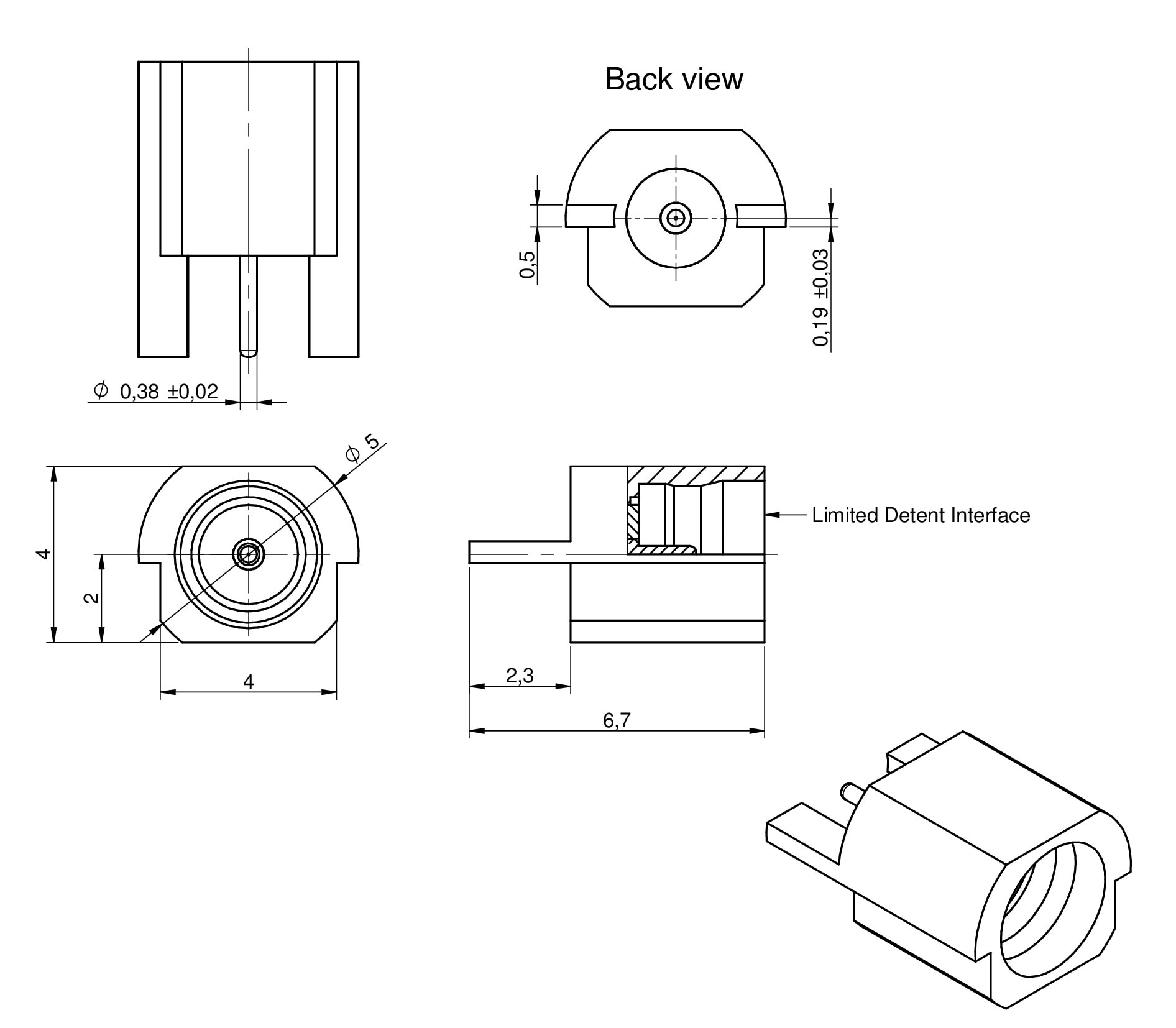

60124202122305
Limited Detent, 1.6 mm, DC~12 GHz
Downloads6 files

EDA models: Components ZIP

CAD files ZIP

Download all 6 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Retention TypeLimited Detent
PCB Thickness1.6 mm
Frequency RangeDC~12 GHz
Center ContactØ 0.38
Operating Temperature -65 °C up to +165 °C
Design Kit
601001630690
WR-SMP PCB End Launch
60114202122305
Smooth Bore, 1.6 mm, DC~12 GHz
Downloads6 files

EDA models: Components ZIP

CAD files ZIP

Download all 6 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Retention TypeSmooth Bore
PCB Thickness1.6 mm
Frequency RangeDC~12 GHz
Center ContactØ 0.38
Operating Temperature -65 °C up to +165 °C
Design Kit
601001

Mates with

WR-CXASY SMP Straight Jack to SMP Straight Jack / .085'' Hand-Formable Cable / 152.4 mm length
WR-CXASY SMP Straight Jack to SMP Straight Jack / .047'' Flexible Cable / 152.4 mm length
WR-CXASY SMP Straight Jack to SMP Straight Jack / .085'' Flexible Cable / 152.4 mm length
WR-CXASY SMP Right Angle Jack to SMP Right Angle Jack / .085'' Hand-Formable Cable / 152.4 mm length
WR-CXASY SMP Right Angle Jack to SMP Right Angle Jack / .047'' Flexible Cable / 152.4 mm length
WR-CXASY SMP Right Angle Jack to SMP Right Angle Jack / .085'' Flexible Cable / 152.4 mm length
WR-ADPT SMP Bullet Adaptors
WR-SMP Cable Connectors

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-SMP PCB & Cable Connectors
