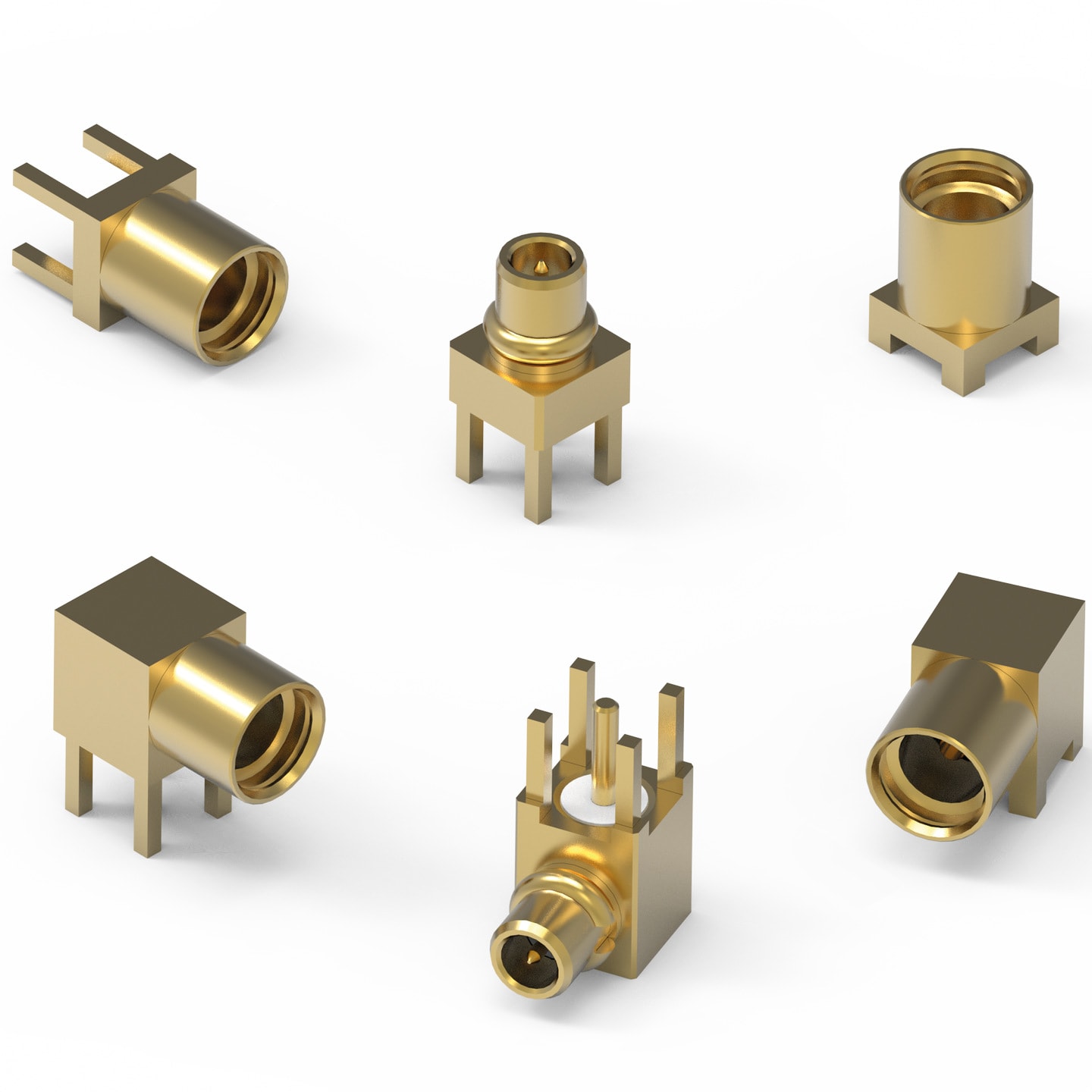

WR-MMCX PCB THT/SMT

Size	Dimensions	Mount
Straight Jack		-
Right Angle Jack		-
Straight Plug		THT
Right Angle Plug		THT

Characteristics

Interface: IEC 61169-52
Mating Cycle: 500 Cycles
Impedance: 50Ω
Insulation Resistance: 1000M Ω (min.)
Withstanding Voltage: 500Vrms (min.)
Mating: Snap on

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
Electronic consumers and devices

Application Notes

Products

All

Straight Jack

Right Angle Jack

Straight Plug

Right Angle Plug

Filter article data

show article in 4 product lines

article in 4 product lines

	Order Code	Datasheet	Downloads	Status	f	Mount	Center Contact	Operating Temperature	Design Kit	Samples

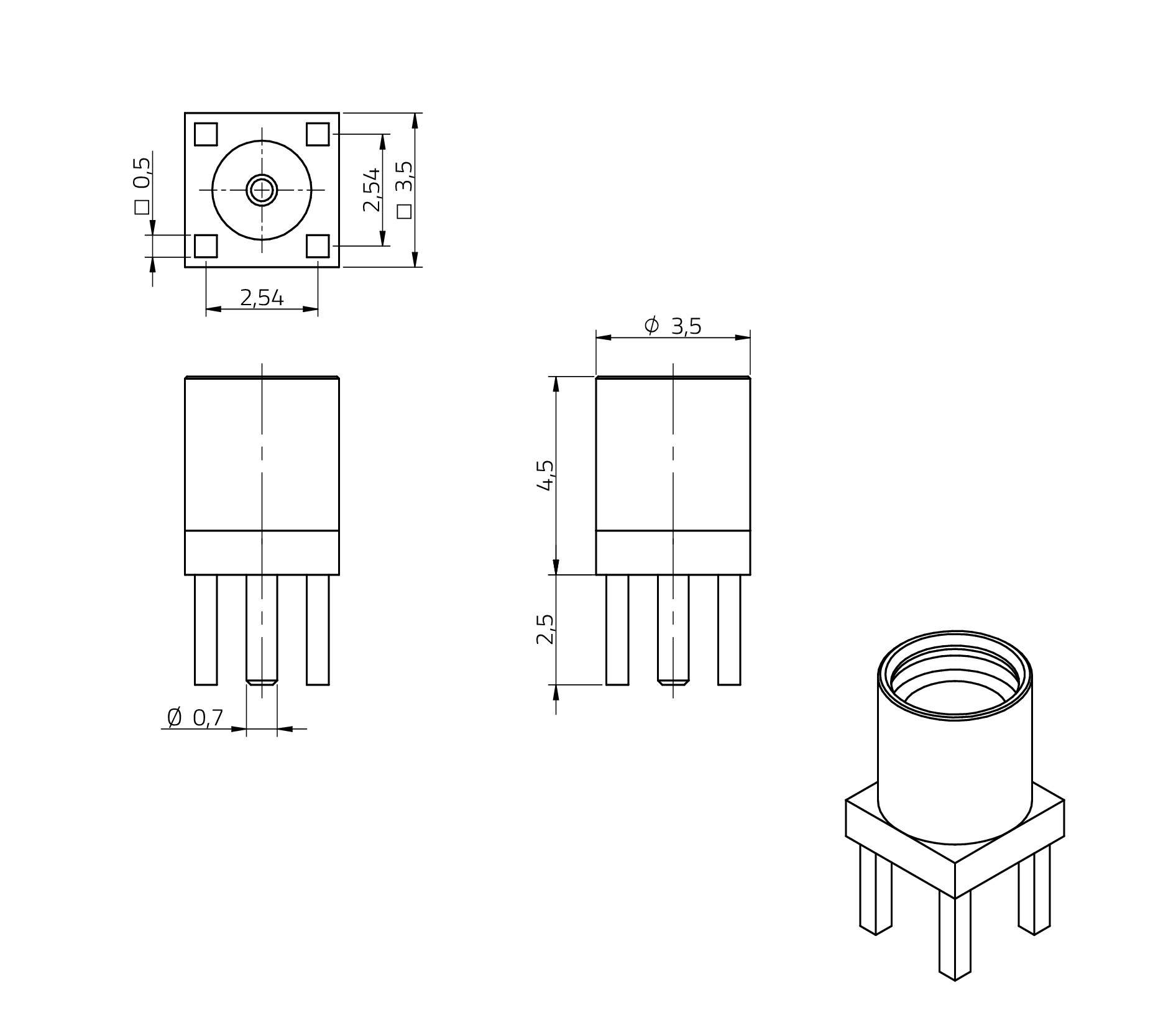

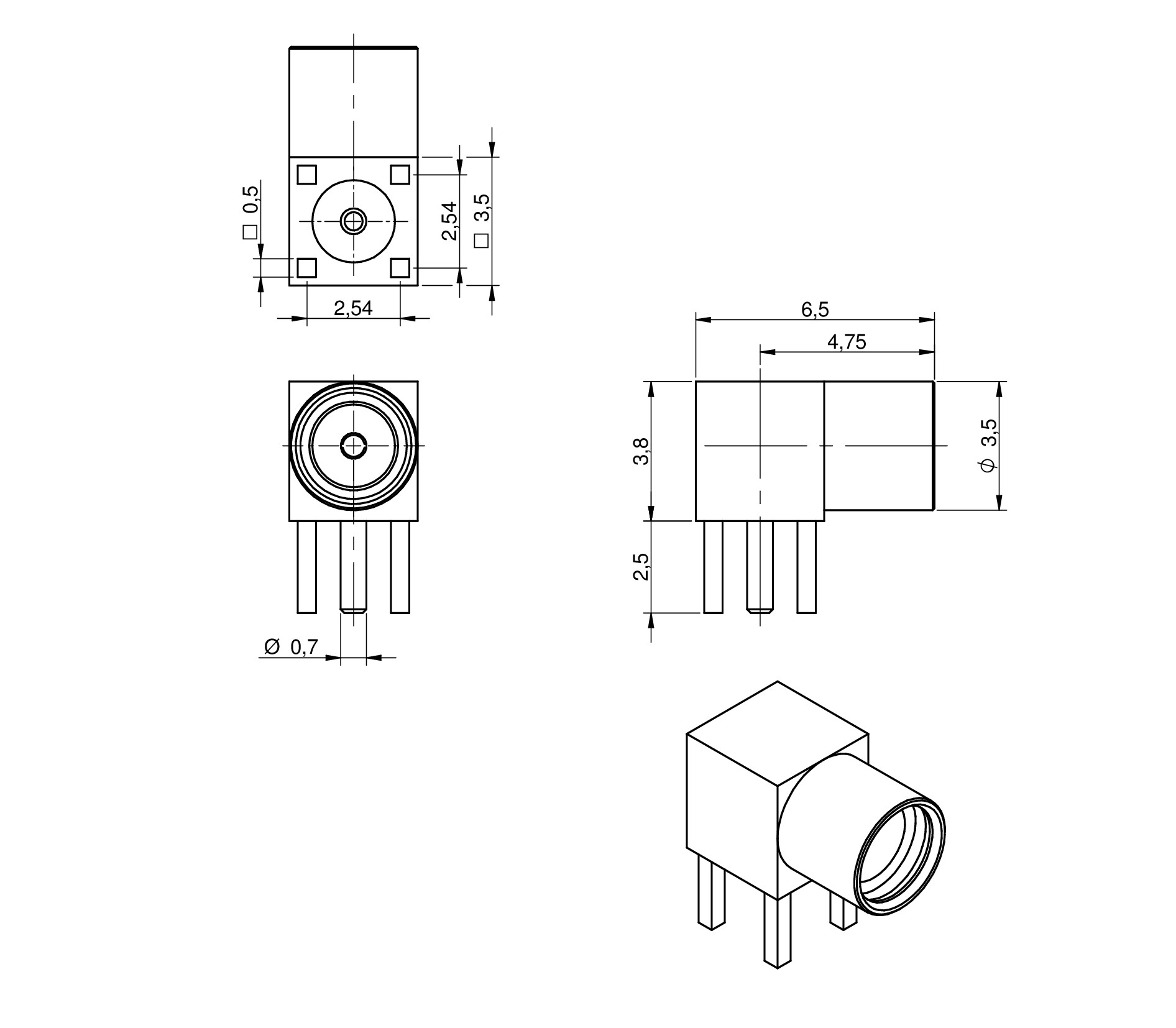

	66011002111501	DC~6 GHz, THT, Ø 0.7	Downloads6 files EDA models: Components ZIP ALT Altium_WR-MMCX (rev22b).IntLib \| 142 KB CDS Cadence_WR-MMCX (rev25a).zip \| 1.4 MB EAG Eagle_WR-MMCX (rev20a).lbr \| 54.7 KB CAD files ZIP 3D Download_3D_66011002111501 (rev1).pdf \| 83.2 KB IGS Download_IGES_66011002111501 (rev1).iges \| 399.5 KB STP Download_STEP_66011002111501 (rev1).stp \| 84.2 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Frequency RangeDC~6 GHz	MountTHT	Center ContactØ 0.7	Operating Temperature -55 °C up to +155 °C	Design Kit 612690 630690 660001
	66012002111503	DC~6 GHz, THT, Ø 0.7	Downloads6 files EDA models: Components ZIP ALT Altium_WR-MMCX (rev22b).IntLib \| 142 KB CDS Cadence_WR-MMCX (rev25a).zip \| 1.4 MB EAG Eagle_WR-MMCX (rev20a).lbr \| 54.7 KB CAD files ZIP 3D Download_3D_66012002111503 (rev1).pdf \| 83.1 KB IGS Download_IGES_66012002111503 (rev1).iges \| 372.6 KB STP Download_STEP_66012002111503 (rev1).stp \| 79 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Frequency RangeDC~6 GHz	MountTHT	Center ContactØ 0.7	Operating Temperature -55 °C up to +155 °C	Design Kit 612690 630690 660001
	66012102111404	DC~6 GHz, SMT, Ø 0.7	Downloads6 files EDA models: Components ZIP ALT Altium_WR-MMCX (rev22b).IntLib \| 142 KB CDS Cadence_WR-MMCX (rev25a).zip \| 1.4 MB EAG Eagle_WR-MMCX (rev20a).lbr \| 54.7 KB CAD files ZIP 3D Download_3D_66012102111404 (rev1).pdf \| 94.8 KB IGS Download_IGES_66012102111404 (rev1).iges \| 349.9 KB STP Download_STEP_66012102111404 (rev1).stp \| 71.2 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Frequency RangeDC~6 GHz	MountSMT	Center ContactØ 0.7	Operating Temperature -55 °C up to +155 °C	Design Kit 660001

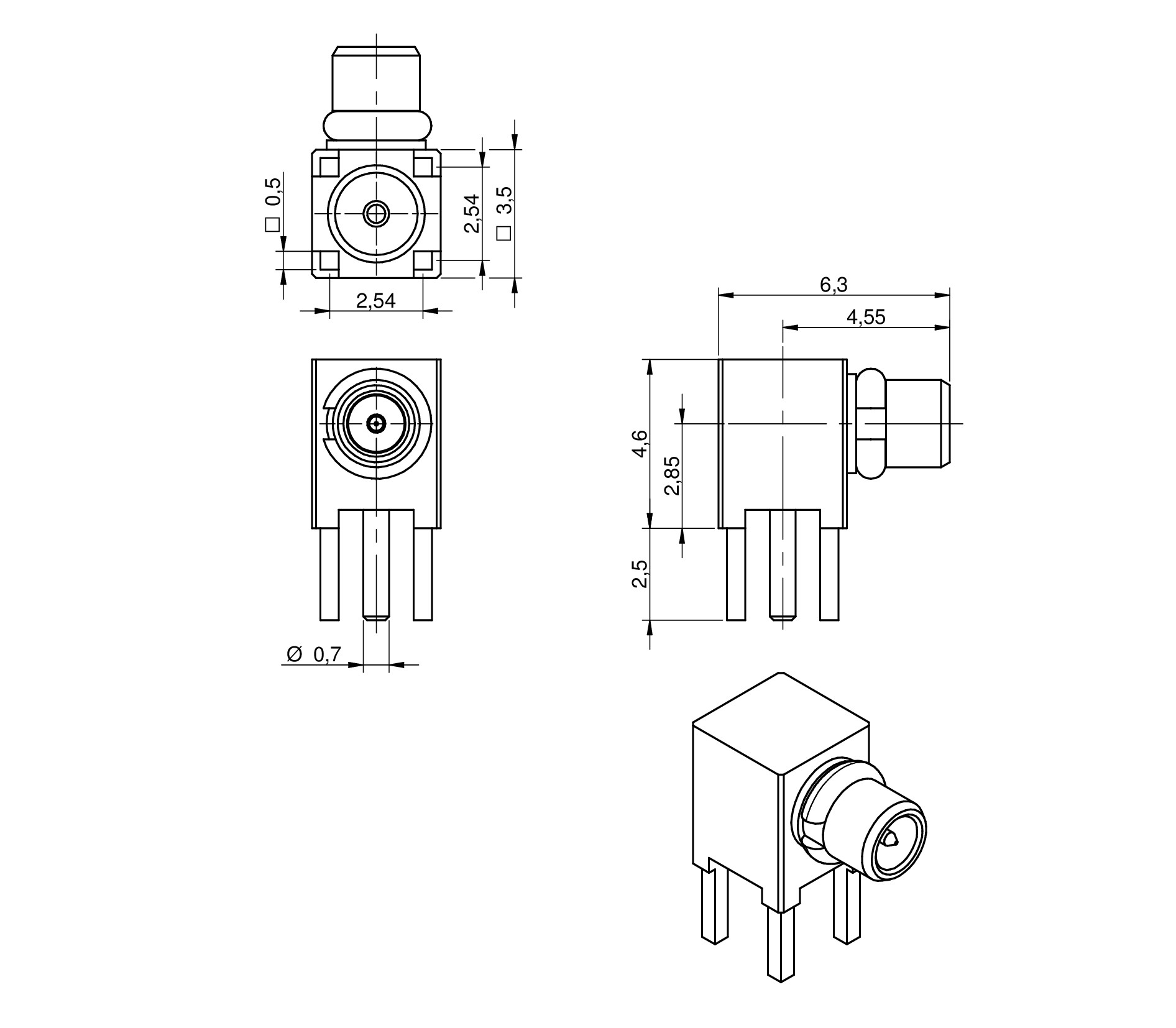

	66013002121501	DC~6 GHz, THT, Ø 0.7	Downloads6 files EDA models: Components ZIP ALT Altium_WR-MMCX (rev22b).IntLib \| 142 KB CDS Cadence_WR-MMCX (rev25a).zip \| 1.4 MB EAG Eagle_WR-MMCX (rev20a).lbr \| 54.7 KB CAD files ZIP 3D Download_3D_66013002121501 (rev1).pdf \| 373 KB IGS Download_IGES_66013002121501 (rev1).iges \| 449 KB STP Download_STEP_66013002121501 (rev1).stp \| 92.6 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Frequency RangeDC~6 GHz	MountTHT	Center ContactØ 0.7	Operating Temperature -55 °C up to +155 °C	Design Kit 612690 660001

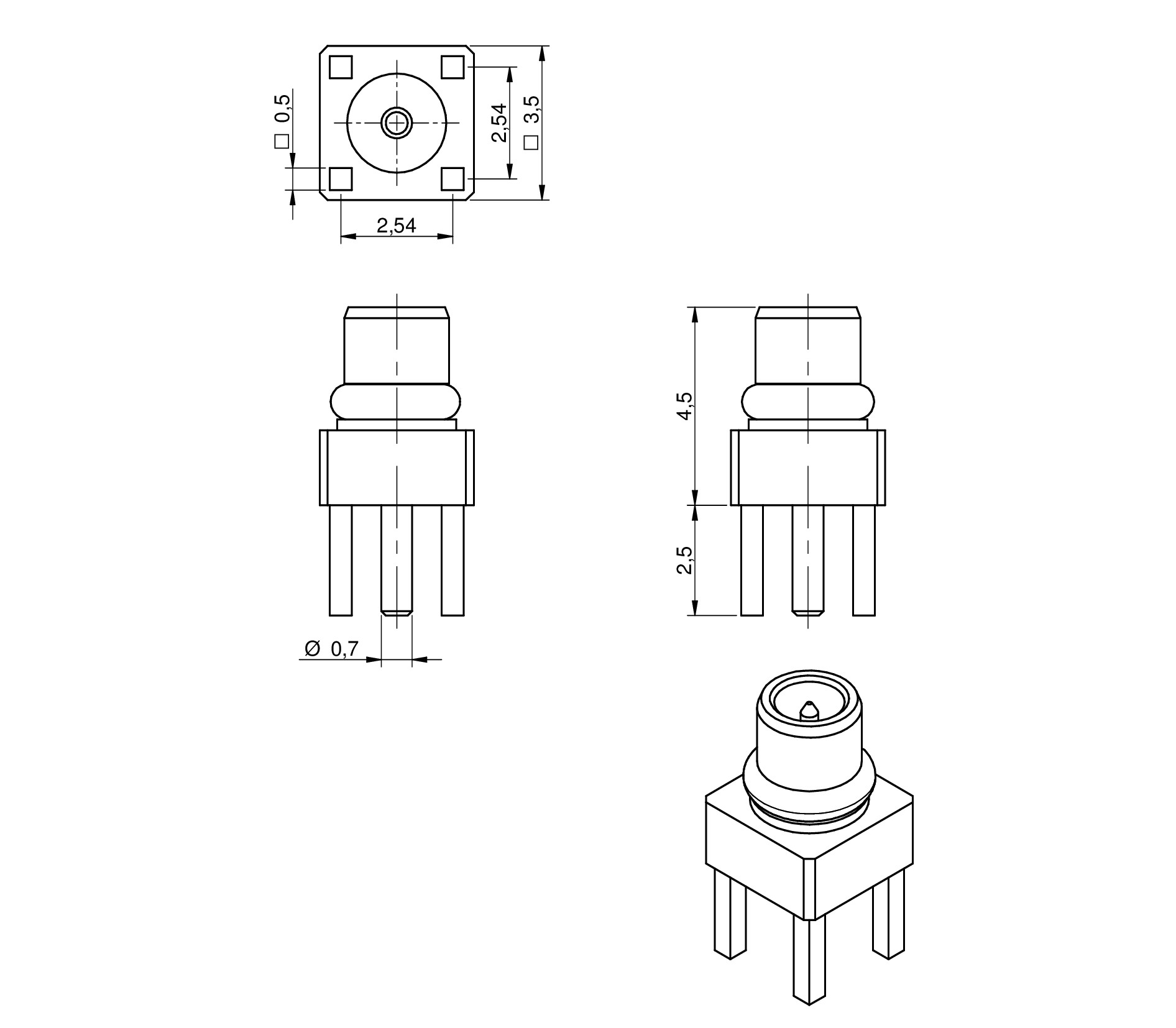

	66014002121503	DC~6 GHz, THT, Ø 0.7	Downloads6 files EDA models: Components ZIP ALT Altium_WR-MMCX (rev22b).IntLib \| 142 KB CDS Cadence_WR-MMCX (rev25a).zip \| 1.4 MB EAG Eagle_WR-MMCX (rev20a).lbr \| 54.7 KB CAD files ZIP 3D Download_3D_66014002121503 (rev1).pdf \| 185.2 KB IGS Download_IGES_66014002121503 (rev1).iges \| 398.6 KB STP Download_STEP_66014002121503 (rev1).stp \| 79.2 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Frequency RangeDC~6 GHz	MountTHT	Center ContactØ 0.7	Operating Temperature -55 °C up to +155 °C	Design Kit 612690 660001
	66011102111302	DC~6 GHz, SMT, Ø 0.7	Downloads6 files EDA models: Components ZIP ALT Altium_WR-MMCX (rev22b).IntLib \| 142 KB CDS Cadence_WR-MMCX (rev25a).zip \| 1.4 MB EAG Eagle_WR-MMCX (rev20a).lbr \| 54.7 KB CAD files ZIP 3D 3D_66011102111302 (rev1).pdf \| 84.4 KB IGS IGES_66011102111302 (rev1).iges \| 367.2 KB STP STEP_66011102111302 (rev1).stp \| 153.3 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Frequency RangeDC~6 GHz	MountSMT	Center ContactØ 0.7	Operating Temperature -55 °C up to +155 °C	Design Kit 660001
