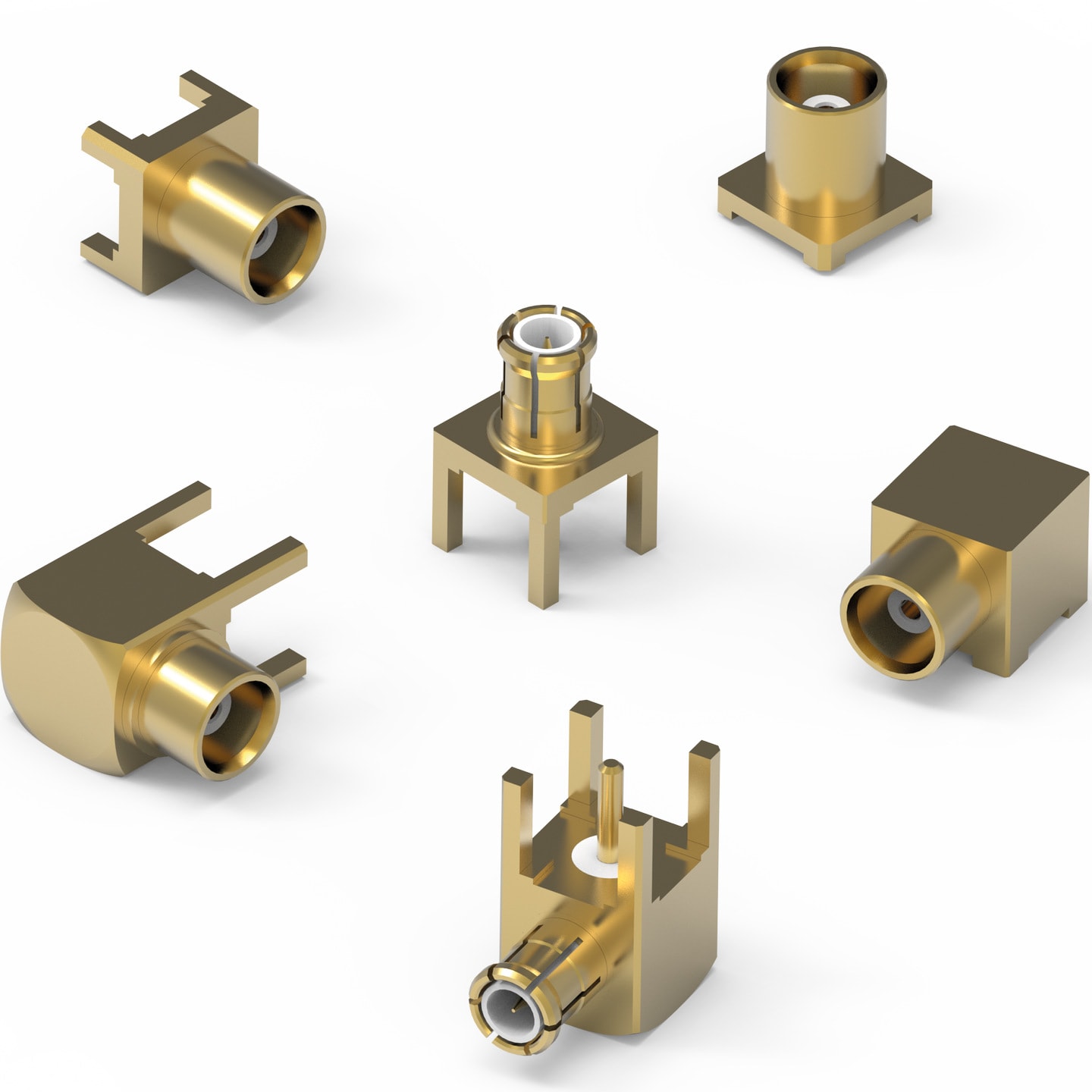

WR-MCX PCB THT/SMT

Size	Dimensions	Mount
Straight Jack		-
Right Angle Jack		-
Straight Plug		THT
Right Angle Plug		THT

Characteristics

Interface: IEC 61169-36
Mating Cycle: 500 Cycles
Impedance: 50 Ω
Insulation Resistance:1000 MΩ (min.)
Withstanding Voltage: 750 Vrms (min.)
Mating: Snap on

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
Electronic consumers and devices

Application Notes

Products

All

Straight Jack

Right Angle Jack

Straight Plug

Right Angle Plug

Filter article data

show articles in 4 product lines

articles in 4 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Mount	Center Contact	Operating Temperature	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	60611102111303	SPECSMT, Ø 0.96, -55 °C up to +155 °C	Availability –	Downloads7 files ALT Altium_WR-MCX (rev22a).IntLib \| 269 KB CDS Cadence_WR-MCX (rev19a).zip \| 1.9 MB EAG Eagle_WR-MCX (rev21a).lbr \| 74.2 KB KIC KiCad_WR-MCX (rev26a).zip \| 355.4 KB 3D Download_3D_60611102111303 (rev1).pdf \| 65.6 KB IGS Download_IGES_60611102111303 (rev1).iges \| 337.6 KB STP Download_STEP_60611102111303 (rev1).stp \| 71.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	MountSMT	Center ContactØ 0.96	Operating Temperature -55 °C up to +155 °C	Design Kit 606001 612690	–Check availability
	60612102111406	SPECSMT, Ø 0.96, -55 °C up to +155 °C	Availability –	Downloads7 files ALT Altium_WR-MCX (rev22a).IntLib \| 269 KB CDS Cadence_WR-MCX (rev19a).zip \| 1.9 MB EAG Eagle_WR-MCX (rev21a).lbr \| 74.2 KB KIC KiCad_WR-MCX (rev26a).zip \| 355.4 KB 3D Download_3D_60612102111406 (rev1).pdf \| 79.8 KB IGS Download_IGES_60612102111406 (rev1).iges \| 644.9 KB STP Download_STEP_60612102111406 (rev1).stp \| 126.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	MountSMT	Center ContactØ 0.96	Operating Temperature -55 °C up to +155 °C	Design Kit 606001	–Check availability

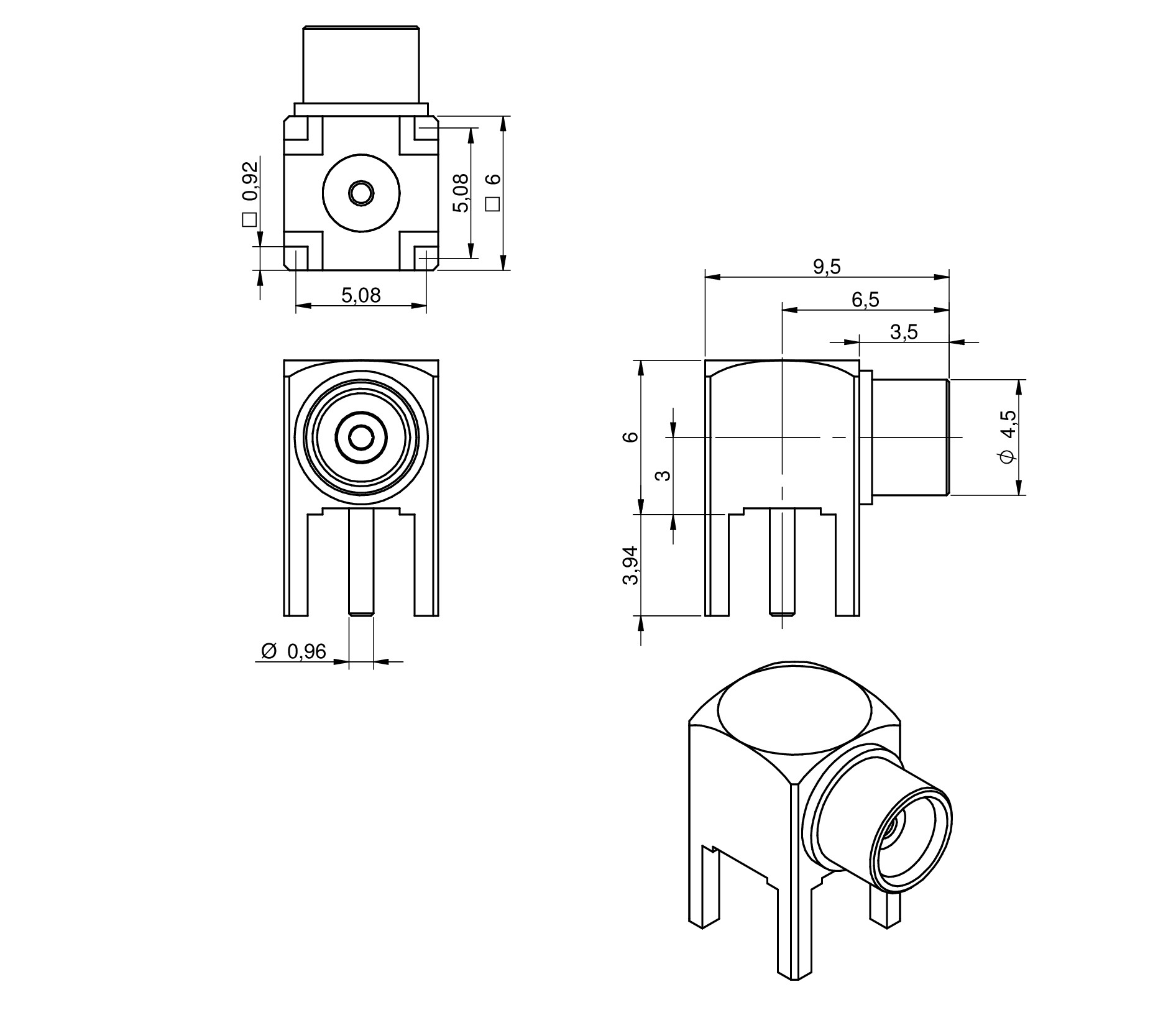

	60611002111501	SPECTHT, Ø 0.96, -55 °C up to +155 °C	Availability –	Downloads7 files ALT Altium_WR-MCX (rev22a).IntLib \| 269 KB CDS Cadence_WR-MCX (rev19a).zip \| 1.9 MB EAG Eagle_WR-MCX (rev21a).lbr \| 74.2 KB KIC KiCad_WR-MCX (rev26a).zip \| 355.4 KB 3D Download_3D_60611002111501 (rev1).pdf \| 90.1 KB IGS Download_IGES_60611002111501 (rev1).iges \| 453.6 KB STP Download_STEP_60611002111501 (rev1).stp \| 92.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	MountTHT	Center ContactØ 0.96	Operating Temperature -55 °C up to +155 °C	Design Kit 606001 612690	–Check availability
	60611002111502	SPECTHT, Ø 0.96, -55 °C up to +155 °C	Availability –	Downloads7 files ALT Altium_WR-MCX (rev22a).IntLib \| 269 KB CDS Cadence_WR-MCX (rev19a).zip \| 1.9 MB EAG Eagle_WR-MCX (rev21a).lbr \| 74.2 KB KIC KiCad_WR-MCX (rev26a).zip \| 355.4 KB 3D Download_3D_60611002111502 (rev1).pdf \| 93.6 KB IGS Download_IGES_60611002111502 (rev1).iges \| 452.9 KB STP Download_STEP_60611002111502 (rev1).stp \| 92.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	MountTHT	Center ContactØ 0.96	Operating Temperature -55 °C up to +155 °C	Design Kit 606001	–Check availability

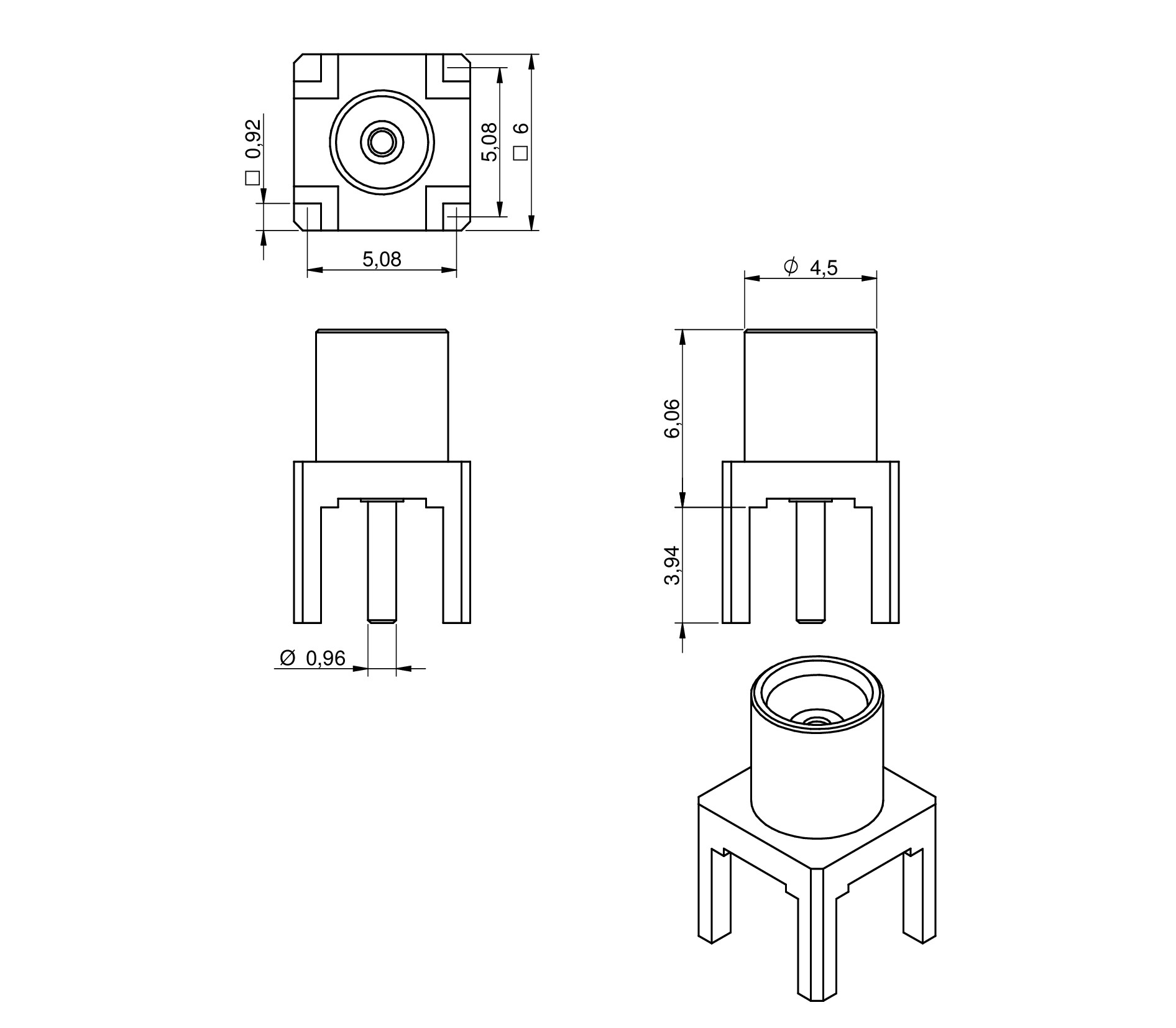

	60612002111504	SPECTHT, Ø 0.96, -55 °C up to +155 °C	Availability –	Downloads7 files ALT Altium_WR-MCX (rev22a).IntLib \| 269 KB CDS Cadence_WR-MCX (rev19a).zip \| 1.9 MB EAG Eagle_WR-MCX (rev21a).lbr \| 74.2 KB KIC KiCad_WR-MCX (rev26a).zip \| 355.4 KB 3D Download_3D_60612002111504 (rev1).pdf \| 78 KB IGS Download_IGES_60612002111504 (rev1).iges \| 424.5 KB STP Download_STEP_60612002111504 (rev1).stp \| 99.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	MountTHT	Center ContactØ 0.96	Operating Temperature -55 °C up to +155 °C	Design Kit 606001 630690	–Check availability
	60612002111505	SPECTHT, Ø 0.96, -55 °C up to +155 °C	Availability –	Downloads7 files ALT Altium_WR-MCX (rev22a).IntLib \| 269 KB CDS Cadence_WR-MCX (rev19a).zip \| 1.9 MB EAG Eagle_WR-MCX (rev21a).lbr \| 74.2 KB KIC KiCad_WR-MCX (rev26a).zip \| 355.4 KB 3D Download_3D_60612002111505 (rev1).pdf \| 83.5 KB IGS Download_IGES_60612002111505 (rev1).iges \| 420.8 KB STP Download_STEP_60612002111505 (rev1).stp \| 91.7 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	MountTHT	Center ContactØ 0.96	Operating Temperature -55 °C up to +155 °C	Design Kit 606001	–Check availability

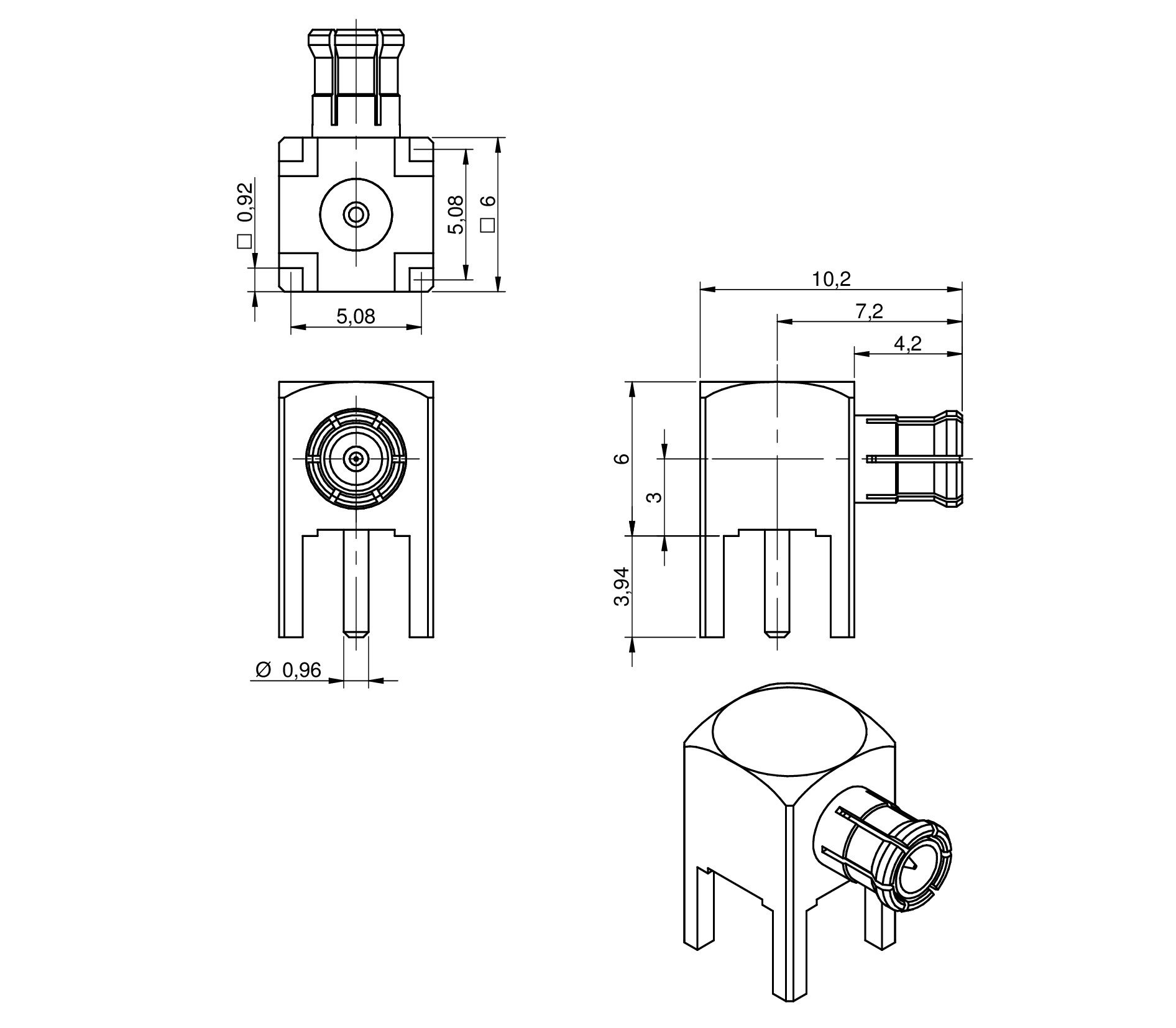

	60613003121501	SPECTHT, Ø 0.96, -55 °C up to +155 °C	Availability –	Downloads7 files ALT Altium_WR-MCX (rev22a).IntLib \| 269 KB CDS Cadence_WR-MCX (rev19a).zip \| 1.9 MB EAG Eagle_WR-MCX (rev21a).lbr \| 74.2 KB KIC KiCad_WR-MCX (rev26a).zip \| 355.4 KB 3D Download_3D_60613003121501 (rev1).pdf \| 109.5 KB IGS Download_IGES_60613003121501 (rev1).iges \| 941.7 KB STP Download_STEP_60613003121501 (rev1).stp \| 206.1 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	MountTHT	Center ContactØ 0.96	Operating Temperature -55 °C up to +155 °C	Design Kit 606001 612690	–Check availability

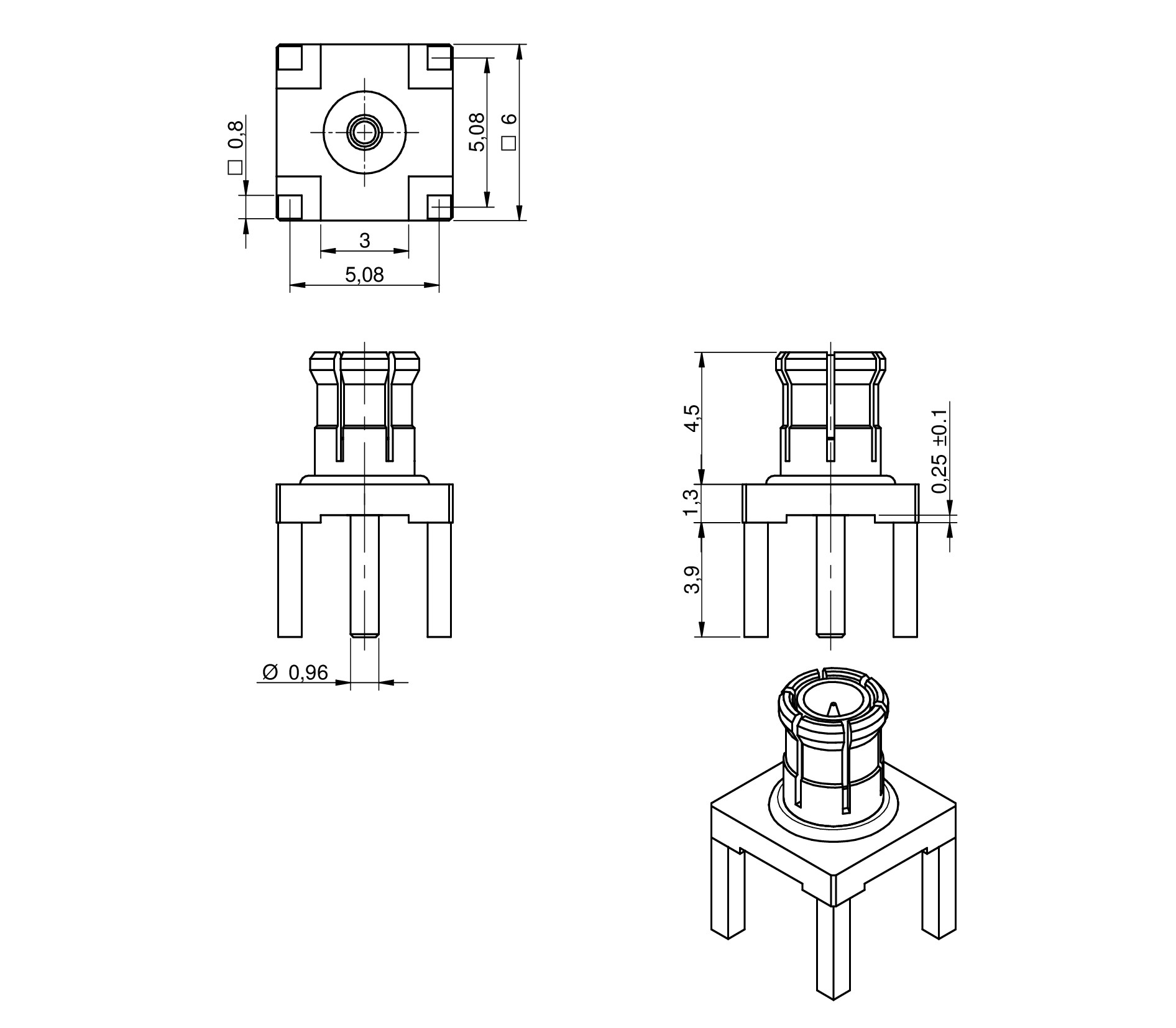

	60614003121504	SPECTHT, Ø 0.96, -55 °C up to +155 °C	Availability –	Downloads7 files ALT Altium_WR-MCX (rev22a).IntLib \| 269 KB CDS Cadence_WR-MCX (rev19a).zip \| 1.9 MB EAG Eagle_WR-MCX (rev21a).lbr \| 74.2 KB KIC KiCad_WR-MCX (rev26a).zip \| 355.4 KB 3D Download_3D_60614003121504 (rev1).pdf \| 137.3 KB IGS Download_IGES_60614003121504 (rev1).iges \| 966.5 KB STP Download_STEP_60614003121504 (rev1).stp \| 222.7 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	MountTHT	Center ContactØ 0.96	Operating Temperature -55 °C up to +155 °C	Design Kit 606001 612690	–Check availability

Mates with

WR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-174/U Flexible Cable / 152.4mm length

WR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-178/U Flexible Cable / 152.4mm length

WR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-316/U Flexible Cable / 152.4mm length

WR-CXASY RPSMA Bulkhead Jack to MCX Straight Plug / RG-174/U Flexible Cable / 152.4 mm length

WR-CXASY RPSMA Bulkhead Jack to MCX Straight Plug / RG-178/U Flexible Cable / 152.4 mm length

WR-CXASY RPSMA Bulkhead Jack to MCX Straight Plug / RG-316/U Flexible Cable / 152.4 mm length

WR-CXASY MCX to MCX

WR-ADPT SMA to MCX

WR-ADPT MCX to MCX

WR-MCX Cable Connectors

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-MCX PCB & Cable Connectors

Design Kit Coaxial Solutions
