WR-ADPT SMB to SMB

WR-ADPT SMB to SMB
SizeDimen­sions

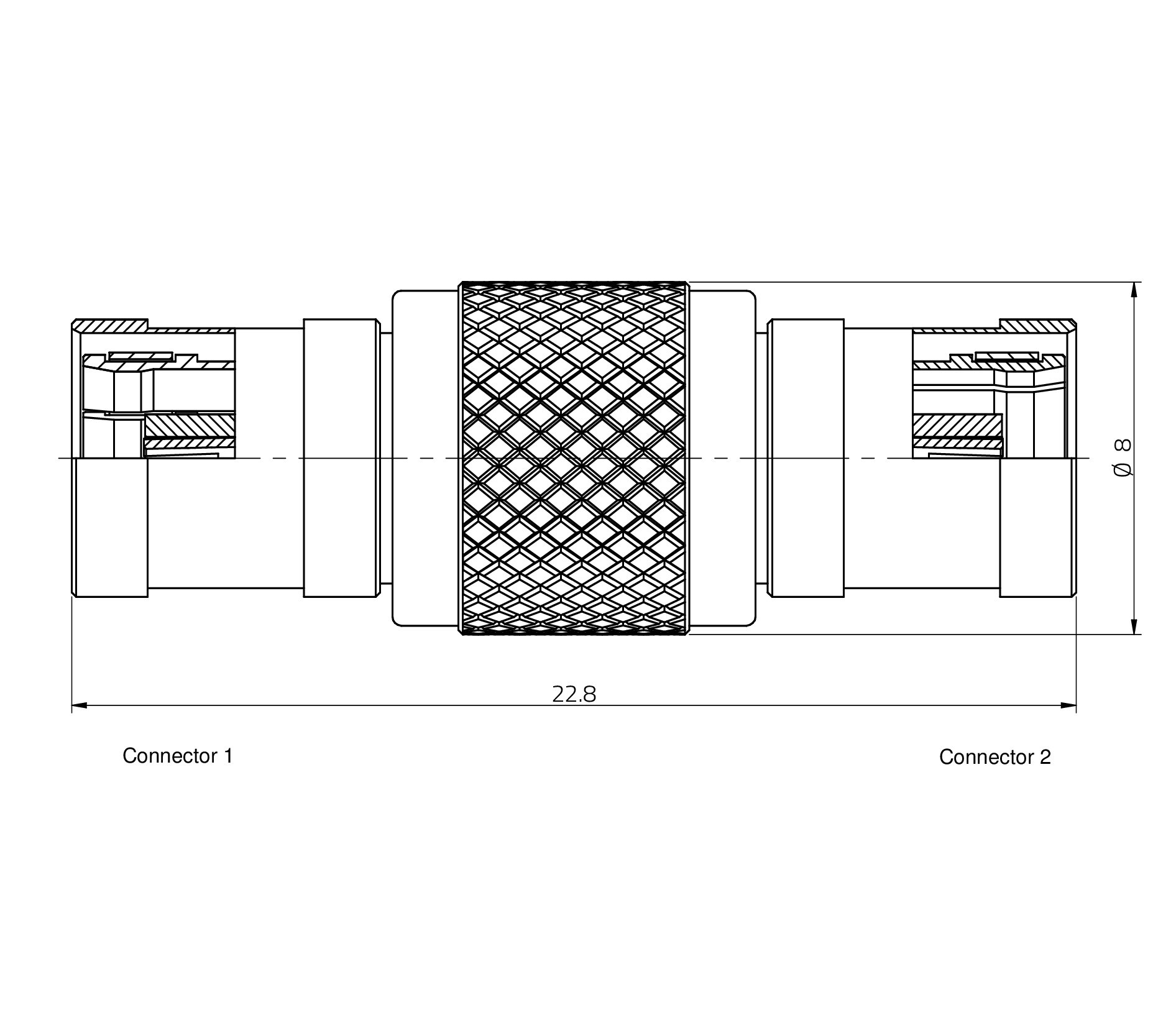

SMB Plug I SMB Plug

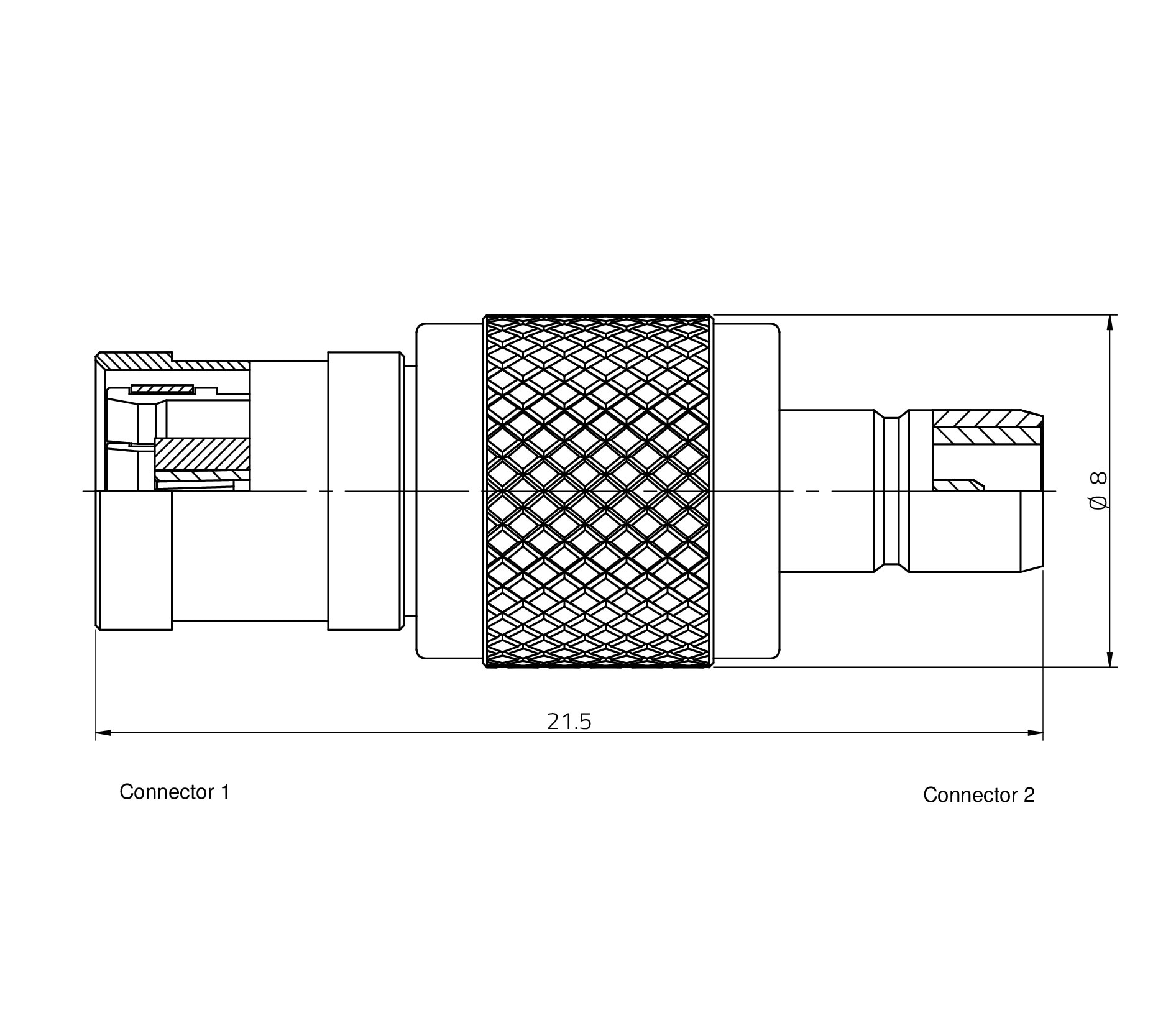

SMB Jack I SMB Plug

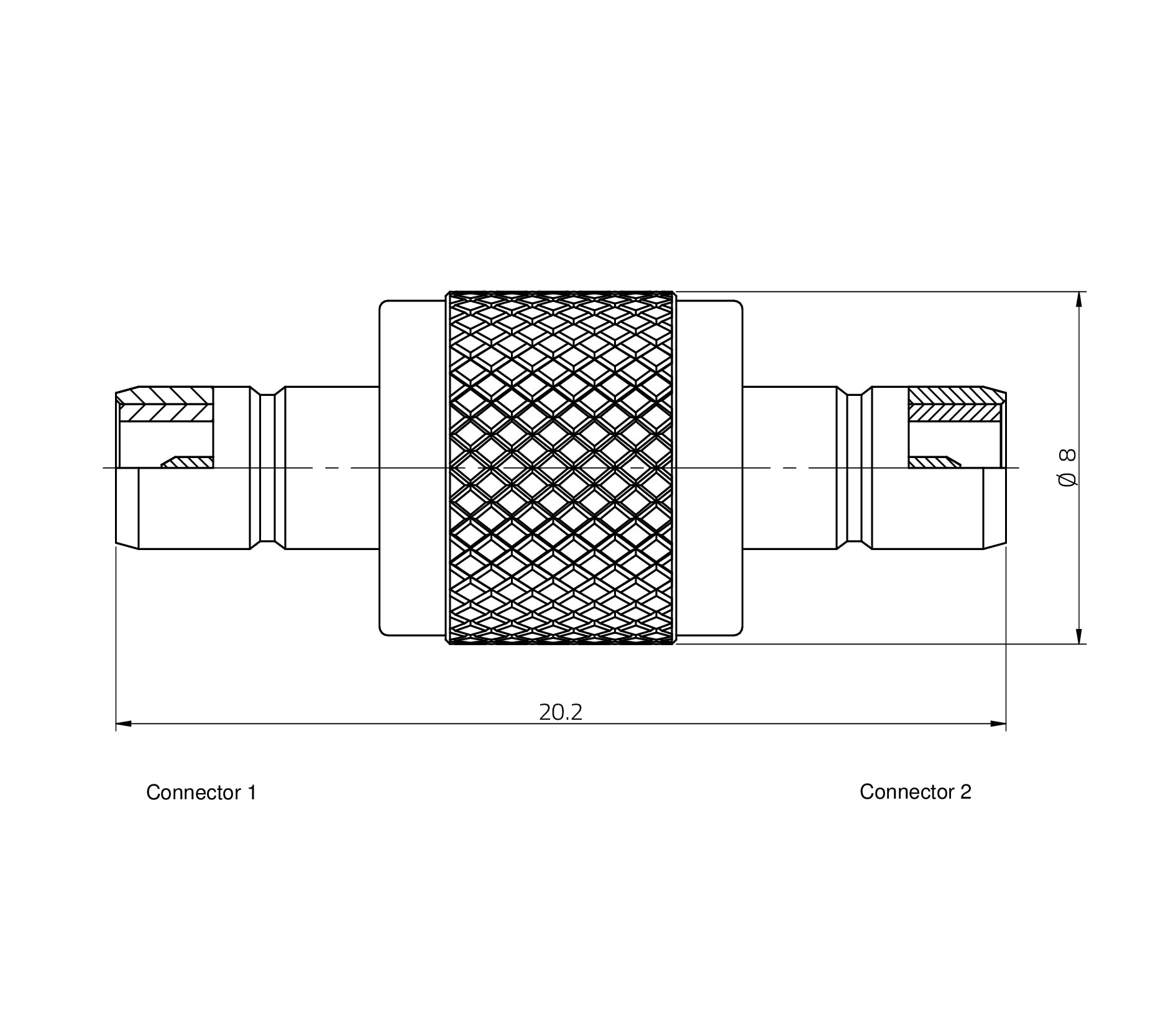

SMB Jack I SMB Jack

Characteristics

  • Interface: MIL-STD-348
  • Mating Cycle: 500 Cycles
  • Impedance: 50Ω
  • Plating: Gold

Applications

  • Network and communications
  • RF Test and measurement equipment
  • Industrial applications
  • Outdoor or humidity environment

Products

All
SMB Plug I SMB Plug
SMB Jack I SMB Plug
SMB Jack I SMB Jack
Reset all
Filter article data
Filter by
Delete all
 show  article in 3 product lines
 article in 3 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Connector Type 1
Gender 1
Connector Type 2
Gender 2
f
Orientation Type
Operating Temperature
SamplesAvailability & Sample
WR-ADPT SMB to SMB
64416216211000
SPECSMB, Plug, SMB
Availability
–
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Connector Type 1SMB
Gender 1Plug
Connector Type 2SMB
Gender 2Plug
Frequency RangeDC~4 GHz
Orientation TypeStraight
Operating Temperature -65 °C up to +165 °C
–Check availability
WR-ADPT SMB to SMB
64416216111000
SPECSMB, Plug, SMB
Availability
–
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Connector Type 1SMB
Gender 1Plug
Connector Type 2SMB
Gender 2Jack
Frequency RangeDC~4 GHz
Orientation TypeStraight
Operating Temperature -65 °C up to +165 °C
–Check availability
WR-ADPT SMB to SMB
64416116111000
SPECSMB, Jack, SMB
Availability
–
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Connector Type 1SMB
Gender 1Jack
Connector Type 2SMB
Gender 2Jack
Frequency RangeDC~4 GHz
Orientation TypeStraight
Operating Temperature -65 °C up to +165 °C
–Check availability

Mates with

WR-SMB PCB THT/SMT
WR-SMB PCB End Launch
