WR-SMP Cable Connectors

Size	Dimensions	Mount
Straight Jack		Solder
Right Angle Jack		Solder

Characteristics

Interface: MIL-STD-348
Mating Cycle: 100 Cycles (mated with full detent) / 500 Cycles (mated with limited detent) / 1000 Cycles (mated with smooth bore)
Impedance: 50 Ω
Insulation Resistance: 5000 MΩ (min.)
Withstanding Voltage: 260 Vrms (min.)
Mating: Snap on

Applications

Network and communications
RF Test and measurement equipment
Industrial application
Electronic consumers and device

Application Notes

Products

All

Straight Jack

Right Angle Jack

Filter article data

show articles in 2 product lines

articles in 2 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Manual	Downloads	Status	Cable	Cable Type	Mount	Center Contact	Suitable for	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN

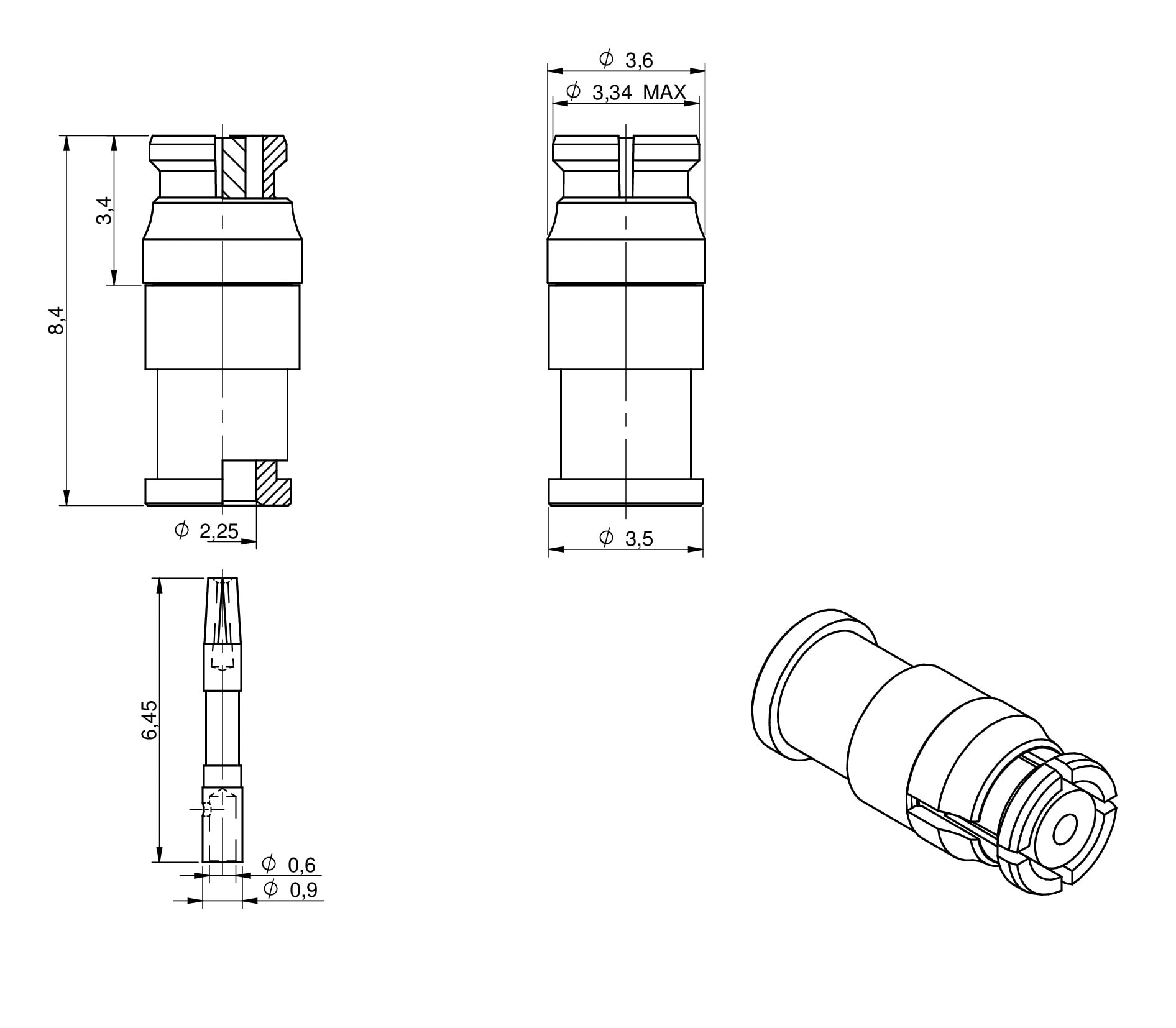

	60129011120920	SPEC.047", Flexible/Hand Formable, Solder	Manual	Availability –	Downloads3 files 3D 3D_60129011120920 (rev1).pdf \| 247 KB IGS IGES_60129011120920 (rev1).iges \| 999.2 KB STP STEP_60129011120920 (rev1).stp \| 164.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Cable.047"	Cable TypeFlexible/Hand Formable	MountSolder	Center ContactØ 0.35	Suitable for WR-ToolRF SMP Extraction Tool	Design Kit 601001	–Check availability
	60129011120820	SPEC.085"/.086", Flexible/Hand Formable, Solder	Manual	Availability –	Downloads3 files 3D 3D_60129011120820 (rev1).pdf \| 233.6 KB IGS IGES_60129011120820 (rev1).iges \| 984.5 KB STP STEP_60129011120820 (rev1).stp \| 162.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Cable.085"/.086"	Cable TypeFlexible/Hand Formable	MountSolder	Center ContactØ 0.6	Suitable for WR-ToolRF SMP Extraction Tool	Design Kit 601001	–Check availability

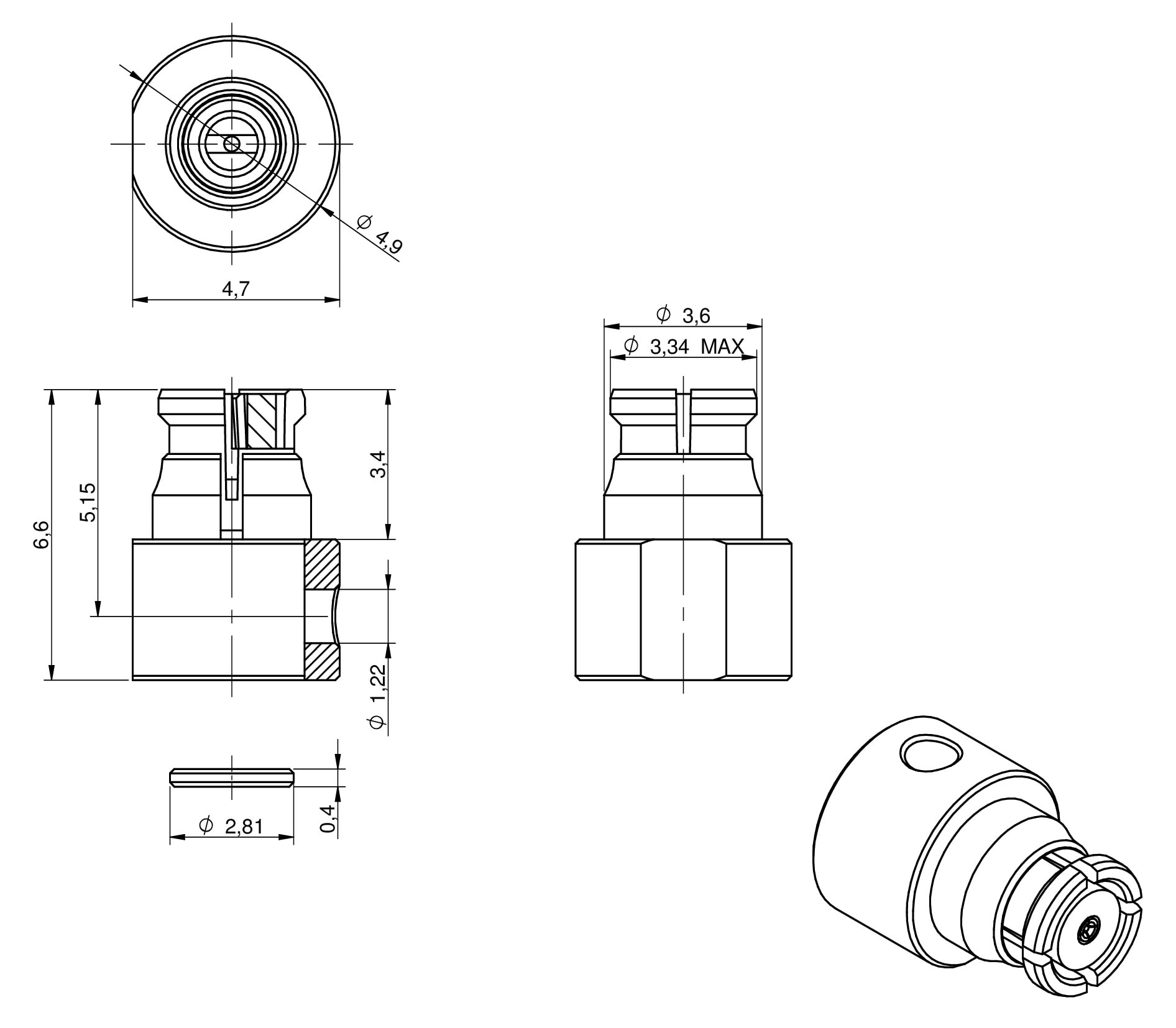

	60119011120920	SPEC.047", Flexible/Hand Formable, Solder	Manual	Availability –	Downloads3 files 3D 3D_60119011120920 (rev1).pdf \| 299.2 KB IGS IGES_60119011120920 (rev1).iges \| 1 MB STP STEP_60119011120920 (rev1).stp \| 201.7 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Cable.047"	Cable TypeFlexible/Hand Formable	MountSolder	–	Suitable for WR-ToolRF SMP Extraction Tool	Design Kit 601001	–Check availability
	60119011120820	SPEC.085"/.086", Flexible/Hand Formable, Solder	Manual	Availability –	Downloads3 files 3D 3D_60119011120820 (rev1).pdf \| 290.1 KB IGS IGES_60119011120820 (rev1).iges \| 1.1 MB STP STEP_60119011120820 (rev1).stp \| 204 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Cable.085"/.086"	Cable TypeFlexible/Hand Formable	MountSolder	–	Suitable for WR-ToolRF SMP Extraction Tool	Design Kit 601001	–Check availability

Use with

WR-ToolRF SMP Extraction Tool

Mates with

WR-SMP PCB THT/ THR/ SMT Connectors

WR-SMP PCB End Launch

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-SMP PCB & Cable Connectors
