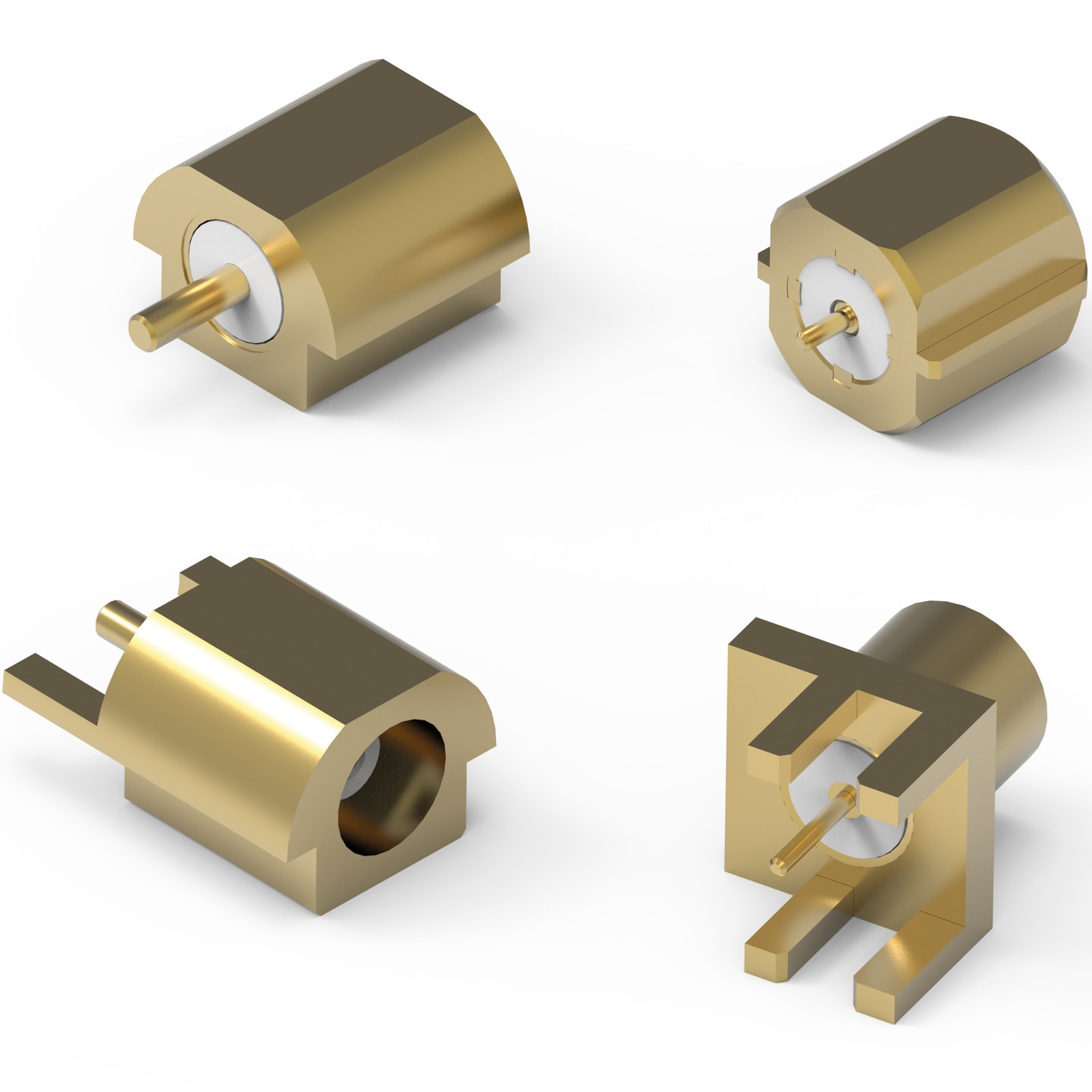

WR-MCX PCB End Launch

Size	Dimensions	Mount
Straight Jack		End Launch

Characteristics

Interface: IEC 61169-36
Mating Cycle: 500 Cycles
Impedance: 50 Ω
Insulation Resistance: 1000 MΩ (min.)
Withstanding Voltage: 750 Vrms (min.)
Mating: Snap on

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
Electronic consumers and devices

Application Notes

Products

Straight Jack

Filter article data

show articles in 1 product lines

articles in 1 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	PCB Thickness(mm)	Center Contact	Operating Temperature	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	60612202111510	SPEC1.1 mm, Ø 0.48, -55 °C up to +155 °C	Availability –	Downloads7 files ALT Altium_WR-MCX (rev22a).IntLib \| 269 KB CDS Cadence_WR-MCX (rev19a).zip \| 1.9 MB EAG Eagle_WR-MCX (rev21a).lbr \| 74.2 KB KIC KiCad_WR-MCX (rev26a).zip \| 355.4 KB 3D Download_3D_60612202111510 (rev1).pdf \| 82.5 KB IGS Download_IGES_60612202111510 (rev1).iges \| 377.5 KB STP Download_STEP_60612202111510 (rev1).stp \| 78.1 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	PCB Thickness1.1 mm	Center ContactØ 0.48	Operating Temperature -55 °C up to +155 °C	Design Kit 606001	–Check availability
	60612202111307	SPEC1.6 mm, Ø 0.96, -55 °C up to +155 °C	Availability –	Downloads7 files ALT Altium_WR-MCX (rev22a).IntLib \| 269 KB CDS Cadence_WR-MCX (rev19a).zip \| 1.9 MB EAG Eagle_WR-MCX (rev21a).lbr \| 74.2 KB KIC KiCad_WR-MCX (rev26a).zip \| 355.4 KB 3D 3D_60612202111307 (rev1).pdf \| 65.9 KB IGS Download_IGES_60612202111307 (rev1).iges \| 292.4 KB STP Download_STEP_60612202111307 (rev1).stp \| 57.3 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	PCB Thickness1.6 mm	Center ContactØ 0.96	Operating Temperature -55 °C up to +155 °C	Design Kit 606001	–Check availability
	60612202111308	SPEC1.6 mm, Ø 0.96, -55 °C up to +155 °C	Availability –	Downloads7 files ALT Altium_WR-MCX (rev22a).IntLib \| 269 KB CDS Cadence_WR-MCX (rev19a).zip \| 1.9 MB EAG Eagle_WR-MCX (rev21a).lbr \| 74.2 KB KIC KiCad_WR-MCX (rev26a).zip \| 355.4 KB 3D Download_3D_60612202111308 (rev1).pdf \| 68.1 KB IGS Download_IGES_60612202111308 (rev1).iges \| 343.4 KB STP Download_STEP_60612202111308 (rev1).stp \| 67.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	PCB Thickness1.6 mm	Center ContactØ 0.96	Operating Temperature -55 °C up to +155 °C	Design Kit 606001	–Check availability
	60612202111309	SPEC1.6 mm, Ø 0.5, -55 °C up to +155 °C	Availability –	Downloads7 files ALT Altium_WR-MCX (rev22a).IntLib \| 269 KB CDS Cadence_WR-MCX (rev19a).zip \| 1.9 MB EAG Eagle_WR-MCX (rev21a).lbr \| 74.2 KB KIC KiCad_WR-MCX (rev26a).zip \| 355.4 KB 3D Download_3D_60612202111309 (rev1).pdf \| 103.9 KB IGS Download_IGES_60612202111309 (rev1).iges \| 651.7 KB STP Download_STEP_60612202111309 (rev1).stp \| 139.2 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	PCB Thickness1.6 mm	Center ContactØ 0.5	Operating Temperature -55 °C up to +155 °C	Design Kit 606001	–Check availability
	60612202111511	SPEC1.6 mm, Ø 0.48, -55 °C up to +155 °C	Availability –	Downloads7 files ALT Altium_WR-MCX (rev22a).IntLib \| 269 KB CDS Cadence_WR-MCX (rev19a).zip \| 1.9 MB EAG Eagle_WR-MCX (rev21a).lbr \| 74.2 KB KIC KiCad_WR-MCX (rev26a).zip \| 355.4 KB 3D Download_3D_60612202111511 (rev1).pdf \| 82.5 KB IGS Download_IGES_60612202111511 (rev1).iges \| 377.5 KB STP Download_STEP_60612202111511 (rev1).stp \| 78 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	PCB Thickness1.6 mm	Center ContactØ 0.48	Operating Temperature -55 °C up to +155 °C	Design Kit 606001	–Check availability
