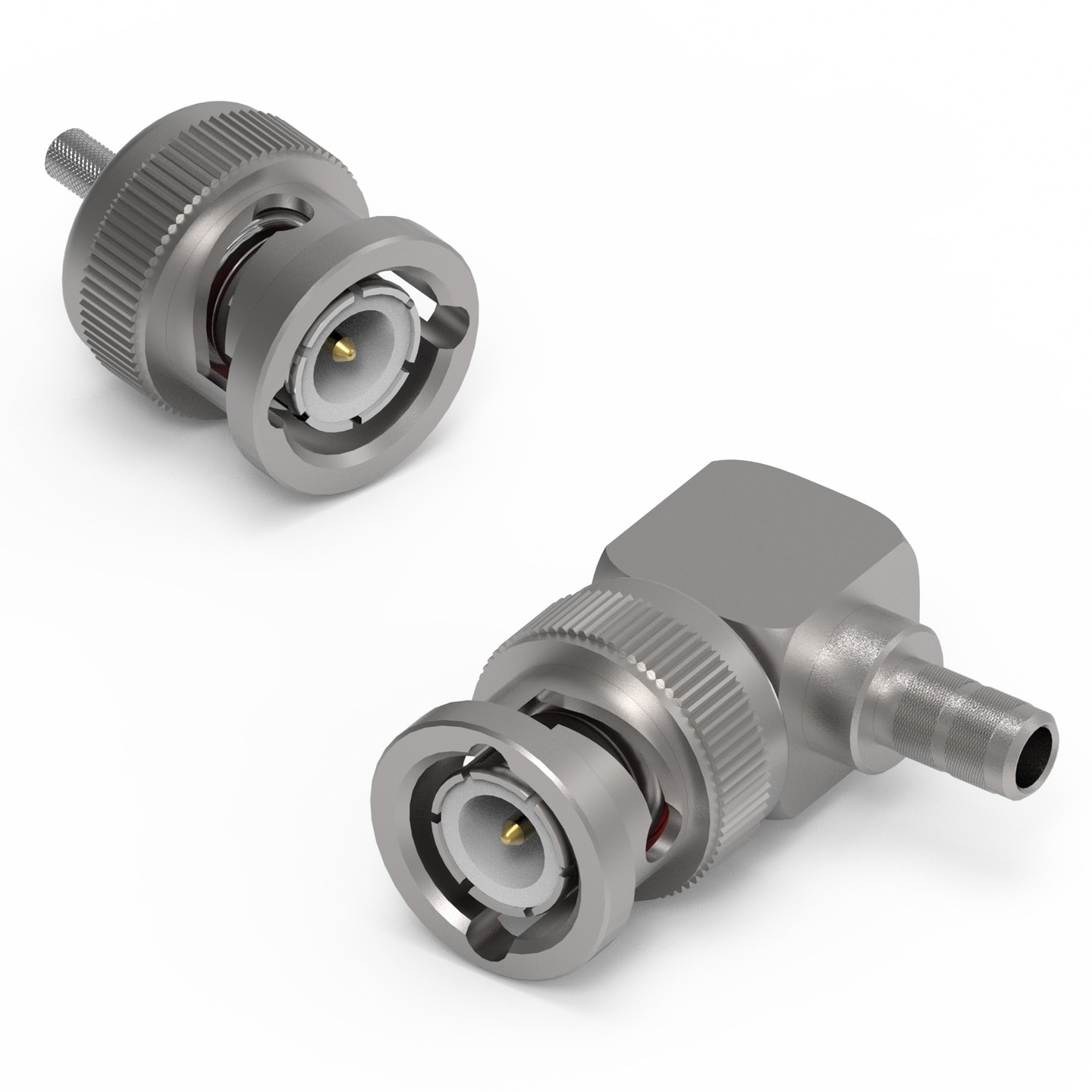

WR-BNC Cable Connectors

Size	Dimensions	Mount
Right Angle Plug		-
Straight Plug		-
NEWStraight Jack		-
NEWStraight Bulkhead Jack		Crimp

Characteristics

Interface: MIL-STD-348
Mating Cycle: 500 Cycles
Impedance: 50 Ω
Insulation Resistance: 5000 MΩ (min.)
Withstanding Voltage: 1500 Vrms (min.)
Plating: Nickel and Gold
Mating: bayonet lock

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
High power machinery
Outdoor or humidity environment

Application Notes

Products

All

Right Angle Plug

Straight Plug

Straight Jack

Straight Bulkhead Jack

Filter article data

show articles in 4 product lines

articles in 4 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Manual	Downloads	Status	Cable Type	Cable	Center Contact	Operating Temperature	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	60736022210120	SPECFlexible, RG58/141/LL195, –	Manual	Availability –	Downloads3 files 3D 3D_WR-BCN_60736022210120 (rev1).pdf \| 3.6 MB IGS IGS_WR-BCN_60736022210120 (rev1).igs \| 61.9 MB STP STP_WR-BCN_60736022210120 (rev1).stp \| 32.6 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Cable TypeFlexible	CableRG58/141/LL195	–	Operating Temperature -65 °C up to +165 °C	Design Kit 607701	–Check availability
	60746022210120	SPECFlexible, RG58/141/LL195, Ø 1,1	Manual	Availability –	Downloads3 files 3D 3D_WR-BCN_60746022210120 (rev1).pdf \| 1.2 MB IGS IGS_WR-BCN_60746022210120 (rev1).igs \| 17.8 MB STP STP_WR-BCN_60746022210120 (rev1).stp \| 9 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Cable TypeFlexible	CableRG58/141/LL195	Center ContactØ 1,1	Operating Temperature -40 °C up to +85 °C	Design Kit 607701	–Check availability
	60736022210320	SPECFlexible, RG174/316/188, –	Manual	Availability –	Downloads3 files 3D 3D_WR-BCN_60736022210320 (rev1).pdf \| 1.9 MB IGS IGS_WR-BCN_60736022210320 (rev1).igs \| 24.9 MB STP STP_WR-BCN_60736022210320 (rev1).stp \| 12 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Cable TypeFlexible	CableRG174/316/188	–	Operating Temperature -40 °C up to +85 °C	Design Kit 607701 630690	–Check availability
	60745022510320	SPECFlexible, RG174/316/188, Ø 0,6	Manual	Availability –	Downloads3 files 3D 3D_WR-BCN_60745022510320 (rev1).pdf \| 1.6 MB IGS IGS_WR-BCN_60745022510320 (rev1).igs \| 24.7 MB STP STP_WR-BCN_60745022510320 (rev1).stp \| 11.8 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Cable TypeFlexible	CableRG174/316/188	Center ContactØ 0,6	Operating Temperature -65 °C up to +165 °C	Design Kit 607701	–Check availability
	60725022510320	SPECFlexible, RG174/316/188, Ø 0,6	Manual	Availability –	Downloads3 files 3D 3D_WR-BNC_60725022510320 (rev1).pdf \| 1.3 MB IGS IGS_WR-BNC_60725022510320 (rev1).igs \| 27.3 MB STP STP_WR-BNC_60725022510320 (rev1).stp \| 10.2 MB	Status NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years. iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable TypeFlexible	CableRG174/316/188	Center ContactØ 0,6	Operating Temperature -65 °C up to +165 °C	Design Kit –	–Check availability
	60726022410120	SPECFlexible, RG58/141/LL195, Ø 1,05	Manual	Availability –	Downloads3 files 3D 3D_ConBNC_60726022410120 (rev1).pdf \| 468.1 KB IGS IGS_ConBNC_60726022410120 (rev1).igs \| 9.7 MB IGS STP_ConBNC_60726022410120 (rev1).stp \| 3.5 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Cable TypeFlexible	CableRG58/141/LL195	Center ContactØ 1,05	Operating Temperature -65 °C up to +165 °C	Design Kit –	–Check availability
	60725522510320	SPECFlexible, RG174/316/188, Ø 0,6	Manual	Availability –	Downloads3 files 3D 3D_ConBNC_60725522510320 (rev1).pdf \| 2.6 MB IGS IGS_ConBNC_60725522510320 (rev1).igs \| 37.7 MB STP STP_ConBNC_60725522510320 (rev1).stp \| 15.6 MB	Status NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years. iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable TypeFlexible	CableRG174/316/188	Center ContactØ 0,6	Operating Temperature -65 °C up to +165 °C	Design Kit –	–Check availability
	60726522410120	SPECFlexible, RG58/141/LL195, Ø 1,05	Manual	Availability –	Downloads3 files 3D 3D_ConBNC_60726522410120 (rev1).pdf \| 2.3 MB IGS IGS_ConBNC_60726522410120 (rev1).igs \| 33.3 MB STP STP_ConBNC_60726522410120 (rev1).stp \| 13.9 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Cable TypeFlexible	CableRG58/141/LL195	Center ContactØ 1,05	Operating Temperature -65 °C up to +165 °C	Design Kit –	–Check availability
	60725522510420	SPECFlexible, RG178/RG196, Ø 0,4	Manual	Availability –	Downloads3 files 3D 3D_ConBNC_60725522510420 (rev1).pdf \| 1.3 MB IGS IGS_ConBNC_60725522510420 (rev1).igs \| 5.1 MB STP STP_ConBNC_60725522510420 (rev1).stp \| 2.2 MB	Status NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years. iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable TypeFlexible	CableRG178/RG196	Center ContactØ 0,4	Operating Temperature -65 °C up to +165 °C	Design Kit –	–Check availability
	60725522512120	SPECFlexible, 1.13, Ø 0,4	Manual	Availability –	Downloads3 files 3D 3D_ConBNC_60725522512120 (rev1).pdf \| 896.6 KB IGS IGS_ConBNC_60725522512120 (rev1).igs \| 4.9 MB STP STP_ConBNC_60725522512120 (rev1).stp \| 2.3 MB	Status NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years. iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.	Cable TypeFlexible	Cable1.13	Center ContactØ 0,4	Operating Temperature -65 °C up to +165 °C	Design Kit –	–Check availability
	60725522512220	SPECFlexible, 1.32, Ø 0,4	Manual	Availability –	Downloads3 files 3D 3D_ConBNC_60725522512220 (rev1).pdf \| 895.5 KB IGS IGS_ConBNC_60725522512220 (rev1).igs \| 4.9 MB STP STP_ConBNC_60725522512220 (rev1).stp \| 2.3 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Cable TypeFlexible	Cable1.32	Center ContactØ 0,4	Operating Temperature -65 °C up to +165 °C	Design Kit –	–Check availability
	60725522512320	SPECFlexible, 1.37, Ø 0,4	Manual	Availability –	Downloads3 files 3D 3D_ConBNC_60725522512320 (rev1).pdf \| 895.1 KB IGS IGS_ConBNC_60725522512320 (rev1).igs \| 4.7 MB STP STP_ConBNC_60725522512320 (rev1).stp \| 2.3 MB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Cable TypeFlexible	Cable1.37	Center ContactØ 0,4	Operating Temperature -65 °C up to +165 °C	Design Kit –	–Check availability

Suitable for

WR-ToolRF Crimping Tool for RF Cable Connector

Mates with

WR-BNC PCB Connectors - THT

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-BNC & WR-TNC Connectors

Design Kit Coaxial Solutions
