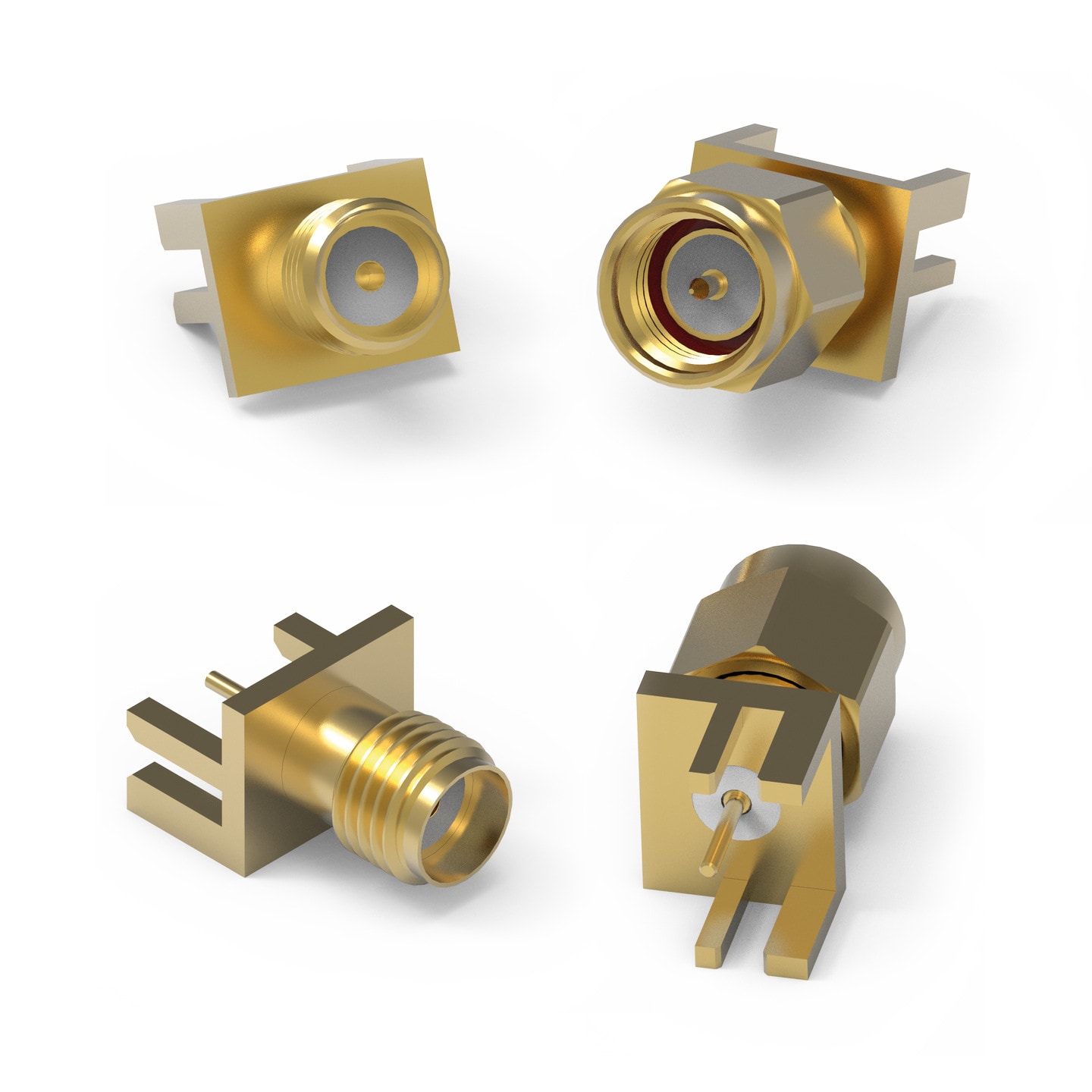

WR-SMA PCB End Launch

Size	Dimensions	Mount
EXT. Straight Jack		End Launch
Straight Plug		End Launch

Characteristics

Interface: MIL-STD-348
Mating Cycle: 500 Cycles
Impedance: 50Ω
Insulation Resistance: 5000MΩ(min.)
Withstanding Voltage: 1000Vrms(min.)
Ingress Protection: None l IP67
Mating: Screw (Recommended by torque wrench tool)

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
Electronic consumers and device
Outdoor or humid environment

Application Notes

Products

All

Straight Jack

Straight Plug

Reset all

Filter article data

show article in 2 product lines

article in 2 product lines

	Order Code	Datasheet	Downloads	Status	Ingress Protection Code	Panel Thickness (mm)	PCB Thickness (mm)	f	Center Contact	Operating Temperature	Design Kit	Samples
	60312202114307	None, –, 1.6 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-SMA (rev25a).IntLib \| 3.8 MB CDS Cadence_WR-SMA (rev25b).zip \| 22.9 MB EAG Eagle_WR-SMA (rev25a).lbr \| 167.6 KB CAD files ZIP 3D 3D_60312202114307 (rev1).pdf \| 306.7 KB IGS Download_IGES_60312202114307 (rev1).iges \| 598.4 KB STP Download_STP_60312202114307 (rev1).stp \| 136.4 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Ingress Protection Code None	–	PCB Thickness 1.6 mm	Frequency Range DC~18 GHz	Center Contact Ø 0.76	Operating Temperature -65 °C up to +165 °C	Design Kit 603301 630690
	60312202114508	None, –, 1.1 mm	Downloads 7 files EDA models: Components ZIP ALT Altium_WR-SMA (rev25a).IntLib \| 3.8 MB ANS ANSYS_60312202114508 (rev22b).a3dcomp \| 1.1 MB CDS Cadence_WR-SMA (rev25b).zip \| 22.9 MB EAG Eagle_WR-SMA (rev25a).lbr \| 167.6 KB CAD files ZIP 3D 3D_60312202114508 (rev1).pdf \| 324.9 KB IGS Download_IGES_60312202114508 (rev1).iges \| 644.6 KB STP Download_STP_60312202114508 (rev1).stp \| 151.2 KB Download all 7 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Ingress Protection Code None	–	PCB Thickness 1.1 mm	Frequency Range DC~18 GHz	Center Contact Ø 0.76	Operating Temperature -65 °C up to +165 °C	Design Kit 603301

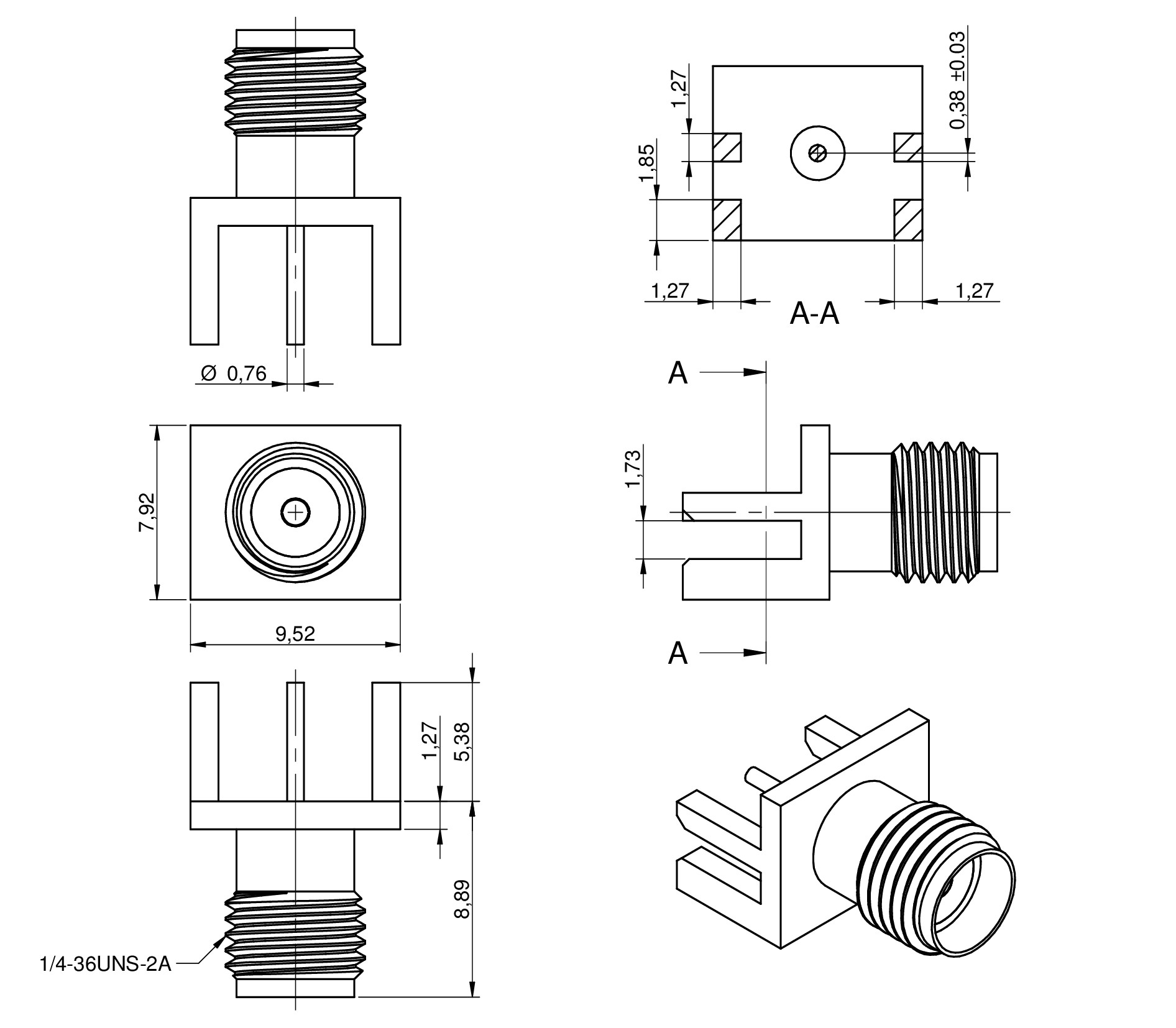

	60312202114509	None, –, 1.6 mm	Downloads 7 files EDA models: Components ZIP ALT Altium_WR-SMA (rev25a).IntLib \| 3.8 MB ANS ANSYS_60312202114509 (rev25a).a3dcomp \| 281.6 KB CDS Cadence_WR-SMA (rev25b).zip \| 22.9 MB EAG Eagle_WR-SMA (rev25a).lbr \| 167.6 KB CAD files ZIP 3D 3D_60312202114509 (rev1).pdf \| 294.4 KB IGS Download_IGES_60312202114509 (rev1).iges \| 614.9 KB STP Download_STP_60312202114509 (rev1).stp \| 147.8 KB Download all 7 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Ingress Protection Code None	–	PCB Thickness 1.6 mm	Frequency Range DC~18 GHz	Center Contact Ø 0.76	Operating Temperature -65 °C up to +165 °C	Design Kit 603301
	60312242114510	None, 2.4 mm, 1.6 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-SMA (rev25a).IntLib \| 3.8 MB CDS Cadence_WR-SMA (rev25b).zip \| 22.9 MB EAG Eagle_WR-SMA (rev25a).lbr \| 167.6 KB CAD files ZIP 3D 3D_60312242114510 (rev1).pdf \| 517.8 KB IGS Download_IGES_60312242114510 (rev1).iges \| 1.7 MB STP Download_STP_60312242114510 (rev1).stp \| 402.5 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Ingress Protection Code None	Panel Thickness 2.4 mm	PCB Thickness 1.6 mm	Frequency Range DC~18 GHz	Center Contact Ø 0.76	Operating Temperature -65 °C up to +165 °C	Design Kit 603301
	60312202114511	None, –, 2.8 mm	Downloads 7 files EDA models: Components ZIP ALT Altium_WR-SMA (rev25a).IntLib \| 3.8 MB ANS ANSYS_60312202114511 (rev25a).a3dcomp \| 242.2 KB CDS Cadence_WR-SMA (rev25b).zip \| 22.9 MB EAG Eagle_WR-SMA (rev25a).lbr \| 167.6 KB CAD files ZIP 3D 3D_60312202114511 (rev1).pdf \| 334.9 KB IGS Download_IGES_60312202114511 (rev1).iges \| 683.6 KB STP Download_STP_60312202114511 (rev1).stp \| 153.9 KB Download all 7 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Ingress Protection Code None	–	PCB Thickness 2.8 mm	Frequency Range DC~18 GHz	Center Contact Ø 0.51 WIDE x 0.25 THK	Operating Temperature -65 °C up to +165 °C	Design Kit 603301
	60312202114512	None, –, 1.1 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-SMA (rev25a).IntLib \| 3.8 MB CDS Cadence_WR-SMA (rev25b).zip \| 22.9 MB EAG Eagle_WR-SMA (rev25a).lbr \| 167.6 KB CAD files ZIP 3D 3D_60312202114512 (rev1).pdf \| 319.1 KB IGS Download_IGES_60312202114512 (rev1).iges \| 736.8 KB STP Download_STP_60312202114512 (rev1).stp \| 164.4 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Ingress Protection Code None	–	PCB Thickness 1.1 mm	Frequency Range DC~18 GHz	Center Contact Ø 0.51 WIDE x 0.25 THK	Operating Temperature -65 °C up to +165 °C	Design Kit 603301
	60312202114513	None, –, 1.6 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-SMA (rev25a).IntLib \| 3.8 MB CDS Cadence_WR-SMA (rev25b).zip \| 22.9 MB EAG Eagle_WR-SMA (rev25a).lbr \| 167.6 KB CAD files ZIP 3D 3D_60312202114513 (rev1).pdf \| 318 KB IGS Download_IGES_60312202114513 (rev1).iges \| 673.1 KB STP Download_STP_60312202114513 (rev1).stp \| 159.8 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Ingress Protection Code None	–	PCB Thickness 1.6 mm	Frequency Range DC~18 GHz	Center Contact Ø 0.51 WIDE x 0.25 THK	Operating Temperature -65 °C up to +165 °C	Design Kit 603301
	60312202114514	None, –, 1.6 mm	Downloads 7 files EDA models: Components ZIP ALT Altium_WR-SMA (rev25a).IntLib \| 3.8 MB ANS ANSYS_60312202114514 (rev25a).a3dcomp \| 381 KB CDS Cadence_WR-SMA (rev25b).zip \| 22.9 MB EAG Eagle_WR-SMA (rev25a).lbr \| 167.6 KB CAD files ZIP 3D 3D_60312202114514 (rev1).pdf \| 319.1 KB IGS Download_IGES_60312202114514 (rev1).iges \| 745.7 KB STP Download_STP_60312202114514 (rev1).stp \| 164.4 KB Download all 7 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Ingress Protection Code None	–	PCB Thickness 1.6 mm	Frequency Range DC~18 GHz	Center Contact Ø 0.51 WIDE x 0.25 THK	Operating Temperature -65 °C up to +165 °C	Design Kit 603301

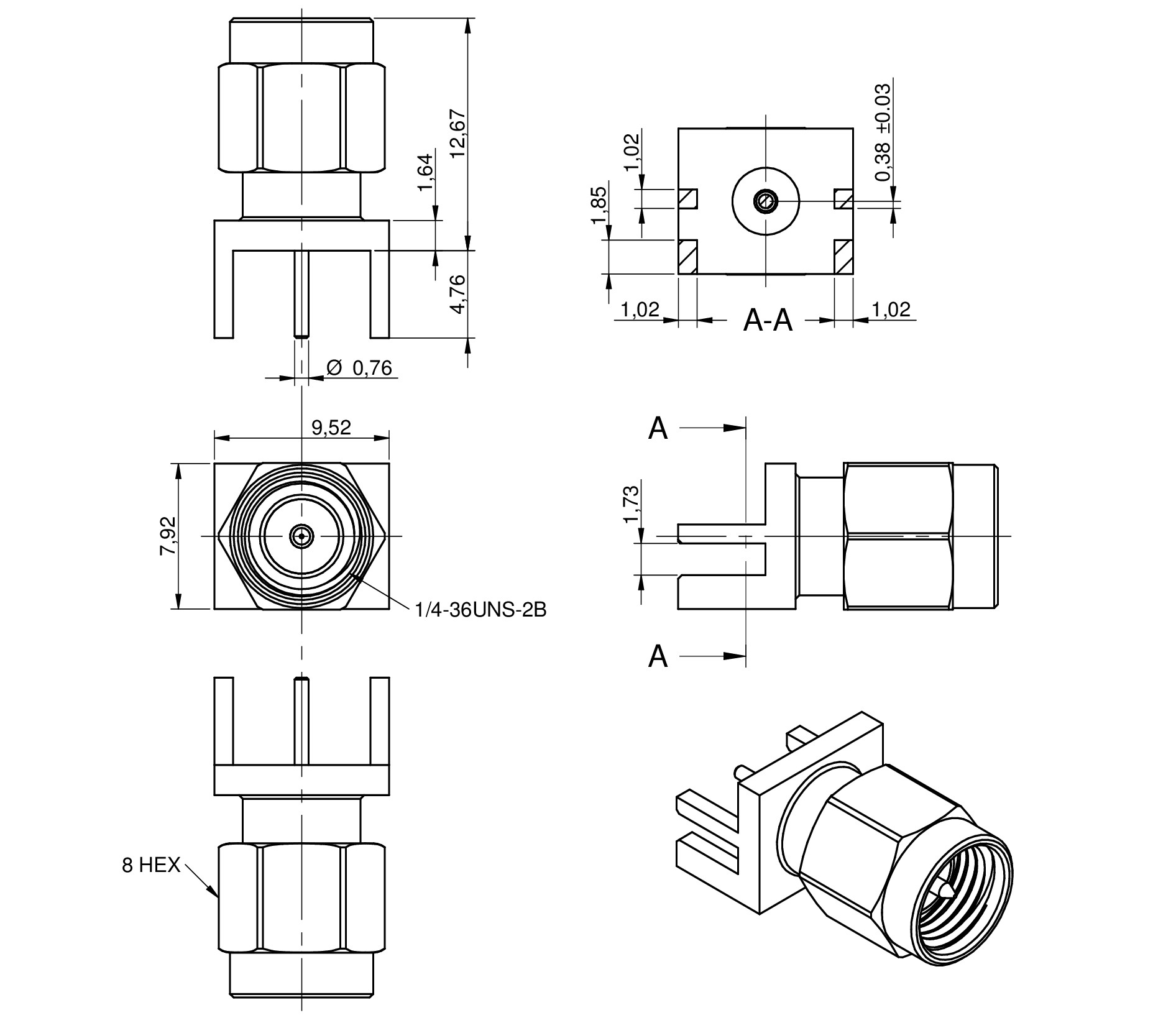

	60314202124525	None, –, 1.6 mm	Downloads 7 files EDA models: Components ZIP ALT Altium_WR-SMA (rev25a).IntLib \| 3.8 MB ANS ANSYS_60314202124525 (rev25a).a3dcomp \| 292.2 KB CDS Cadence_WR-SMA (rev25b).zip \| 22.9 MB EAG Eagle_WR-SMA (rev25a).lbr \| 167.6 KB CAD files ZIP 3D 3D_60314202124525 (rev1).pdf \| 313 KB IGS Download_IGES_60314202124525 (rev1).iges \| 920.7 KB STP Download_STP_60314202124525 (rev1).stp \| 202 KB Download all 7 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Ingress Protection Code None	–	PCB Thickness 1.6 mm	Frequency Range DC~18 GHz	Center Contact Ø 0.76	Operating Temperature -65 °C up to +165 °C	Design Kit 603301
	60312202111527	None, –, 1.6 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-SMA (rev25a).IntLib \| 3.8 MB CDS Cadence_WR-SMA (rev25b).zip \| 22.9 MB EAG Eagle_WR-SMA (rev25a).lbr \| 167.6 KB CAD files ZIP 3D 3D_60312202111527 (rev1).pdf \| 260.4 KB IGS Download_IGES_60312202111527 (rev1).iges \| 557.2 KB STP Download_STP_60312202111527 (rev1).stp \| 141 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Ingress Protection Code None	–	PCB Thickness 1.6 mm	Frequency Range DC~18 GHz	Center Contact Ø 0.76	Operating Temperature -65 °C up to +165 °C	Design Kit 603301
	60312252111535	None, 4.7 mm, 1.6 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-SMA (rev25a).IntLib \| 3.8 MB CDS Cadence_WR-SMA (rev25b).zip \| 22.9 MB EAG Eagle_WR-SMA (rev25a).lbr \| 167.6 KB CAD files ZIP 3D 3D_60312252111535 (rev1).pdf \| 992.4 KB IGS IGES_60312252111535 (rev1).iges \| 2.9 MB STP STP_60312252111535 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Ingress Protection Code None	Panel Thickness 4.7 mm	PCB Thickness 1.6 mm	Frequency Range DC~6 GHz	Center Contact Ø 0,51	Operating Temperature -65 °C up to +165 °C	Design Kit 603301
	60312202111561	None, –, 1.6 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-SMA (rev25a).IntLib \| 3.8 MB CDS Cadence_WR-SMA (rev25b).zip \| 22.9 MB EAG Eagle_WR-SMA (rev25a).lbr \| 167.6 KB CAD files ZIP 3D 60312202111561_3D (rev1).pdf \| 482.8 KB IGS 60312202111561 (rev1).igs \| 1021 KB STP 60312202111561 (rev1).stp \| 174.7 KB Download all 6 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Ingress Protection Code None	–	PCB Thickness 1.6 mm	Frequency Range DC~18 GHz	Center Contact Ø 0.25	Operating Temperature -65 °C up to +165 °C	Design Kit 630690
	60312202111562	None, –, 1.6 mm	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-SMA (rev25a).IntLib \| 3.8 MB CDS Cadence_WR-SMA (rev25b).zip \| 22.9 MB EAG Eagle_WR-SMA (rev25a).lbr \| 167.6 KB CAD files ZIP 3D 60312202111562_3D (rev1).pdf \| 437.2 KB IGS 60312202111562 (rev1).igs \| 1 MB STP 60312202111562 (rev1).stp \| 179.4 KB Download all 6 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Ingress Protection Code None	–	PCB Thickness 1.6 mm	Frequency Range DC~18 GHz	Center Contact Ø 0.3	Operating Temperature -65 °C up to +165 °C	Design Kit 630690
	60312202111563	None, –, –	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-SMA (rev25a).IntLib \| 3.8 MB CDS Cadence_WR-SMA (rev25b).zip \| 22.9 MB EAG Eagle_WR-SMA (rev25a).lbr \| 167.6 KB CAD files ZIP 3D 60312202111563_3D (rev1).pdf \| 491.3 KB IGS 60312202111563 (rev1).igs \| 1.1 MB STP 60312202111563 (rev1).stp \| 181.8 KB Download all 6 files as zip archive ZIP	Status New i \| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Ingress Protection Code None	–	–	Frequency Range DC~18 GHz	Center Contact Ø 0.25	Operating Temperature -65 °C up to +165 °C	Design Kit –

Mates with

WR-CXASY SMA Bulkhead Jack to MCX Straight Plug / RG-174/U Flexible Cable / 152.4 mm length

WR-CXASY SMA Bulkhead Jack to MCX Straight Plug / RG-178/U Flexible Cable / 152.4 mm length

WR-CXASY SMA Bulkhead Jack to MCX Straight Plug / RG-316/U Flexible Cable / 152.4 mm length

WR-CXASY SMA Jack Straight to MMCX Plug Straight / RG-174/U Flexible Cable / 152.4 mm length

WR-CXASY SMA Bulkhead Jack to MMCX Straight Plug/ RG-178/U Flexible Cable / 152.4 mm length

WR-CXASY SMA Bulkhead Jack to MMCX Straight Plug/ RG-316/U Flexible Cable / 152.4 mm length

WR-CXASY SMB Right Angle Plug to SMA Bulkhead Jack / RG-178/U Flexible Cable / 152.4 mm length

WR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-174/U Flexible Cable / 152.4mm length

WR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-178/U Flexible Cable / 152.4mm length

WR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-316/U Flexible Cable / 152.4mm length

WR-CXASY SMA Bulkhead Jack to MMCX Right Angle Plug / RG-174/U Flexible Cable / 152.4mm length

WR-CXASY SMA Bulkhead Jack to MMCX Right Angle Plug / RG-178/U Flexible Cable / 152.4mm length

WR-CXASY SMA Bulkhead Jack to MMCX Right Angle Plug / RG-316/U Flexible Cable / 152.4mm length

WR-CXASY N Type to SMA Series

WR-CXASY SMA to SMA

WR-ADPT SMA to SMA

WR-ADPT SMA to SMB

WR-ADPT SMA to UMRF

WR-ADPT RP SMA to SMA

WR-ADPT SMA to MCX

WR-ADPT SMA to MMCX

WR-ADPT SMA to TNC

WR-ADPT SMA to BNC

WR-ADPT SMA to N Type

WR-SMA Cable Connectors

Use with

WR-ToolRF Torque Wrench for SMA & RPSMA Plugs

Plastic Caps for SMA Jack Connector Cover

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connectors WR-SMA / WR-RPSMA

Design Kit Coaxial Solutions
