| Size | Dimensions | Mount | |
|---|---|---|---|

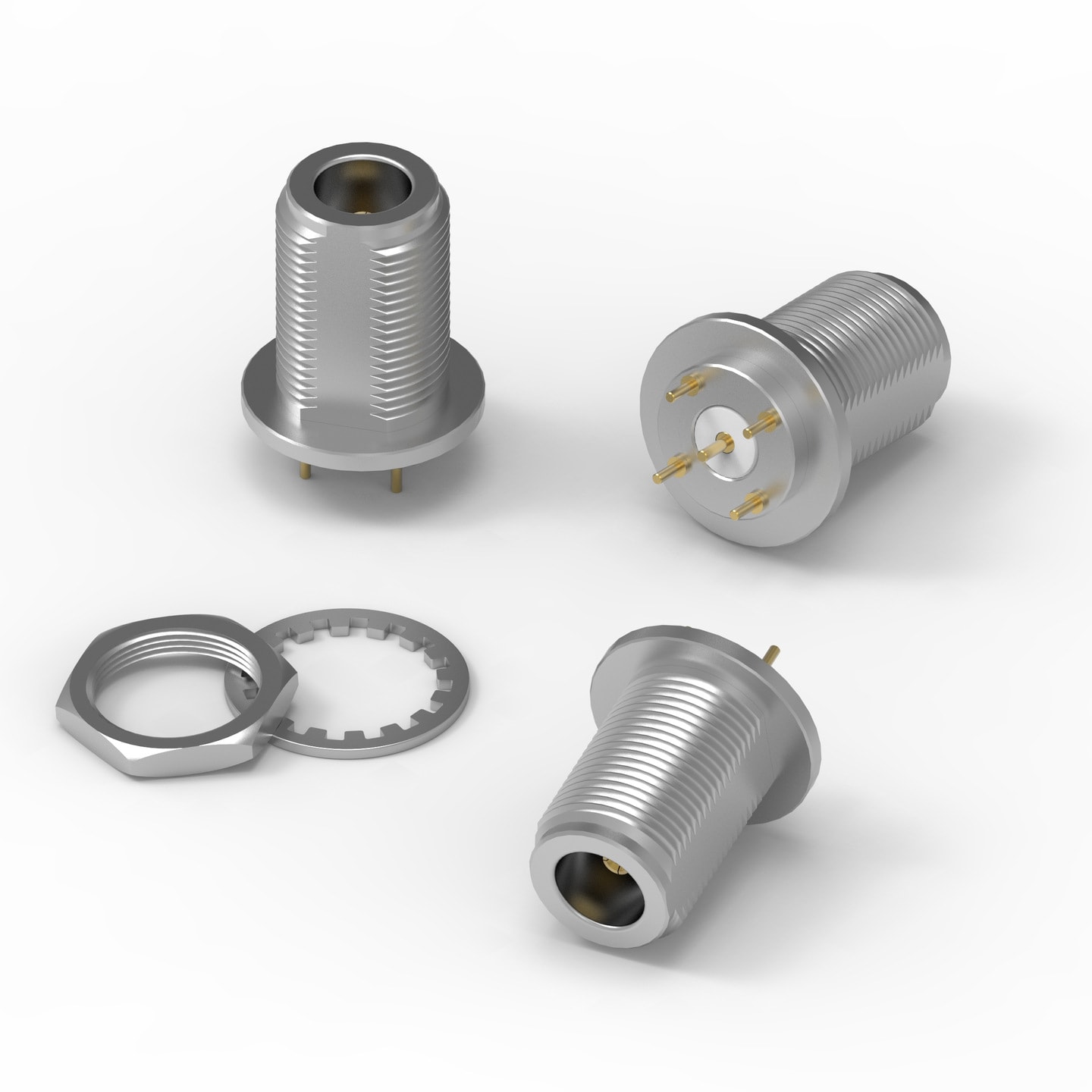

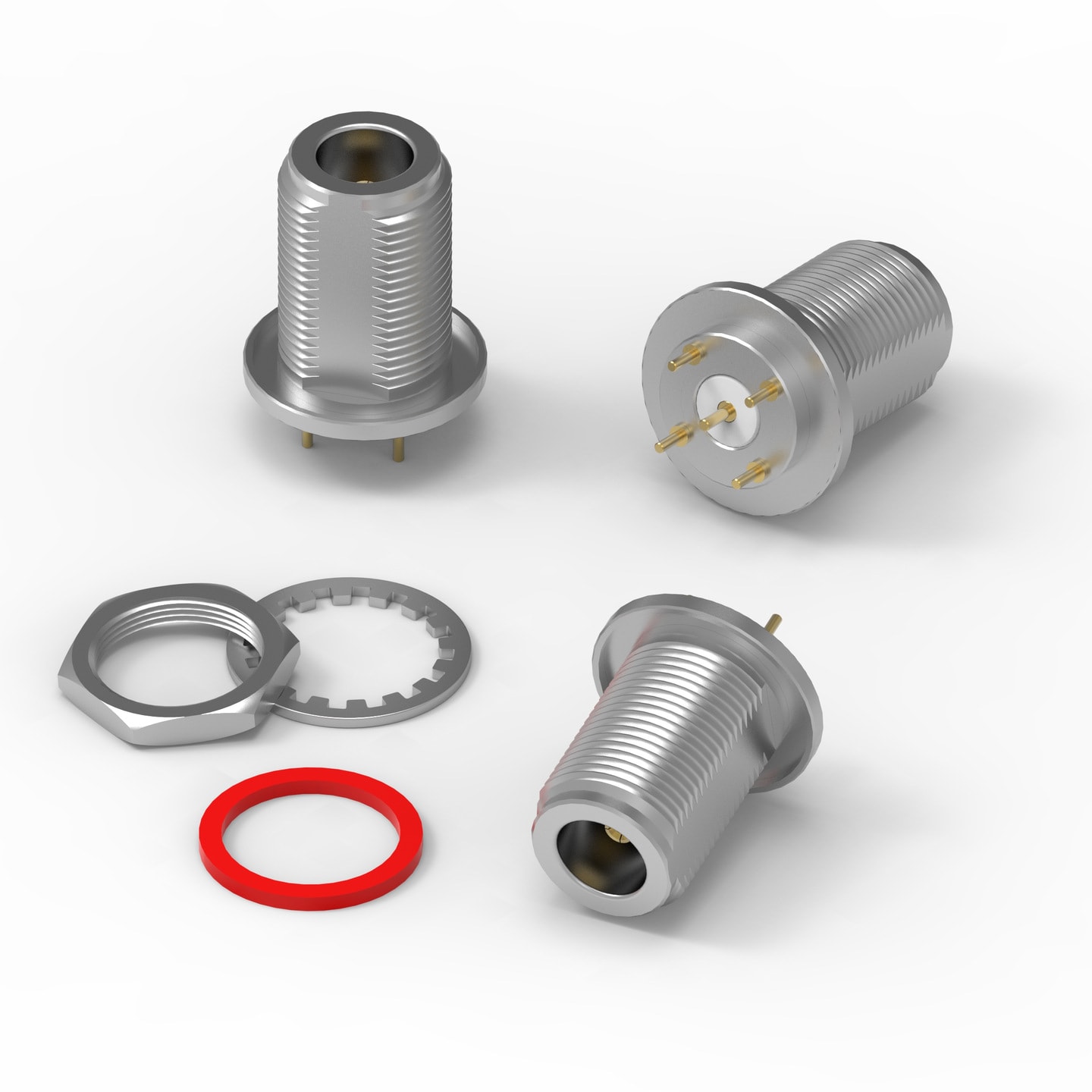

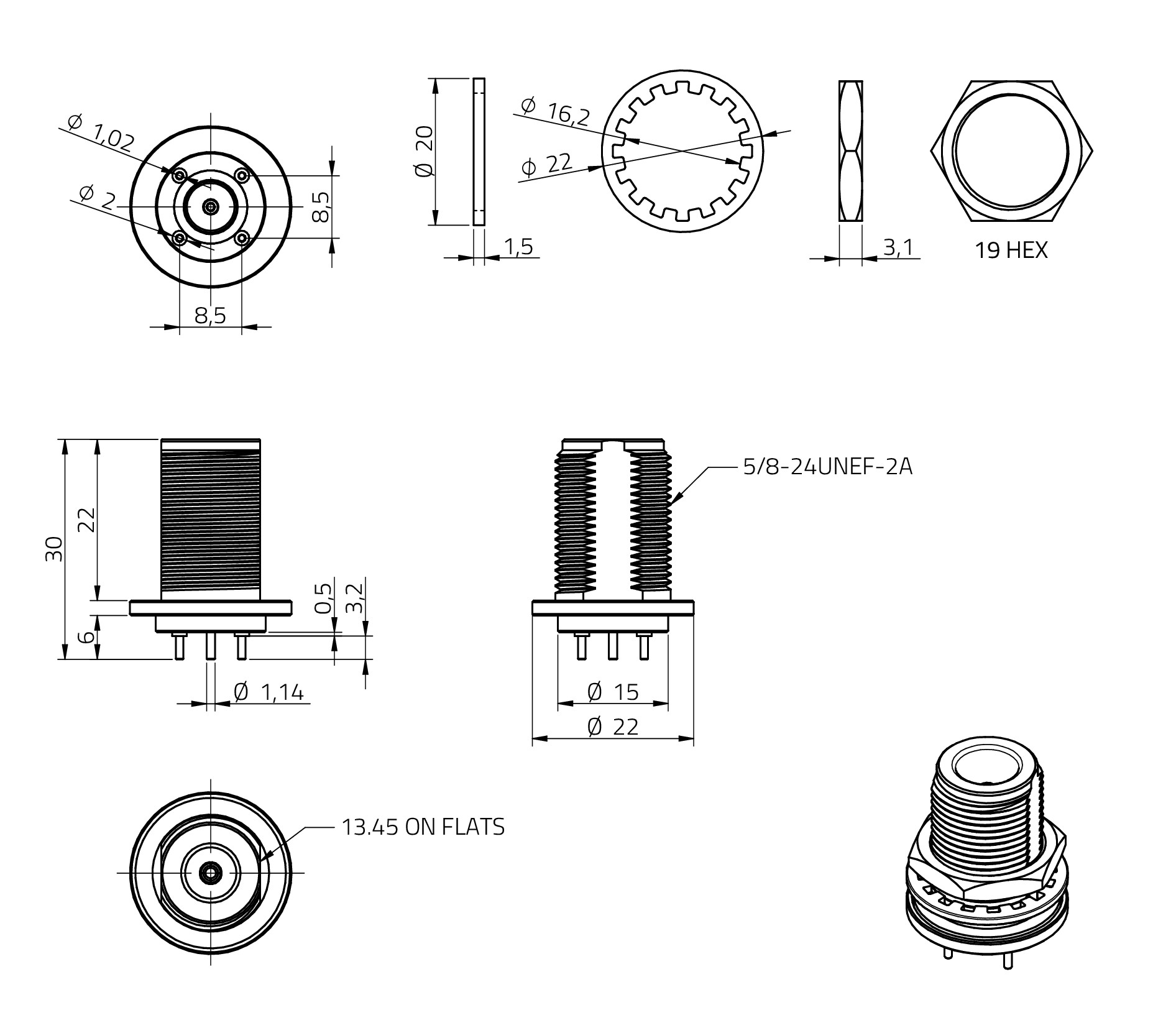

| Straight Jack | THT | ||

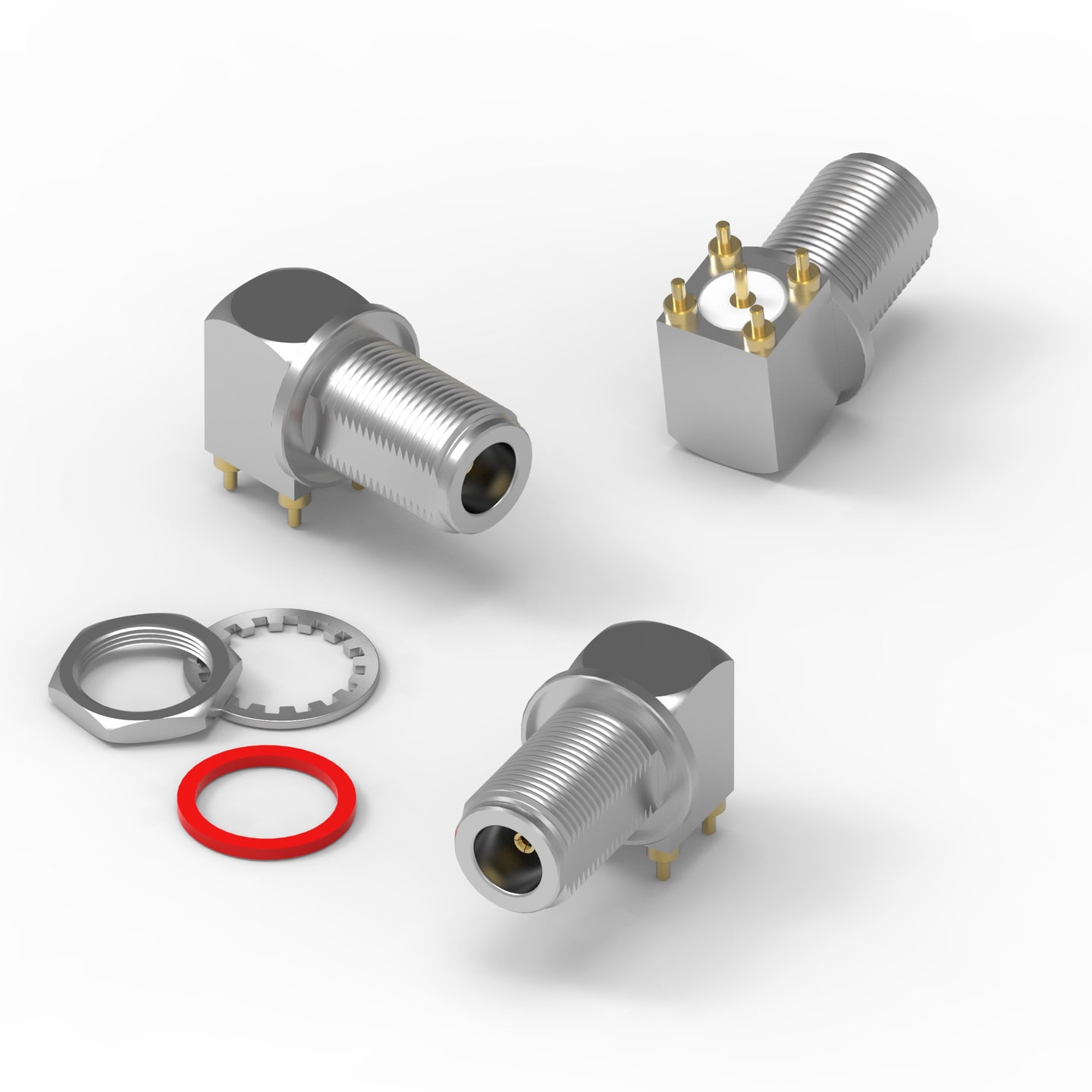

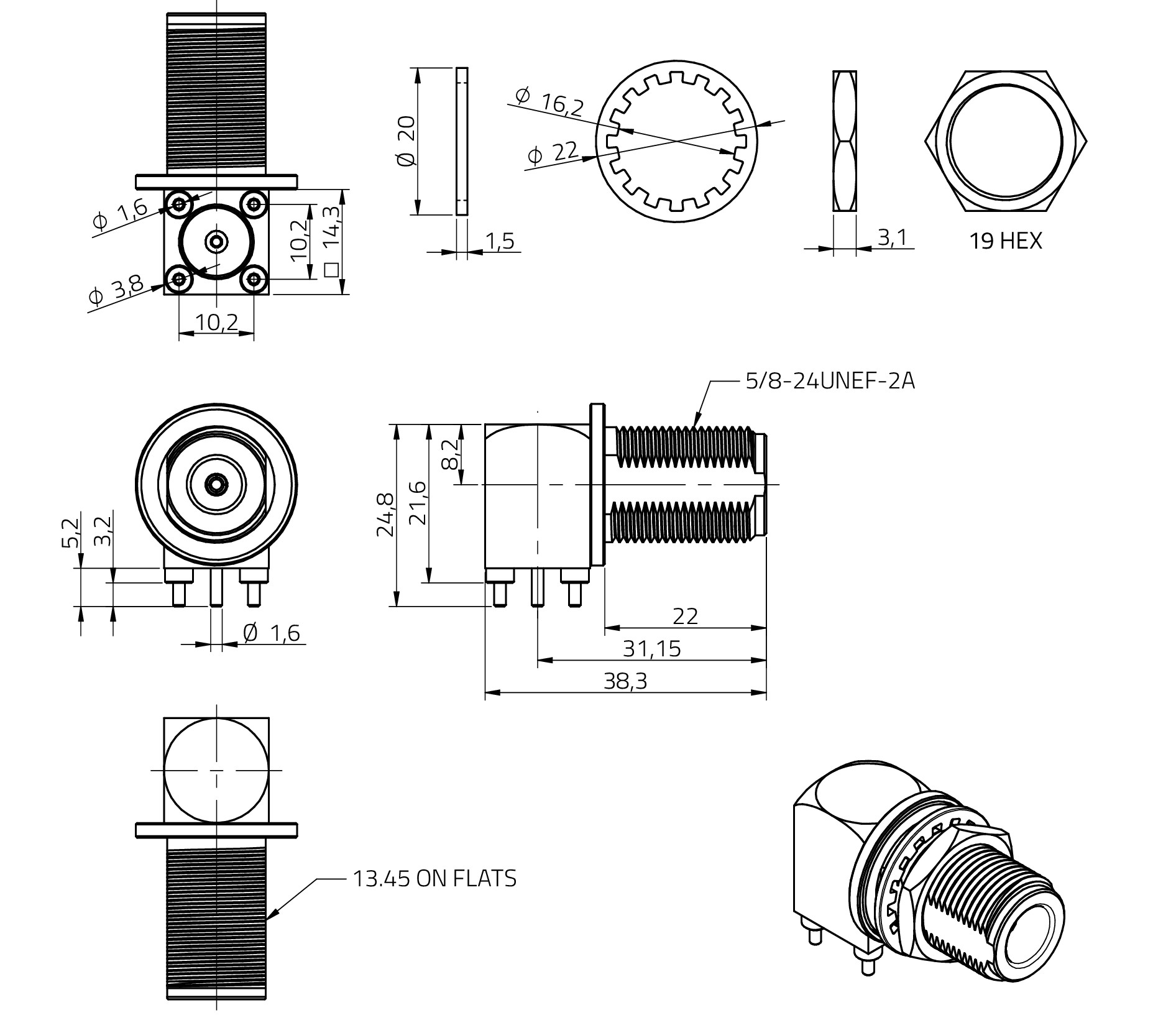

| Right Angle Jack | THT |
Characteristics
- Interface: MIL-STD-348
- Mating Cycle: 500 Cycles
- Impedance: 50 Ohm
- Plating: Nickel and Gold
- Mating: Screw (Recommended: Torque wrench tool)
- Ingress Protection: IP67
Applications
- Network and communications
- RF Test and Measurement Equipment
- Industrial application
- High power machinery
- Outdoor or humid environment
Products
| Order Code | Datasheet | Downloads | Status | Ingress Protection Code | Panel Thickness (mm) | f | Mount | Center Contact | Operating Temperature | Design Kit | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 60411052241502 | SPEC | 6 files | Active i| Production is active. Expected lifetime: >10 years. | IP67 | 6.5 | DC~4 GHz | THT | Ø1.6 | -65 °C up to +165 °C | 604001 612690 | |
 | 60412052241504 | SPEC | 6 files | Active i| Production is active. Expected lifetime: >10 years. | IP67 | 6.5 | DC~6 GHz | THT | Ø1.14 | -65 °C up to +165 °C | 604001 612690 | |
 | 60411042241501 | SPEC | 6 files | Active i| Production is active. Expected lifetime: >10 years. | None | 6.5 | DC~4 GHz | THT | Ø1.6 | -65 °C up to +165 °C | 604001 | |
 | 60412042241503 | SPEC | 6 files | Active i| Production is active. Expected lifetime: >10 years. | None | 6.5 | DC~6 GHz | THT | Ø1.14 | -65 °C up to +165 °C | 604001 |
| Samples |
|---|
| Order Code | Datasheet | Downloads | Status | Ingress Protection Code | Panel Thickness (mm) | f | Mount | Center Contact | Operating Temperature | Design Kit | Samples |
|---|
Coaxial Connectors
THE COAX FAMILY
HAS EXPANDED
Coaxial Connectors
THE COAX FAMILY
HAS EXPANDED
Coaxial connectors provide low loss paths between RF system, subassemblies or components. One of the important values to select a coax connection is the form factor. Starting from small UMRF up to the solid TNC connectors there is a solution for many applications.
Coax connectors for different frequencies
Coax connectors for different frequencies

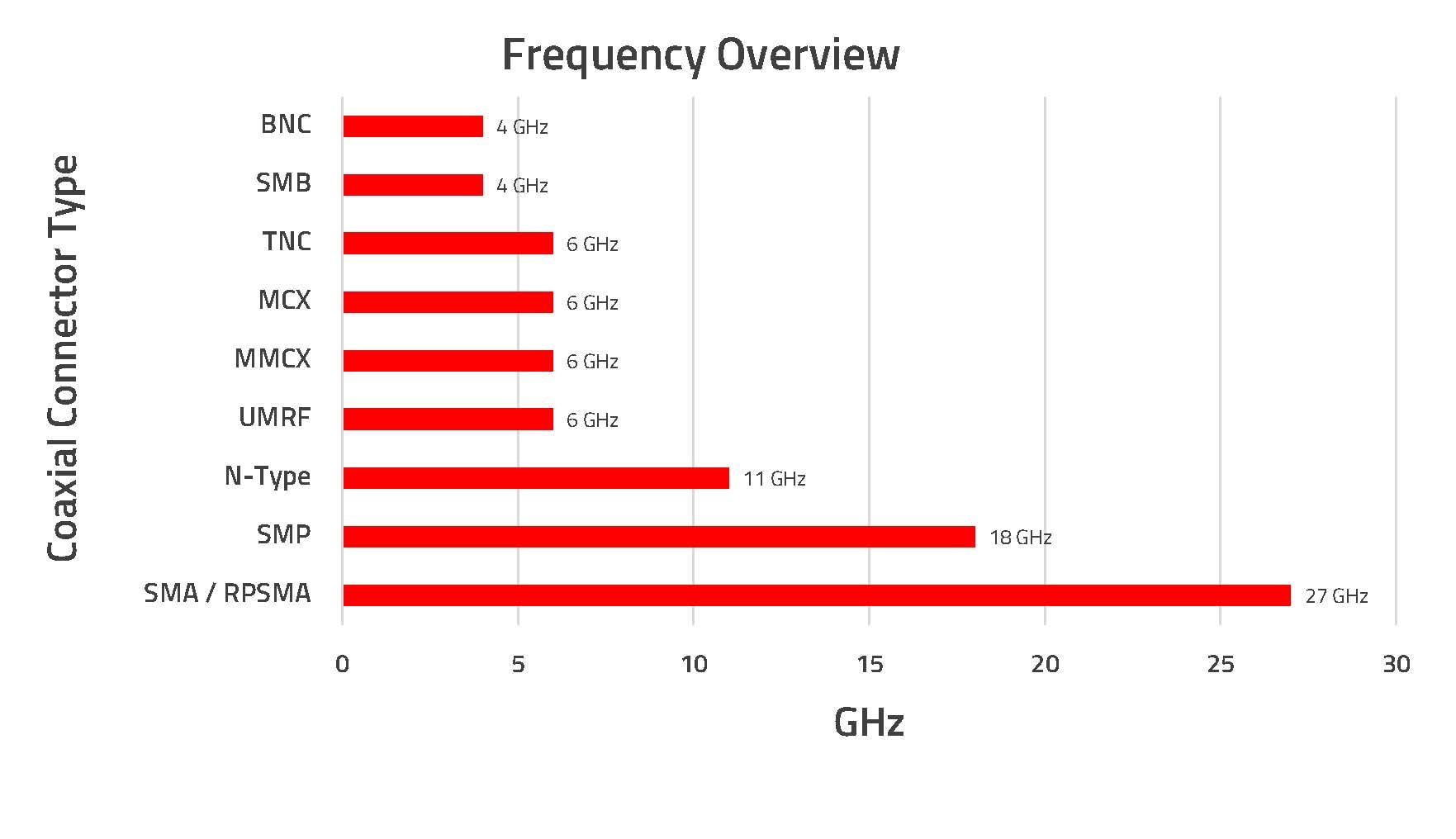

Besides form factor, the frequency range is an important value to select the right coax connector solution for individual applications. Würth Elektronik Coax connectors cover a wide frequency range from DC up to 27 GHz.
