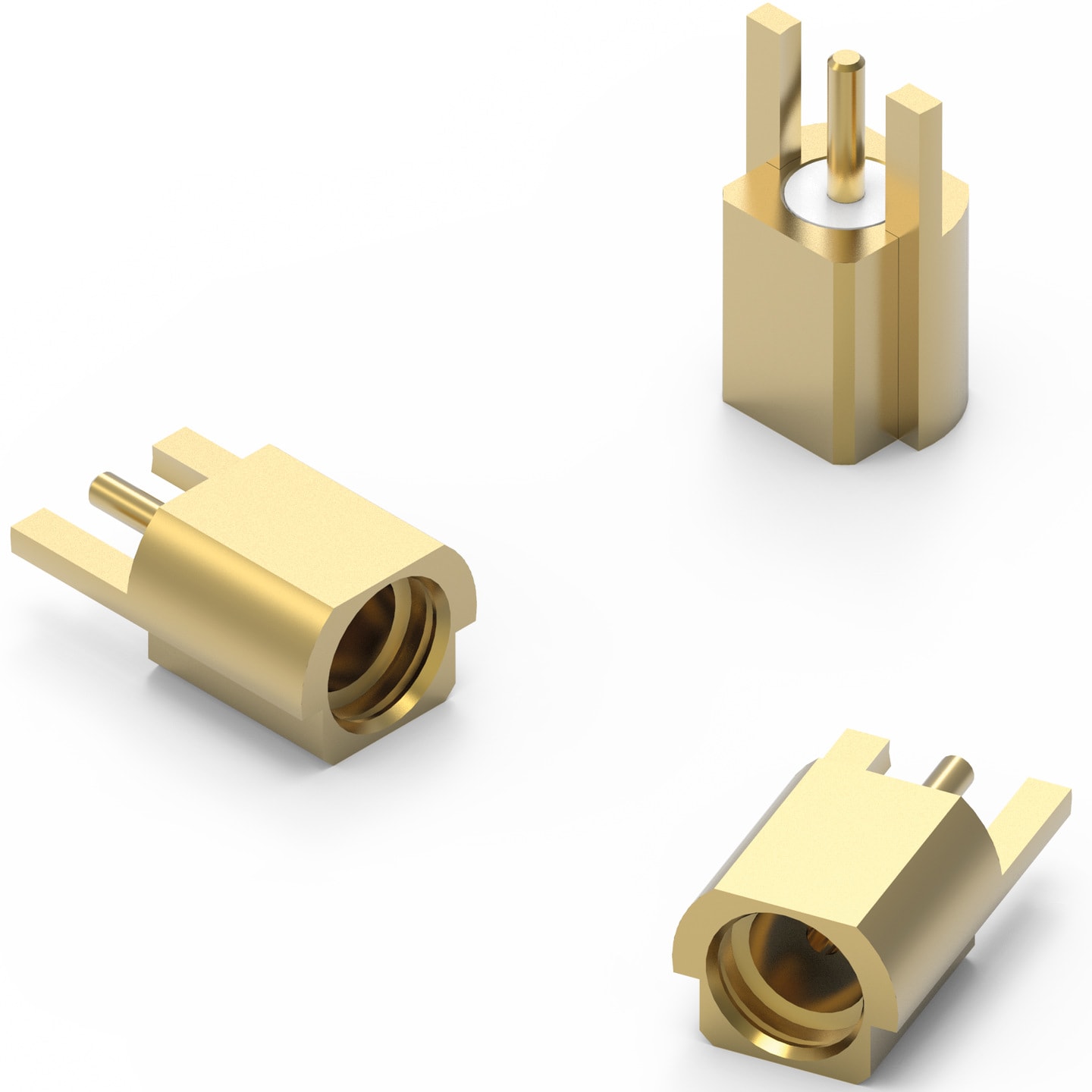

WR-MMCX PCB End Launch

WR-MMCX PCB End Launch
SizeDimen­sionsMount
Straight Jack
 End Launch

Characteristics

  • Interface: IEC 61169-52
  • Mating Cycle: 500 Cycles
  • Impedance: 50Ω
  • Insulation Resistance: 1000M Ω (min.)
  • Withstanding Voltage: 500Vrms (min.)
  • Mating: Snap on

Applications

  • Network and communications
  • RF Test and measurement equipment
  • Industrial applications
  • Electronic consumers and devices

Application Notes

Products

Straight Jack
Reset all
Filter article data
Filter by
Delete all
 show  article in 1 product lines
 article in 1 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
PCB Thickness(mm)
f
Center Contact
Operating Temperature
Design Kit
SamplesAvailability & Sample
WR-MMCX PCB End Launch
66012202111305
SPEC1.1 mm, DC~6 GHz, Ø 0.7
Availability
–
Downloads7 files

EDA models: Components ZIP

CAD files ZIP

Download all 7 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
PCB Thickness1.1 mm
Frequency RangeDC~6 GHz
Center ContactØ 0.7
Operating Temperature -55 °C up to +155 °C
Design Kit
660001
–Check availability

Mates with

WR-CXASY SMA Bulkhead Jack to MMCX Right Angle Plug / RG-174/U Flexible Cable / 152.4mm length
WR-CXASY SMA Bulkhead Jack to MMCX Right Angle Plug / RG-178/U Flexible Cable / 152.4mm length
WR-CXASY SMA Bulkhead Jack to MMCX Right Angle Plug / RG-316/U Flexible Cable / 152.4mm length
WR-CXASY RPSMA Bulkhead Jack to MMCX Straight Plug / RG-174/U Flexible Cable / 152.4 mm length
WR-CXASY RPSMA Bulkhead Jack to MMCX Straight Plug / RG-178/U Flexible Cable / 152.4 mm length
WR-CXASY RPSMA Bulkhead Jack to MMCX Straight Plug / RG-316/U Flexible Cable / 152.4 mm length
WR-CXASY MMCX to MMCX
WR-ADPT SMA to MMCX
WR-MMCX Cable Connectors

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-MMCX PCB & Cable Connectors
