OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyCoaxial Connectors Product sub-familyAdaptor Product seriesWR-ADPT MMCX Jack to MMCX Jack

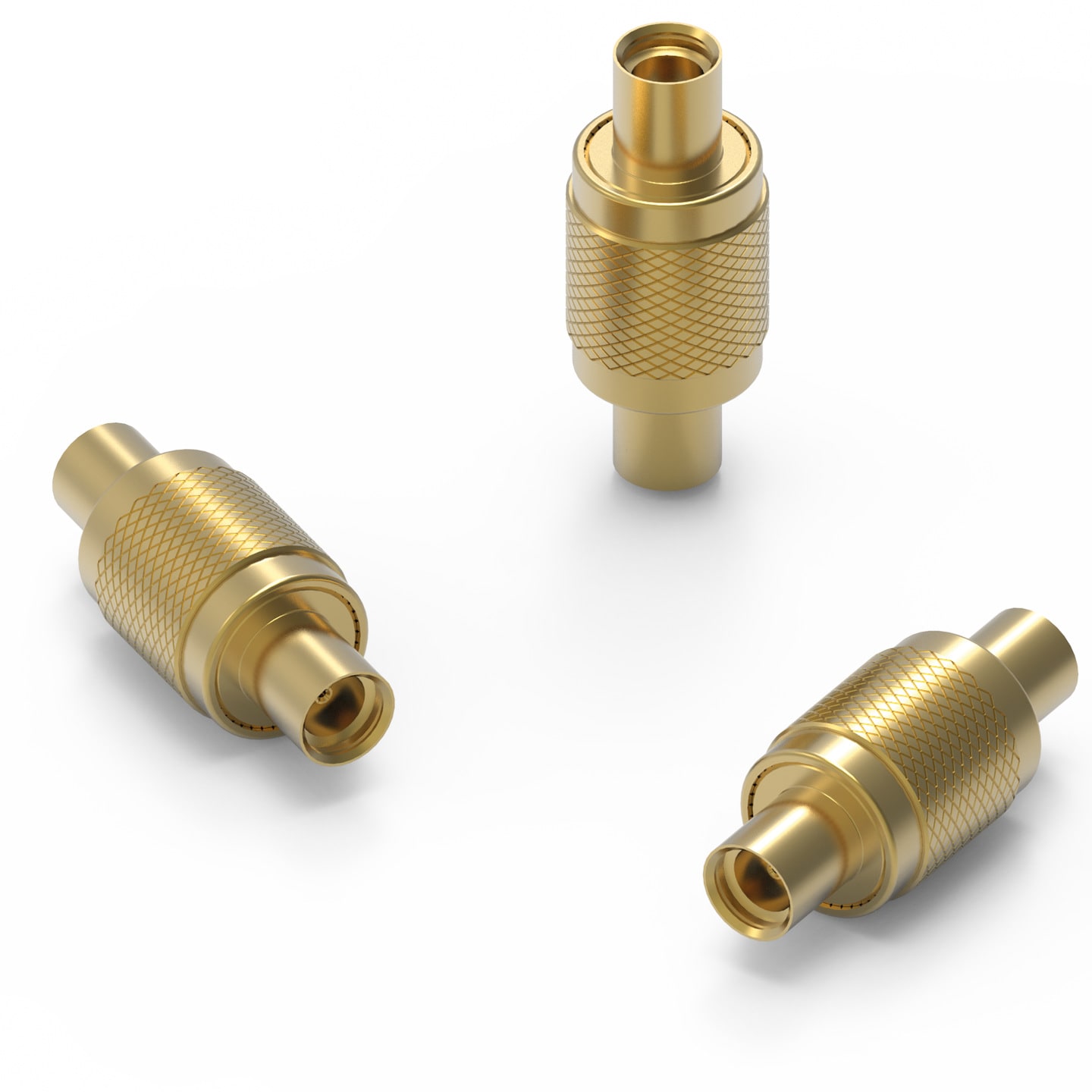

WR-ADPT MMCX Jack to MMCX Jack

Size	Dimensions
MMCX Jack ┃MMCX Jack

Characteristics

Interface: IEC61169-52
Mating Cycle: 500 Cycles
Impedance: 50Ω
Plating: Gold

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
Outdoor or humidity environment

Products

MMCX Jack ┃MMCX Jack

	Order Code	Datasheet	Downloads	Status	Connector Type 1	Gender 1	Connector Type 2	Gender 2	f	Orientation Type	Operating Temperature	Samples
	64460160111000	SPEC	3 files CAD files ZIP 3D Download_3D_64460160111000 (rev1).pdf \| 2.7 MB IGS Download_IGES_64460160111000 (rev1).iges \| 24.7 MB STP Download_STEP_64460160111000 (rev1).stp \| 38.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	MMCX	Jack	MMCX	Jack	DC~6 GHz	Straight	-55 °C up to +155 °C

	Order Code	Datasheet
	64460160111000	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Connector Type 1	Gender 1	Connector Type 2	Gender 2	f	Orientation Type	Operating Temperature	Samples
