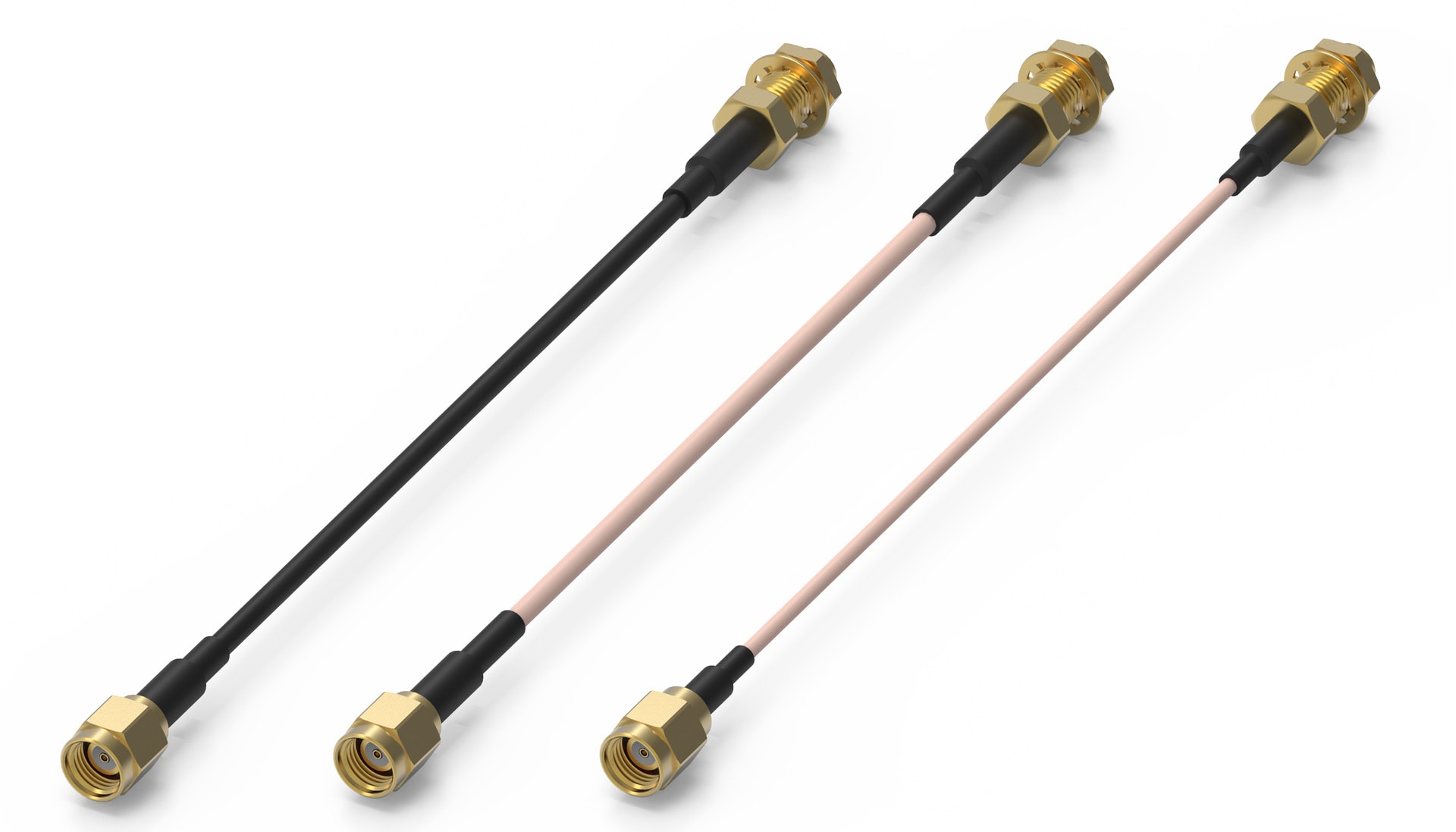

WR-CXASY RPSMA to RPSMA

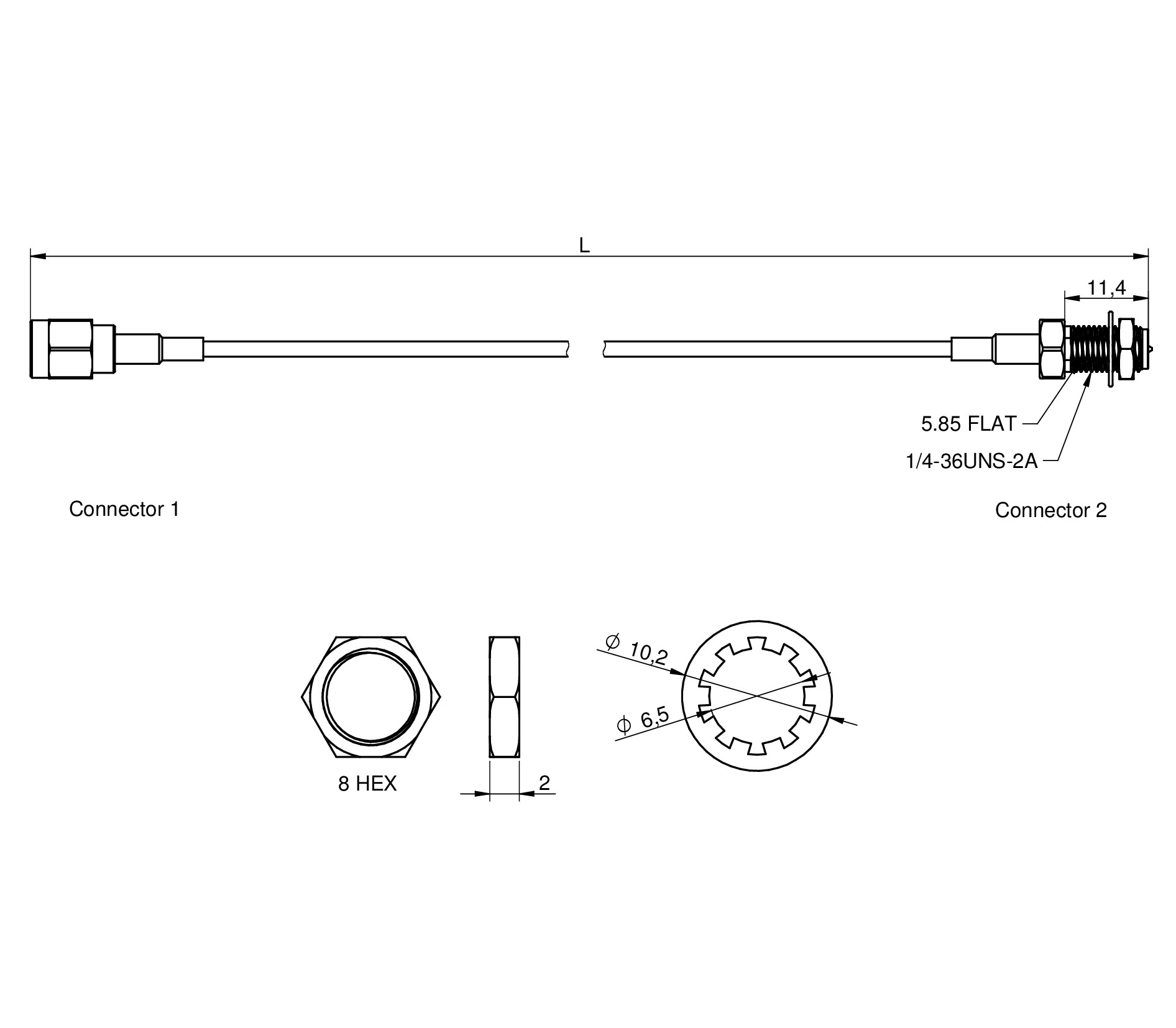

Size	Dimensions
Straight Plug ⅼ Straight Bulkhead Jack

Characteristics

Interface: MIL-STD-348
Mating Cycle: 500 Cycles
Impedance: 50Ω
Insulation Resistance: 5000M Ohm (min)
Withstanding Voltage: 1000 Vrms (min.)
Mating: Screw (Recommended by torque wrench tool)

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
Electronic consumers and device

Didn't find the right cable? Configure and request directly

Products

Straight Plug ⅼ Straight Bulkhead Jack

Filter article data

show article in 1 product lines

article in 1 product lines

	Order Code	Datasheet	Downloads	Status	Connector Type 1	Connector Type 2	Cable	Nominal Cable Length(mm)	f	Z(Ω)	Ingress Protection Code	Samples
	65504010315301	RP SMA, RP SMA, RG-174/U	Downloads3 files CAD files ZIP 3D 3D_655040103xxx01 (rev1).pdf \| 4.1 MB IGS IGES_655040103xxx01 (rev1).iges \| 25.8 MB STP STP_655040103xxx01 (rev1).stp \| 12.7 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1RP SMA	Connector Type 2RP SMA	CableRG-174/U	Nominal Cable Length152.4 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	Ingress Protection CodeNone
	65504010330501	RP SMA, RP SMA, RG-174/U	Downloads2 files CAD files ZIP IGS IGES_655040103xxx01 (rev1).iges \| 25.8 MB STP STP_655040103xxx01 (rev1).stp \| 12.7 MB Download all 2 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1RP SMA	Connector Type 2RP SMA	CableRG-174/U	Nominal Cable Length304.8 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	Ingress Protection CodeNone
	65504011515301	RP SMA, RP SMA, RG-178/U	Downloads3 files CAD files ZIP 3D 3D_655040115xxx01 (rev1).pdf \| 1.6 MB IGS IGES_655040115xxx01 (rev1).iges \| 4.5 MB STP STP_655040115xxx01 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1RP SMA	Connector Type 2RP SMA	CableRG-178/U	Nominal Cable Length152.4 mm	Frequency RangeDC~3 GHz	Impedance50 Ω	Ingress Protection CodeNone
	65504011530501	RP SMA, RP SMA, RG-178/U	Downloads3 files CAD files ZIP 3D 3D_655040115xxx01 (rev1).pdf \| 1.6 MB IGS IGES_655040115xxx01 (rev1).iges \| 4.5 MB STP STP_655040115xxx01 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1RP SMA	Connector Type 2RP SMA	CableRG-178/U	Nominal Cable Length304.8 mm	Frequency RangeDC~3 GHz	Impedance50 Ω	Ingress Protection CodeNone
	65504011615301	RP SMA, RP SMA, RG-316/U	Downloads3 files CAD files ZIP 3D 3D_655040116xxx01 (rev1).pdf \| 4.1 MB IGS IGES_655040116xxx01 (rev1).iges \| 25.7 MB STP STEP_655040116xxx01 (rev1).stp \| 12.7 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1RP SMA	Connector Type 2RP SMA	CableRG-316/U	Nominal Cable Length152.4 mm	Frequency RangeDC~6 GHz	Impedance50 Ω	Ingress Protection CodeNone
	65504011630501	RP SMA, RP SMA, RG-316/U	Downloads3 files CAD files ZIP 3D 3D_655040116xxx01 (rev1).pdf \| 4.1 MB IGS IGES_655040116xxx01 (rev1).iges \| 25.7 MB STP STEP_655040116xxx01 (rev1).stp \| 12.7 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1RP SMA	Connector Type 2RP SMA	CableRG-316/U	Nominal Cable Length304.8 mm	Frequency RangeDC~6 GHz	Impedance50 Ω	Ingress Protection CodeNone
