WR-CXASY SMB to SMB

Size	Dimensions
Straight Plug ⅼ Straight Plug
Right Angle Plug ⅼ Right Angle Plug
Right Angle Plug ⅼ Straight Bulkhead Jack

Characteristics

Interface: MIL-STD-348
Mating Cycle: 500 Cycles
Impedance: 50Ω
Insulation Resistance: 1000M Ohm (min)
Withstanding Voltage: 750 Vrms (min.)
Mating: Snap on

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
Electronic consumers and device

Didn't find the right cable? Configure and request directly

Products

All

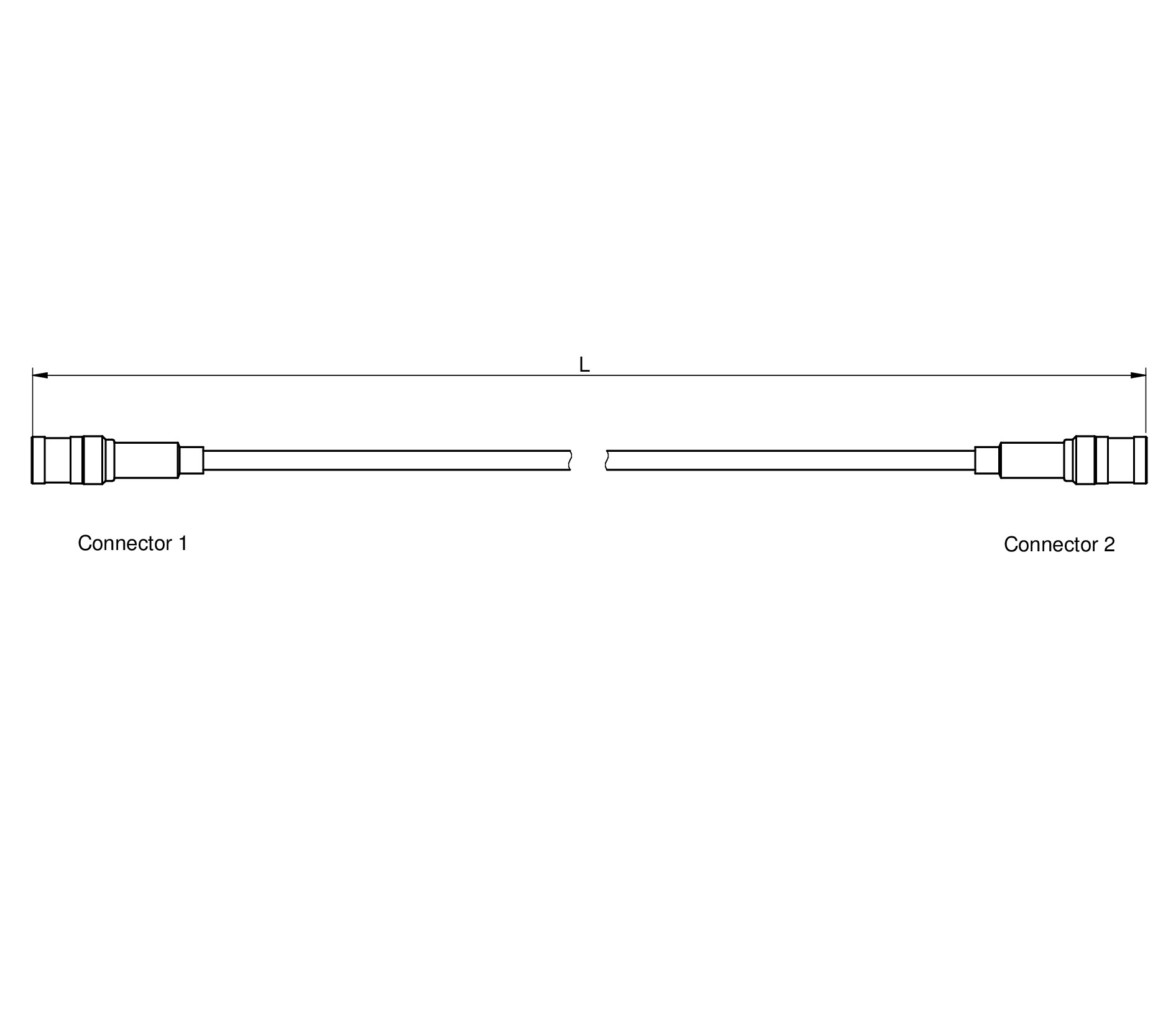

Straight Plug ⅼ Straight Plug

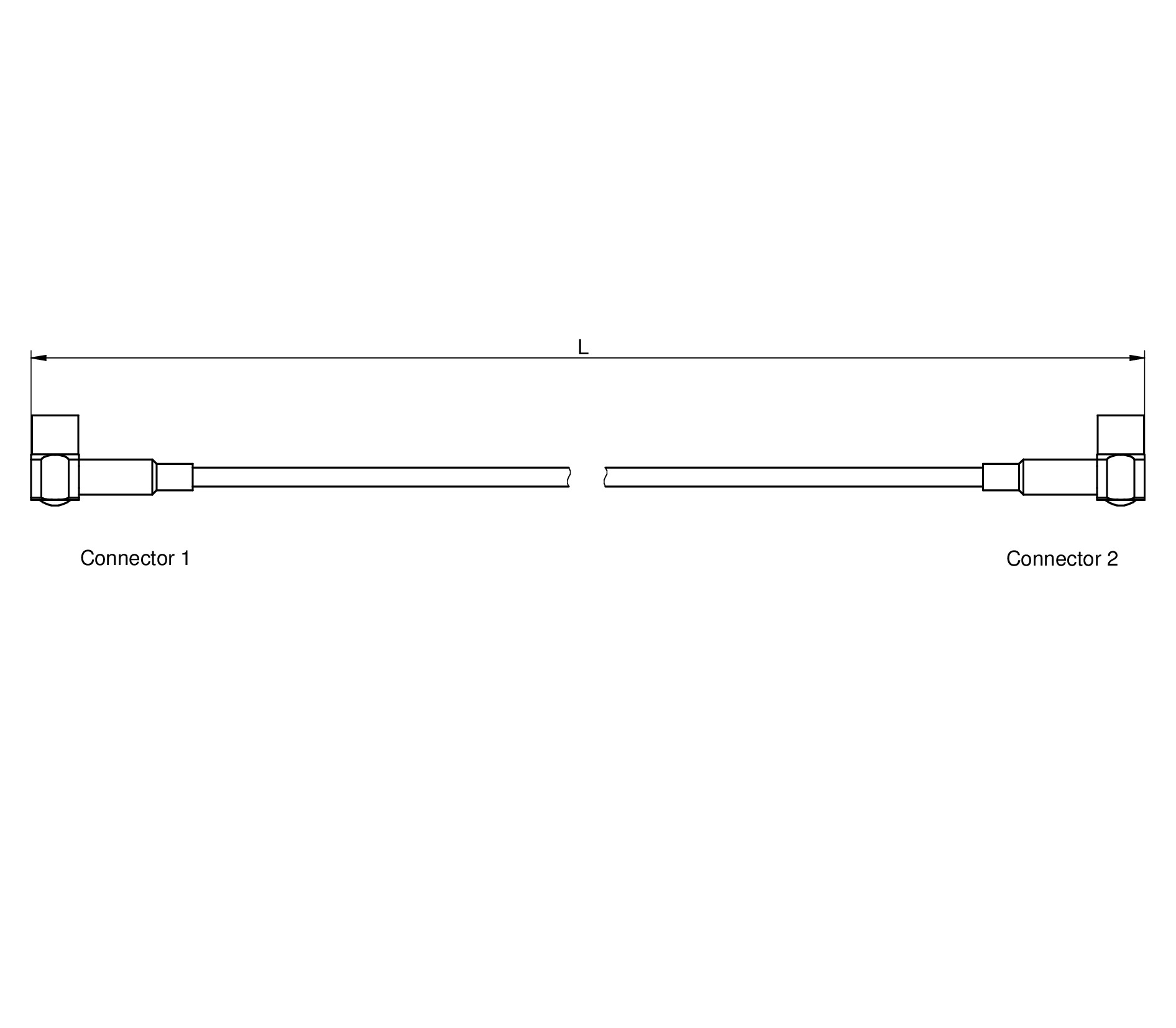

Right Angle Plug ⅼ Right Angle Plug

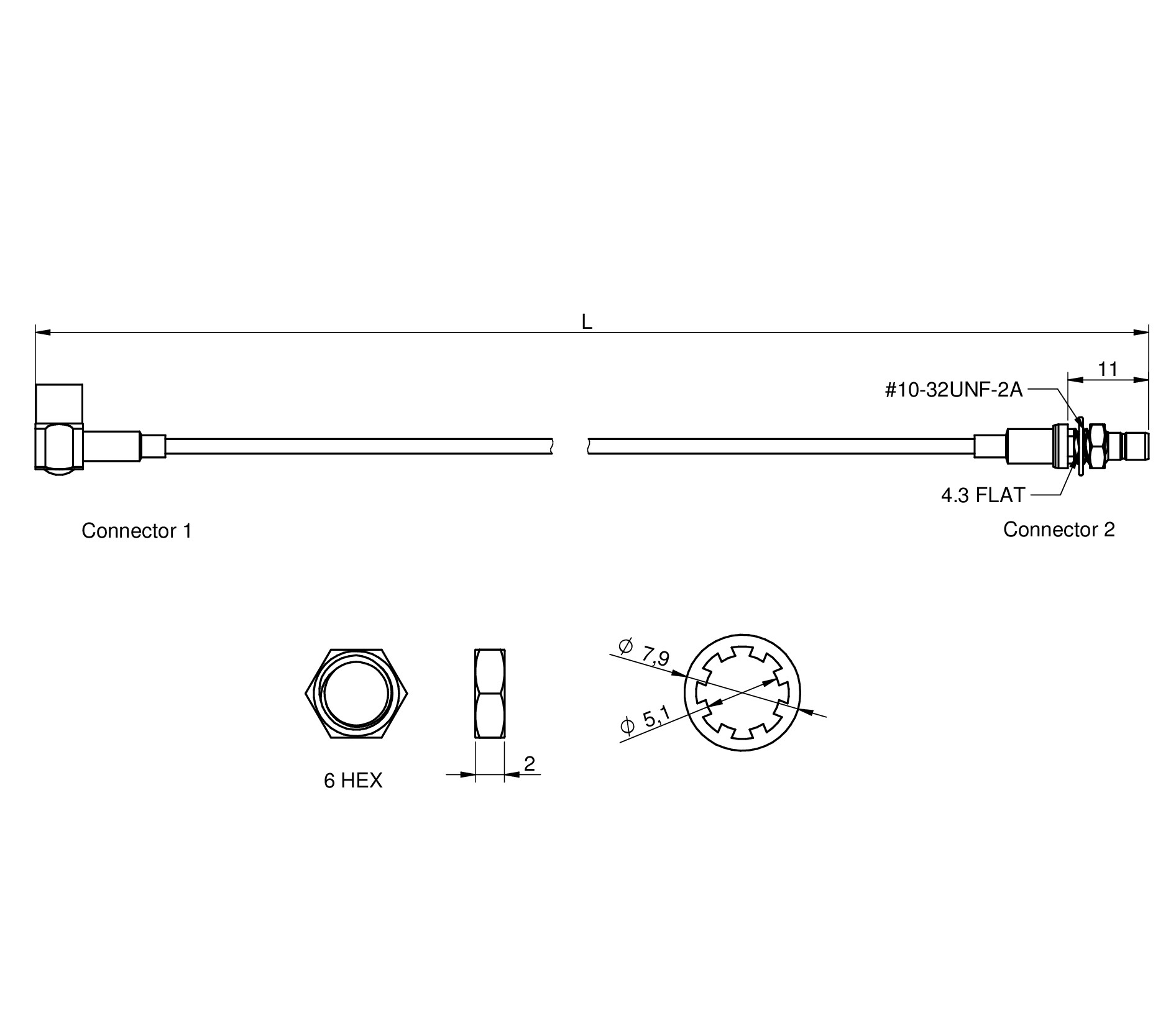

Right Angle Plug ⅼ Straight Bulkhead Jack

Filter article data

show article in 3 product lines

article in 3 product lines

	Order Code	Datasheet	Downloads	Status	Connector Type 1	Connector Type 2	Cable	Nominal Cable Length(mm)	f	Z(Ω)	Ingress Protection Code	SamplesAvailability & Sample

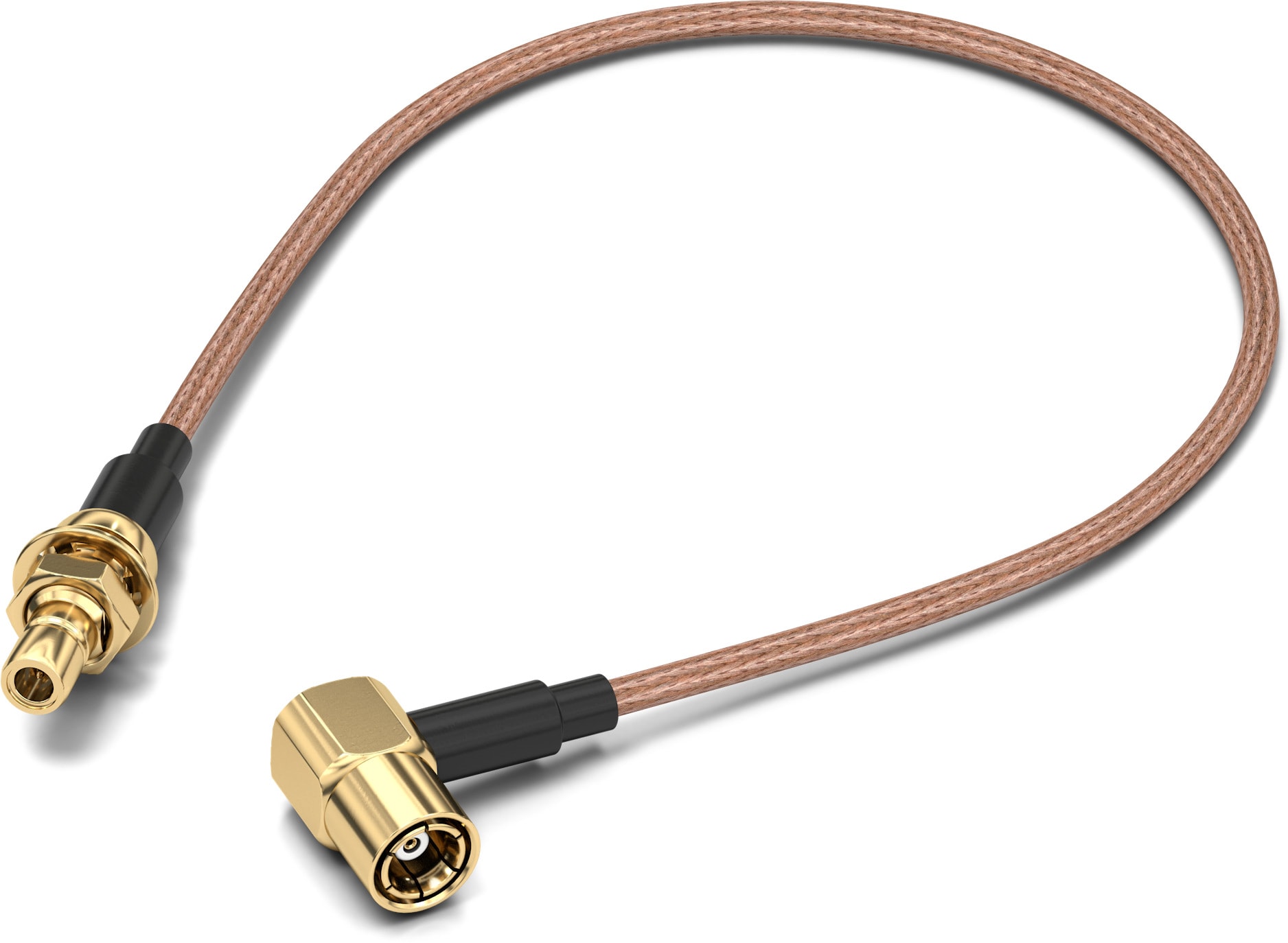

	65502910315301	SPECSMB, SMB, RG-174/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_65502910315301 (rev1).pdf \| 541.5 KB IGS IGES_65502910315301 (rev1).iges \| 4.4 MB STP STP_ConCXASY_65502910315301 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMB	Connector Type 2SMB	CableRG-174/U	Nominal Cable Length152.4 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	Ingress Protection CodeNone	–Check availability
	65502910415301	SPECSMB, SMB, RG-178/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_65502910415301 (rev1).pdf \| 4.2 MB IGS IGES_65502910415301 (rev1).iges \| 38.7 MB STP STEP_65502910415301 (rev1).stp \| 51.9 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMB	Connector Type 2SMB	CableRG-178/U	Nominal Cable Length152.4 mm	Frequency RangeDC~3 GHz	Impedance50 Ω	Ingress Protection CodeNone	–Check availability

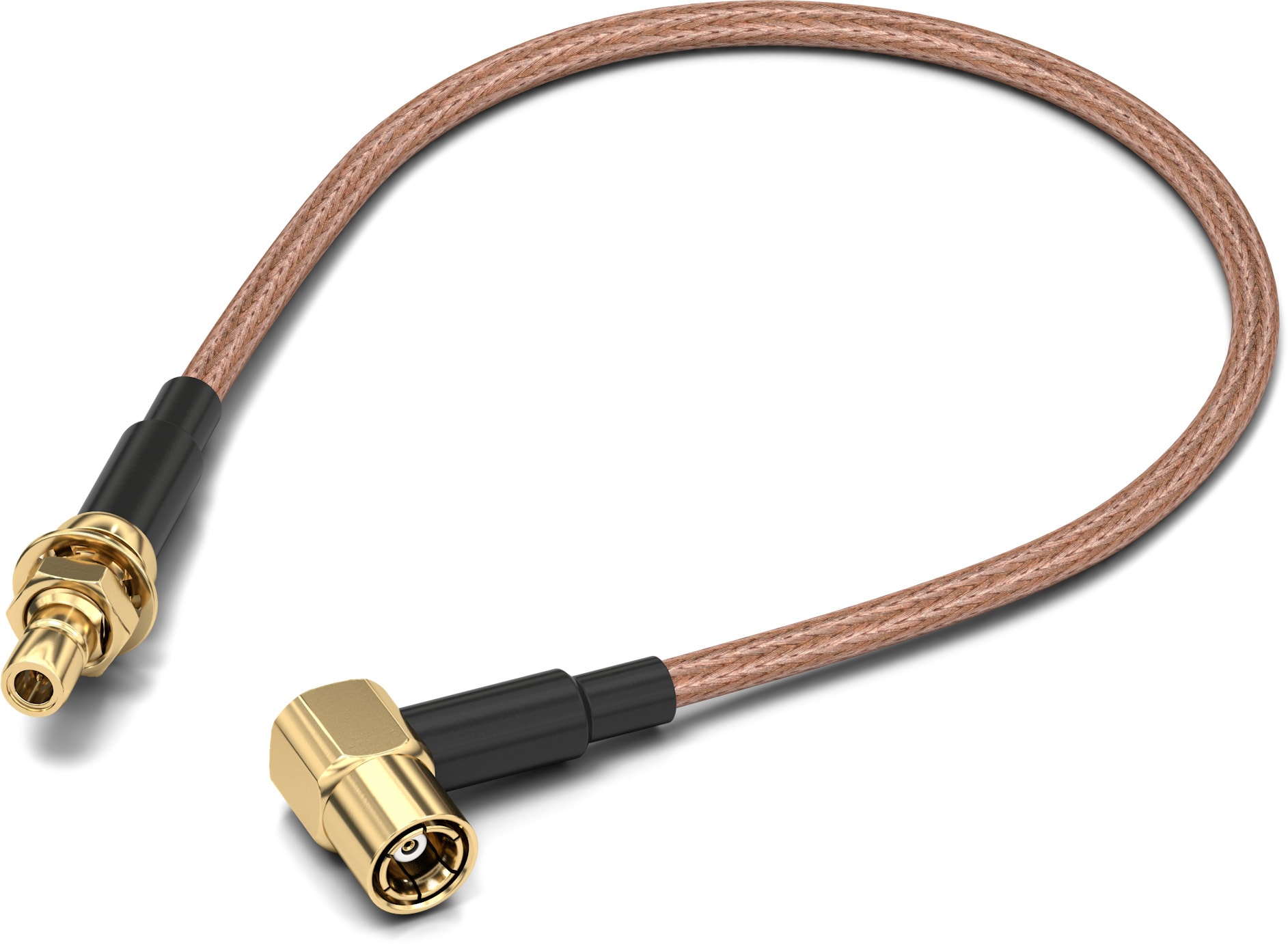

	65502910515301	SPECSMB, SMB, RG-316/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_65502910515301 (rev1).pdf \| 493 KB IGS IGES_65502910515301 (rev1).iges \| 4.4 MB STP STEP_65502910515301 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMB	Connector Type 2SMB	CableRG-316/U	Nominal Cable Length152.4 mm	Frequency RangeDC~4 GHz	Impedance50 Ω	Ingress Protection CodeNone	–Check availability

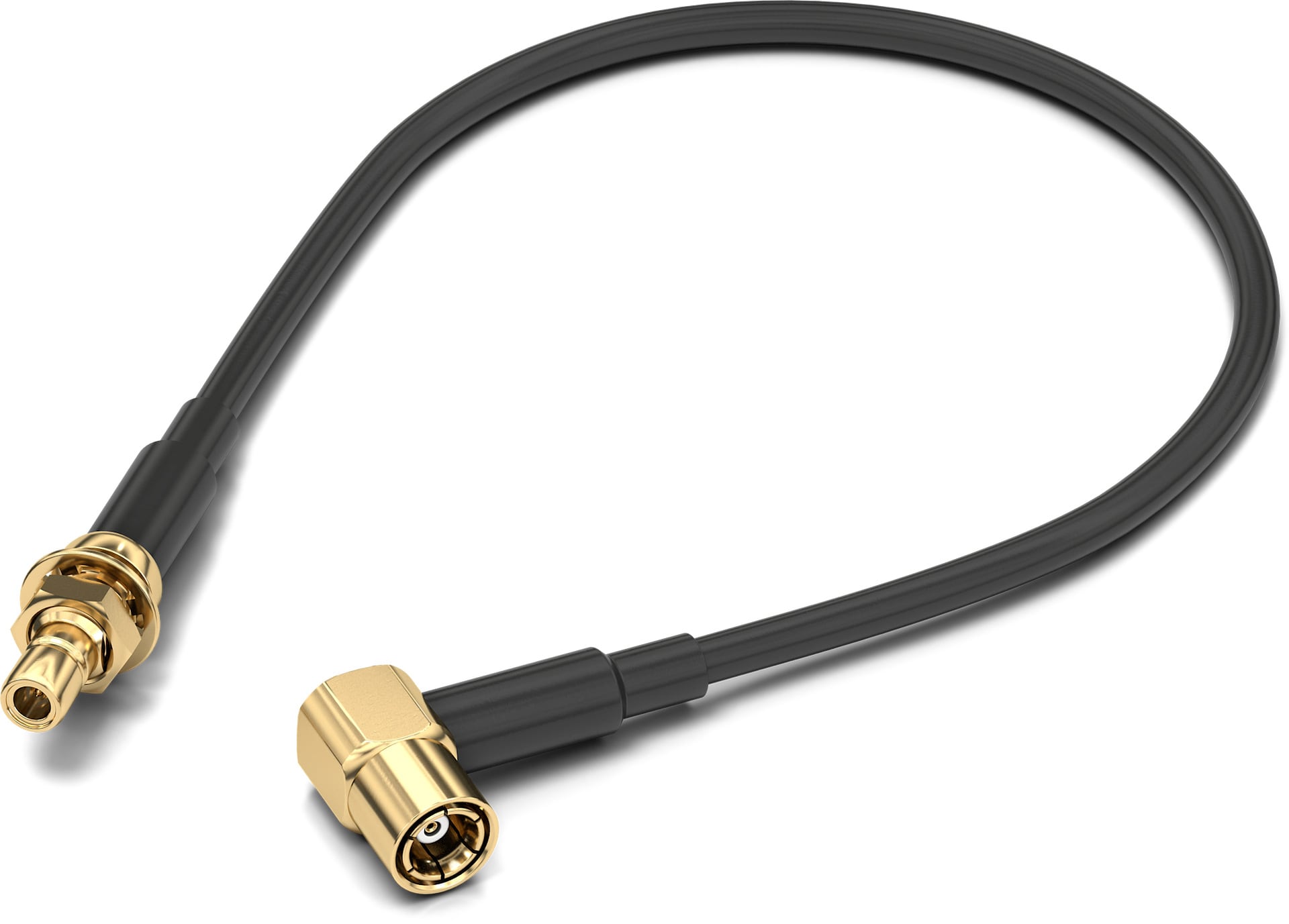

	65503110315301	SPECSMB, SMB, RG-174/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_65503110315301 (rev1).pdf \| 672 KB IGS IGES_65503110315301 (rev1).iges \| 3.7 MB STP STEP_65503110315301 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMB	Connector Type 2SMB	CableRG-174/U	Nominal Cable Length152.4 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	Ingress Protection CodeNone	–Check availability
	65503110415301	SPECSMB, SMB, RG-178/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_65503110415301 (rev1).pdf \| 2.7 MB IGS IGES_65503110415301 (rev1).iges \| 21.3 MB STP STEP_65503110415301 (rev1).stp \| 27.5 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMB	Connector Type 2SMB	CableRG-178/U	Nominal Cable Length152.4 mm	Frequency RangeDC~3 GHz	Impedance50 Ω	Ingress Protection CodeNone	–Check availability
	65503110515301	SPECSMB, SMB, RG-316/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_65503110515301 (rev1).pdf \| 671.9 KB IGS IGES_65503110515301 (rev1).iges \| 3.7 MB STP STEP_65503110515301 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMB	Connector Type 2SMB	CableRG-316/U	Nominal Cable Length152.4 mm	Frequency RangeDC~4 GHz	Impedance50 Ω	Ingress Protection CodeNone	–Check availability

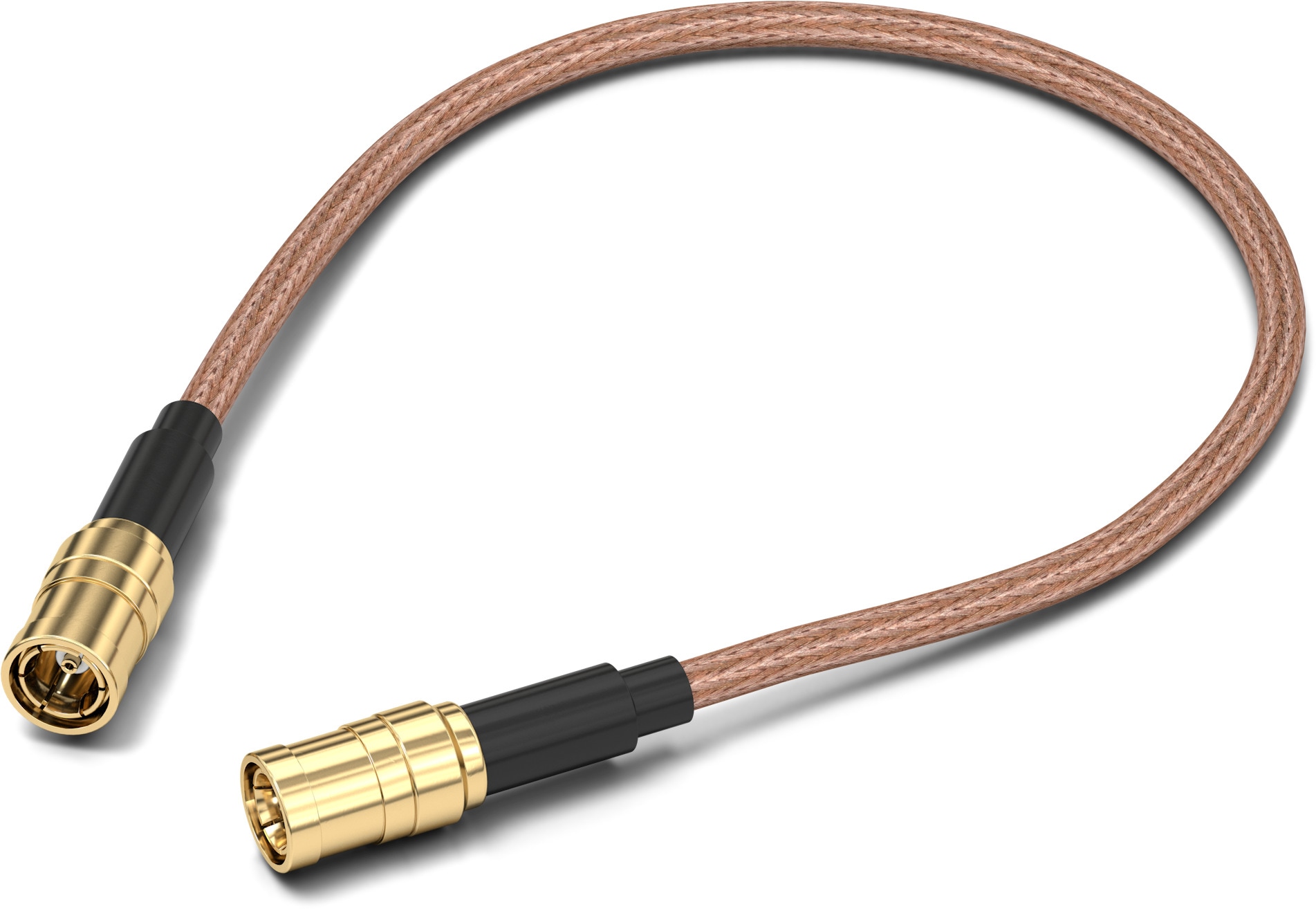

	65502810315301	SPECSMB, SMB, RG-174/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_65502810315301 (rev1).pdf \| 397.5 KB IGS IGES_65502810315301 (rev1).iges \| 6.2 MB STP STEP_65502810315301 (rev1).stp \| 2.8 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMB	Connector Type 2SMB	CableRG-174/U	Nominal Cable Length152.4 mm	Frequency RangeDC~1 GHz	Impedance50 Ω	Ingress Protection CodeNone	–Check availability

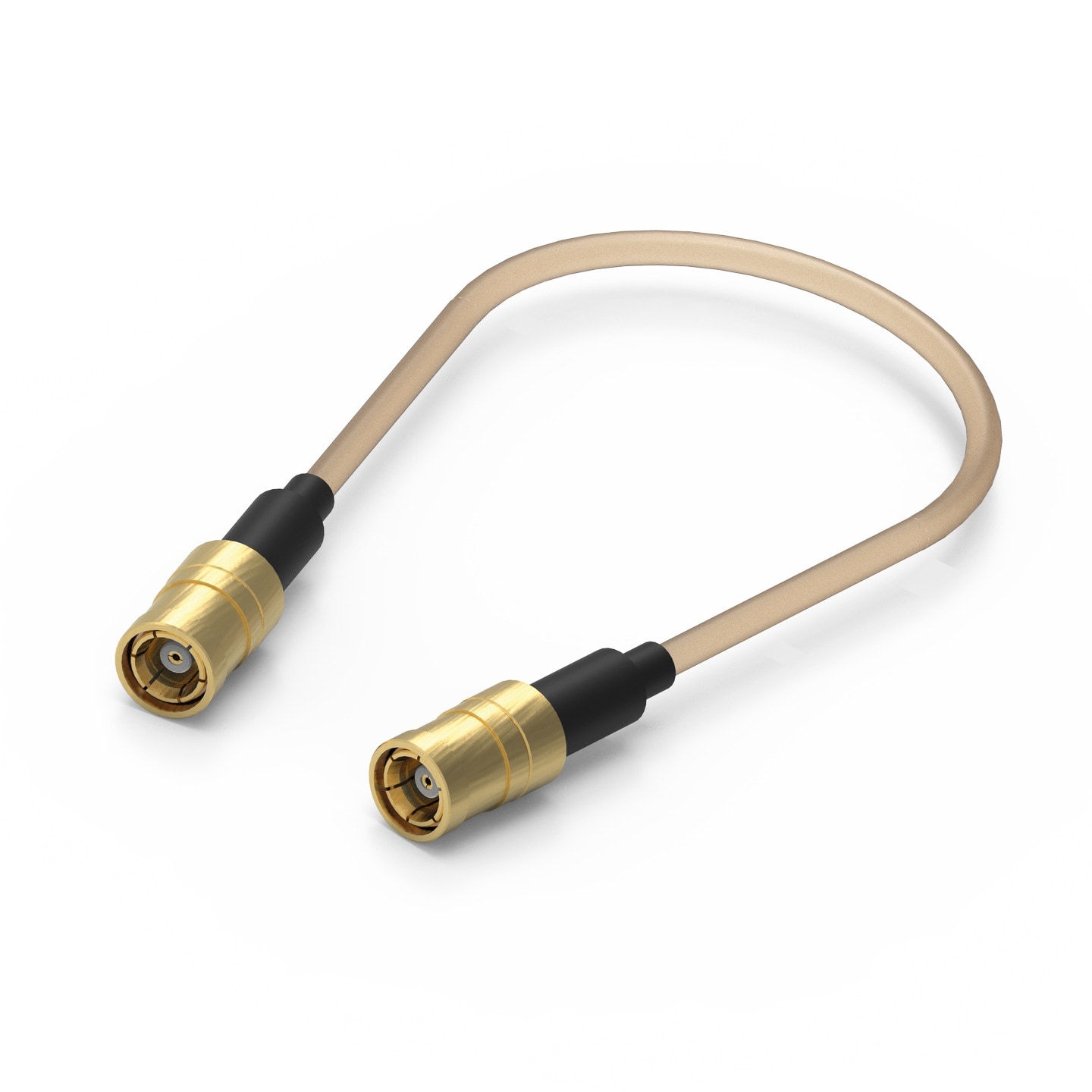

	65502810415301	SPECSMB, SMB, RG-178/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_65502810415301 (rev1).pdf \| 373.4 KB IGS IGES_65502810415301 (rev1).iges \| 4.7 MB STP STEP_65502810415301 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMB	Connector Type 2SMB	CableRG-178/U	Nominal Cable Length152.4 mm	Frequency RangeDC~3 GHz	Impedance50 Ω	Ingress Protection CodeNone	–Check availability
	65502810515301	SPECSMB, SMB, RG-316/U	Availability –	Downloads3 files CAD files ZIP 3D 3D_65502810515301 (rev1).pdf \| 397.4 KB IGS IGES_65502810515301 (rev1).iges \| 6.2 MB STP STEP_65502810515301 (rev1).stp \| 2.8 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Connector Type 1SMB	Connector Type 2SMB	CableRG-316/U	Nominal Cable Length152.4 mm	Frequency RangeDC~4 GHz	Impedance50 Ω	Ingress Protection CodeNone	–Check availability
