WR-NTYPE N Type Cable Connectors

Size	Dimensions
Straight Plug
Right Angle Plug
Straight (Bulkhead) Jack

Characteristics

Interface: MIL-STD-348
Mating Cycle: 500 Cycles
Impedance: 50Ω
Plating: Nickel and Gold
Mating: Screw (Recommended by torque wrench tool)
Ingress Protection: IP67

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
High power machinery
Outdoor or humid environment

Application Notes

ANE016 Coaxial cables and cable assemblies
PDF

Products

All

Straight Plug

Right Angle Plug

Straight (Bulkhead) Jack

	Order Code	Datasheet	Manual	Downloads	Ingress Protection Code	Cable	Cable Type	f	Mount	Center Contact	Design Kit	Samples

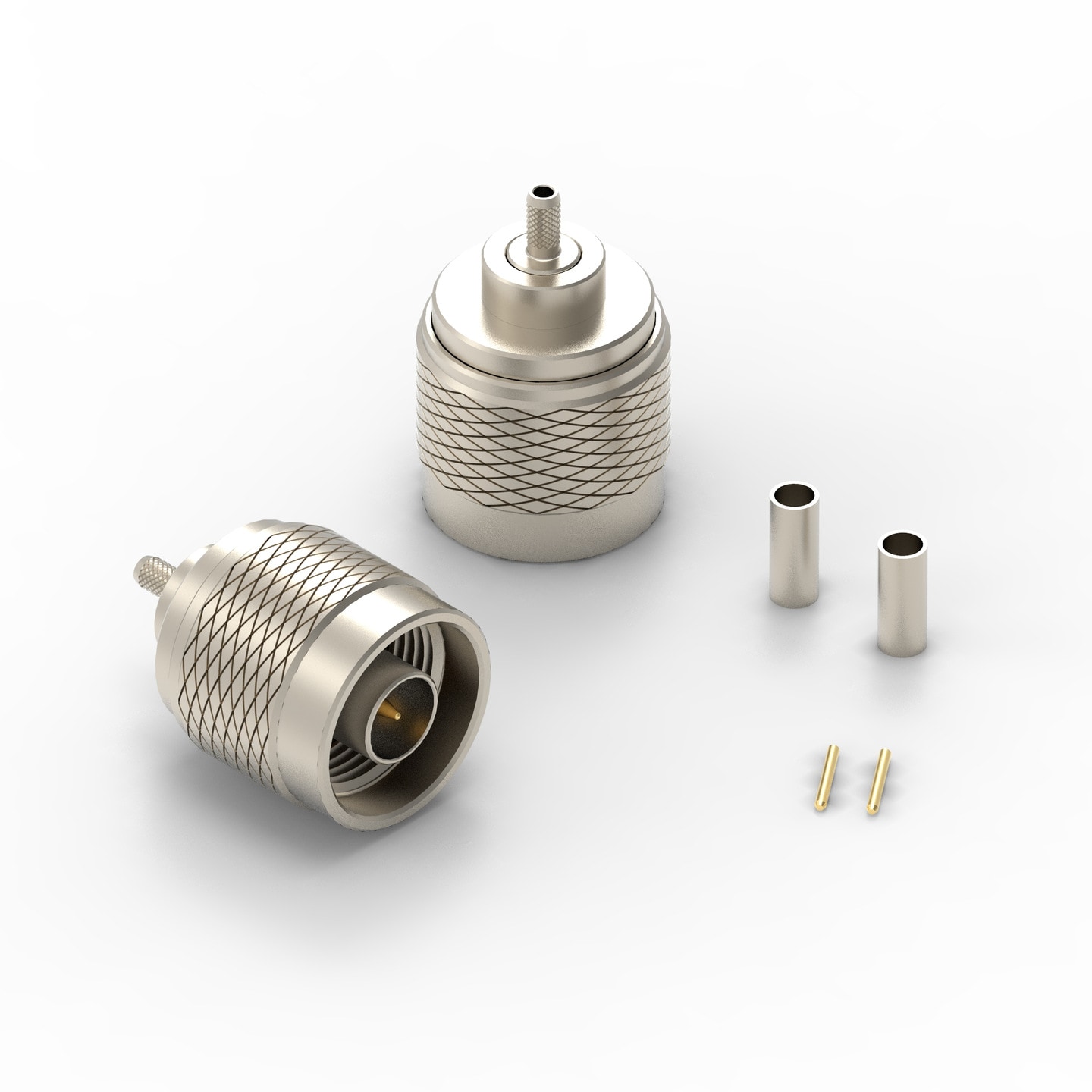

	60445022210321	SPEC	PDF	3 files CAD files ZIP 3D 3D_60445022210321 (rev1).pdf \| 1.9 MB IGS Download_IGS_60445022210321 (rev1).igs \| 18.7 MB STP Download_STP_60445022210321 (rev1).stp \| 10.1 MB Download all 3 files as zip archive ZIP	None	RG174/188/316	Flexible	DC~6 GHz	Crimp	Ø 0,6	604001

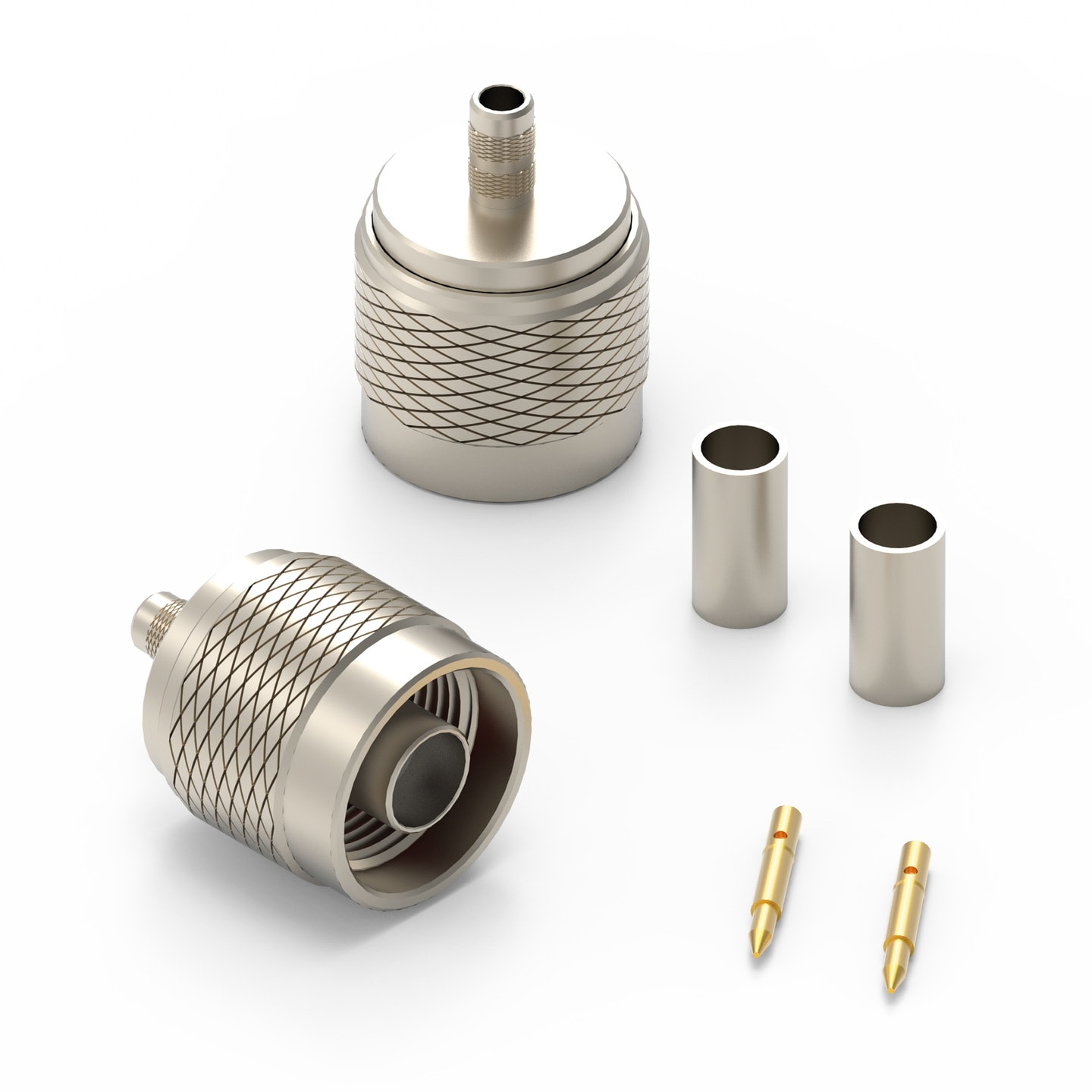

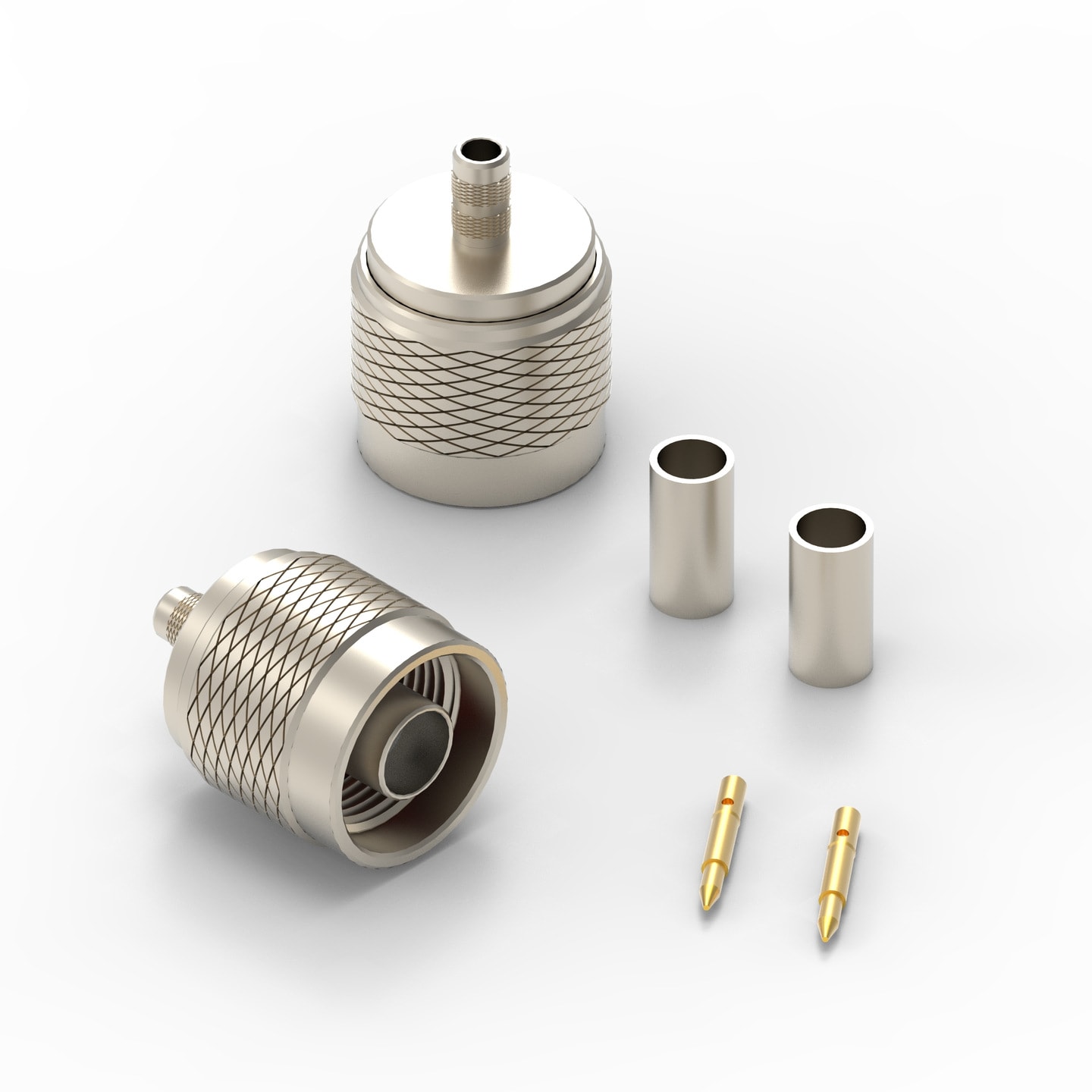

	60446022210121	SPEC	PDF	3 files CAD files ZIP 3D 3D_60446022210121 (rev1).pdf \| 1.9 MB IGS Download_IGS_60446022210121 (rev1).igs \| 20.4 MB STP Download_STP_60446022210121 (rev1).stp \| 11.6 MB Download all 3 files as zip archive ZIP	None	RG58/141/Low Loss195	Flexible	DC~6 GHz	Crimp	Ø 1,05	604001

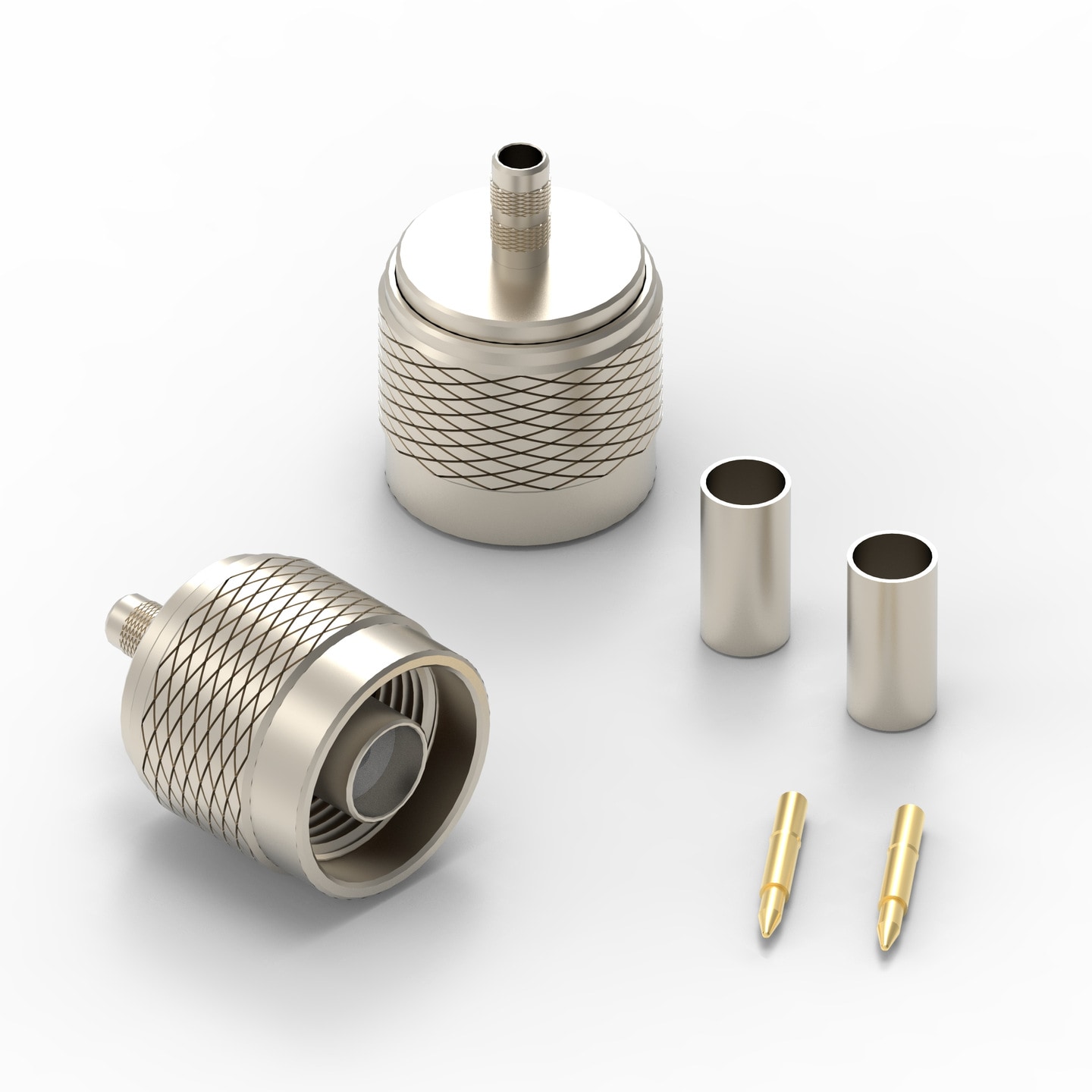

	60446022211121	SPEC	PDF	3 files CAD files ZIP 3D 3D_60446022211121 (rev1).pdf \| 1.9 MB IGS Download_IGS_60446022211121 (rev1).igs \| 20.6 MB STP Download_STP_60446022211121 (rev1).stp \| 11.6 MB Download all 3 files as zip archive ZIP	None	RG142/223/400	Flexible	DC~6 GHz	Crimp	Ø 1,1	604001

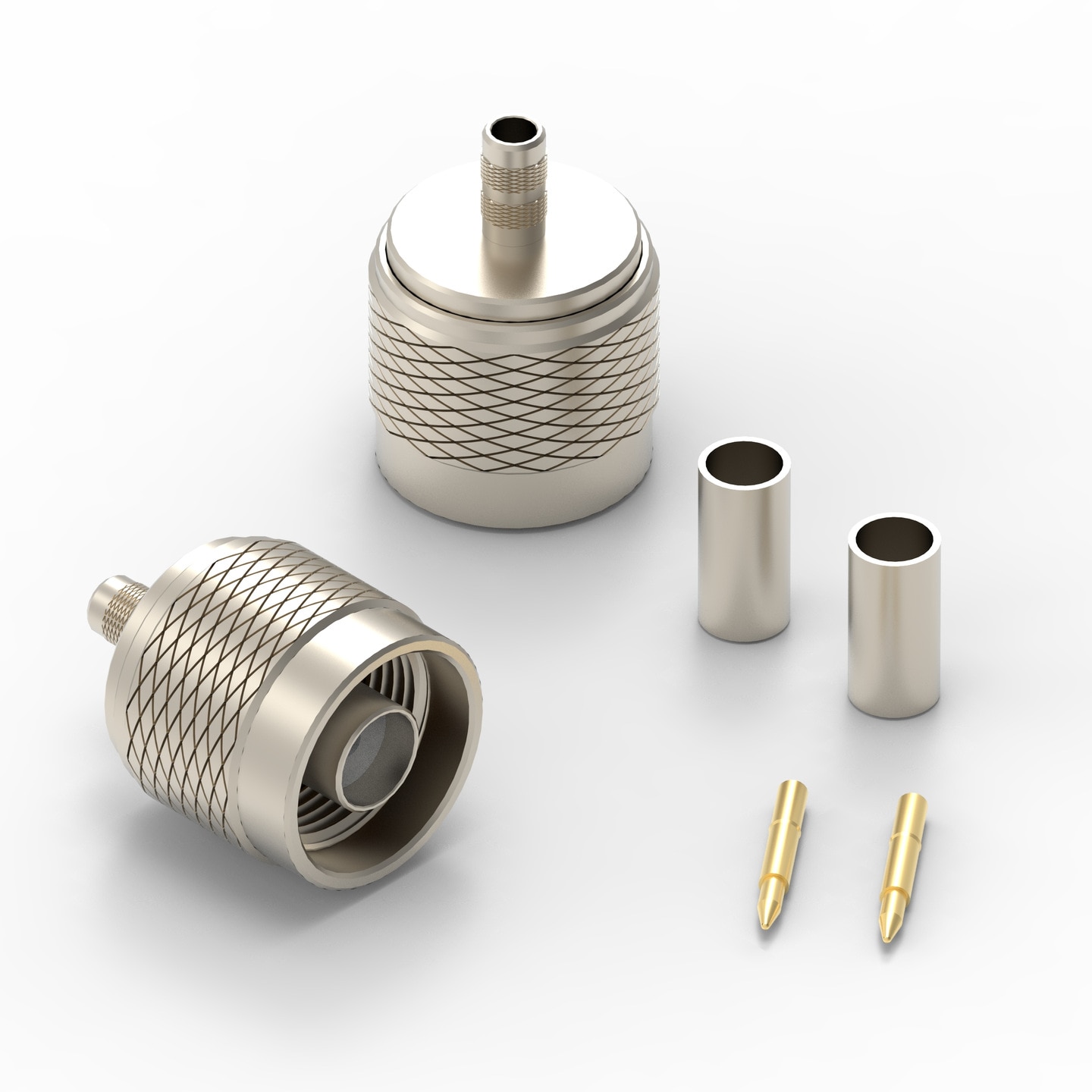

	60446022211521	SPEC	PDF	3 files CAD files ZIP 3D 3D_60446022211521 (rev1).pdf \| 1.9 MB IGS Download_IGS_60446022211521 (rev1).igs \| 20.6 MB STP Download_STP_60446022211521 (rev1).stp \| 11.6 MB Download all 3 files as zip archive ZIP	None	Low Loss 200	Flexible	DC~6 GHz	Crimp	Ø 1,2	604001

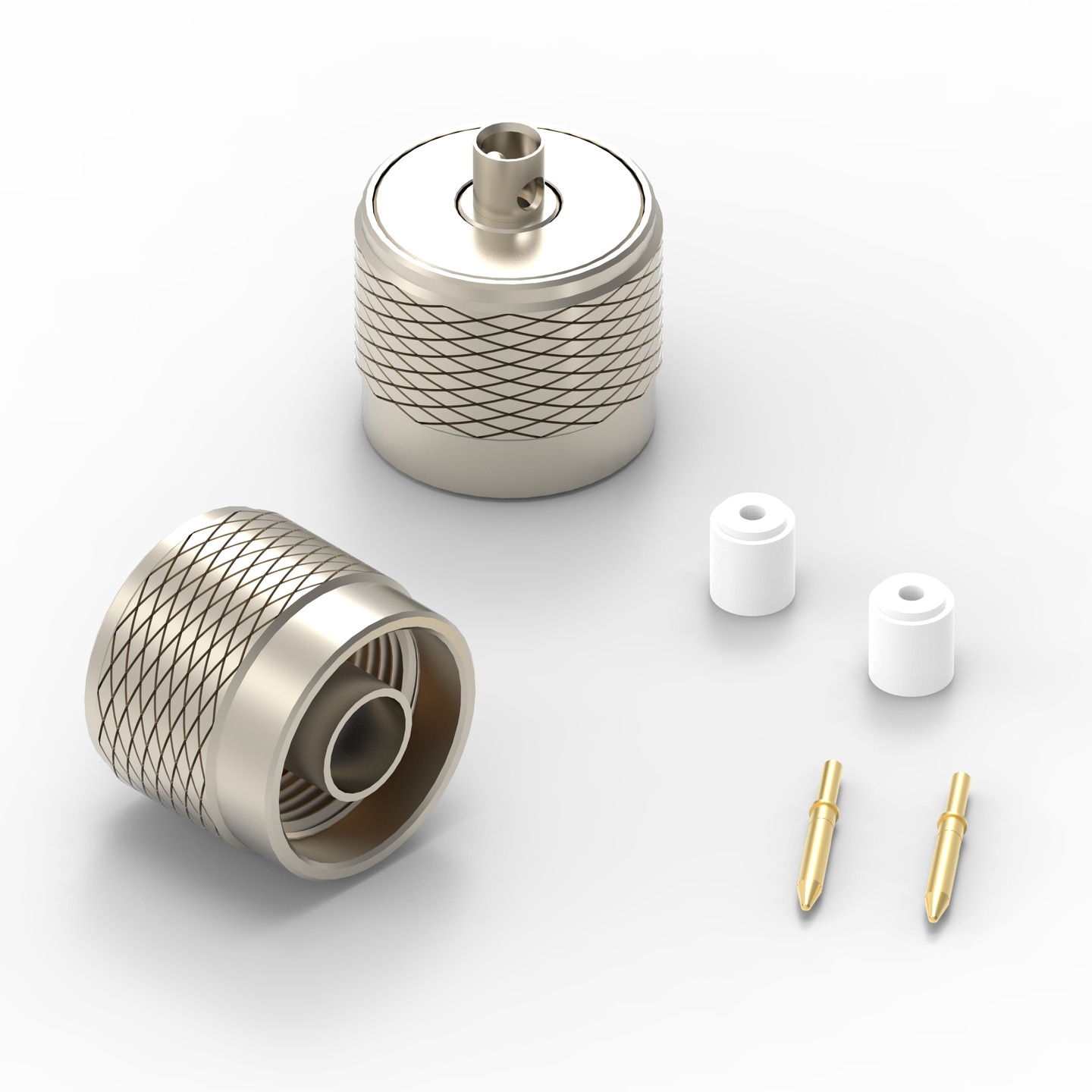

	60449022210721	SPEC	PDF	3 files CAD files ZIP 3D 3D_60449022210721 (rev1).pdf \| 1.4 MB IGS Download_IGS_60449022210721 (rev1).igs \| 9.7 MB STP Download_STP_60449022210721 (rev1).stp \| 5.7 MB Download all 3 files as zip archive ZIP	None	RG402/.141	Flexible/Hand Formable	DC~11 GHz	Solder	Ø 1,05	604001

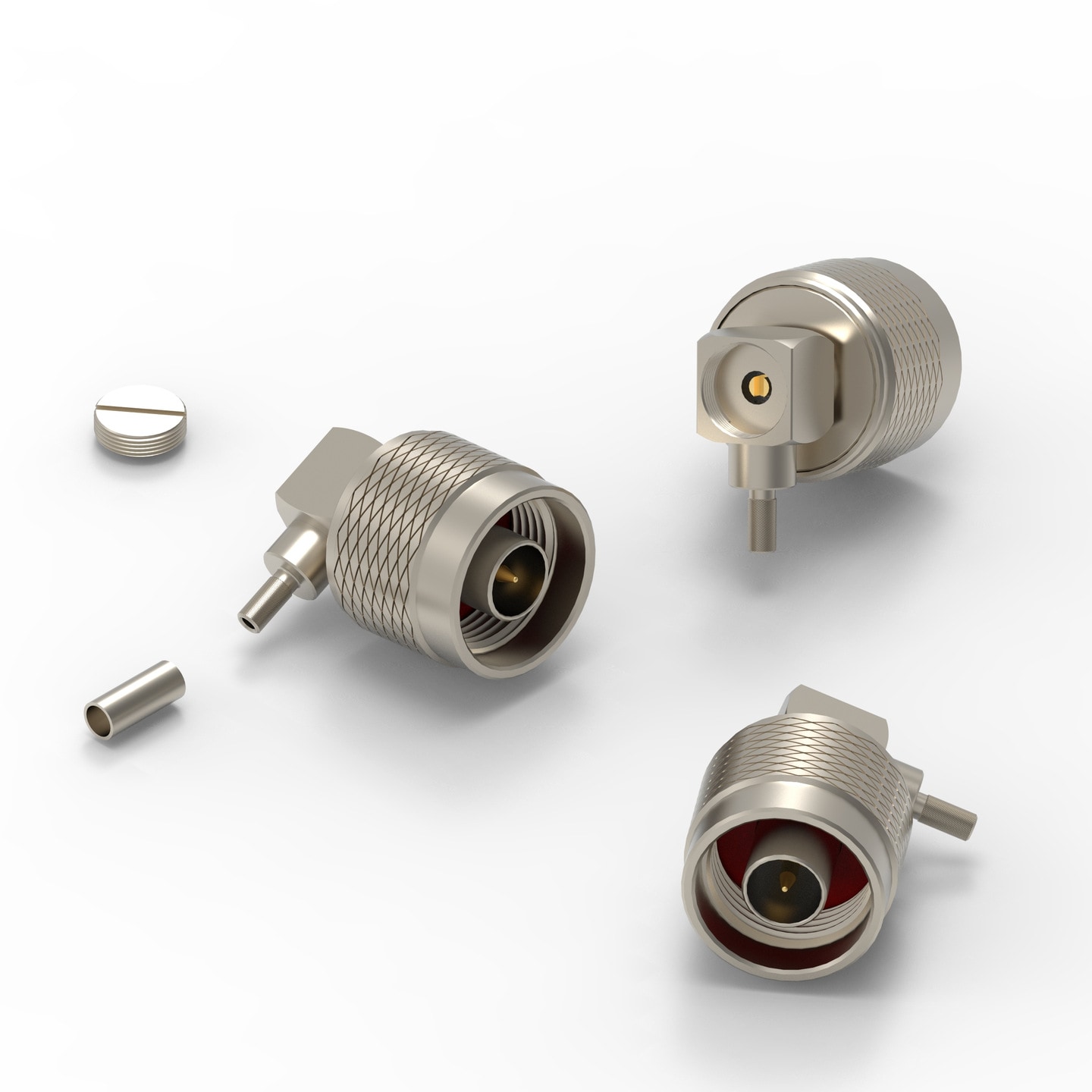

	60436022210321	SPEC	PDF	3 files CAD files ZIP 3D 3D_60436022210321 (rev1).pdf \| 6 MB IGS Download_IGS_60436022210321 (rev1).igs \| 76.8 MB STP Download_STP_60436022210321 (rev1).stp \| 42.1 MB	None	RG174/188/316	Flexible	DC~6 GHz	Crimp	–	604001

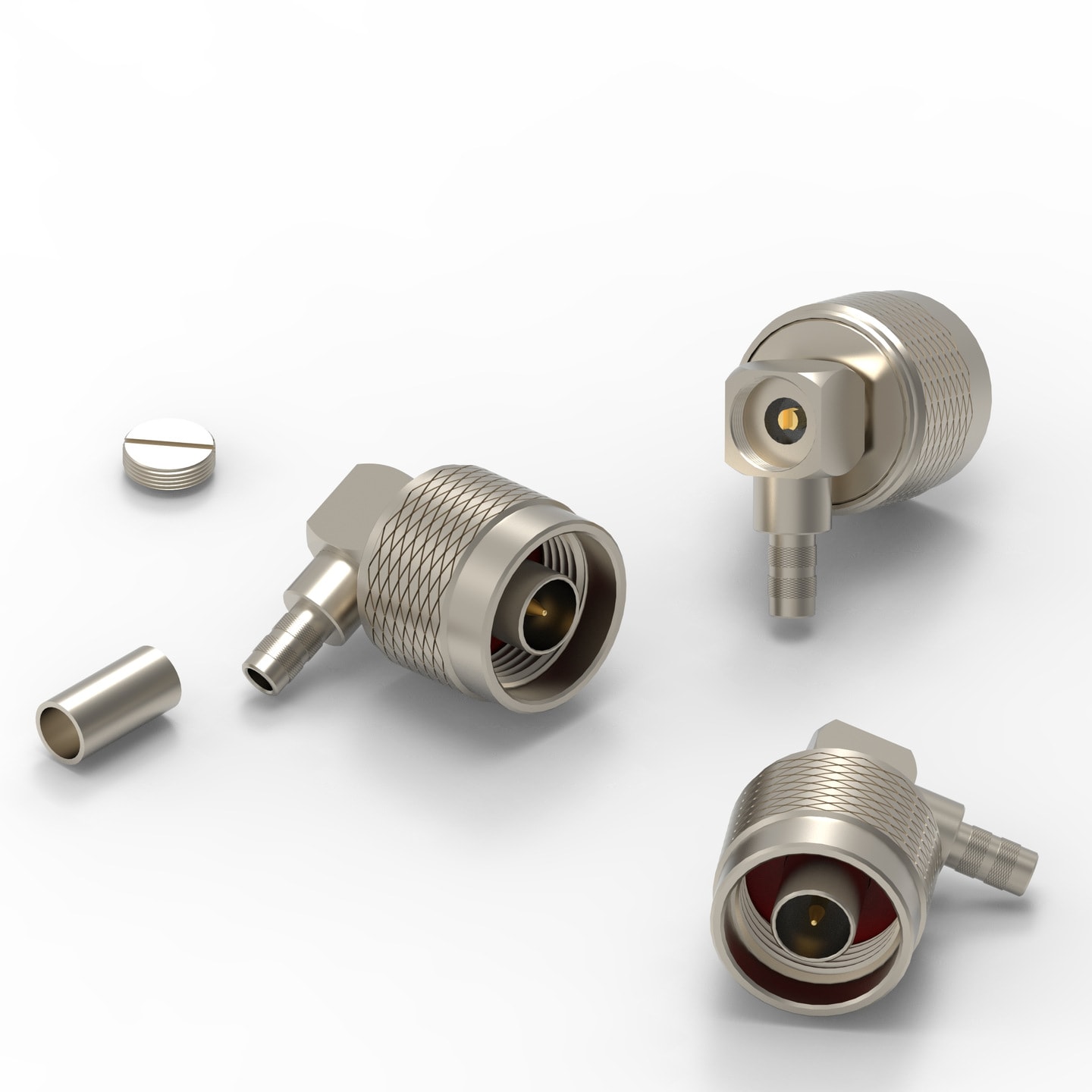

	60436022210121	SPEC	PDF	3 files CAD files ZIP 3D 3D_60436022210121 (rev1).pdf \| 3.1 MB IGS Download_IGS_60436022210121 (rev1).igs \| 35.6 MB STP Download_STP_60436022210121 (rev1).stp \| 23.2 MB Download all 3 files as zip archive ZIP	None	RG58/141/Low Loss195	Flexible	DC~6 GHz	Crimp	–	604001

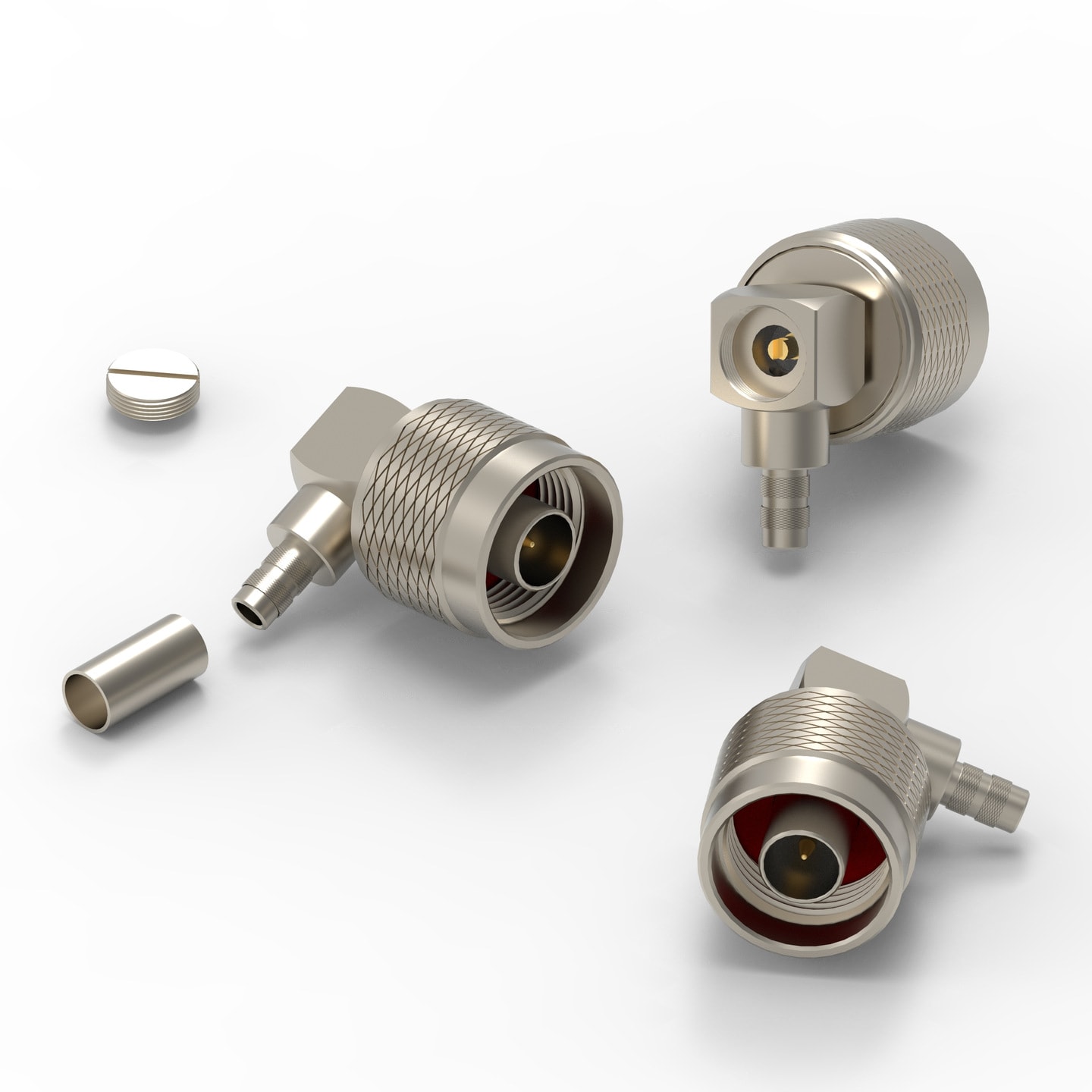

	60436022211121	SPEC	PDF	3 files CAD files ZIP 3D 3D_60436022211121 (rev1).pdf \| 3.7 MB IGS Download_IGS_60436022211121 (rev1).igs \| 35.3 MB STP Download_STP_60436022211121 (rev1).stp \| 21.6 MB Download all 3 files as zip archive ZIP	None	RG142/223/400	Flexible	DC~6 GHz	Crimp	–	604001

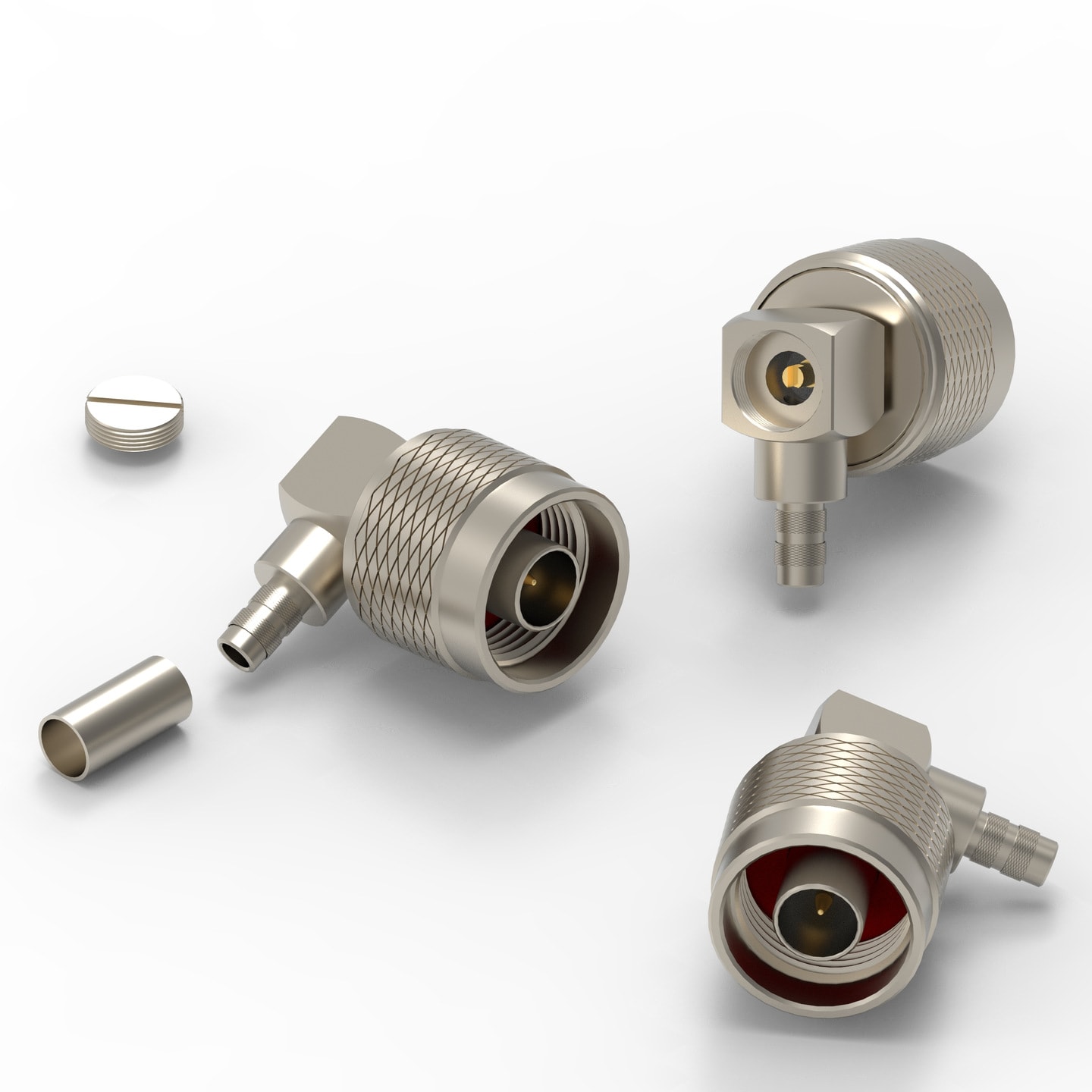

	60436022211521	SPEC	PDF	3 files CAD files ZIP 3D 3D_60436022211521 (rev1).pdf \| 3.1 MB IGS Download_IGS_60436022211521 (rev1).igs \| 35.3 MB STP Download_STP_60436022211521 (rev1).stp \| 22.4 MB Download all 3 files as zip archive ZIP	None	Low Loss 200	Flexible	DC~6 GHz	Crimp	–	604001

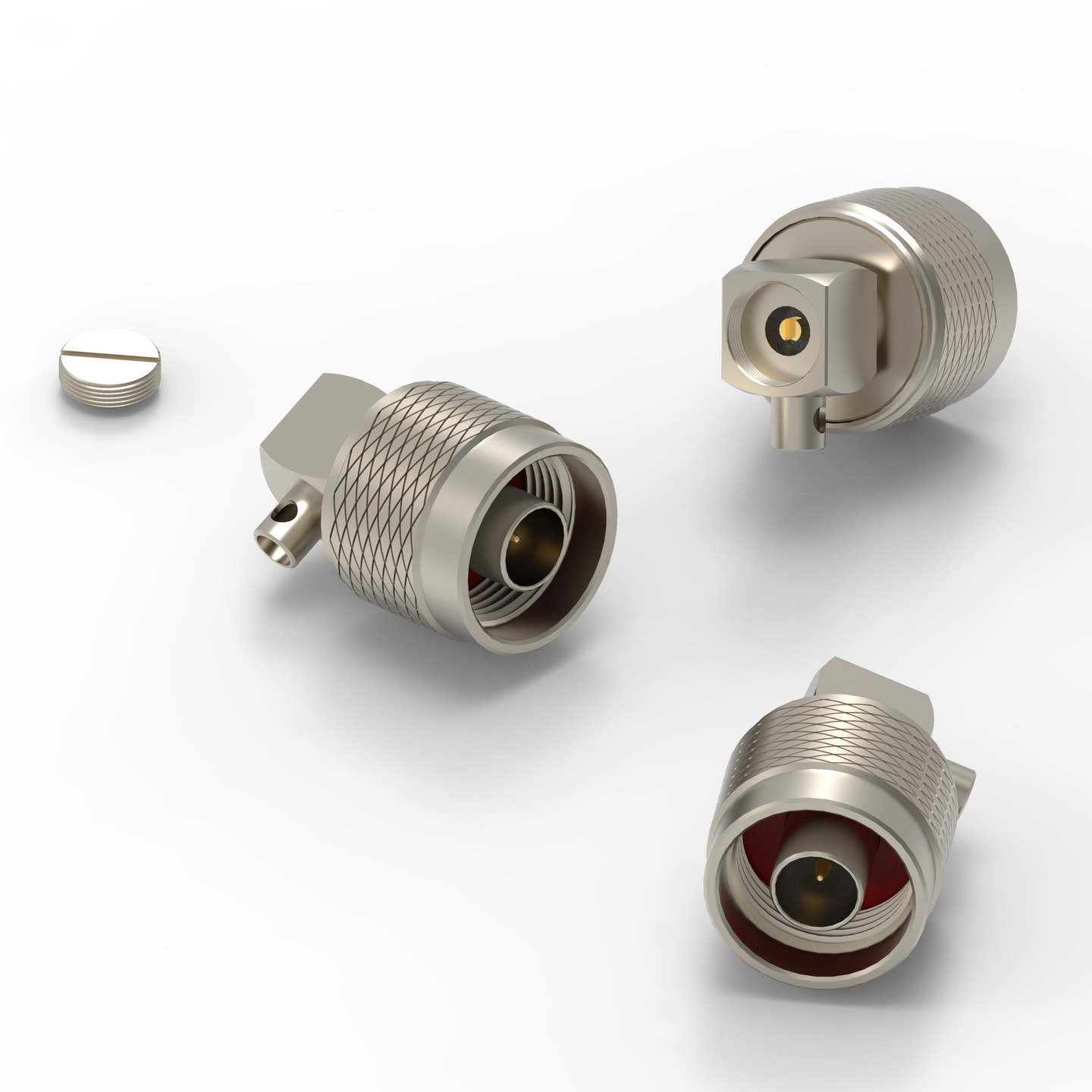

	60439022210721	SPEC	PDF	3 files CAD files ZIP 3D 3D_60439022210721 (rev1).pdf \| 2 MB IGS Download_IGS_60439022210721 (rev1).igs \| 11.9 MB STP Download_STP_60439022210721 (rev1).stp \| 6.3 MB Download all 3 files as zip archive ZIP	None	RG402/.141	Flexible/Hand Formable	DC~11 GHz	Solder	–	604001

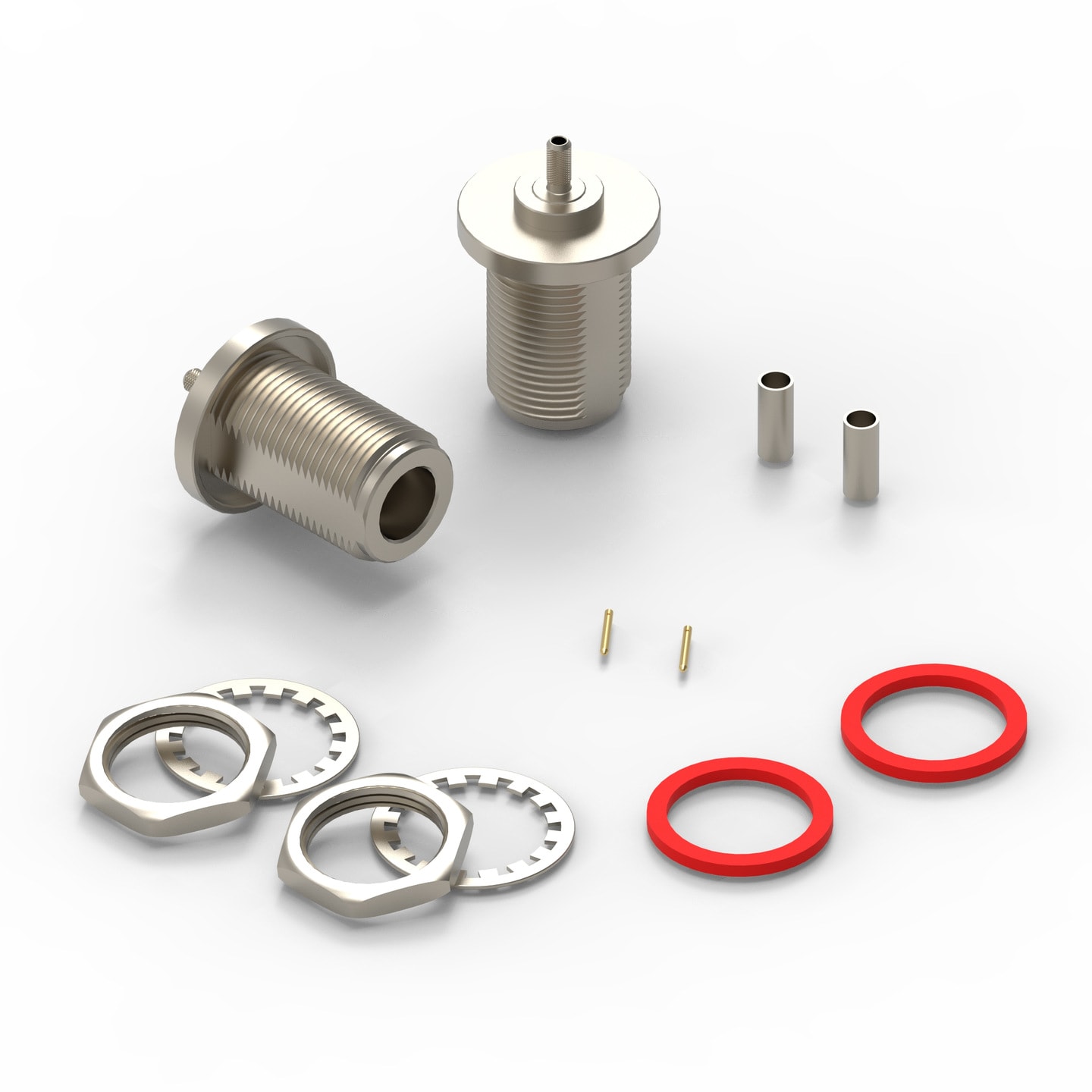

	60425522510320	SPEC	PDF	3 files CAD files ZIP 3D 3D_60425522510320 (rev1).pdf \| 3.6 MB IGS Download_IGS_60425522510320 (rev1).igs \| 36 MB STP Download_STP_60425522510320 (rev1).stp \| 31.4 MB Download all 3 files as zip archive ZIP	IP67	RG174/188/316	Flexible	DC~6 GHz	Crimp	Ø 0,6	604001

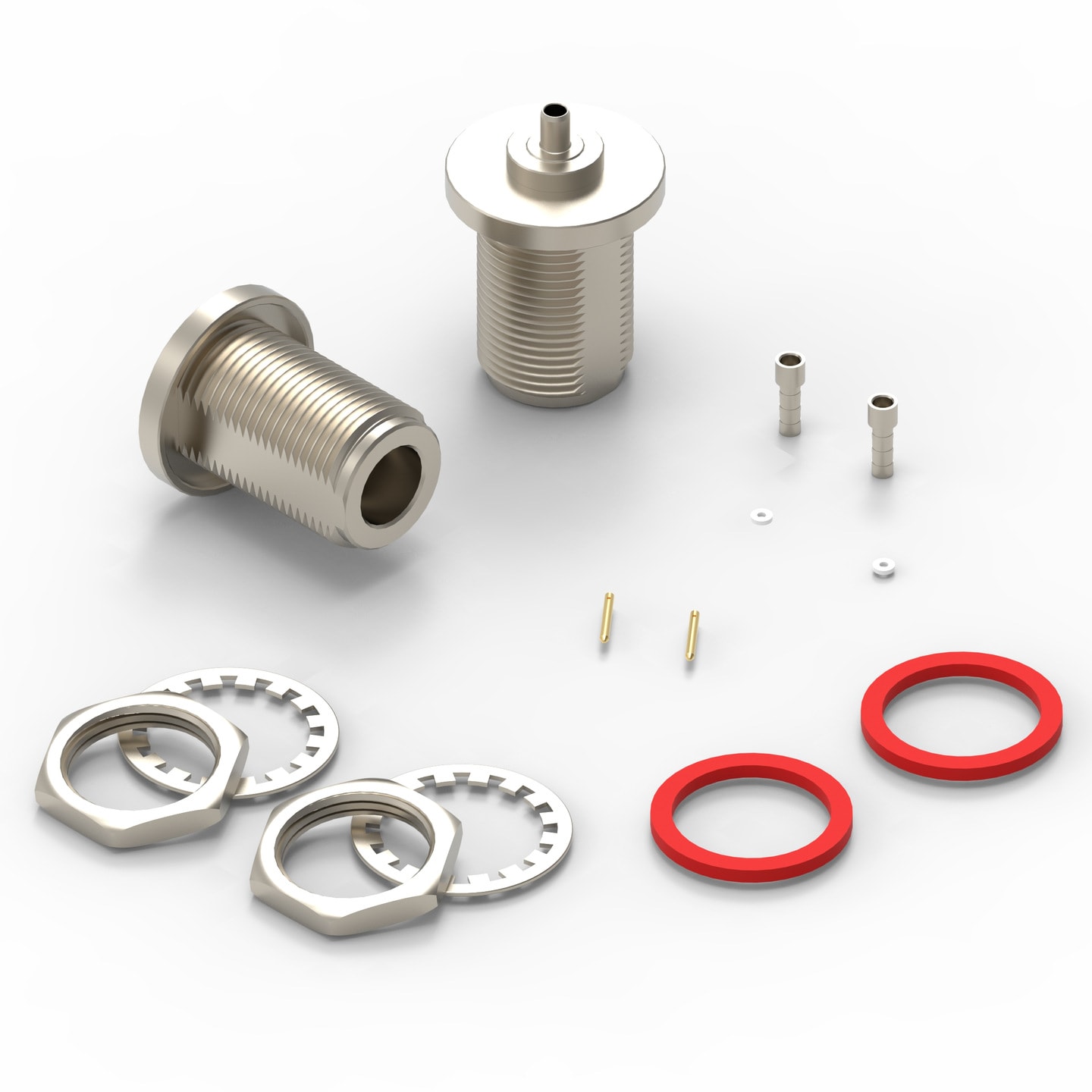

	60425522510420	SPEC	PDF	3 files CAD files ZIP 3D 3D_60425522510420 (rev1).pdf \| 2 MB IGS Download_IGS_60425522510420 (rev1).igs \| 18.8 MB STP Download_STP_60425522510420 (rev1).stp \| 19.8 MB Download all 3 files as zip archive ZIP	IP67	RG178/RG196	Flexible	DC~3 GHz	Crimp	Ø 0,4	604001
	60425522512120	SPEC	PDF	3 files CAD files ZIP 3D 3D_60425522512120 (rev1).pdf \| 2 MB IGS Download_IGS_60425522512120 (rev1).igs \| 18.8 MB STP Download_STP_60425522512120 (rev1).stp \| 19.9 MB Download all 3 files as zip archive ZIP	IP67	1,13	Flexible	DC~6 GHz	Crimp	Ø 0,4	604001

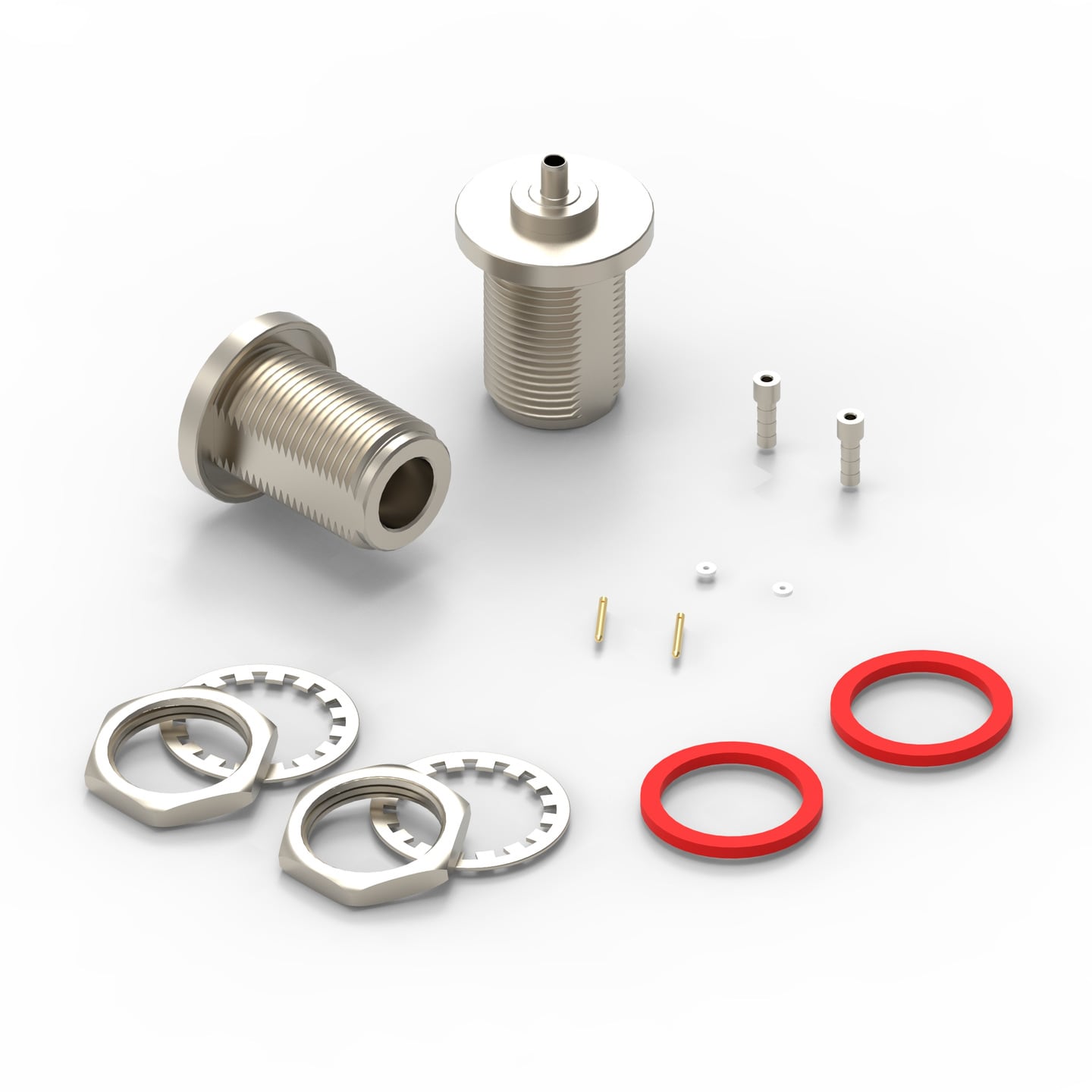

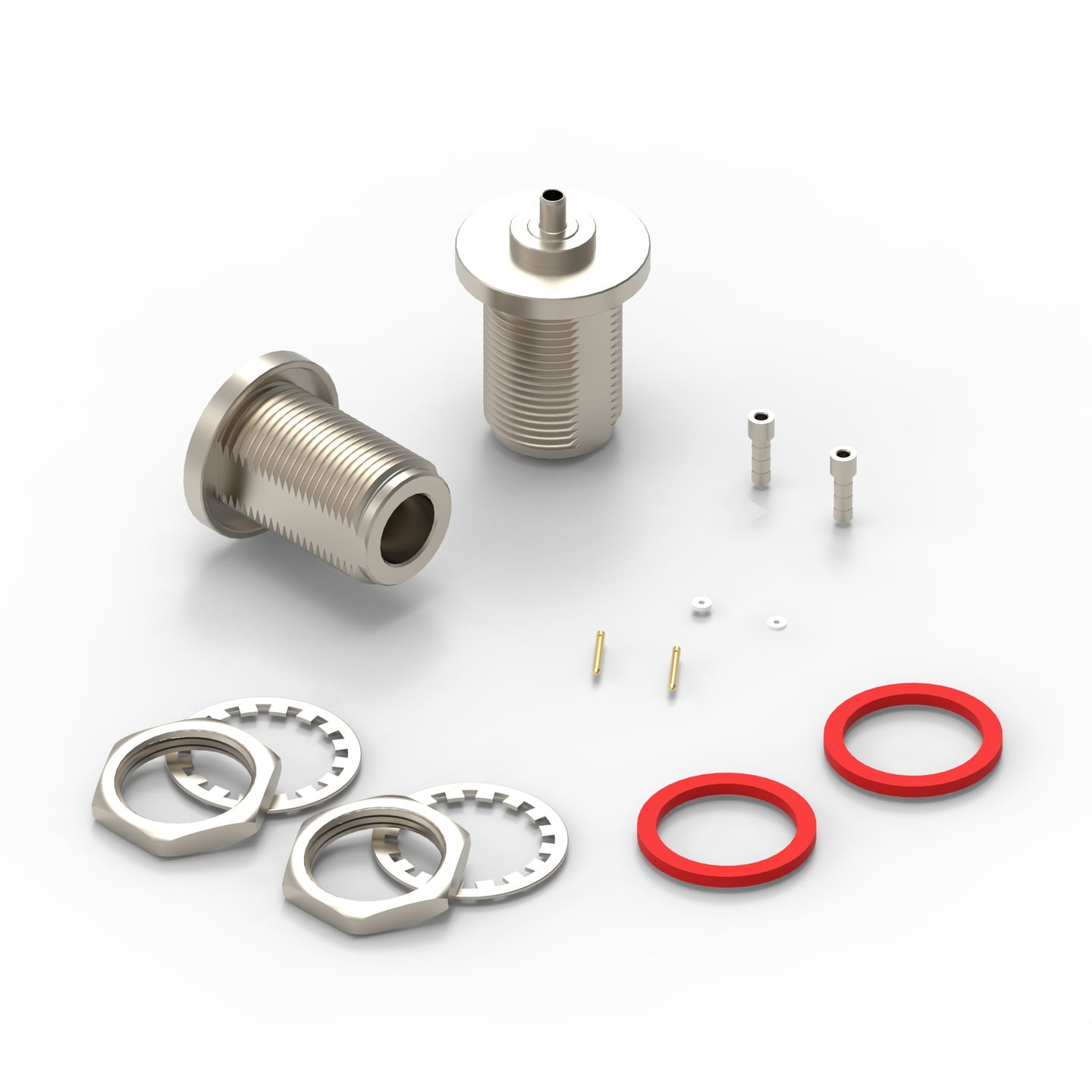

	60425522512220	SPEC	PDF	3 files CAD files ZIP 3D 3D_60425522512220 (rev1).pdf \| 2 MB IGS Download_IGS_60425522512220 (rev1).igs \| 18.8 MB STP Download_STP_60425522512220 (rev1).stp \| 19.9 MB Download all 3 files as zip archive ZIP	IP67	1,32	Flexible	DC~6 GHz	Crimp	Ø 0,4	604001

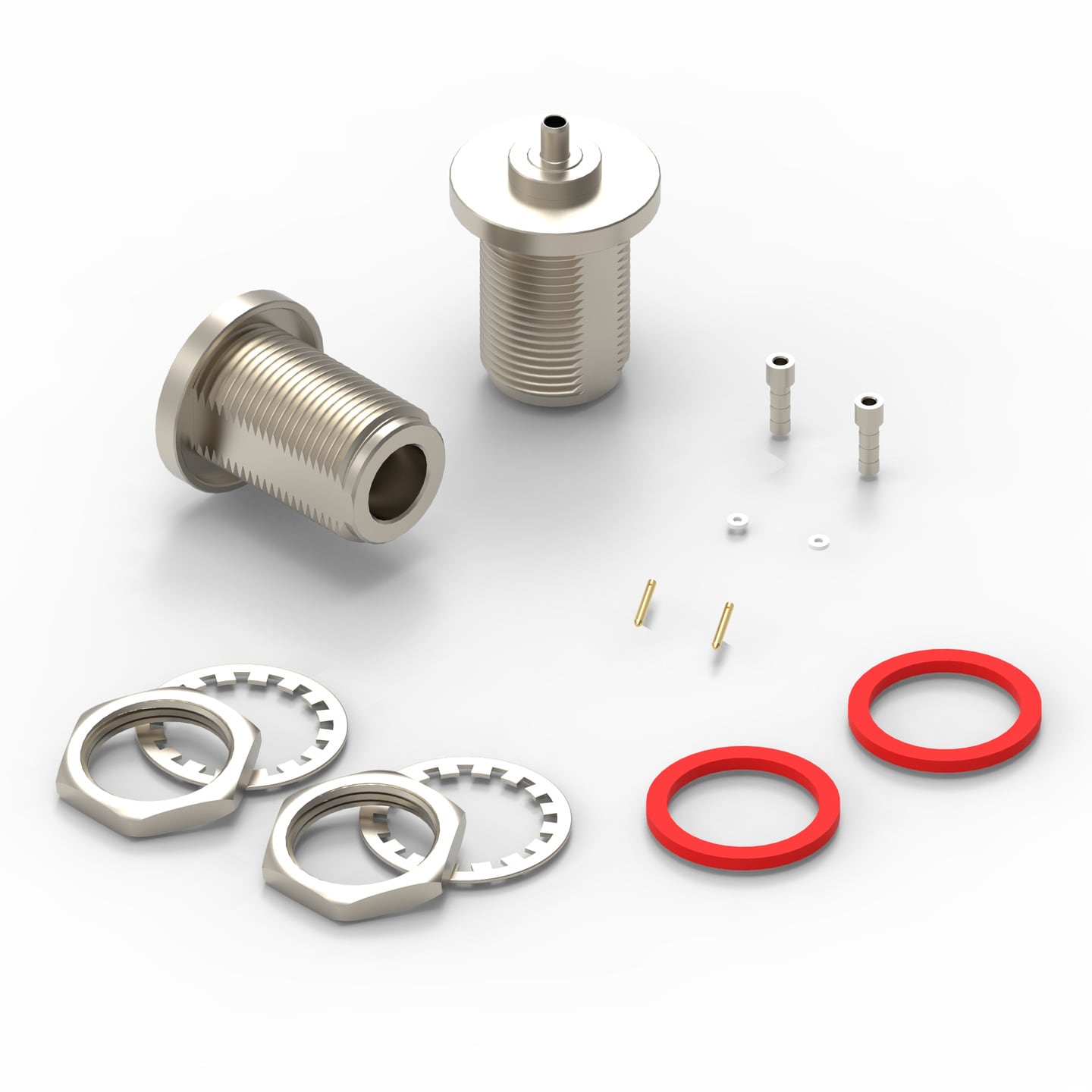

	60425522512320	SPEC	PDF	3 files CAD files ZIP 3D 3D_60425522512320 (rev1).pdf \| 2 MB IGS Download_IGS_60425522512320 (rev1).igs \| 18.8 MB STP Download_STP_60425522512320 (rev1).stp \| 19.9 MB Download all 3 files as zip archive ZIP	IP67	1,37	Flexible	DC~6 GHz	Crimp	Ø 0,4	604001

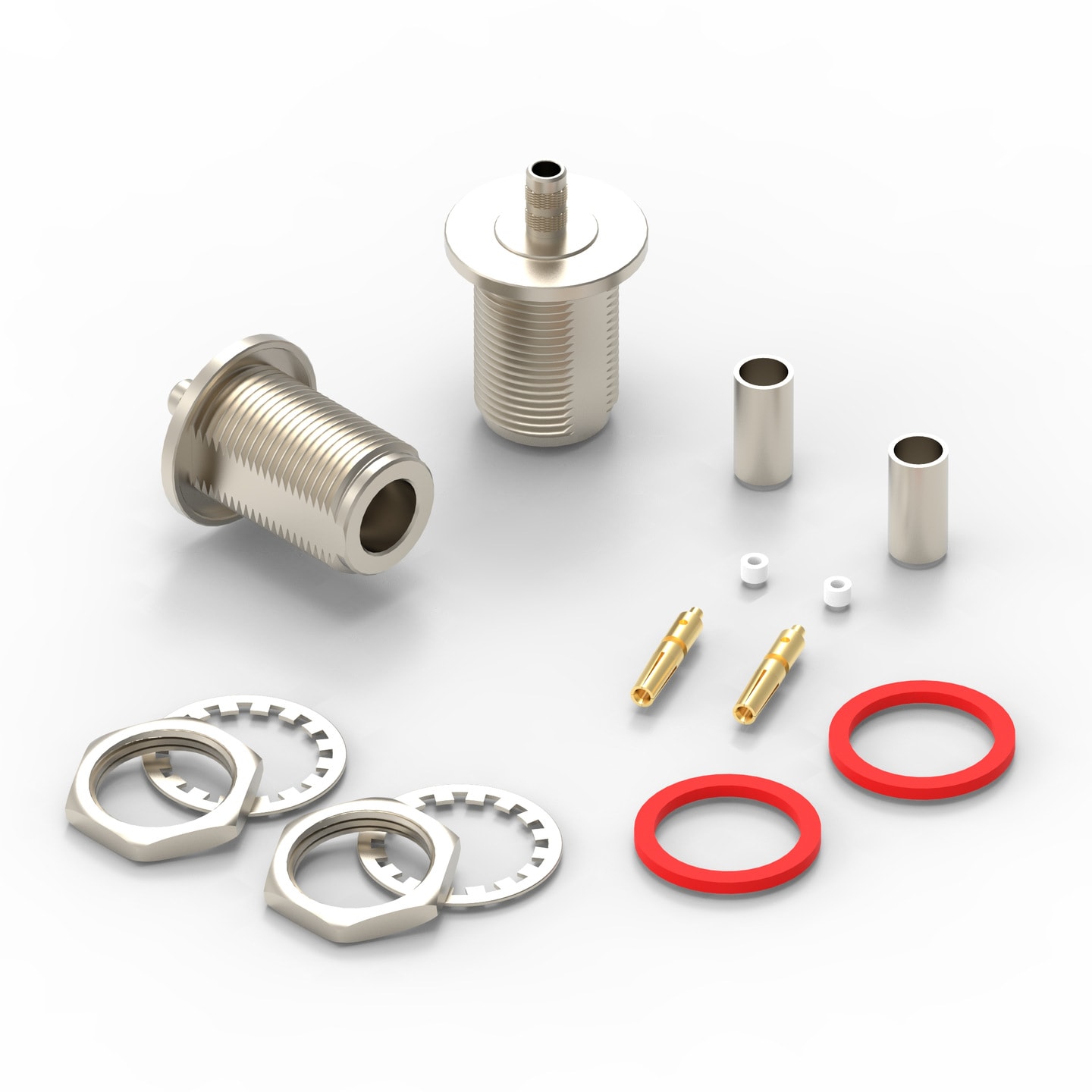

	60426522410120	SPEC	PDF	3 files CAD files ZIP 3D 3D_60426522410120 (rev1).pdf \| 2.3 MB IGS Download_IGS_60426522410120 (rev1).igs \| 14.7 MB STP Download_STP_60426522410120 (rev1).stp \| 18.3 MB Download all 3 files as zip archive ZIP	IP67	RG58/141/Low Loss195	Flexible	DC~6 GHz	Crimp	Ø 1,05	604001

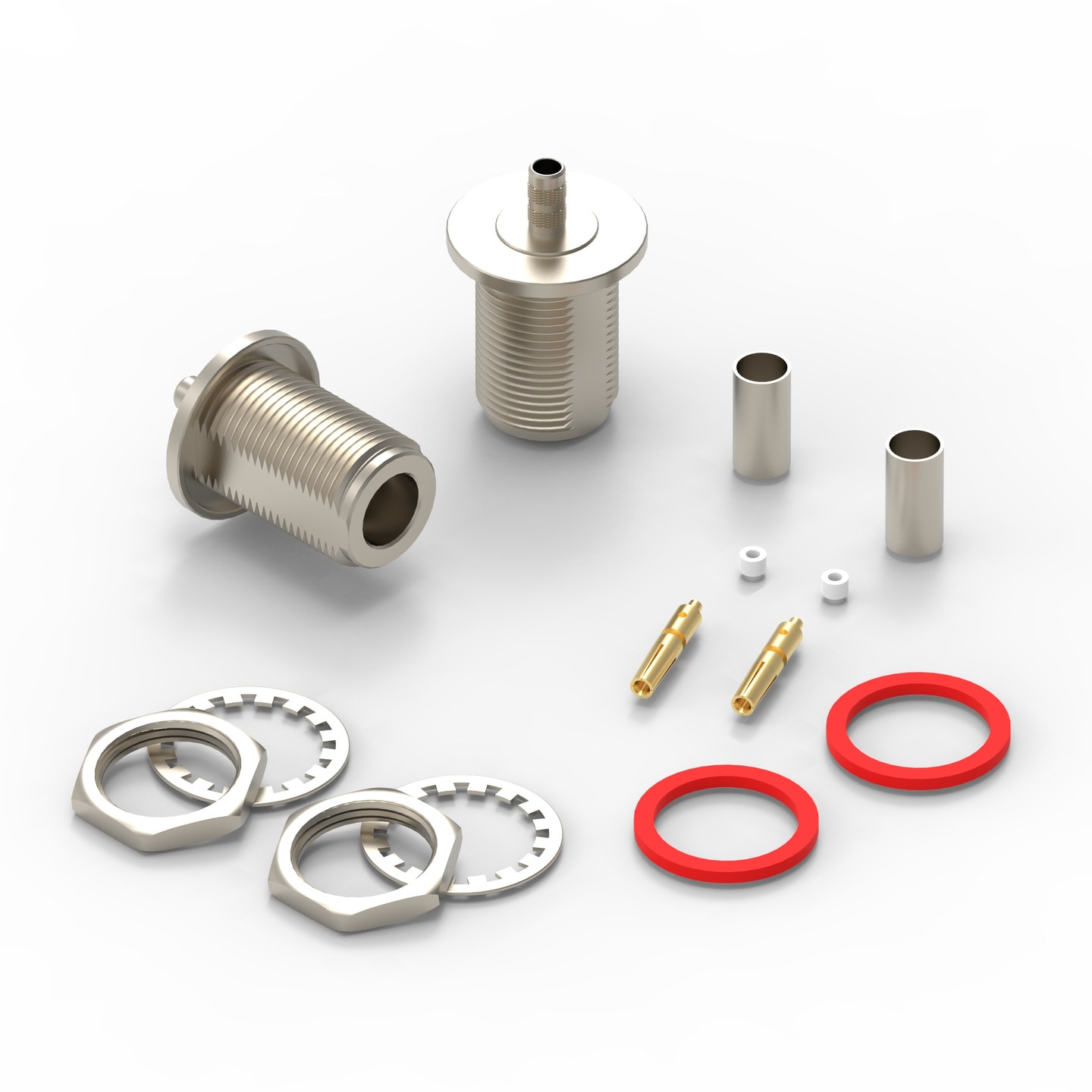

	60426522411520	SPEC	PDF	3 files CAD files ZIP 3D 3D_60426522411520 (rev1).pdf \| 2.3 MB IGS Download_IGS_60426522411520 (rev1).igs \| 15.1 MB STP Download_STP_60426522411520 (rev1).stp \| 18.3 MB Download all 3 files as zip archive ZIP	IP67	Low Loss 200	Flexible	DC~6 GHz	Crimp	Ø 1,2	604001

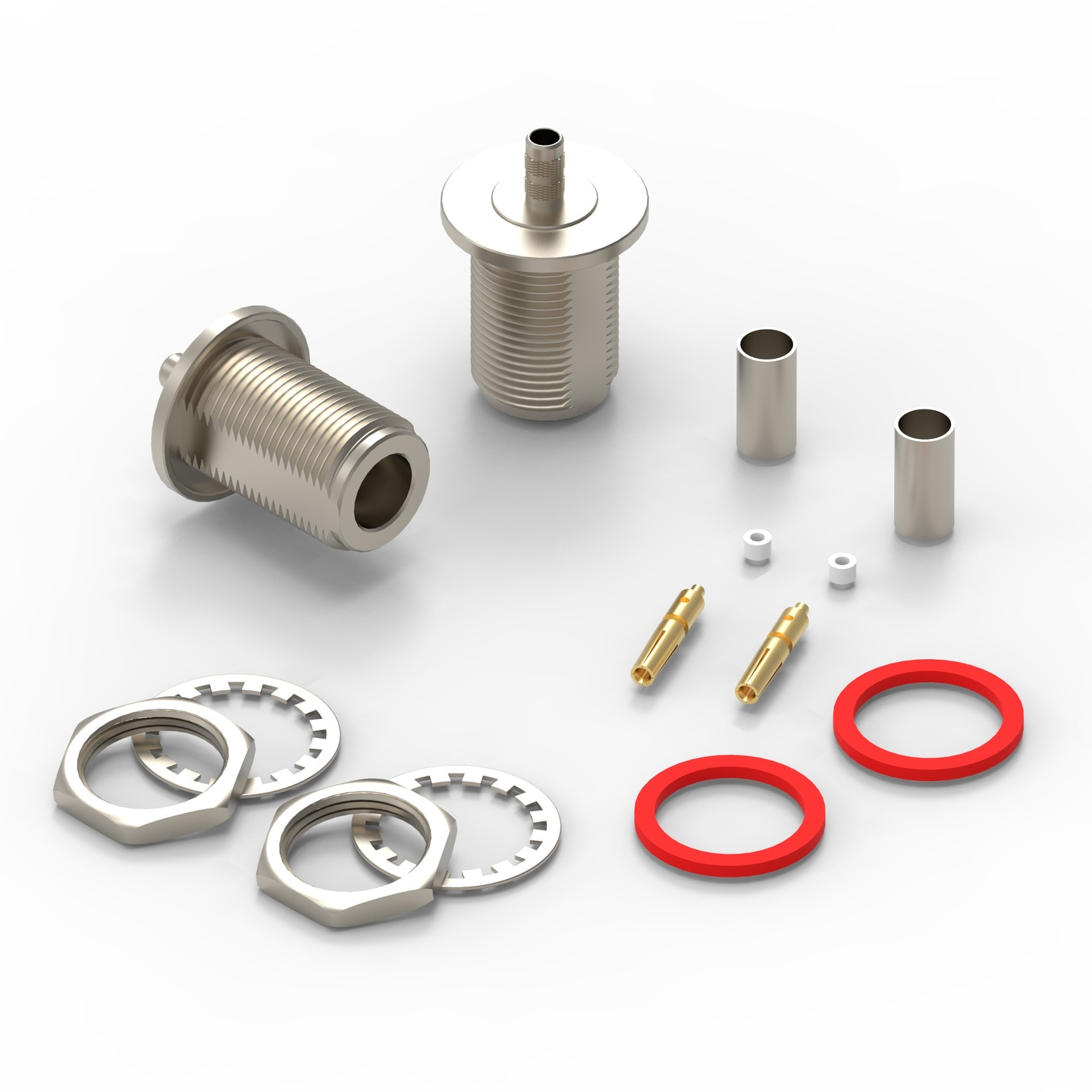

	60426522411120	SPEC	PDF	3 files CAD files ZIP 3D 3D_60426522411120 (rev1).pdf \| 2.3 MB IGS Download_IGS_60426522411120 (rev1).igs \| 15.2 MB STP Download_STP_60426522411120 (rev1).stp \| 18.3 MB Download all 3 files as zip archive ZIP	IP67	RG142/223/400	Flexible	DC~6 GHz	Crimp	Ø 1,1	604001

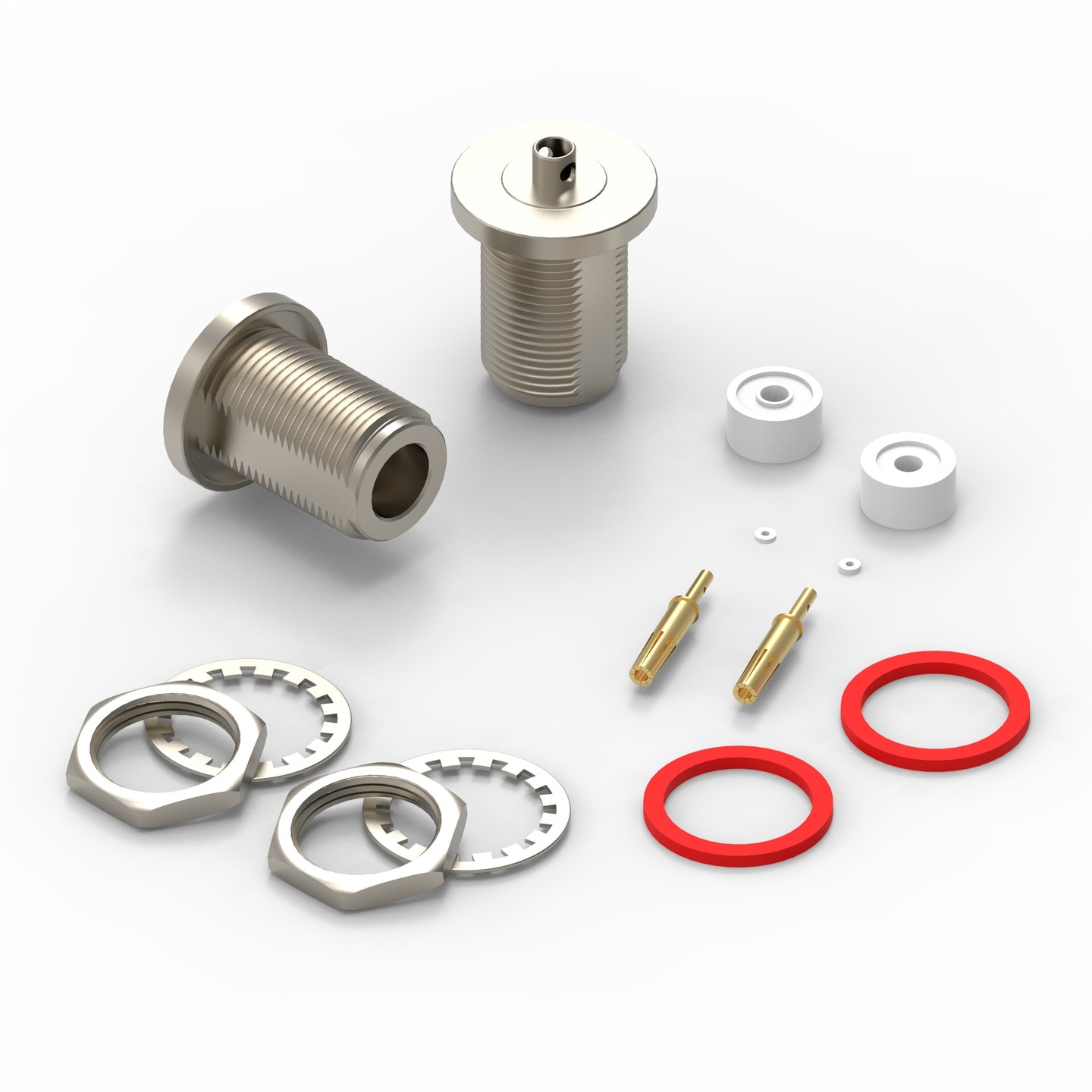

	60429522410720	SPEC	PDF	3 files CAD files ZIP 3D 3D_60429522410720 (rev1).pdf \| 1.2 MB IGS Download_IGS_60429522410720 (rev1).igs \| 4.1 MB STP Download_STP_60429522410720 (rev1).stp \| 12.5 MB Download all 3 files as zip archive ZIP	IP67	RG402/.141	Flexible/Hand Formable	DC~11 GHz	Solder	Ø 1	604001

	Order Code	Datasheet
	60445022210321	SPEC
	60446022210121	SPEC
	60446022211121	SPEC
	60446022211521	SPEC
	60449022210721	SPEC
	60436022210321	SPEC
	60436022210121	SPEC
	60436022211121	SPEC
	60436022211521	SPEC
	60439022210721	SPEC
	60425522510320	SPEC
	60425522510420	SPEC
	60425522512120	SPEC
	60425522512220	SPEC
	60425522512320	SPEC
	60426522410120	SPEC
	60426522411520	SPEC
	60426522411120	SPEC
	60429522410720	SPEC

Samples

	Order Code	Datasheet	Manual	Downloads	Ingress Protection Code	Cable	Cable Type	f	Mount	Center Contact	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-NTYPE PCB & CABLE CONNECTORS

Learn more

Installation Guide
PDF
