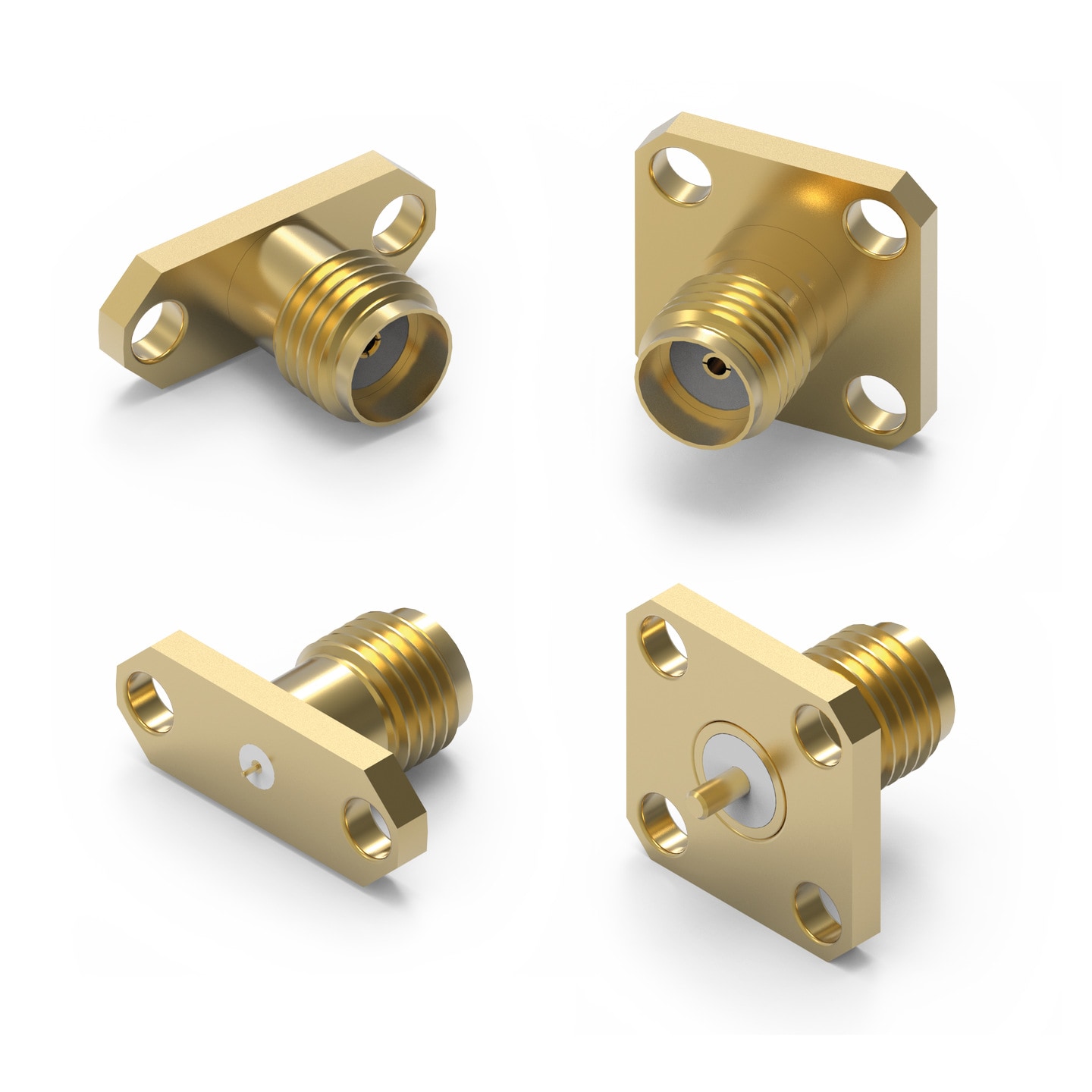

WR-SMA Panel 2-Hole and 4-Hole Flange

Size	Dimensions
Straight Jack

Characteristics

Interface: MIL-STD-348
Mating Cycle: 500 Cycles
Impedance: 50 Ω
Insulation Resistance: 5000 MΩ (min.)
Withstanding Voltage: 1000 Vrms (min.)

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
Electronic consumers and device
Outdoor or humidity environment

Application Notes

Products

Straight Jack

Filter article data

show articles in 1 product lines

articles in 1 product lines

Log in now to view availability and request availability forecasts. LOGIN

	Order Code	Datasheet	Downloads	Status	Class	Mounting Type	Ingress Protection Code	Center Contact	Operating Temperature	Design Kit	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
	60312512114515	SPECIndustrial, 2-Hole Flange, None	Availability –	Downloads3 files 3D 3D_60312512114515 (rev1).pdf \| 504.2 KB IGS Download_IGES_60312512114515 (rev1).iges \| 787 KB STP Download_STP_60312512114515 (rev1).stp \| 262.8 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	ClassIndustrial	Mounting Type2-Hole Flange	Ingress Protection CodeNone	Center ContactØ 1.27	Operating Temperature -65 °C up to +165 °C	Design Kit 603301	–Check availability
	60312312114616	SPECIndustrial, 2-Hole Flange, None	Availability –	Downloads3 files 3D 3D_60312312114616 (rev1).pdf \| 393 KB IGS Download_IGES_60312312114616 (rev1).iges \| 810.8 KB STP Download_STP_60312312114616 (rev1).stp \| 168.6 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	ClassIndustrial	Mounting Type2-Hole Flange	Ingress Protection CodeNone	Center Contact1.27 WIDE x 0.127 THK	Operating Temperature -65 °C up to +165 °C	Design Kit 603301	–Check availability
	60312412114517	SPECIndustrial, 2-Hole Flange, None	Availability –	Downloads4 files ANS ANSYS_60312412114517 (rev22b).a3dcomp \| 860.9 KB 3D 3D_60312412114517 (rev1).pdf \| 331.3 KB IGS Download_IGES_60312412114517 (rev1).iges \| 809.4 KB STP Download_STP_60312412114517 (rev1).stp \| 175.1 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	ClassIndustrial	Mounting Type2-Hole Flange	Ingress Protection CodeNone	Center ContactØ 0.25	Operating Temperature -65 °C up to +165 °C	Design Kit 603301	–Check availability
	60312412114518	SPECIndustrial, 2-Hole Flange, None	Availability –	Downloads3 files 3D 3D_60312412114518 (rev1).pdf \| 325.2 KB IGS Download_IGES_60312412114518 (rev1).iges \| 776.7 KB STP Download_STP_60312412114518 (rev1).stp \| 158.7 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	ClassIndustrial	Mounting Type2-Hole Flange	Ingress Protection CodeNone	Center ContactØ 1.27	Operating Temperature -65 °C up to +165 °C	Design Kit 603301	–Check availability
	60312522114519	SPECIndustrial, 4-Hole Flange, None	Availability –	Downloads3 files 3D 3D_60312522114519 (rev1).pdf \| 432.2 KB IGS Download_IGES_60312522114519 (rev1).iges \| 831.1 KB STP Download_STP_60312522114519 (rev1).stp \| 165.1 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	ClassIndustrial	Mounting Type4-Hole Flange	Ingress Protection CodeNone	Center ContactØ 1.27	Operating Temperature -65 °C up to +165 °C	Design Kit 603301	–Check availability
	60312322114620	SPECIndustrial, 4-Hole Flange, None	Availability –	Downloads3 files 3D 3D_60312322114620 (rev1).pdf \| 443.5 KB IGS Download_IGES_60312322114620 (rev1).iges \| 843 KB STP Download_STP_60312322114620 (rev1).stp \| 170 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	ClassIndustrial	Mounting Type4-Hole Flange	Ingress Protection CodeNone	Center Contact1.27 WIDE x 0.127 THK	Operating Temperature -65 °C up to +165 °C	Design Kit 603301	–Check availability
	60312422114521	SPECIndustrial, 4-Hole Flange, None	Availability –	Downloads3 files 3D 3D_60312422114521 (rev1).pdf \| 441.6 KB IGS Download_IGES_60312422114521 (rev1).iges \| 777.5 KB STP Download_STP_60312422114521 (rev1).stp \| 153.9 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	ClassIndustrial	Mounting Type4-Hole Flange	Ingress Protection CodeNone	Center ContactØ 1.27	Operating Temperature -65 °C up to +165 °C	Design Kit 603301	–Check availability
	60312422114522	SPECIndustrial, 4-Hole Flange, None	Availability –	Downloads3 files 3D 3D_60312422114522 (rev1).pdf \| 367.5 KB IGS Download_IGES_60312422114522 (rev1).iges \| 787 KB STP Download_STP_60312422114522 (rev1).stp \| 155 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	ClassIndustrial	Mounting Type4-Hole Flange	Ingress Protection CodeNone	Center ContactØ 1.27	Operating Temperature -65 °C up to +165 °C	Design Kit 603301	–Check availability
