CAN controllers for the implementation of complex functions

ICCS CAN Controllers

The Smart Choice in Controllers

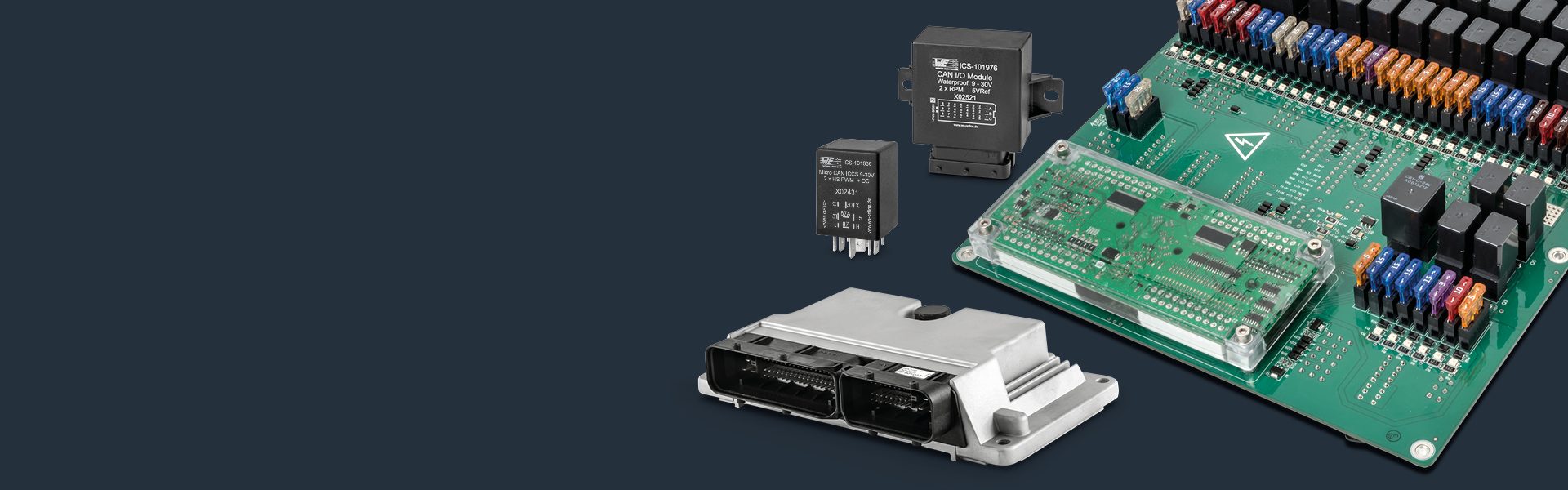

ICCS CAN Controllers are intelligent controllers, which can be used as a standalone solution or as an extension to the existing CAN bus network. They are suitable for use in mobile vehicles with the vehicle electrical systems of 9-30 V. In a package with central electrical units or power boards of Würth Elektronik ICS, they form a complete intelligent system for controlling and monitoring of electrical loads in the vehicle.

Our experts will be happy to advise you on the most suitable product.

Contact us!

Select the controller that suits to your needs – depending on:

Complexity of the control tasks
Number of required inputs
Number of required outputs

ICCS CAN Relays

ICCS CAN Relays are the smallest freely programmable CAN bus controllers packaged as relays. They are used to:

Expand the number of inputs or outputs
Connect sensors via CAN bus
Control certain functions in the vehicle, e.g. proportional valves

Our ICCS CAN Relays

ICCS CAN I/O Modules

Whether mounted on the circuit board or as standalone module: thanks to various designs you can use ICCS CAN I/O flexible according to your needs. The following functions can be realized with it:

Input and output extensions for CAN bus systems
Connection of binary and analog sensors via the CAN bus

Our ICCS CAN I/O Modules

ICCS CAN Controllers

ICCS CAN controllers process even complex tasks thanks to strong computing power and are optimal for mounting on the PCB. They are ideally suited ...

To monitor the control of fuses and relays
To transfer sensor values to the CAN bus
As CAN-to-CAN or LIN-to-CAN gateways
As input or output extension
To supply power to devices with low consumption
As interface between switches and CAN bus

Our ICCS CAN Controller

ICCS CAN Gateways

Intelligence and control functionality come together in the ICCS CAN Gateways. They connect the CAN networks with different bit rates or protocols. The ICCS CAN Gateways can be used:

As CAN bridge or CAN message filter
As LIN / CAN gateway
To connect CAN systems with different bus speeds
For signal manipulation, event triggered suppression and transmission of messages
For connecting LIN sensors to the CAN bus, for example LIN rain, light, or battery sensor

Our ICCS CAN Gateways

ICCS Micro Gateway

Programming

ICCS SDK Plus

For programming of ICCS CAN controllers, we have developed the software tool ICCS SDK Plus. This consists of a visual programming module and the USB-to-CAN adapter from Peak.

The tool offers you:

Visual programming based on the Eagle software from Autodesk
To create programs also in C language
To transfer the programmed functions to the ICCS CAN controller via USB-to-CAN adapter from Peak
Bootloader and flasher function for software updates via CAN bus

Important Notes

You need the Eagle software for graphical programming. You can download the new version Eagle 9 according to your needs and requirements at: http://www.autodesk.com/products/eagle/overview. There, you can choose between a free version, which can be used for testing purposes, or an Eagle Standard or Premium version with a subscription.

The creation of the programs in the programming language C is possible without restrictions.
Our product support ticketing system is available for your support requests. Our FAEs will respond to your request as soon as possible.

You will need a password to download the ICCS SDK Plus software. To obtain this, please contact us.

Download ICCS SDK Plus

Components of the Try & Buy Kit "ICCS SDK Plus" on a table

You Want to Create Programs for ICCS CAN Controllers Yourself?

Test our Try & Buy Kit "ICCS SDK Plus”

Our Service for You

We will advise you on the selection of the appropriate controller
We configure the controllers with simple functions or we create complete programs for you
We train your employees in software, programming environment, CAN protocol, etc.
We provide you with hardware and software as a Try & Buy Kit for three months free of charge
On request, we can supply ICCS controllers already programmed with the required function in the series production phase
