CAN controller as interface between switches & CAN bus

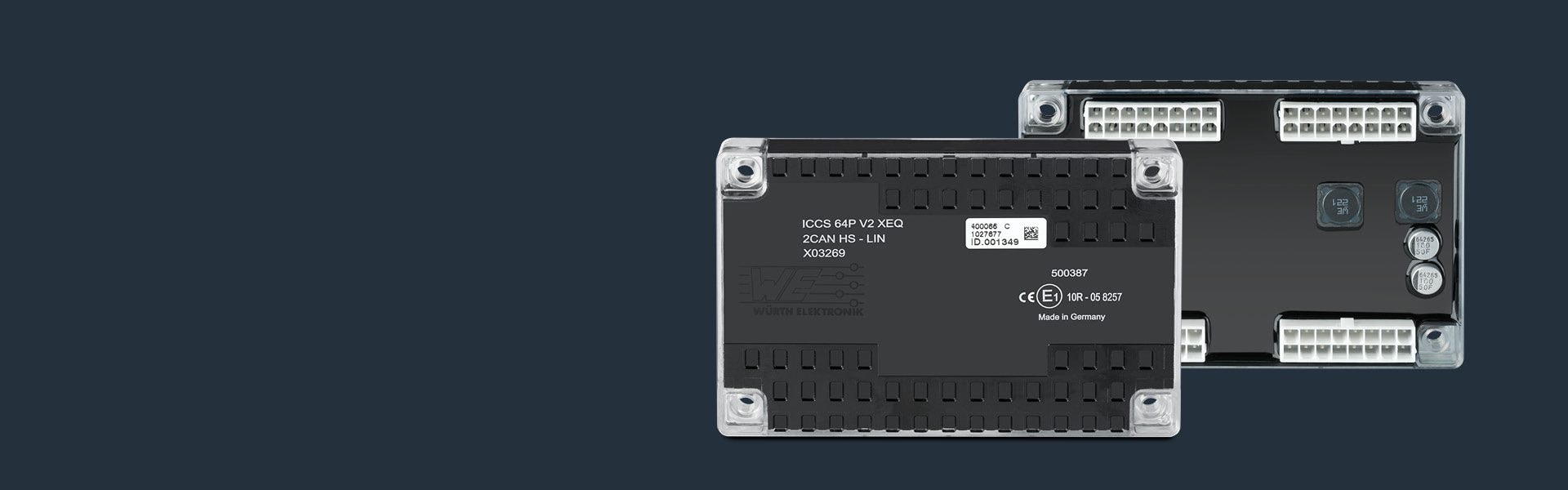

ICCS CAN Controller 64P V2

The Ideal Companion for Central Electrical Units

The ICCS CAN Controller 64P V2 can be used as a standalone module or as part of the CAN network. It can perform logical functions or be used just as a I/O device. The module can drive loads up to 2 amps per output and has more than 30 inputs of different types.

The controller is the perfect complement to central electrical units and power boards from Würth Elektronik ICS. It can easily be connected to the printed circuit board and thus enables the control of the entire system, e.g. relay switching and monitoring of the fuse status via CAN bus.

The 16-bit processor (Freescale / NXP HCS12XEQ) with integrated co-processor has sufficient computing power to handle complex tasks. The two CAN interfaces and an optional LIN master interface allow data exchange between independent bus systems. In addition, the controller enables gateway / filter functions and the conversion of data from LIN battery management systems or LIN rain/light sensors to CAN bus.

Open data sheet

Application Examples

Fuse monitoring and relay control
Transmission of sensor values to the CAN bus
CAN to CAN gateway functions
LIN to CAN gateway functions
Power supply of devices with low power consumption
Interface between switches and CAN bus

Data and Facts About the ICCS CAN Controller 64P V2

General Information
Operating temperature	-40 °C to 85 °C (no full load at 85 °C)
Operating voltage Vsupply	9 to 30 V DC
Current consumption	max. 50 mA
Ingress protection	IP54
Weigh	~ 150 g
Dimensions	76 x 116 x 15 mm

Order Information
Available references	Order number WE ICS
ICCS 64P V2 XEQ 2 CAN HS	ICS-102924
ICCS 64P V2 XEQ 2 CAN HS 1 LIN master	ICS-103075
ICCS 64P V2 XEQ 1 CAN HS 1 CAN LS 1 LIN master	ICS-102486

Programming

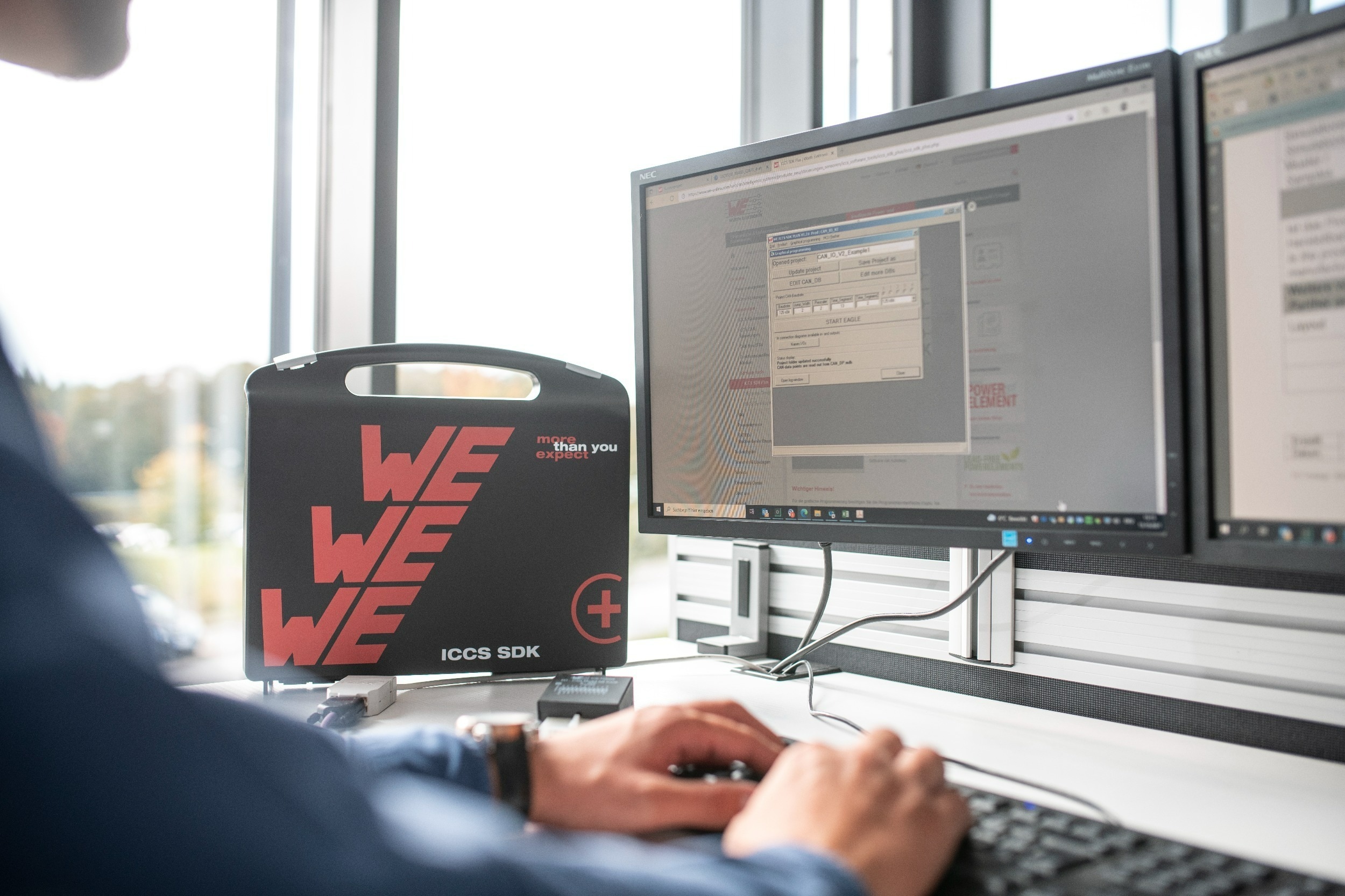

ICCS SDK Plus

For programming of ICCS CAN controllers, we have developed the software tool ICCS SDK Plus. This consists of a visual programming module and the USB-to-CAN adapter from Peak.

The tool offers you:

Visual programming based on the Eagle software from Autodesk
To create programs also in C language
To transfer the programmed functions to the ICCS CAN controller via USB-to-CAN adapter from Peak
Bootloader and flasher function for software updates via CAN bus

Important Notes

You need the Eagle software for graphical programming. You can download the new version Eagle 9 according to your needs and requirements at: http://www.autodesk.com/products/eagle/overview. There, you can choose between a free version, which can be used for testing purposes, or an Eagle Standard or Premium version with a subscription.

The creation of the programs in the programming language C is possible without restrictions.
Our product support ticketing system is available for your support requests. Our FAEs will respond to your request as soon as possible.

You will need a password to download the ICCS SDK Plus software. To obtain this, please contact us.

Download ICCS SDK Plus

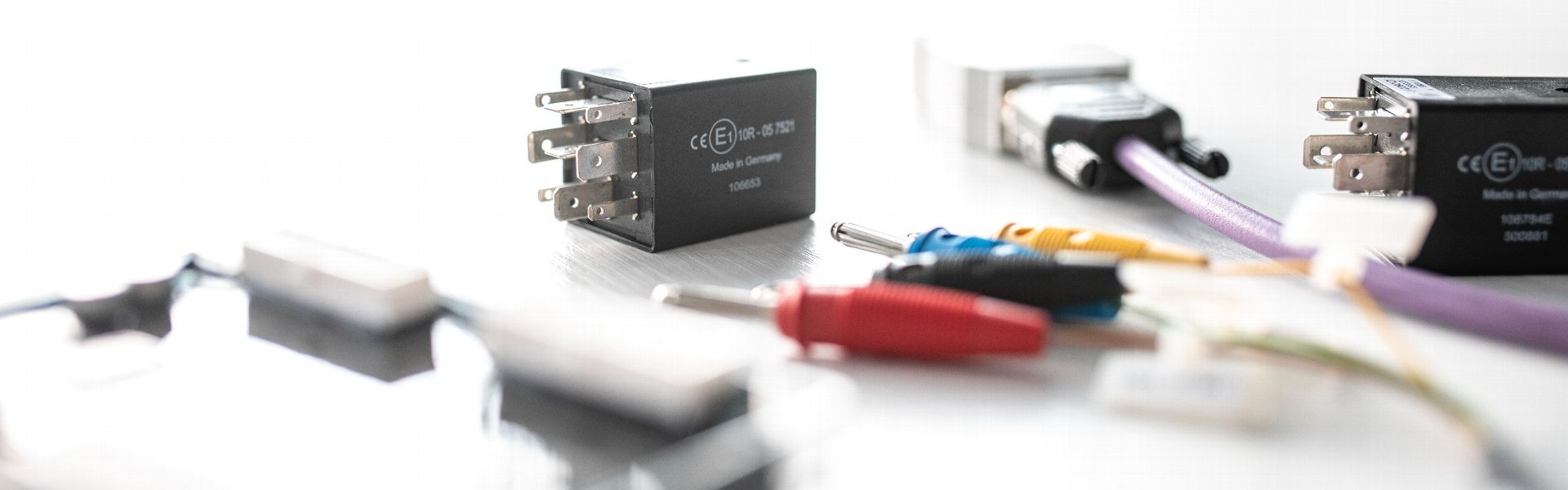

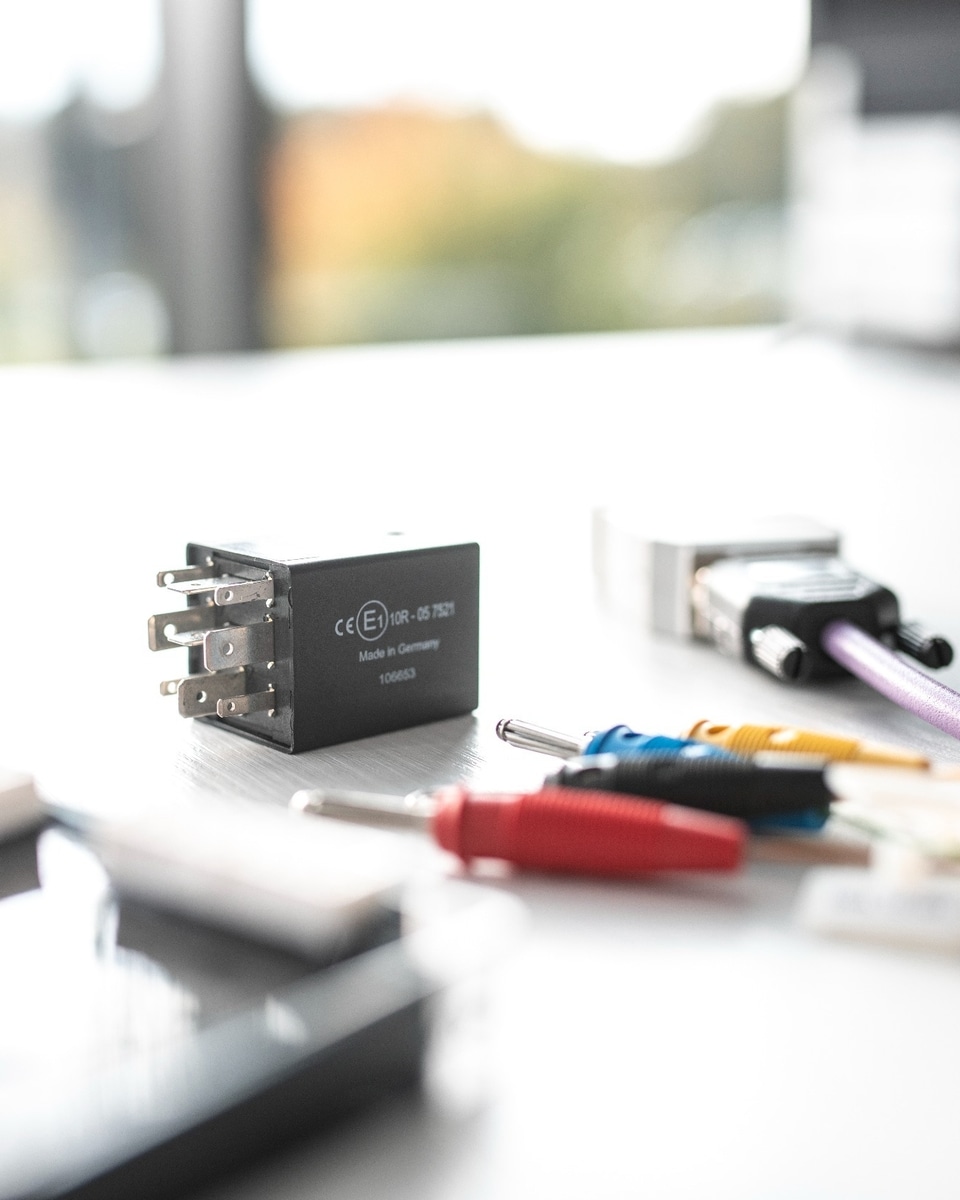

Components of the Try & Buy Kit "ICCS SDK Plus" on a table

You Want to Create Programs for ICCS CAN Controllers Yourself?

Test our Try & Buy Kit "ICCS SDK Plus”

Our Service for You

We will advise you on the selection of the appropriate controller
We configure the controllers with simple functions or we create complete programs for you
We train your employees in software, programming environment, CAN protocol, etc.
We provide you with hardware and software as a Try & Buy Kit for three months free of charge
On request, we can supply ICCS controllers already programmed with the required function in the series production phase

Contact our service team
