CDM-A16

Pluggable module for extended control and diagnostic functions

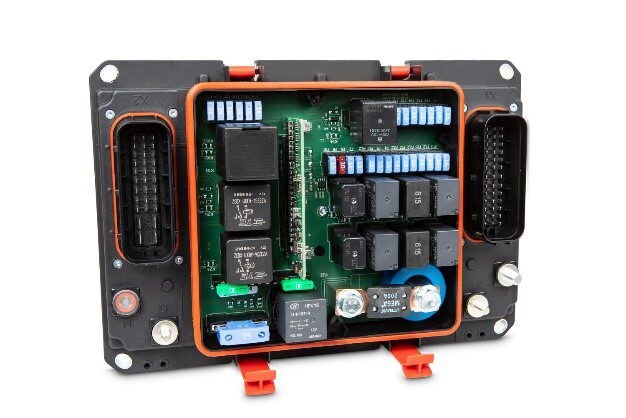

The CDM-A16 module is a plug-in controller for power distribution systems in vehicles and extends them with programmable control and diagnostic functions.

The module provides up to 16 channels for fuse status monitoring and relay activation. The peak-and-hold function reduces heat generation in the relay coil, thus extending the possible operating time.

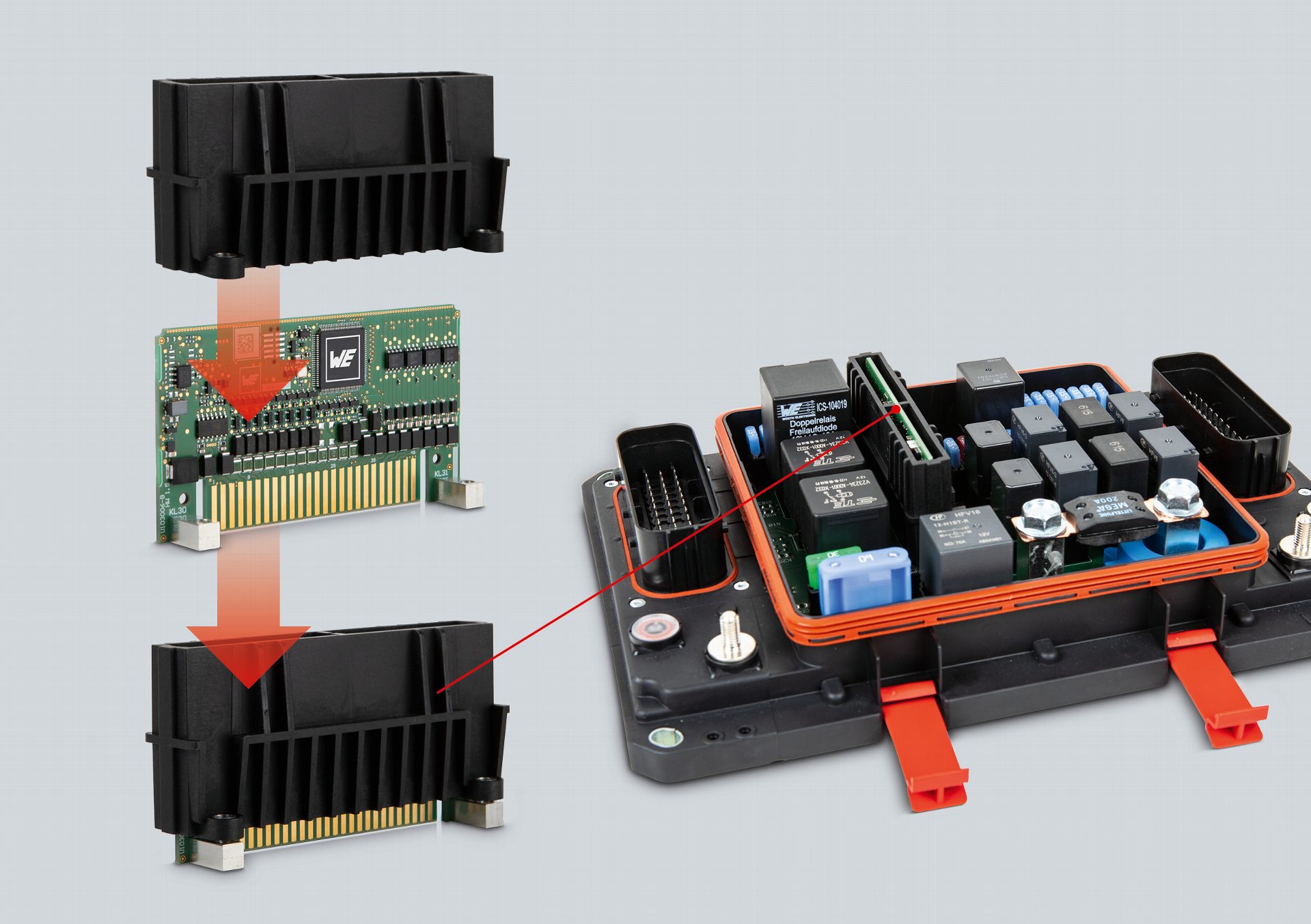

The vertical design of the module reduces the required space and thus enables the integration of additional relays and fuses into the power distribution system.

Functions:

Fuse status monitoring and relay control with peak-and hold function
CAN communication with multiple buses, enabling gateway functionality (J1939, RAW CAN bus protocols)
Logic processing of vehicle functions, programmed with WEcontrol Designer, an IEC61131-3 programming environment (FBD, ST, SFC, etc.)
Sensor management (current, temperature, etc.) with 5 V supply and sensor acquisition via 8 analog inputs
Direct load control through 4 digital outputs (2 A / PWM)

Open data sheet

The way to your own system

Contact us and develop with our support your ideal solution for your request.

Provide us with your specific schematic and software requirements.
We propose you the perfect integration match within our REDline Power Boxes platform or develop a customized power distribution system for you.
Together with you we integrate the controller and system diagnostic features into your schematic.
You will receive your customized solution for intelligent power distribution with CAN diagnostic functions and can now monitor your system.

Data and Facts About the CDM-A16

Technical information
Housing	Standard CDM-A16
Connectors	EDAC slide in 50 pins 2 x Powerelements
Dimensions	97.7 x 25.3 x 52 mm (incl. mounting material)
Operating temperature	-30°C to 85°C
Storage temperature	-40°C to 85°C
Ingress protection	IP 20
Operating voltage	9 to 32V
Pre-fusing (recommended)	10 A main supply
Current consumption	active (no output) < 70 mA
Current consumption	sleep mode < 2 mA
Processor type	NXP S 32K Cortex M4 32 bit
Clock frequency	80 MHz
Flash memory	2 MB
RAM	256 kB
FRAM	2 kB

Order information
ICS-104558	CDM-A16 (1) 8x5V 5Vref
ICS-104559	CDM-A16 (2) 4x5V 4x32V 5Vref
ICS-104560	CDM-A16 (3) 8x32V no5Vref
ICS-104561	CDM-A16 (4) 8x10V no5Vref
ICS-104562	CDM-A16 (5) 2x5V 6x32V 5Vref
ICS-104563	CDM-A16 (6) 4x10V 4x32V no5Vref
ICS-103006	CDM-A16 (7) 2x5V 2x10V 2x16V 2x32V 5Vref
ICS-104925	REDline Power Box Twin with CDM-A16 Modul

Programming with the WEcontrol Designer

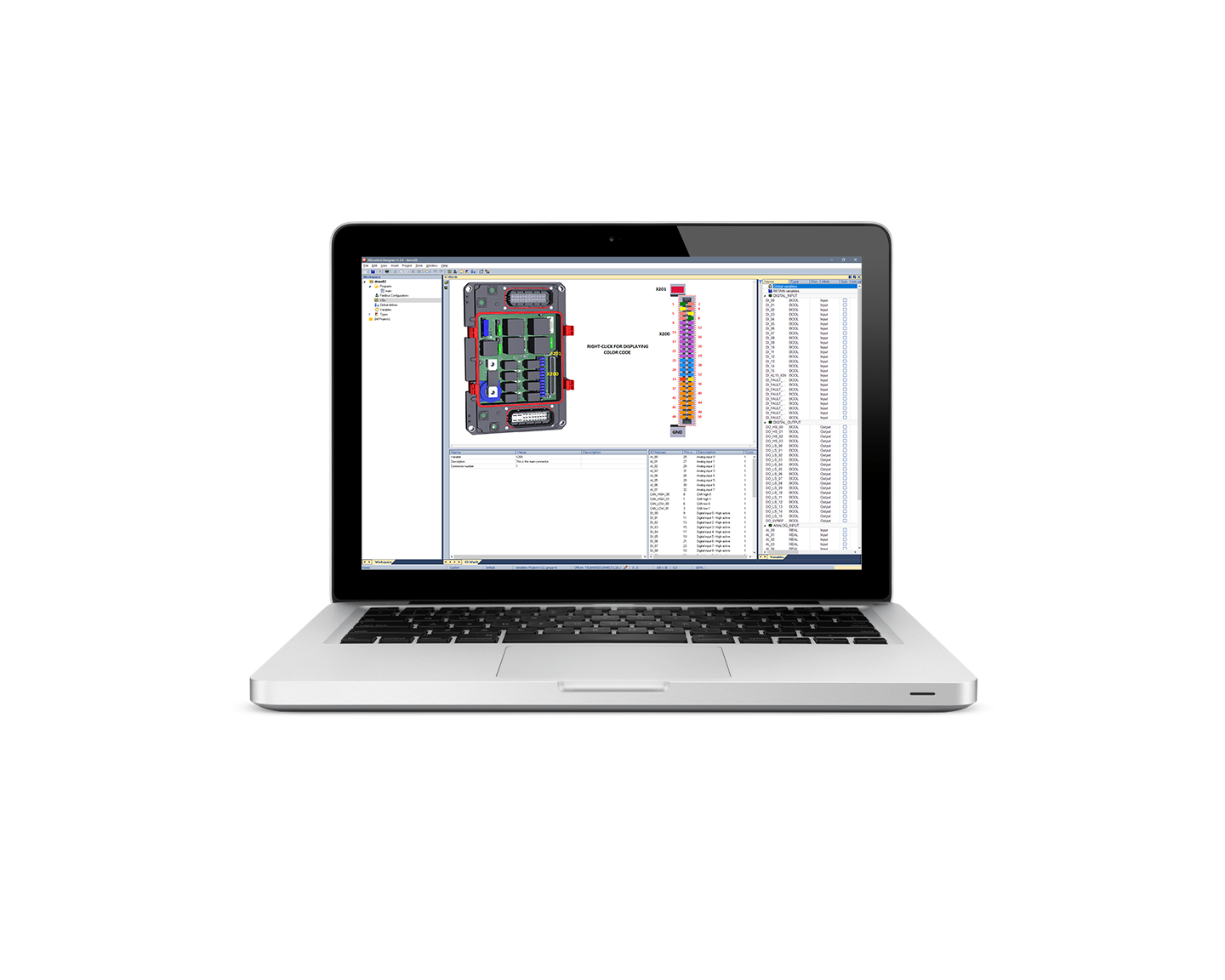

ICS CDM-A16 WeCabin Designer with Laptop

WEcontrol Designer is the new advanced programming environment from Würth Elektronik ICS. The set of powerful text and graphic editors for IEC-61131-3 languages supports the following programming types:

Sequential Flow Chart (SFC)
Function Block Diagram (FBD)
Ladder Diagram (LD)
Structured Text (ST)

The WEcontrol Designer additionally offers a wide range of functions such as:

Safe and optimized application creation
Simulation and online data access / modification over CAN bus
Automated language conversion
User Defined Function Blocks (UDFB) for specific / repetitive functions
Graphical I/O mapping and configuration
Automated HTML documentation of project
Import of CAN communication database from Vector and Peak systems
Easy creation of graphical debug interfaces (based on the application)
Our product support ticketing system is available for your support requests. Our FAEs will respond to your request as soon as possible.

You need a password to download the WEcontrol Designer software. To obtain this, please contact us.

Download WEcontrol Designer

Service

Independent programming

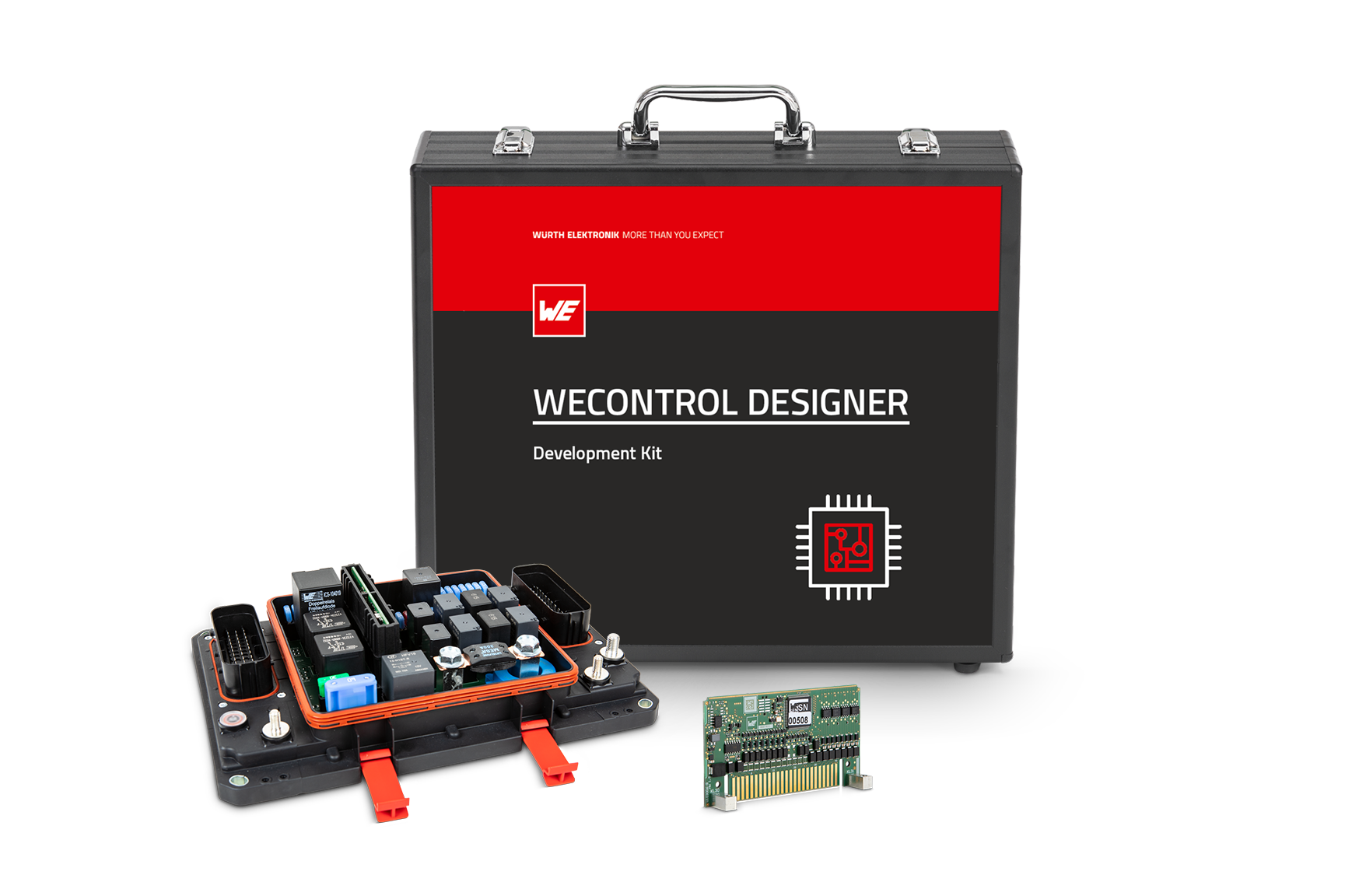

Program your desired functions independently with the help of our software development tool WEcontrol Designer and Try & Buy kit.

Request your Try & Buy kit here.

Worker shows CAN Box 8FR6 on mobile device

FAE support

Our specialists support you in programming, software development, training of your employees and after-sales service. In the series production phase, we can deliver the CAN Box 8FR6 programmed with the desired functions.

Arrange a personal consultation appointment now.
