CAN Box 8FR-6

Programmable Power Supply Solution

CAN Box 8FR-6 is a programmable controller for power distribution for mobile machines and commercial vehicles. It enables power supply to multiple consumers and can also be used to control functions.

The CAN Box 8FR-6 contains:

Eight fuse and relay outputs with up to 15 A
Six high-side outputs with up to 2 A
Eight analogue inputs
Four digital or frequency inputs with switchable pull-up
Two CAN bus interfaces

All outputs are equipped with current measurement. The relays provide digital feedback of each output (NO/NC), allowing diagnosis of defective fuses or monitoring of relay status.

You can program ICCS CAN Box 8FR-6 with WEcontrol Designer. This IEC61131-3 compliant programming environment offers a wide range of PLC functionalities, software simulation and online debug over CAN.

Applications

Power supply of multiple consumers
Transmission of analogue signals on CAN bus
CAN-to-CAN gateway functions
Various diagnostic options (e.g. defective fuses, relay status, current measurement on all outputs, temperature measurements, etc.)
Load reduction of other control units by taking over the control of numerous consumers
Retrofitting of existing systems

Open data sheet

Data and Facts About the CAN Box 8FR-6

Technical Data
Operating temperature	-40 °C to 70 °C (no full load at 85°C)
Storage temperature	-40 °C to 85 °C
Ingress protection	IP64 (dust-proof / splashing protection)
Operating voltage	12 V or 24 V (Relays) 9 – 32 V High Sides
Max. current	Fuses / Relays: 15 A / output High Sides: 2 A / output
Max. continuous current (@70 °C)	55 A (max 6 relays constantly on)
Connector	1 x Powerelement M6 1 x LeavySeal 39 Pins
Dimensions	167 x 142 x 74 mm
Weight	~470 g unequipped
Processor type	NXP K10 Cortex M4 32 bit
Clock frequency	120 MHz
Flash memory	512 kB
RAM	128 kB
FRAM	2 kB

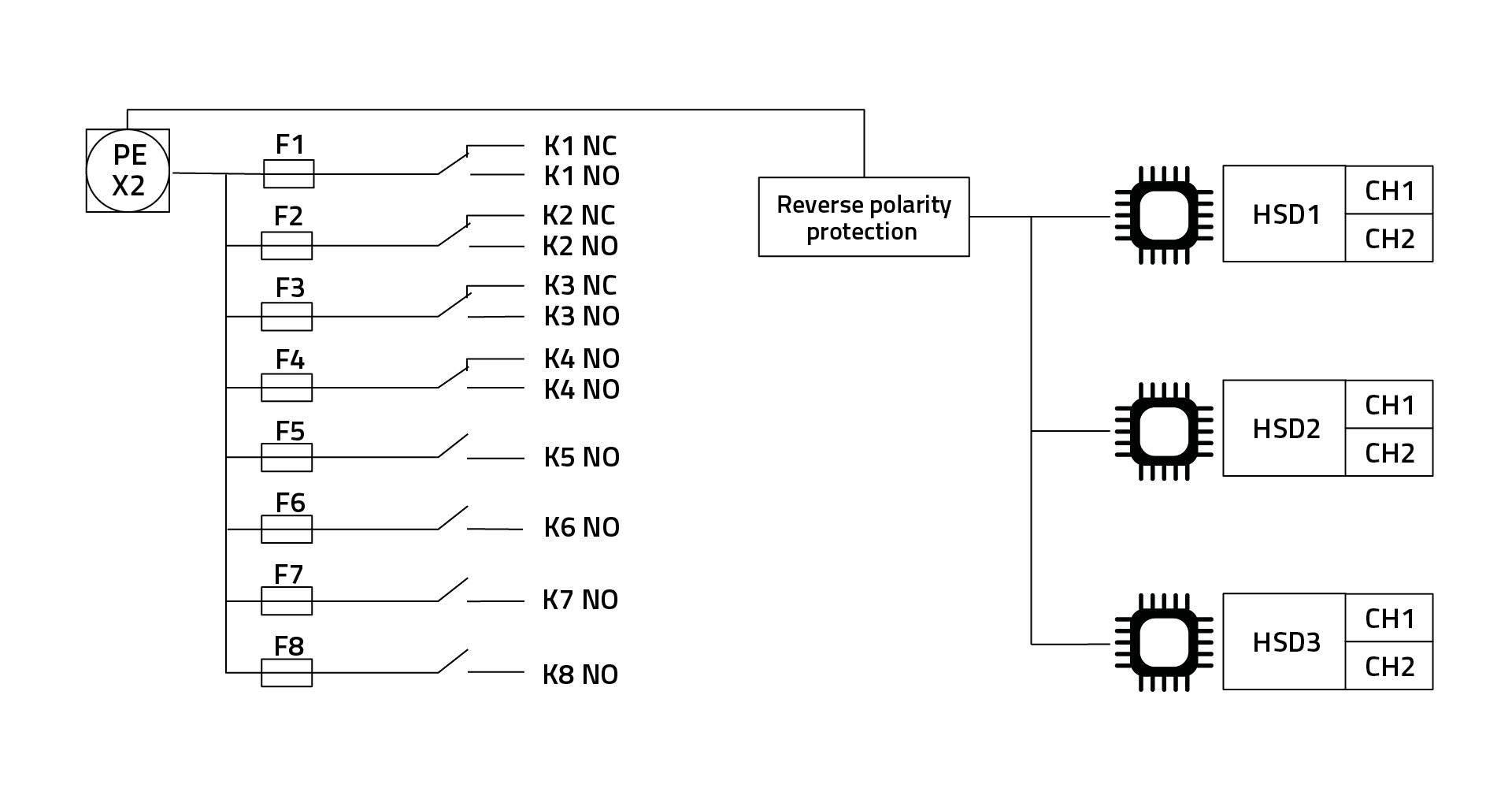

Power supply distribution of the CAN Box 8FR6

Order Information
Description	Order number WE ICS
CAN Box 8FR-6 (no fuses, no relays) with current measurement on relays, not programmed	ICS-103794
CAN Box 8FR-6 (10 A fuses, 12 V relays) without current measurement on relays, not programmed	ICS-103792
CAN Box 8FR-6 (10 A fuses, 24 V relays) without current measurement on relays, not programmed	ICS-103793
CAN Box 8FR-6 (customer specific equipment and programming)	On request (Contact us)

Würth Elektronik ICS Tech Talk - CAN BOX 8FR6

Get to know the technical features of the CAN Box 8FR-6 in just a few minutes!

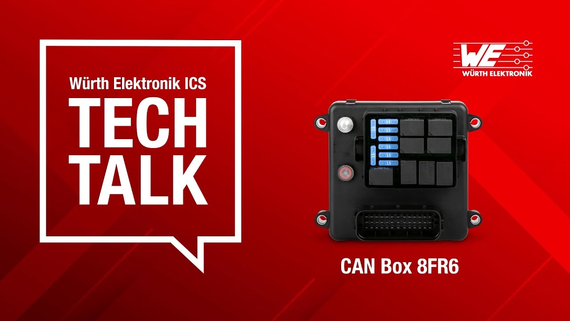

CAN Box 8FR6 on red background with white Tech Talk speech bubble

Programming With the WEcontrol Designer

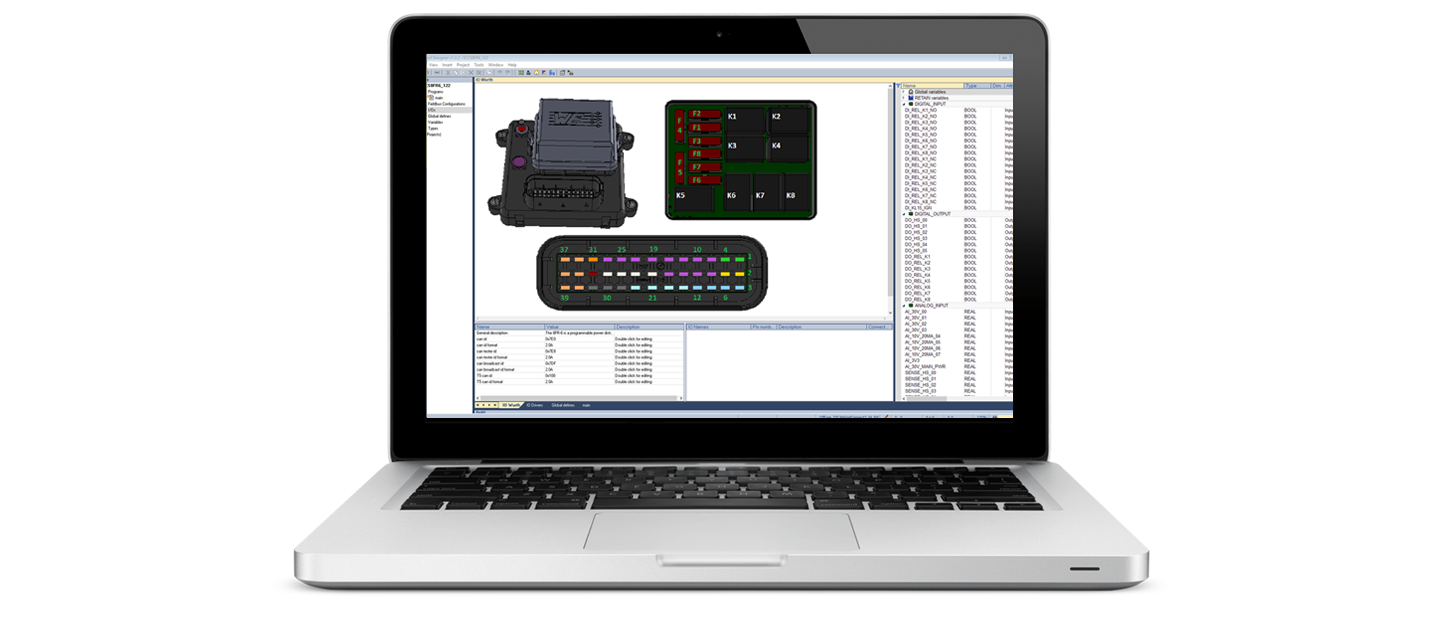

opened laptop with the software tool WEcontrol Designer

WEcontrol Designer is the new advanced programming environment from Würth Elektronik ICS. The set of powerful text and graphic editors for IEC-61131-3 languages supports the following programming types:

Sequential Flow Chart (SFC)
Function Block Diagram (FBD)
Ladder Diagram (LD)
Structured Text (ST)

The WEcontrol Designer additionally offers a wide range of functions such as:

Safe and optimized application creation
Simulation and online data access / modification over CAN bus
Automated language conversion
User Defined Function Blocks (UDFB) for specific / repetitive functions

Download WEcontrol Designer

Graphical I/O mapping and configuration
Automated HTML documentation of project
Import of CAN communication database from Vector and Peak systems
Easy creation of graphical debug interfaces (based on the application)
Our product support ticketing system is available for your support requests. Our FAEs will respond to your request as soon as possible.

You need a password to download the WEcontrol Designer software. To obtain this, please contact us.

Service

Independent programming

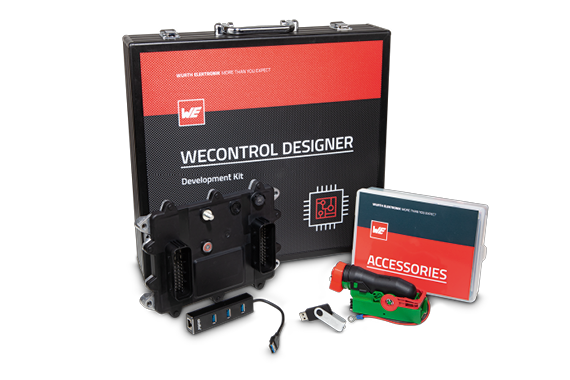

Program your desired functions independently with the help of our software development tool WEcontrol Designer and Try & Buy kit.
