Controlling proportional valves with freely programmable PLCs

ICCS PropCAN

So That Only as Much Flows as Necessary

ICCS PropCAN are graphical freely programmable controllers for controlling proportional solenoids. A proportional valve is controlled via a pulse width modulated output (PWM) of the PropCAN. An integrated current measurement detects the valve current and can be controlled accordingly.

In addition to the valve control you can:

Integrate the required control logic by graphical programming
Eliminate further controllers
Use an externally accessible potentiometer for pre-setting of adjustment valves
Individually configure PWM parameters and a dithering signal via software

Open data sheet

Application Examples

Controller for mobile hydraulics

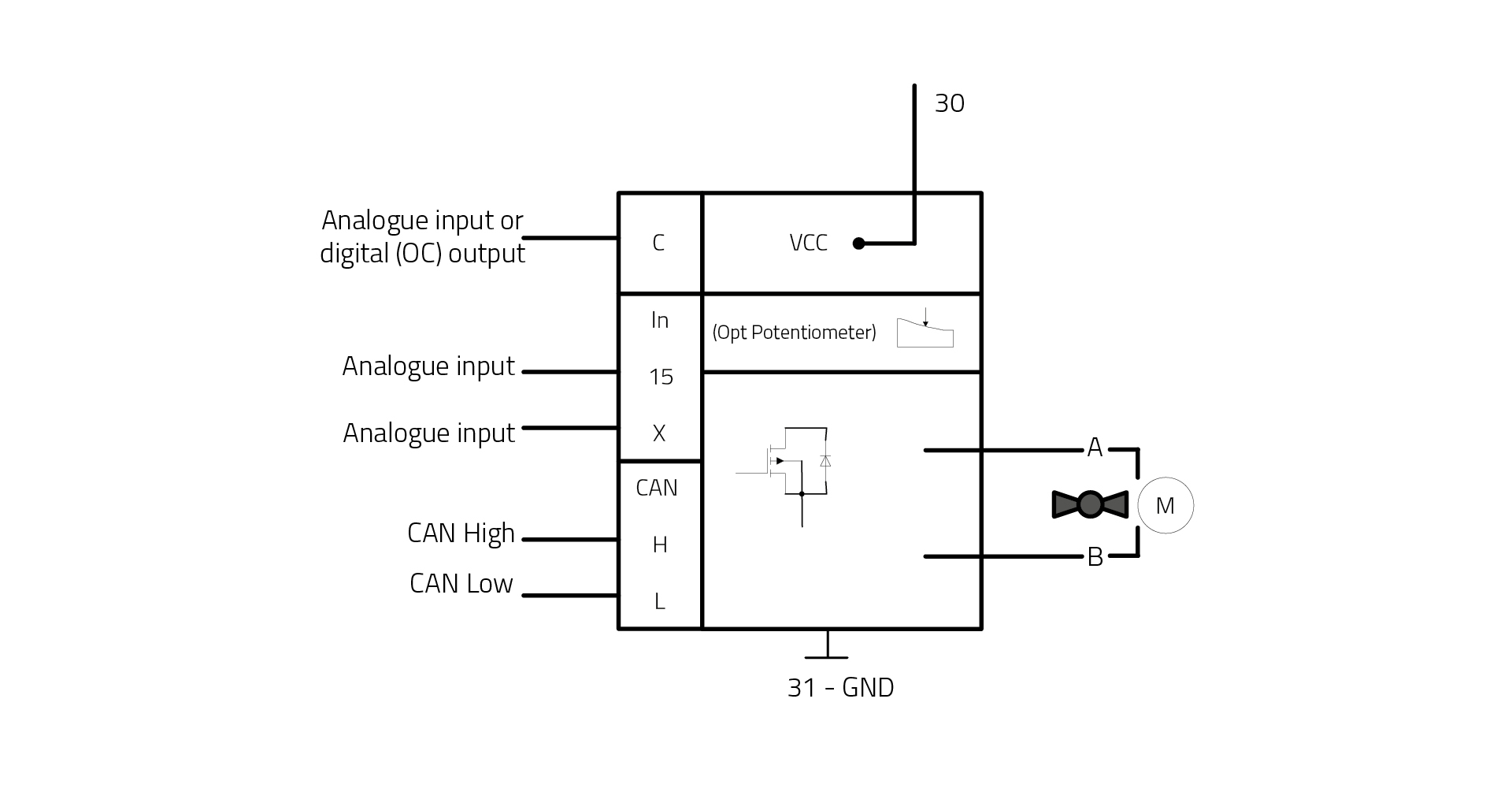

Autonomous mini control system for proportional valves
Control proportional valves by CAN Bus

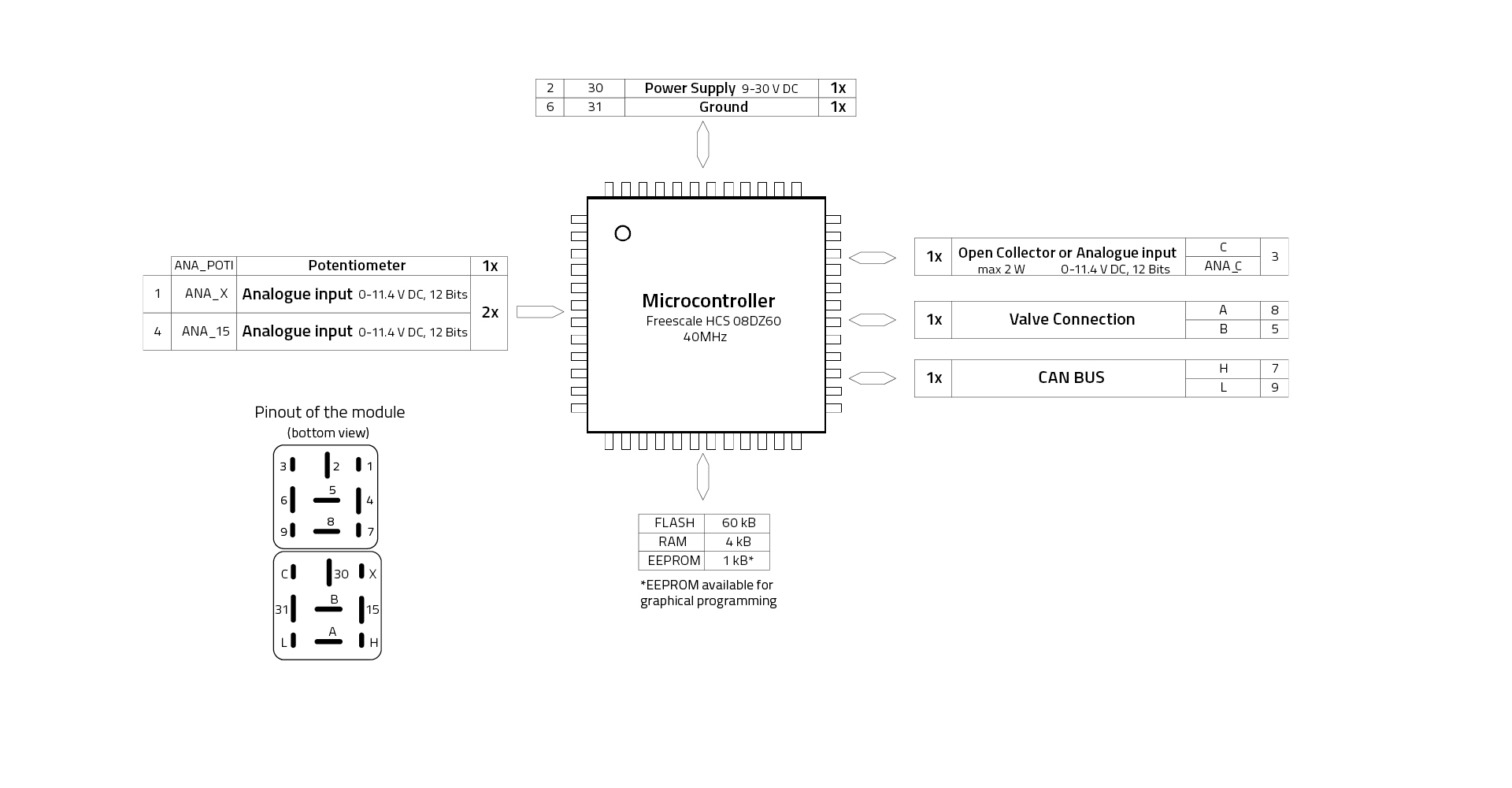

PWM adjustment and control functions

Data and Facts About the ICCS PropCAN

General Information
Operating temperature	-40 °C to +85 °C
Operating voltage Vsupply	9 to 30 V DC
Current consumption	30 mA
Ingress protection	IP 53
Weight	~70 g
Dimensions	30 x 30 x 40 mm

Order Information
Available references	Order number WE ICS
ICCS PropCAN with integrated potentiometer	ICS-95159

Programming

ICCS SDK Plus

For programming of ICCS CAN controllers, we have developed the software tool ICCS SDK Plus. This consists of a visual programming module and the USB-to-CAN adapter from Peak.

The tool offers you:

Visual programming based on the Eagle software from Autodesk
To create programs also in C language
To transfer the programmed functions to the ICCS CAN controller via USB-to-CAN adapter from Peak
Bootloader and flasher function for software updates via CAN bus

Important Notes

You need the Eagle software for graphical programming. You can download the new version Eagle 9 according to your needs and requirements at: http://www.autodesk.com/products/eagle/overview. There, you can choose between a free version, which can be used for testing purposes, or an Eagle Standard or Premium version with a subscription.

The creation of the programs in the programming language C is possible without restrictions.
Our product support ticketing system is available for your support requests. Our FAEs will respond to your request as soon as possible.

You will need a password to download the ICCS SDK Plus software. To obtain this, please contact us.

Download ICCS SDK Plus

Components of the Try & Buy Kit "ICCS SDK Plus" on a table

You Want to Create Programs for ICCS CAN Controllers Yourself?

Test our Try & Buy Kit "ICCS SDK Plus”

Our Service for You

We will advise you on the selection of the appropriate controller
We configure the controllers with simple functions or we create complete programs for you
We train your employees in software, programming environment, CAN protocol, etc.
We provide you with hardware and software as a Try & Buy Kit for three months free of charge
On request, we can supply ICCS controllers already programmed with the required function in the series production phase
