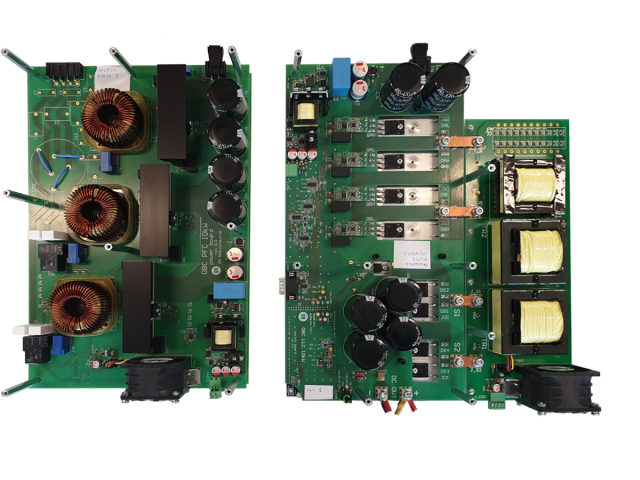

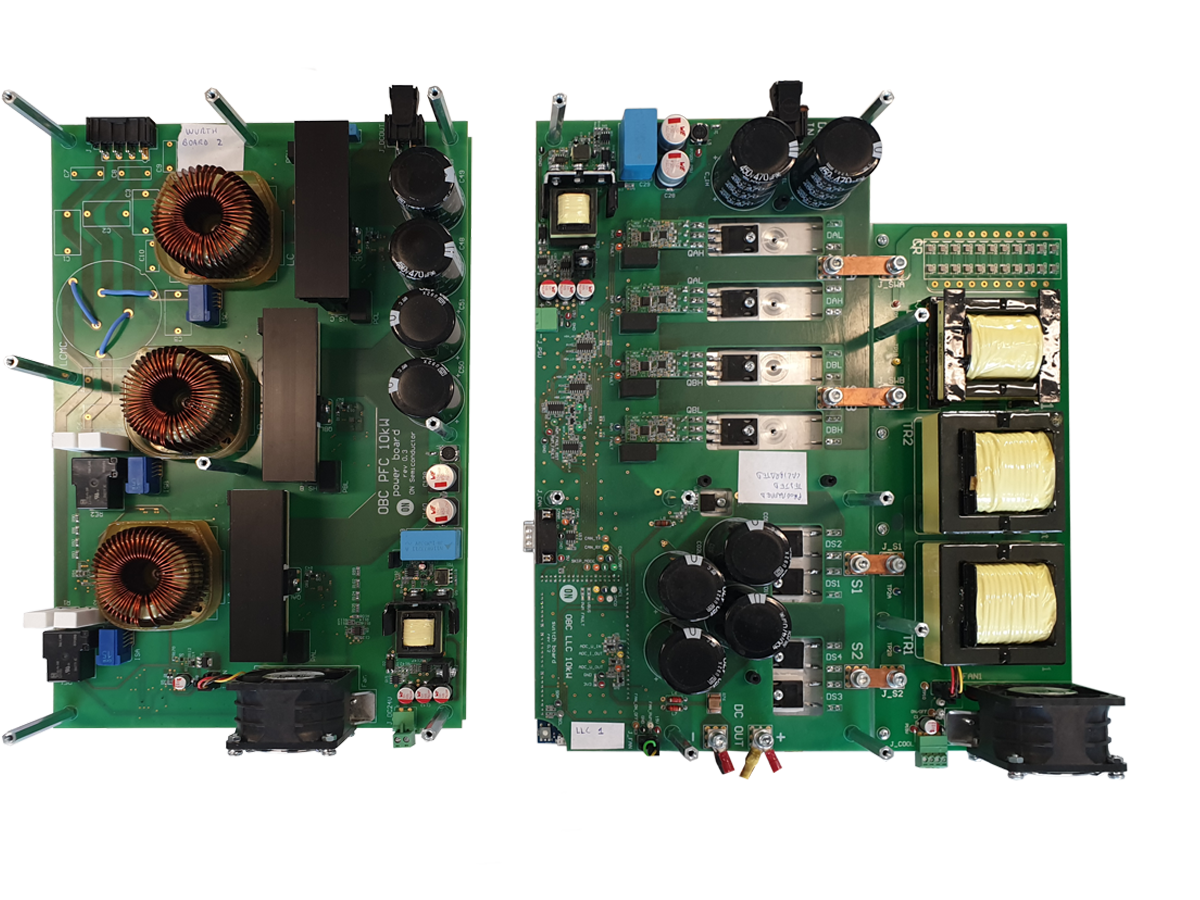

Onsemi NCP1252D | Demoboard SEC-3PH-11-OBC-EVB
SEC-3PH-11-OBC-EVB: Three-phase On Board Charger (OBC) PFC-LLC platform
Overview
| Topology | LLC Resonant Converter |
| Input voltage | 195-265 V |
| Switching frequency | 400 kHz |
| Output 1 | 450 V / 40 A |
Description
The SEC-3PH-11-OBC-EVB is a three-phase On Board Charger (OBC) platform achieving state-of-the-art system efficiency with AEC-Q101 SiC power devices and drivers. The system boasts the high performance MOSFET 1200 V, 80 mΩ (NVHL080N120SC1), MOSFET Gate driver 6A (NCV51705) and Diode 650 V, 30 A (FFSB3065B-F085). Conceived in a modular approach and equipped with a user-friendly GUI, the kit facilitates the evaluation of the SiC devices in an OBC application. The LLC system is driven in voltage or current control modes by the embedded software. Ultimately, the platform serves as a learning environment for three-phase AC/DC power conversion. Visit the On Board Charging solutions solutions site to learn how ON Semiconductor can help you a comprehensive and advanced portfolio.
Features
- AEC-Q101 qualified SiC power devices and drivers
- AC/DC 3-Ph PFC full bridge (Voltage Source Inverter)
- DC/DC LLC full bridge
- Executable software FOC (Vector Control), CC and CV
- GUI
- Input Voltage - 195-265 Vac
- DC Bus Max - 735 Vdc
- Output Voltage - 200-450 Vdc
- Output Current - 0-40A
- fs max. 400 kHz
Typical applications
- Industrial high efficiency AC/DC
- On board charger (OBC) / EV Charging / Battery Chargers / 3-Ph motor drives and SMPS
More information

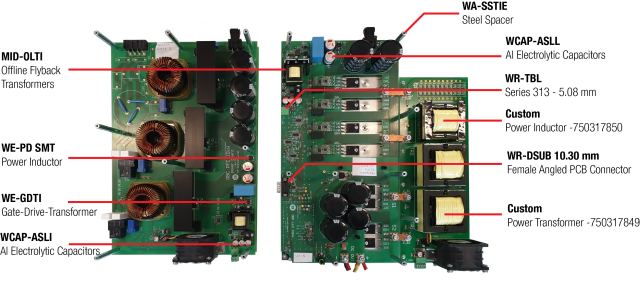

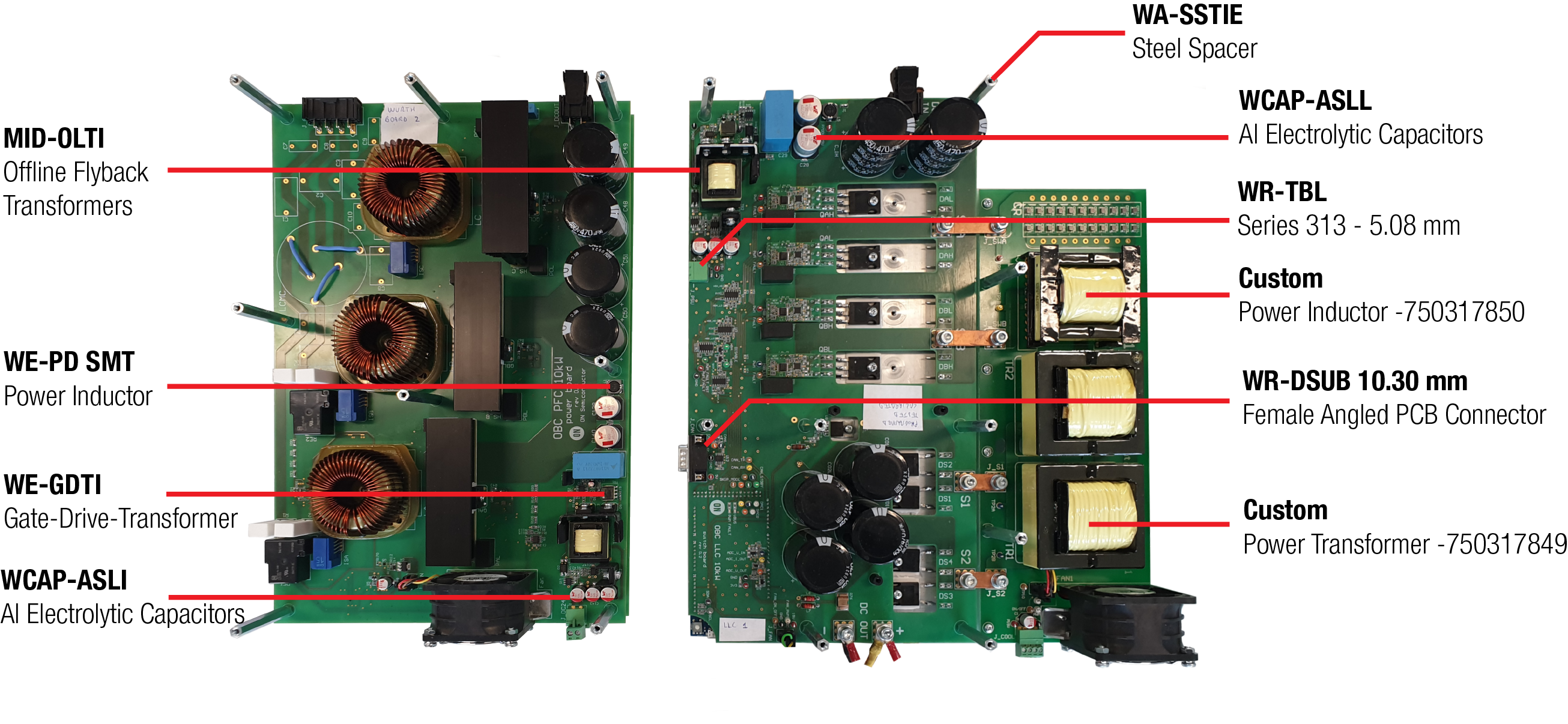

Products
Order Code | Datasheet | Simulation | Downloads | Status | Product series | λDom typ.(nm) | Emitting Color | λPeak typ.(nm) | IV typ.(mcd) | VF typ.(V) | Chip Technology | 2θ50% typ.(°) | IR(mA) | ISAT(A) | fres(MHz) | Mount | IRP,40K(A) | Version | Q(%) | SW(mm) | L(mm) | To | C | VR(V (AC)) | Endurance(h) | IRIPPLE(mA) | Z(mΩ) | ILeak(µA) | DF(%) | Ø D(mm) | Packaging | RESR(Ω) | VIN | VOut1(V) | IOut1(A) | Vaux(V) | fswitch(kHz) | NPRI : NSEC : NAUX | Gender | Variant | Working Voltage(V (AC)) | Operating Temperature | Schematic | Switching Function | Actuation Function | W(mm) | H(mm) | IR(mA) | Ti | Tl(mm) | Pins | Z @ 100 MHz(Ω) | Zmax(Ω) | Test Condition Zmax | IR 2(mA) | RDC max.(Ω) | Type | n | L(µH) | ∫Udt(µVs) | VT(V (AC)) | CWW 1(pF) | LS(µH) | Size | PCB/Cable/Panel | Modularity | Wire Section | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | WL-SMCW SMT Mono-color Chip LED Waterclear, 470 nm, Blue | Downloads27 files RAY files
| Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWL-SMCW SMT Mono-color Chip LED Waterclear | Dominant Wavelength [typ.]470 nm | Emitting ColorBlue | Peak Wavelength [typ.]465 nm | Luminous Intensity [typ.]145 mcd | Forward Voltage [typ.]3.2 V | Chip TechnologyInGaN | Viewing Angle Phi 0° [typ.]140 ° | – | – | – | MountSMT | – | – | – | – | Length1.6 mm | – | – | – | – | – | – | – | – | – | PackagingTape and Reel | – | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +85 °C | – | – | – | Width0.8 mm | Height0.7 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Size0603 | – | – | – | |||
| WL-SMCW SMT Mono-color Chip LED Waterclear, 525 nm, Green | Downloads26 files RAY files
| Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWL-SMCW SMT Mono-color Chip LED Waterclear | Dominant Wavelength [typ.]525 nm | Emitting ColorGreen | Peak Wavelength [typ.]515 nm | Luminous Intensity [typ.]430 mcd | Forward Voltage [typ.]3.2 V | Chip TechnologyInGaN | Viewing Angle Phi 0° [typ.]140 ° | – | – | – | MountSMT | – | – | – | – | Length1.6 mm | – | – | – | – | – | – | – | – | – | PackagingTape and Reel | – | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +85 °C | – | – | – | Width0.8 mm | Height0.7 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Size0603 | – | – | – | |||
| WL-SMCW SMT Mono-color Chip LED Waterclear, 590 nm, Yellow | Downloads26 files RAY files
| Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWL-SMCW SMT Mono-color Chip LED Waterclear | Dominant Wavelength [typ.]590 nm | Emitting ColorYellow | Peak Wavelength [typ.]595 nm | Luminous Intensity [typ.]120 mcd | Forward Voltage [typ.]2 V | Chip TechnologyAlInGaP | Viewing Angle Phi 0° [typ.]140 ° | – | – | – | MountSMT | – | – | – | – | Length1.6 mm | – | – | – | – | – | – | – | – | – | PackagingTape and Reel | – | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +85 °C | – | – | – | Width0.8 mm | Height0.7 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Size0603 | – | – | – | |||
| WL-SMCW SMT Mono-color Chip LED Waterclear, 625 nm, Red | Downloads26 files RAY files
| Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWL-SMCW SMT Mono-color Chip LED Waterclear | Dominant Wavelength [typ.]625 nm | Emitting ColorRed | Peak Wavelength [typ.]630 nm | Luminous Intensity [typ.]250 mcd | Forward Voltage [typ.]2 V | Chip TechnologyAlInGaP | Viewing Angle Phi 0° [typ.]140 ° | – | – | – | MountSMT | – | – | – | – | Length1.6 mm | – | – | – | – | – | – | – | – | – | PackagingTape and Reel | – | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +85 °C | – | – | – | Width0.8 mm | Height0.7 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Size0603 | – | – | – | |||
| WL-SMCW SMT Mono-color Chip LED Waterclear, 630 nm, Super Red | Downloads26 files RAY files
| Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWL-SMCW SMT Mono-color Chip LED Waterclear | Dominant Wavelength [typ.]630 nm | Emitting ColorSuper Red | Peak Wavelength [typ.]645 nm | Luminous Intensity [typ.]60 mcd | Forward Voltage [typ.]1.9 V | Chip TechnologyAlInGaP | Viewing Angle Phi 0° [typ.]140 ° | – | – | – | MountSMT | – | Version | – | – | Length1.6 mm | – | – | – | – | – | – | – | – | – | PackagingTape and Reel | – | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +85 °C | – | – | – | Width0.8 mm | Height0.7 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Size0603 | – | – | – | |||
 | WE-CBF SMT EMI Suppression Ferrite Bead, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-CBF SMT EMI Suppression Ferrite Bead | – | – | – | – | – | – | – | Rated Current2000 mA | – | – | MountSMT | – | VersionSMT | – | – | Length2 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Operating Temperature -55 °C up to +125 °C | – | – | – | Width1.2 mm | Height0.9 mm | Rated Current3000 mA | – | – | – | Impedance @ 100 MHz30 Ω | Maximum Impedance55 Ω | Maximum Impedance1000 MHz | Rated Current 23000 mA | DC Resistance0.025 Ω | TypeHigh Current | – | – | – | – | – | – | Size0805 | – | – | – | ||||
 | WE-GFH High Frequency SMT Inductor, –, – | Simulation– | Status NRNDi| Production is active. Product is not recommended for new design. Expected lifetime: 2-5 years. | Product seriesWE-GFH High Frequency SMT Inductor | – | – | – | – | – | – | – | Rated Current210 mA | – | Self Resonant Frequency22 MHz | MountSMT | – | – | Q-Factor30 % | – | Length2.5 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +105 °C | – | – | – | Width2 mm | Height1.8 mm | – | – | – | – | – | – | – | – | DC Resistance5.04 Ω | – | – | Inductance33 µH | – | – | – | – | Size2520 | – | – | – | |||
 | WE-TPC SMT Tiny Power Inductor, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-TPC SMT Tiny Power Inductor | – | – | – | – | – | – | – | Rated Current1550 mA | Saturation Current1.7 A | Self Resonant Frequency60 MHz | MountSMT | – | – | – | – | Length4.8 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +125 °C | – | – | – | Width4.8 mm | Height2.8 mm | – | – | – | Pins2 | – | – | – | – | DC Resistance0.07 Ω | – | – | Inductance4.7 µH | – | – | – | – | Size4828 | – | – | – | ||||
| WE-TPC SMT Tiny Power Inductor, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-TPC SMT Tiny Power Inductor | – | – | – | – | – | – | – | Rated Current1300 mA | Saturation Current1.25 A | Self Resonant Frequency57 MHz | MountSMT | – | – | – | – | Length4.8 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +125 °C | – | – | – | Width4.8 mm | Height2.8 mm | – | – | – | Pins2 | – | – | – | – | DC Resistance0.09 Ω | – | – | Inductance6.8 µH | – | – | – | – | Size4828 | – | – | – | ||||
| WE-TPC SMT Tiny Power Inductor, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-TPC SMT Tiny Power Inductor | – | – | – | – | – | – | – | Rated Current925 mA | Saturation Current0.7 A | Self Resonant Frequency20 MHz | MountSMT | – | – | – | – | Length4.8 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +125 °C | – | – | – | Width4.8 mm | Height2.8 mm | – | – | – | Pins2 | – | – | – | – | DC Resistance0.185 Ω | – | – | Inductance22 µH | – | – | – | – | Size4828 | – | – | – | ||||
 | WE-PD SMT Power Inductor, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-PD SMT Power Inductor | – | – | – | – | – | – | – | Rated Current1500 mA | Saturation Current1.8 A | Self Resonant Frequency5.9 MHz | MountSMT | – | VersionPerformance | – | – | Length10 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +150 °C | – | – | – | Width10 mm | Height5 mm | – | – | – | Pins2 | – | – | – | – | DC Resistance0.198 Ω | – | – | Inductance100 µH | – | – | – | – | Size1050 | – | – | – | ||||
 | WE-PD SMT Power Inductor, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-PD SMT Power Inductor | – | – | – | – | – | – | – | – | Saturation Current1.3 A | Self Resonant Frequency15 MHz | MountSMT | Performance Rated Current2.1 A | VersionRobust | – | – | Length5.9 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +125 °C | – | – | – | Width6.2 mm | Height5 mm | – | – | – | Pins2 | – | – | – | – | DC Resistance0.115 Ω | – | – | Inductance22 µH | – | – | – | – | Size6050 | – | – | – | ||||
 | WE-GDTI Gate-Drive-Transformer, –, – | Simulation– | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-GDTI Gate-Drive-Transformer | – | – | – | – | – | – | – | – | – | – | MountSMT | – | – | – | – | Length10.5 mm | – | – | Rated Voltage80 V (AC) | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +125 °C | – | – | – | Width10.5 mm | Height11 mm | – | – | – | – | – | – | – | – | – | – | Turns Ratio1:1 | Inductance750 µH | Voltage-µSecond102 µVs | Insulation Test Voltage2500 V (AC) | Interwinding Capacitance11 pF | Leakage Inductance4 µH | SizeEP7 | – | – | – | |||
 | WCAP-ASLI Aluminum Electrolytic Capacitors, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ASLI Aluminum Electrolytic Capacitors | – | – | – | – | – | – | – | – | – | – | MountV-Chip SMT | – | VersionSMT | – | – | Length5.5 mm | – | Capacitance10 µF | Rated Voltage35 V (AC) | Endurance 2000 | Ripple Current90 mA | Impedance2000 mΩ | Leakage Current3.5 µA | Dissipation Factor14 % | Diameter4 mm | Packaging15" Tape & Reel | ESR1.8844 Ω | – | – | – | – | – | – | – | – | – | Operating Temperature -55 °C up to +105 °C | – | – | – | Width4.3 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Size4.0 x 5.5 | – | – | – | ||||
| WCAP-ASLI Aluminum Electrolytic Capacitors, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ASLI Aluminum Electrolytic Capacitors | – | – | – | – | – | – | – | – | – | – | MountV-Chip SMT | – | VersionSMT | – | – | Length7.7 mm | – | Capacitance68 µF | Rated Voltage35 V (AC) | Endurance 2000 | Ripple Current265 mA | Impedance400 mΩ | Leakage Current23.8 µA | Dissipation Factor14 % | Diameter6.3 mm | Packaging15" Tape & Reel | ESR0.33477 Ω | – | – | – | – | – | – | – | – | – | Operating Temperature -55 °C up to +105 °C | – | – | – | Width6.6 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Size6.3 x 7.7 | – | – | – | ||||
 | WCAP-AS5H Aluminum Electrolytic Capacitors, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-AS5H Aluminum Electrolytic Capacitors | – | – | – | – | – | – | – | – | – | – | MountV-Chip SMT | – | VersionSMT | – | – | Length10.5 mm | – | Capacitance100 µF | Rated Voltage35 V (AC) | Endurance 5000 | Ripple Current150 mA | – | Leakage Current35 µA | Dissipation Factor13 % | Diameter10 mm | Packaging15" Tape & Reel | – | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +105 °C | – | – | – | Width10.3 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Size10.0 x 10.5 | – | – | – | ||||
 | WR-PHD Pin Header - Dual, –, – | Simulation– | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-PHD Pin Header - Dual | – | – | – | – | – | – | – | Rated Current3000 mA | – | – | MountSMT | – | – | – | – | Length7.62 mm | – | – | – | – | – | – | – | – | – | PackagingTube | – | – | – | – | – | – | – | GenderPin Header | – | Working Voltage250 V (AC) | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | – | – | – | Pins6 | – | – | – | – | – | TypeStraight | – | – | – | – | – | – | – | – | – | – | ||
 | WR-PHD Socket Header - Dual, –, – | Simulation– | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-PHD Socket Header - Dual | – | – | – | – | – | – | – | Rated Current3000 mA | – | – | MountSMT | – | – | – | – | Length13.2 mm | – | – | – | – | – | – | – | – | – | PackagingTube | – | – | – | – | – | – | – | GenderSocket Header | – | Working Voltage250 V (AC) | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | Rated Current3000 mA | – | – | Pins10 | – | – | – | – | – | TypeStraight | – | – | – | – | – | – | – | – | – | – | ||
 | WR-PHD Socket Header - Dual, –, – | Simulation– | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-PHD Socket Header - Dual | – | – | – | – | – | – | – | Rated Current3000 mA | – | – | MountSMT | – | – | – | – | Length20.82 mm | – | – | – | – | – | – | – | – | – | PackagingTube | – | – | – | – | – | – | – | GenderSocket Header | – | Working Voltage250 V (AC) | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | Rated Current3000 mA | – | – | Pins16 | – | – | – | – | – | TypeStraight | – | – | – | – | – | – | – | – | – | – | ||
 | WR-PHD Socket Header - Dual, –, – | Simulation– | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-PHD Socket Header - Dual | – | – | – | – | – | – | – | Rated Current3000 mA | – | – | MountSMT | – | – | – | – | Length30.98 mm | – | – | – | – | – | – | – | – | – | PackagingTube | – | – | – | – | – | – | – | GenderSocket Header | – | Working Voltage250 V (AC) | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | Rated Current3000 mA | – | – | Pins24 | – | – | – | – | – | TypeStraight | – | – | – | – | – | – | – | – | – | – | ||
 | WR-PHD Pin Header, –, – | Simulation– | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-PHD Pin Header | – | – | – | – | – | – | – | Rated Current1000 mA | – | – | MountSMT | – | – | – | – | Length6.35 mm | – | – | – | – | – | – | – | – | – | PackagingTape and Reel with Cap | – | – | – | – | – | – | – | GenderPin Header | – | Working Voltage100 V (AC) | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | Rated Current1000 mA | – | – | Pins10 | – | – | – | – | – | TypeStraight | – | – | – | – | – | – | – | – | – | – | ||
 | WR-DSUB PCB, –, – | Simulation– | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-DSUB PCB | – | – | – | – | – | – | – | Rated Current3000 mA | – | – | – | – | VersionStandard | – | – | Length30.81 mm | – | – | – | – | – | – | – | – | – | PackagingTray | – | – | – | – | – | – | – | GenderFemale | Variantwith Hex Screw | Working Voltage125 V (AC) | Operating Temperature -55 °C up to +105 °C | – | – | – | – | – | Rated Current3000 mA | – | – | Pins9 | – | – | – | – | – | TypeAngled | – | – | – | – | – | – | – | PCB/Cable/PanelPCB | – | – | ||
 | WR-TBL Series 313 - 5.08 mm Close Horizontal PCB Header, –, – | Simulation– | Downloads6 files | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-TBL Series 313 - 5.08 mm Close Horizontal PCB Header | – | – | – | – | – | – | – | Rated Current15000 mA | – | – | MountTHT | – | – | – | – | Length11.56 mm | – | – | – | – | – | – | – | – | – | PackagingBox | – | – | – | – | – | – | – | – | VariantClosed ends | Working Voltage320 V (AC) | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | – | – | – | Pins2 | – | – | – | – | – | TypeClosed Horizontal Plug entry | – | – | – | – | – | – | – | PCB/Cable/PanelPCB | ModularityNo | – | ||
 | WR-TBL Series 351 - 5.08 mm Vertical, –, – | Simulation– | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-TBL Series 351 - 5.08 mm Vertical | – | – | – | – | – | – | – | Rated Current20000 mA | – | – | MountCable | – | – | – | – | Length10.16 mm | – | – | – | – | – | – | – | – | – | PackagingBox | – | – | – | – | – | – | – | – | – | Working Voltage320 V (AC) | Operating Temperature -40 °C up to +105 °C | – | – | – | – | – | – | – | – | Pins2 | – | – | – | – | – | TypeVertical | – | – | – | – | – | – | – | PCB/Cable/PanelCable | ModularityNo | Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²) | |||
 | WS-PBTU THT Push Button Switch Right Angled 9.8x18.5 mm, –, – | Simulation– | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWS-PBTU THT Push Button Switch Right Angled 9.8x18.5 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Rated Voltage28 V (AC) | – | – | – | – | – | – | PackagingTray | – | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +85 °C | SchematicSPDT | Switching FunctionON-(ON) | Actuation Functionauto-return | – | – | Rated Current400 mA | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |||
 | WA-SSTIE Steel Spacer Stud, metric, internal/external, –, – | Simulation– | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWA-SSTIE Steel Spacer Stud, metric, internal/external | – | – | – | – | – | – | – | – | – | – | – | – | – | – | SW7 mm | Length25 mm | Outer ThreadM4 | – | – | – | – | – | – | – | – | PackagingCarton | – | – | – | – | – | – | – | – | – | – | Operating Temperature -55 °C up to +150 °C | – | – | – | – | – | – | Inner ThreadM4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |||
| WA-SSTIE Steel Spacer Stud, metric, internal/external, –, – | Simulation– | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWA-SSTIE Steel Spacer Stud, metric, internal/external | – | – | – | – | – | – | – | – | – | – | – | – | – | – | SW7 mm | Length40 mm | Outer ThreadM4 | – | – | – | – | – | – | – | – | PackagingCarton | – | – | – | – | – | – | – | – | – | – | Operating Temperature -55 °C up to +150 °C | – | – | – | – | – | – | Inner ThreadM4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |||
 | WA-SSTII Steel Spacer Stud, metric, internal/internal, –, – | Simulation– | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWA-SSTII Steel Spacer Stud, metric, internal/internal | – | – | – | – | – | – | – | – | – | – | – | – | – | – | SW7 mm | Length70 mm | – | – | – | – | – | – | – | – | – | PackagingCarton | – | – | – | – | – | – | – | – | – | – | Operating Temperature -55 °C up to +150 °C | – | – | – | – | – | – | Inner ThreadM4 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |||
 | WE-OLTI Offline Flyback Transformers, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-OLTI Offline Flyback Transformers | – | – | – | – | – | – | – | – | Saturation Current2 A | – | MountTHT | – | – | – | – | Length27.05 mm | – | – | – | – | – | – | – | – | – | – | – | Input Voltage 141 - 403 V (AC) | Output Voltage 124 V | Output Current 12.1 A | Auxiliary Voltage24 V | Switching Frequency 60 | Turns Ratio8.67:1:1 | – | – | – | Operating Temperature -40 °C up to +125 °C | – | – | – | Width32.25 mm | Height22.86 mm | – | – | – | – | – | – | – | – | – | – | Turns Ratio8.67:1:1 | Inductance1000 µH | – | Insulation Test Voltage3000 V (AC) | – | Leakage Inductance30 µH | SizeEE25/13/7 | – | – | – | ||||
 | WP-THRBU REDCUBE THR with internal through-hole thread, –, – | Simulation– | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWP-THRBU REDCUBE THR with internal through-hole thread | – | – | – | – | – | – | – | Rated Current85000 mA | – | – | MountTHR | – | – | – | – | – | – | – | – | – | – | – | – | – | – | PackagingBulk | – | – | – | – | – | – | – | – | – | – | Operating Temperature -55 °C up to +150 °C | – | – | – | Width10 mm | Height4 mm | – | Inner ThreadM5 | Thread Length3.5 mm | Pins8 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |||
 | WCAP-PSHP Aluminum Polymer Capacitors, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-PSHP Aluminum Polymer Capacitors | – | – | – | – | – | – | – | – | – | – | MountV-Chip SMT | – | – | – | – | Length8.7 mm | – | Capacitance100 µF | Rated Voltage35 V (AC) | Endurance 2000 | Ripple Current3000 mA | – | Leakage Current700 µA | Dissipation Factor12 % | Diameter8 mm | Packaging15" Tape & Reel | ESR0.03 Ω | – | – | – | – | – | – | – | – | – | Operating Temperature -55 °C up to +105 °C | – | – | – | Width8.3 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Size8.0 x 8.7 | – | – | – | ||||
 | WCAP-PSLC Aluminum Polymer Capacitors, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-PSLC Aluminum Polymer Capacitors | – | – | – | – | – | – | – | – | – | – | MountV-Chip SMT | – | – | – | – | Length12.4 mm | – | Capacitance330 µF | Rated Voltage35 V (AC) | Endurance 2000 | Ripple Current4400 mA | – | Leakage Current2310 µA | Dissipation Factor12 % | Diameter10 mm | Packaging15" Tape & Reel | ESR0.02 Ω | – | – | – | – | – | – | – | – | – | Operating Temperature -55 °C up to +105 °C | – | – | – | Width10.3 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Size10.0 x 12.4 | – | – | – | ||||
 | WCAP-ASLL Aluminum Electrolytic Capacitors, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ASLL Aluminum Electrolytic Capacitors | – | – | – | – | – | – | – | – | – | – | MountV-Chip SMT | – | – | – | – | Length17 mm | – | Capacitance15 µF | Rated Voltage450 V (AC) | Endurance 5000 | Ripple Current100 mA | Impedance4000 mΩ | Leakage Current167.5 µA | Dissipation Factor20 % | Diameter16 mm | Packaging15" Tape & Reel | – | – | – | – | – | – | – | – | – | – | Operating Temperature -40 °C up to +105 °C | – | – | – | Width17.1 mm | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | Size16.0 x 17.0 | – | – | – | ||||
750317850 | Power Inductor, –, – | Simulation– | Downloads– | Status Activei| Production is active. Expected lifetime: >10 years. | Product series Power Inductor | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ||
750317849 | Power Transformer, –, – | Simulation– | Downloads– | Status Activei| Production is active. Expected lifetime: >10 years. | Product series Power Transformer | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
