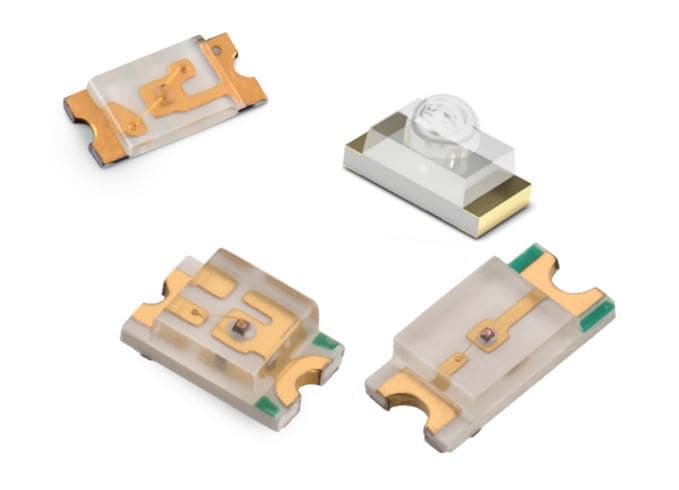

WL-SMCW SMT Mono-color Chip LED Waterclear | Optoelectronic Components

	Size	L (mm)	W (mm)	H (mm)	Mount
EXT.	0603	1.6	0.8	-	SMT
EXT.	0603 dome	1.6	0.8	0.95	SMT
	0603 superflat	1.6	0.8	0.25	SMT
	0603 Advance	1.6	0.8	0.7	SMT
	0805	2	1.25	0.7	SMT
	1206	3.2	1.6	0.68	SMT
	1206 Innerlens	3.2	1.6	1.1	SMT

LTSpice files

LT
LTSpice_WL-SMCW (rev24b).zip
|
2.7 KB

Characteristics

Low energy consumption
High reliability
Low current requirement
Fast switching
No UV/IR radiation
Smallest SMT LED package for exceptional brightness
Top view LED
Wide viewing angle
Better solder ability
Heat dissipation

Applications

Backlight for mobile and portable device keypads
Indoor and outdoor message boards
Flat backlight for LCDs, switches and symbols
Display for industrial control systems and traffic
Miniaturized color effects
Pedestrian mark
Optical indicators
Tabular backlight: LCD, telephone key-press, power-switch, display board
Indoor displays
Signals
Identifiers
Backlight for automobile DVD
LED General lighting
Toys

Products

All

0603

0603 dome

0603 superflat

0603 Advance

0805

1206

1206 Innerlens

Order Code	Datasheet	Downloads	Status	λ_{Dom typ.} (nm)	Emitting Color	λ_{Peak typ.} (nm)	I_{V typ.} (mcd)	V_{F typ.} (V)	Chip Technology	2θ_{50% typ.} (°)	Design Kit	Demoboard
