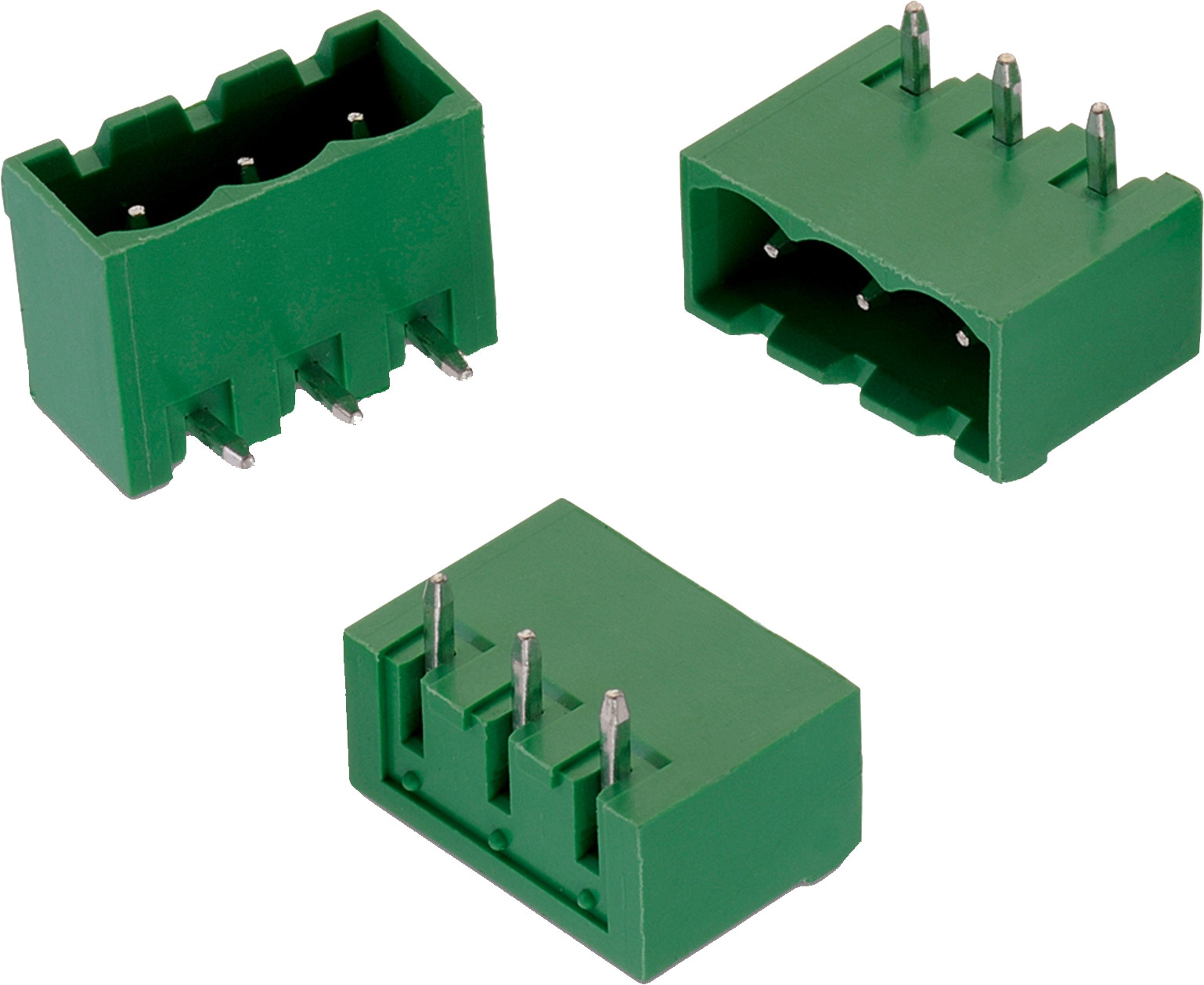

WR-TBL Series 313 - 5.08 mm Close Horizontal PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	15 A
I_R[cULus]	15 A
I_R[VDE]	15 A
Working Voltage	300 V; 320 V
Working Voltage [cULus]	300 V
Working Voltage [VDE]	320 V
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2200 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40061301

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Design Kit
691313510002	2, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510002_1 (rev1).pdf \| 72.4 KB IGS 691313510002 (rev1).igs \| 594.8 KB STP 691313510002 (rev1).stp \| 230.8 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 2	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit 691002
691313510003	3, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510003_1 (rev1).pdf \| 91.5 KB IGS 691313510003 (rev1).igs \| 808.7 KB STP 691313510003 (rev1).stp \| 308.7 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 3	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510004	4, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 3D_691313510004 (rev1).pdf \| 112.1 KB IGS Download_IGES_691313510004 (rev1).iges \| 1021.4 KB STP Download_STP_691313510004 (rev1).stp \| 386.5 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 4	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510005	5, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510005_1 (rev1).pdf \| 132.2 KB IGS 691313510005 (rev1).igs \| 1.2 MB STP 691313510005 (rev1).stp \| 464.2 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 5	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510006	6, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 3D_691313510006 (rev1).pdf \| 156.6 KB IGS Download_IGES_691313510006 (rev1).iges \| 1.4 MB STP Download_STP_691313510006 (rev1).stp \| 542.4 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 6	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510007	7, PCB Header, PCB	Downloads 7 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510007_1 (rev1).pdf \| 178.9 KB IGS 691313510007 (rev1).iges \| 1.6 MB IGS 691313510007 (rev1).igs \| 1.6 MB STP 691313510007 (rev1).stp \| 622 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 7	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510008	8, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510008_1 (rev1).pdf \| 194.3 KB IGS 691313510008 (rev1).igs \| 1.8 MB STP 691313510008 (rev1).stp \| 702.1 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 8	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510009	9, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510009_1 (rev1).pdf \| 209.1 KB IGS 691313510009 (rev1).igs \| 2.1 MB STP 691313510009 (rev1).stp \| 782.5 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 9	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510010	10, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510010_1 (rev1).pdf \| 230.8 KB IGS 691313510010 (rev1).igs \| 2.3 MB STP 691313510010 (rev1).stp \| 863.3 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 10	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510011	11, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510011_1 (rev1).pdf \| 252.8 KB IGS 691313510011 (rev1).igs \| 2.5 MB STP 691313510011 (rev1).stp \| 944.4 KB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 11	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510012	12, PCB Header, PCB	Downloads 7 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510012_1 (rev1).pdf \| 300.7 KB IGS 691313510012 (rev1).iges \| 2.7 MB IGS 691313510012 (rev1).igs \| 2.7 MB STP 691313510012 (rev1).stp \| 1 MB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 12	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510013	13, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510013_1 (rev1).pdf \| 322.1 KB IGS 691313510013 (rev1).igs \| 2.9 MB STP 691313510013 (rev1).stp \| 1.1 MB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 13	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510014	14, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510014_1 (rev1).pdf \| 334 KB IGS 691313510014 (rev1).igs \| 3.1 MB STP 691313510014 (rev1).stp \| 1.2 MB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 14	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510015	15, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510015_1 (rev1).pdf \| 357.2 KB IGS 691313510015 (rev1).igs \| 3.4 MB STP 691313510015 (rev1).stp \| 1.2 MB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 15	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510016	16, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510016_1 (rev1).pdf \| 363.1 KB IGS 691313510016 (rev1).igs \| 3.6 MB STP 691313510016 (rev1).stp \| 1.3 MB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 16	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510017	17, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510017_1 (rev1).pdf \| 385.4 KB IGS 691313510017 (rev1).igs \| 3.8 MB STP 691313510017 (rev1).stp \| 1.4 MB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 17	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510018	18, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510018_1 (rev1).pdf \| 407.6 KB IGS 691313510018 (rev1).igs \| 4 MB STP 691313510018 (rev1).stp \| 1.5 MB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 18	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510019	19, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510019_1 (rev1).pdf \| 427.7 KB IGS 691313510019 (rev1).igs \| 4.2 MB STP 691313510019 (rev1).stp \| 1.6 MB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 19	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510020	20, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510020_1 (rev1).pdf \| 451.7 KB IGS 691313510020 (rev1).igs \| 4.4 MB STP 691313510020 (rev1).stp \| 1.6 MB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 20	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510021	21, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510021_1 (rev1).pdf \| 467.3 KB IGS 691313510021 (rev1).igs \| 4.7 MB STP 691313510021 (rev1).stp \| 1.7 MB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 21	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510022	22, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510022_1 (rev1).pdf \| 491.4 KB IGS 691313510022 (rev1).igs \| 4.9 MB STP 691313510022 (rev1).stp \| 1.8 MB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 22	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510023	23, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510023_1 (rev1).pdf \| 511.2 KB IGS 691313510023 (rev1).igs \| 5.1 MB STP 691313510023 (rev1).stp \| 1.9 MB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 23	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –
691313510024	24, PCB Header, PCB	Downloads 6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr CAD files ZIP 3D 691313510024_1 (rev1).pdf \| 535.9 KB IGS 691313510024 (rev1).igs \| 5.3 MB STP 691313510024 (rev1).stp \| 1.9 MB	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 24	PCB/Cable/Panel PCB	Modularity No	Type Closed Horizontal Plug entry	Design Kit –

Tailored to your needs

Custom & Standard Terminal Blocks

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
