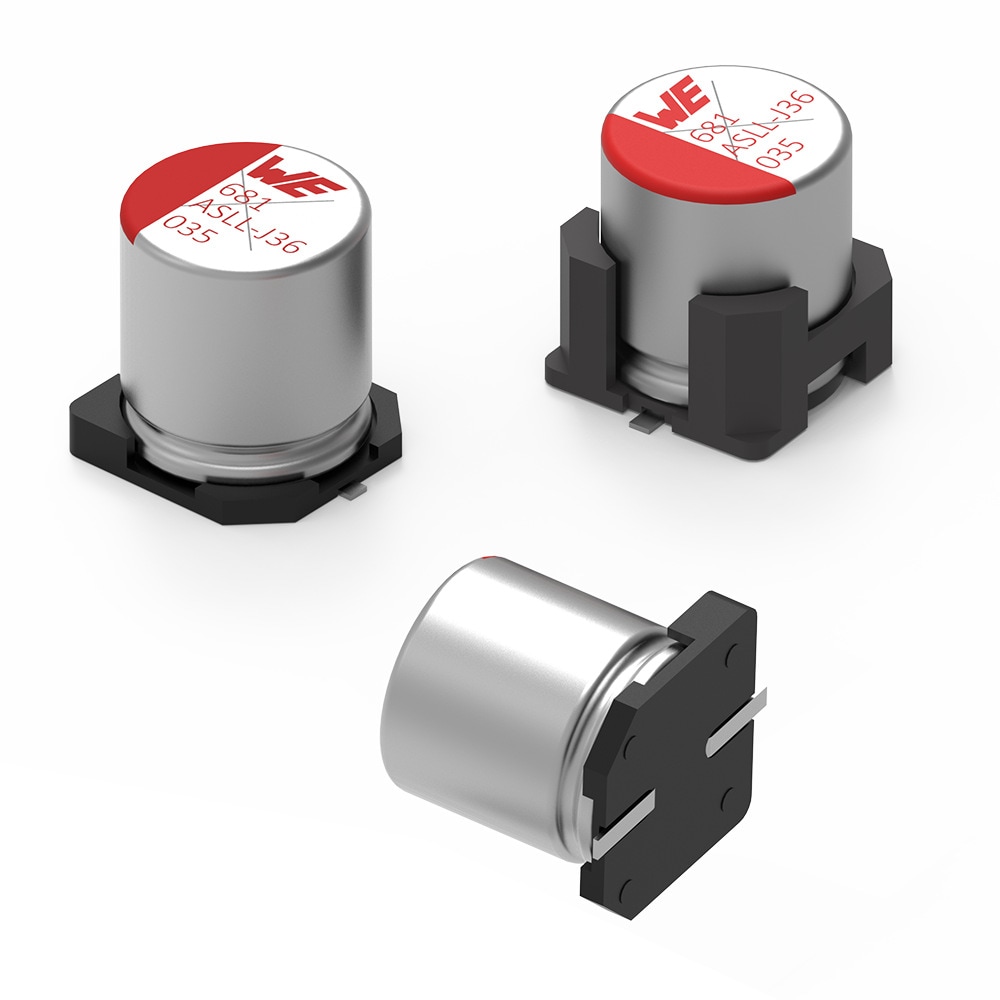

WCAP-ASLL Aluminum Electrolytic Capacitors

LTSpice files

LT
LTSpice_WCAP-ASLL (rev24b).zip
|
4.1 KB

Characteristics

Low impedance and long life product series
Mounting style: V-Chip SMT
Recommended soldering: Reflow soldering

Applications

Long life application & low impedance
Input and output capacitor for switched-mode power supply
Filtering
Smoothing
e.g. DC/DC converter, AC/DC converter, satellite receiver, control panel
