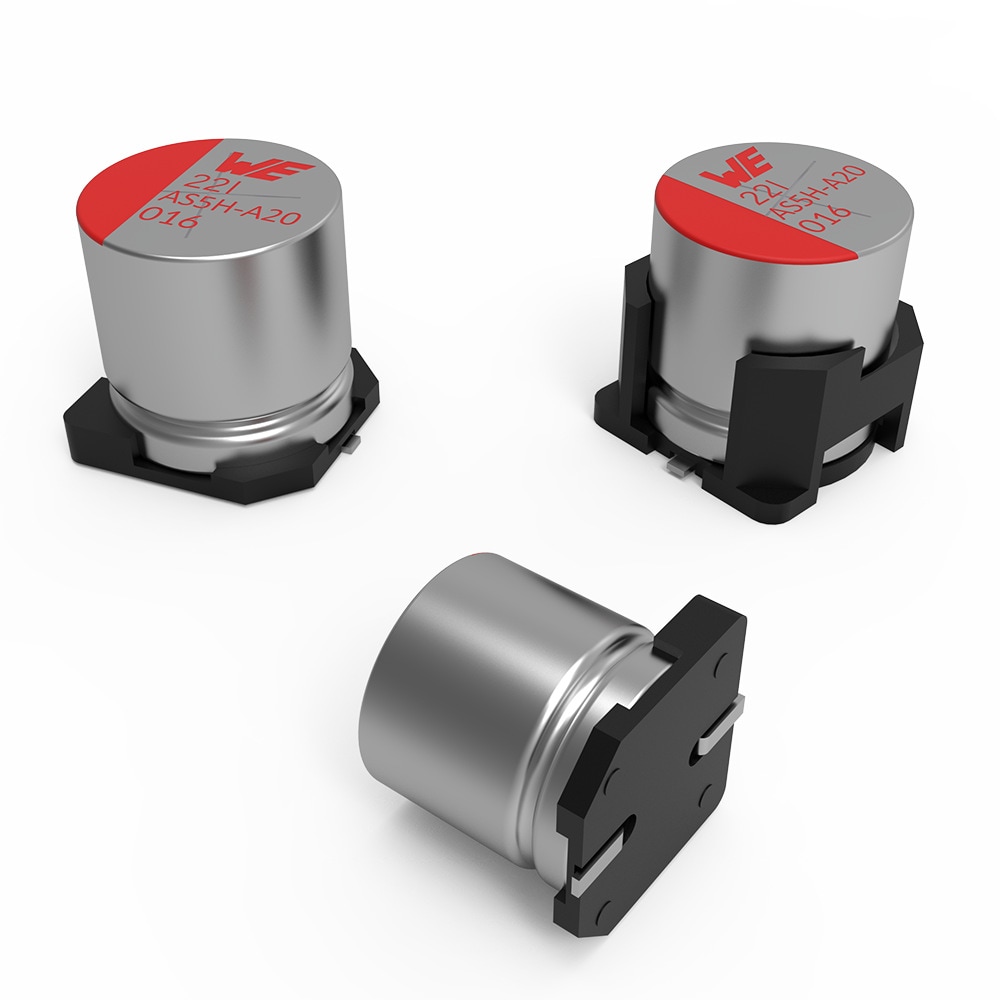

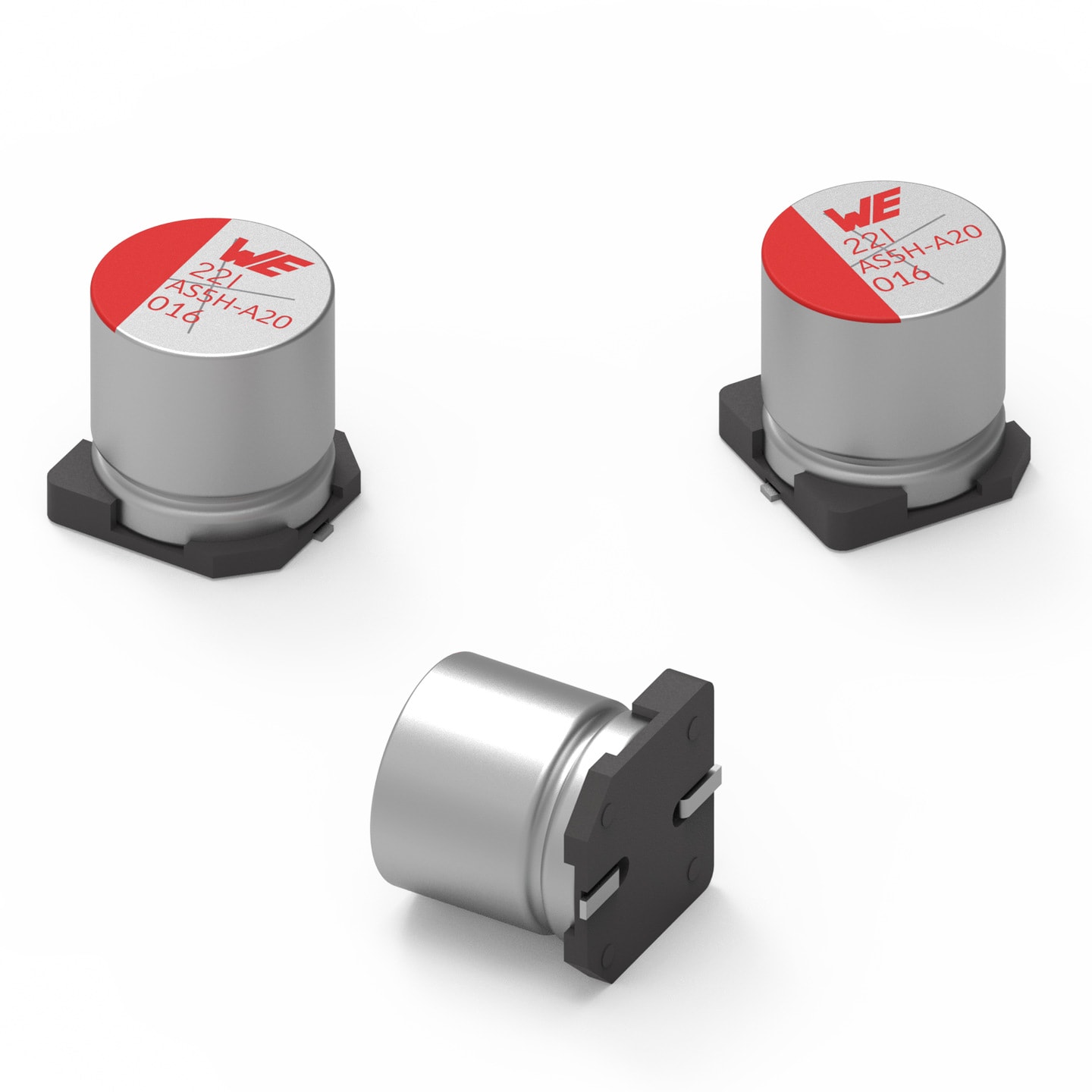

WCAP-AS5H Aluminum Electrolytic Capacitors

LTSpice files

LT
LTSpice_WCAP-AS5H (rev25a).zip
|
2.9 KB

Characteristics

Long life product series
Mounting style: V-Chip SMT
Recommended soldering: Reflow soldering

Applications

Long life applications (industry, medical)
Input and output capacitor for switched-mode power supply
Filtering
Smoothing
e.g. DC/DC converter, AC/DC converter, satellite receiver, control panel
Your application demands vibration resistant capacitors?
Find here more information and request your solution

Application Notes

ANP071 Aluminum Electrolytic vs. Aluminum Polymer Capacitor and how its benefits are used properly
PDF
ANP109 Impedance Spectra of Different Capacitor Technologies
PDF
ANP117 Impact of output capacitor on feedback loop stability of a power supply
PDF
ANP125 Acoustic Effect of Harmonic Distortions caused by Aluminum Electrolytic Capacitors
PDF
SN008 Expected Lifetime of Aluminum Electrolytic and Aluminum Polymer Capacitor
PDF
SN019 Afraid of aging? The effects of time on electrolytic capacitors
PDF

Products

All

⌀ 4 mm

⌀ 5 mm

⌀ 6.3 mm

⌀ 8 mm

⌀ 10 mm

Reset all

Filter article data

show article in 5 product lines

article in 5 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	C	V_R(V (DC))	Endurance(h)	I_RIPPLE(mA)	I_Leak(µA)	DF(%)	Ø D(mm)	L(mm)	Packaging	Design Kit
865230640004	0.47 µF, 50 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_4x5 (rev1).pdf \| 3 MB 3D download_3d_WCAP-AS5H_4x5,5x1 (rev1).pdf \| 3 MB IGS download_igs_WCAP-AS5H_4x5,5x1 (rev1).igs \| 1.7 MB STP Download_STP_865230x4000x (rev1).stp \| 590.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance0.47 µF	Rated Voltage50 V (DC)	Endurance 5000	Ripple Current3.8 mA	Leakage Current3 µA	Dissipation Factor12 %	Diameter4 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230640005	1 µF, 50 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_4x5 (rev1).pdf \| 3 MB 3D download_3d_WCAP-AS5H_4x5,5x1 (rev1).pdf \| 3 MB IGS download_igs_WCAP-AS5H_4x5,5x1 (rev1).igs \| 1.7 MB STP Download_STP_865230x4000x (rev1).stp \| 590.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1 µF	Rated Voltage50 V (DC)	Endurance 5000	Ripple Current6.2 mA	Leakage Current3 µA	Dissipation Factor12 %	Diameter4 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230640006	2.2 µF, 50 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_4x5 (rev1).pdf \| 3 MB 3D download_3d_WCAP-AS5H_4x5,5x1 (rev1).pdf \| 3 MB IGS download_igs_WCAP-AS5H_4x5,5x1 (rev1).igs \| 1.7 MB STP Download_STP_865230x4000x (rev1).stp \| 590.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance2.2 µF	Rated Voltage50 V (DC)	Endurance 5000	Ripple Current11 mA	Leakage Current3 µA	Dissipation Factor12 %	Diameter4 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230640007	3.3 µF, 50 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_4x5 (rev1).pdf \| 3 MB 3D download_3d_WCAP-AS5H_4x5,5x1 (rev1).pdf \| 3 MB IGS download_igs_WCAP-AS5H_4x5,5x1 (rev1).igs \| 1.7 MB STP Download_STP_865230x4000x (rev1).stp \| 590.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance3.3 µF	Rated Voltage50 V (DC)	Endurance 5000	Ripple Current14 mA	Leakage Current3 µA	Dissipation Factor12 %	Diameter4 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230440001	4.7 µF, 25 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_4x5 (rev1).pdf \| 3 MB 3D download_3d_WCAP-AS5H_4x5,5x1 (rev1).pdf \| 3 MB IGS download_igs_WCAP-AS5H_4x5,5x1 (rev1).igs \| 1.7 MB STP Download_STP_865230x4000x (rev1).stp \| 590.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4.7 µF	Rated Voltage25 V (DC)	Endurance 5000	Ripple Current13 mA	Leakage Current3 µA	Dissipation Factor16 %	Diameter4 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit –
865230540001	4.7 µF, 35 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_4x5 (rev1).pdf \| 3 MB 3D download_3d_WCAP-AS5H_4x5,5x1 (rev1).pdf \| 3 MB IGS download_igs_WCAP-AS5H_4x5,5x1 (rev1).igs \| 1.7 MB STP Download_STP_865230x4000x (rev1).stp \| 590.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4.7 µF	Rated Voltage35 V (DC)	Endurance 5000	Ripple Current15 mA	Leakage Current3 µA	Dissipation Factor13 %	Diameter4 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230642008	4.7 µF, 50 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_ASNP_5x5.5x1 (rev1).pdf \| 3.2 MB 3D download_3d_WCAP-AS5H_5x5,5x1,4 (rev1).pdf \| 3.2 MB IGS download_3d_WCAP-AS5H_5x5,5x1,4 (rev1).igs \| 1.6 MB STP Download_STP_865230x4200x (rev1).stp \| 582.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance4.7 µF	Rated Voltage50 V (DC)	Endurance 5000	Ripple Current19 mA	Leakage Current3 µA	Dissipation Factor12 %	Diameter5 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230340001	10 µF, 16 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_4x5 (rev1).pdf \| 3 MB 3D download_3d_WCAP-AS5H_4x5,5x1 (rev1).pdf \| 3 MB IGS download_igs_WCAP-AS5H_4x5,5x1 (rev1).igs \| 1.7 MB STP Download_STP_865230x4000x (rev1).stp \| 590.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10 µF	Rated Voltage16 V (DC)	Endurance 5000	Ripple Current17 mA	Leakage Current3 µA	Dissipation Factor22 %	Diameter4 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230440002	10 µF, 25 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_4x5 (rev1).pdf \| 3 MB 3D download_3d_WCAP-AS5H_4x5,5x1 (rev1).pdf \| 3 MB IGS download_igs_WCAP-AS5H_4x5,5x1 (rev1).igs \| 1.7 MB STP Download_STP_865230x4000x (rev1).stp \| 590.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10 µF	Rated Voltage25 V (DC)	Endurance 5000	Ripple Current23 mA	Leakage Current3 µA	Dissipation Factor16 %	Diameter4 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230542002	10 µF, 35 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_ASNP_5x5.5x1 (rev1).pdf \| 3.2 MB 3D download_3d_WCAP-AS5H_5x5,5x1,4 (rev1).pdf \| 3.2 MB IGS download_3d_WCAP-AS5H_5x5,5x1,4 (rev1).igs \| 1.6 MB STP Download_STP_865230x4200x (rev1).stp \| 582.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10 µF	Rated Voltage35 V (DC)	Endurance 5000	Ripple Current25 mA	Leakage Current3.5 µA	Dissipation Factor13 %	Diameter5 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230643009	10 µF, 50 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_6.3x5.5x2 (rev1).pdf \| 3.2 MB 3D download_3d_WCAP-AS5H_6,3x5,5x2,2 (rev1).pdf \| 3.2 MB IGS download_igs_WCAP-AS5H_6,3x5,5x2,2 (rev1).igs \| 1.6 MB STP Download_STP_865230x4300x (rev1).stp \| 581.2 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance10 µF	Rated Voltage50 V (DC)	Endurance 5000	Ripple Current30 mA	Leakage Current5 µA	Dissipation Factor12 %	Diameter6.3 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230140001	22 µF, 6.3 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_4x5 (rev1).pdf \| 3 MB 3D download_3d_WCAP-AS5H_4x5,5x1 (rev1).pdf \| 3 MB IGS download_igs_WCAP-AS5H_4x5,5x1 (rev1).igs \| 1.7 MB STP Download_STP_865230x4000x (rev1).stp \| 590.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage6.3 V (DC)	Endurance 5000	Ripple Current22 mA	Leakage Current3 µA	Dissipation Factor32 %	Diameter4 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230342002	22 µF, 16 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_ASNP_5x5.5x1 (rev1).pdf \| 3.2 MB 3D download_3d_WCAP-AS5H_5x5,5x1,4 (rev1).pdf \| 3.2 MB IGS download_3d_WCAP-AS5H_5x5,5x1,4 (rev1).igs \| 1.6 MB STP Download_STP_865230x4200x (rev1).stp \| 582.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage16 V (DC)	Endurance 5000	Ripple Current30 mA	Leakage Current3.6 µA	Dissipation Factor22 %	Diameter5 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230242001	22 µF, 10 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_ASNP_5x5.5x1 (rev1).pdf \| 3.2 MB 3D download_3d_WCAP-AS5H_5x5,5x1,4 (rev1).pdf \| 3.2 MB IGS download_3d_WCAP-AS5H_5x5,5x1,4 (rev1).igs \| 1.6 MB STP Download_STP_865230x4200x (rev1).stp \| 582.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage10 V (DC)	Endurance 5000	Ripple Current28 mA	Leakage Current3 µA	Dissipation Factor28 %	Diameter5 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit –
865230443003	22 µF, 25 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_6.3x5.5x2 (rev1).pdf \| 3.2 MB 3D download_3d_WCAP-AS5H_6,3x5,5x2,2 (rev1).pdf \| 3.2 MB IGS download_igs_WCAP-AS5H_6,3x5,5x2,2 (rev1).igs \| 1.6 MB STP Download_STP_865230x4300x (rev1).stp \| 581.2 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage25 V (DC)	Endurance 5000	Ripple Current40 mA	Leakage Current5.5 µA	Dissipation Factor16 %	Diameter6.3 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit –
865230543003	22 µF, 35 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_6.3x5.5x2 (rev1).pdf \| 3.2 MB 3D download_3d_WCAP-AS5H_6,3x5,5x2,2 (rev1).pdf \| 3.2 MB IGS download_igs_WCAP-AS5H_6,3x5,5x2,2 (rev1).igs \| 1.6 MB STP Download_STP_865230x4300x (rev1).stp \| 581.2 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage35 V (DC)	Endurance 5000	Ripple Current42 mA	Leakage Current7.7 µA	Dissipation Factor13 %	Diameter6.3 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230645010	22 µF, 50 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_6.3x7.7x2 (rev1).pdf \| 3.1 MB 3D download_3d_WCAP-AS5H_6,3x7,7x2,2 (rev1).pdf \| 3.1 MB IGS download_igs_WCAP-AS5H_6,3x7,7x2,2 (rev1).igs \| 1.7 MB STP Download_STP_865230x450xx (rev1).stp \| 582.6 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance22 µF	Rated Voltage50 V (DC)	Endurance 5000	Ripple Current52 mA	Leakage Current11 µA	Dissipation Factor12 %	Diameter6.3 mm	Length7.7 mm	Packaging15" Tape & Reel	Design Kit 865230
865230142002	33 µF, 6.3 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_ASNP_5x5.5x1 (rev1).pdf \| 3.2 MB 3D download_3d_WCAP-AS5H_5x5,5x1,4 (rev1).pdf \| 3.2 MB IGS download_3d_WCAP-AS5H_5x5,5x1,4 (rev1).igs \| 1.6 MB STP Download_STP_865230x4200x (rev1).stp \| 582.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage6.3 V (DC)	Endurance 5000	Ripple Current32 mA	Leakage Current3 µA	Dissipation Factor32 %	Diameter5 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit –
865230242002	33 µF, 10 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_ASNP_5x5.5x1 (rev1).pdf \| 3.2 MB 3D download_3d_WCAP-AS5H_5x5,5x1,4 (rev1).pdf \| 3.2 MB IGS download_3d_WCAP-AS5H_5x5,5x1,4 (rev1).igs \| 1.6 MB STP Download_STP_865230x4200x (rev1).stp \| 582.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage10 V (DC)	Endurance 5000	Ripple Current34 mA	Leakage Current3.3 µA	Dissipation Factor28 %	Diameter5 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230343003	33 µF, 16 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_6.3x5.5x2 (rev1).pdf \| 3.2 MB 3D download_3d_WCAP-AS5H_6,3x5,5x2,2 (rev1).pdf \| 3.2 MB IGS download_igs_WCAP-AS5H_6,3x5,5x2,2 (rev1).igs \| 1.6 MB STP Download_STP_865230x4300x (rev1).stp \| 581.2 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage16 V (DC)	Endurance 5000	Ripple Current44 mA	Leakage Current5.3 µA	Dissipation Factor22 %	Diameter6.3 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit –
865230443004	33 µF, 25 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_6.3x5.5x2 (rev1).pdf \| 3.2 MB 3D download_3d_WCAP-AS5H_6,3x5,5x2,2 (rev1).pdf \| 3.2 MB IGS download_igs_WCAP-AS5H_6,3x5,5x2,2 (rev1).igs \| 1.6 MB STP Download_STP_865230x4300x (rev1).stp \| 581.2 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage25 V (DC)	Endurance 5000	Ripple Current48 mA	Leakage Current8.3 µA	Dissipation Factor16 %	Diameter6.3 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230545004	33 µF, 35 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_6.3x7.7x2 (rev1).pdf \| 3.1 MB 3D download_3d_WCAP-AS5H_6,3x7,7x2,2 (rev1).pdf \| 3.1 MB IGS download_igs_WCAP-AS5H_6,3x7,7x2,2 (rev1).igs \| 1.7 MB STP Download_STP_865230x450xx (rev1).stp \| 582.6 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage35 V (DC)	Endurance 5000	Ripple Current57 mA	Leakage Current11.6 µA	Dissipation Factor13 %	Diameter6.3 mm	Length7.7 mm	Packaging15" Tape & Reel	Design Kit 865230
865230653011	33 µF, 50 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_8x10.5x3 (rev1).pdf \| 3.1 MB 3D download_3d_WCAP-AS5H_8x10,5x3,1 (rev1).pdf \| 3.1 MB IGS download_igs_WCAP-AS5H_8x10,5x3,1 (rev1).igs \| 1.8 MB STP Download_STP_865230x530xx (rev1).stp \| 639.6 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance33 µF	Rated Voltage50 V (DC)	Endurance 5000	Ripple Current80 mA	Leakage Current16.5 µA	Dissipation Factor12 %	Diameter8 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230142003	47 µF, 6.3 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_ASNP_5x5.5x1 (rev1).pdf \| 3.2 MB 3D download_3d_WCAP-AS5H_5x5,5x1,4 (rev1).pdf \| 3.2 MB IGS download_3d_WCAP-AS5H_5x5,5x1,4 (rev1).igs \| 1.6 MB STP Download_STP_865230x4200x (rev1).stp \| 582.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance47 µF	Rated Voltage6.3 V (DC)	Endurance 5000	Ripple Current36 mA	Leakage Current3 µA	Dissipation Factor32 %	Diameter5 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230343004	47 µF, 16 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_6.3x5.5x2 (rev1).pdf \| 3.2 MB 3D download_3d_WCAP-AS5H_6,3x5,5x2,2 (rev1).pdf \| 3.2 MB IGS download_igs_WCAP-AS5H_6,3x5,5x2,2 (rev1).igs \| 1.6 MB STP Download_STP_865230x4300x (rev1).stp \| 581.2 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance47 µF	Rated Voltage16 V (DC)	Endurance 5000	Ripple Current50 mA	Leakage Current7.6 µA	Dissipation Factor22 %	Diameter6.3 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit –
865230243003	47 µF, 10 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_6.3x5.5x2 (rev1).pdf \| 3.2 MB 3D download_3d_WCAP-AS5H_6,3x5,5x2,2 (rev1).pdf \| 3.2 MB IGS download_igs_WCAP-AS5H_6,3x5,5x2,2 (rev1).igs \| 1.6 MB STP Download_STP_865230x4300x (rev1).stp \| 581.2 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance47 µF	Rated Voltage10 V (DC)	Endurance 5000	Ripple Current48 mA	Leakage Current4.7 µA	Dissipation Factor28 %	Diameter6.3 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit –
865230445005	47 µF, 25 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_6.3x7.7x2 (rev1).pdf \| 3.1 MB 3D download_3d_WCAP-AS5H_6,3x7,7x2,2 (rev1).pdf \| 3.1 MB IGS download_igs_WCAP-AS5H_6,3x7,7x2,2 (rev1).igs \| 1.7 MB STP Download_STP_865230x450xx (rev1).stp \| 582.6 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance47 µF	Rated Voltage25 V (DC)	Endurance 5000	Ripple Current63 mA	Leakage Current11.8 µA	Dissipation Factor16 %	Diameter6.3 mm	Length7.7 mm	Packaging15" Tape & Reel	Design Kit 865230
865230653012	47 µF, 50 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_8x10.5x3 (rev1).pdf \| 3.1 MB 3D download_3d_WCAP-AS5H_8x10,5x3,1 (rev1).pdf \| 3.1 MB IGS download_igs_WCAP-AS5H_8x10,5x3,1 (rev1).igs \| 1.8 MB STP Download_STP_865230x530xx (rev1).stp \| 639.6 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance47 µF	Rated Voltage50 V (DC)	Endurance 5000	Ripple Current95 mA	Leakage Current23.5 µA	Dissipation Factor12 %	Diameter8 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230553005	47 µF, 35 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_8x10.5x3 (rev1).pdf \| 3.1 MB 3D download_3d_WCAP-AS5H_8x10,5x3,1 (rev1).pdf \| 3.1 MB IGS download_igs_WCAP-AS5H_8x10,5x3,1 (rev1).igs \| 1.8 MB STP Download_STP_865230x530xx (rev1).stp \| 639.6 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance47 µF	Rated Voltage35 V (DC)	Endurance 5000	Ripple Current92 mA	Leakage Current16.5 µA	Dissipation Factor13 %	Diameter8 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230143004	100 µF, 6.3 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_6.3x5.5x2 (rev1).pdf \| 3.2 MB 3D download_3d_WCAP-AS5H_6,3x5,5x2,2 (rev1).pdf \| 3.2 MB IGS download_igs_WCAP-AS5H_6,3x5,5x2,2 (rev1).igs \| 1.6 MB STP Download_STP_865230x4300x (rev1).stp \| 581.2 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage6.3 V (DC)	Endurance 5000	Ripple Current60 mA	Leakage Current6.3 µA	Dissipation Factor32 %	Diameter6.3 mm	Length5.5 mm	Packaging15" Tape & Reel	Design Kit –
865230345005	100 µF, 16 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_6.3x7.7x2 (rev1).pdf \| 3.1 MB 3D download_3d_WCAP-AS5H_6,3x7,7x2,2 (rev1).pdf \| 3.1 MB IGS download_igs_WCAP-AS5H_6,3x7,7x2,2 (rev1).igs \| 1.7 MB STP Download_STP_865230x450xx (rev1).stp \| 582.6 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage16 V (DC)	Endurance 5000	Ripple Current81 mA	Leakage Current16 µA	Dissipation Factor22 %	Diameter6.3 mm	Length7.7 mm	Packaging15" Tape & Reel	Design Kit 865230
865230245004	100 µF, 10 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_6.3x7.7x2 (rev1).pdf \| 3.1 MB 3D download_3d_WCAP-AS5H_6,3x7,7x2,2 (rev1).pdf \| 3.1 MB IGS download_igs_WCAP-AS5H_6,3x7,7x2,2 (rev1).igs \| 1.7 MB STP Download_STP_865230x450xx (rev1).stp \| 582.6 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage10 V (DC)	Endurance 5000	Ripple Current79 mA	Leakage Current10 µA	Dissipation Factor28 %	Diameter6.3 mm	Length7.7 mm	Packaging15" Tape & Reel	Design Kit –
865230453006	100 µF, 25 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_8x10.5x3 (rev1).pdf \| 3.1 MB 3D download_3d_WCAP-AS5H_8x10,5x3,1 (rev1).pdf \| 3.1 MB IGS download_igs_WCAP-AS5H_8x10,5x3,1 (rev1).igs \| 1.8 MB STP Download_STP_865230x530xx (rev1).stp \| 639.6 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage25 V (DC)	Endurance 5000	Ripple Current116 mA	Leakage Current25 µA	Dissipation Factor16 %	Diameter8 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230657013	100 µF, 50 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_10x10.5x4 (rev1).pdf \| 363.2 KB 3D download_3d_WCAP-AS5H_10x10x4,5 (rev1).pdf \| 363.2 KB IGS download_igs_WCAP-AS5H_10x10x4,5 (rev1).igs \| 1.8 MB STP Download_STP_865230x570xx (rev1).stp \| 636.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage50 V (DC)	Endurance 5000	Ripple Current160 mA	Leakage Current50 µA	Dissipation Factor12 %	Diameter10 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230557006	100 µF, 35 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_10x10.5x4 (rev1).pdf \| 363.2 KB 3D download_3d_WCAP-AS5H_10x10x4,5 (rev1).pdf \| 363.2 KB IGS download_igs_WCAP-AS5H_10x10x4,5 (rev1).igs \| 1.8 MB STP Download_STP_865230x570xx (rev1).stp \| 636.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance100 µF	Rated Voltage35 V (DC)	Endurance 5000	Ripple Current150 mA	Leakage Current35 µA	Dissipation Factor13 %	Diameter10 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230145005	220 µF, 6.3 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_6.3x7.7x2 (rev1).pdf \| 3.1 MB 3D download_3d_WCAP-AS5H_6,3x7,7x2,2 (rev1).pdf \| 3.1 MB IGS download_igs_WCAP-AS5H_6,3x7,7x2,2 (rev1).igs \| 1.7 MB STP Download_STP_865230x450xx (rev1).stp \| 582.6 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage6.3 V (DC)	Endurance 5000	Ripple Current110 mA	Leakage Current13.86 µA	Dissipation Factor32 %	Diameter6.3 mm	Length7.7 mm	Packaging15" Tape & Reel	Design Kit 865230
865230253005	220 µF, 10 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_8x10.5x3 (rev1).pdf \| 3.1 MB 3D download_3d_WCAP-AS5H_8x10,5x3,1 (rev1).pdf \| 3.1 MB IGS download_igs_WCAP-AS5H_8x10,5x3,1 (rev1).igs \| 1.8 MB STP Download_STP_865230x530xx (rev1).stp \| 639.6 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage10 V (DC)	Endurance 5000	Ripple Current140 mA	Leakage Current22 µA	Dissipation Factor28 %	Diameter8 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230357006	220 µF, 16 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_10x10.5x4 (rev1).pdf \| 363.2 KB 3D download_3d_WCAP-AS5H_10x10x4,5 (rev1).pdf \| 363.2 KB IGS download_igs_WCAP-AS5H_10x10x4,5 (rev1).igs \| 1.8 MB STP Download_STP_865230x570xx (rev1).stp \| 636.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage16 V (DC)	Endurance 5000	Ripple Current216 mA	Leakage Current35.2 µA	Dissipation Factor22 %	Diameter10 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit –
865230457007	220 µF, 25 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_10x10.5x4 (rev1).pdf \| 363.2 KB 3D download_3d_WCAP-AS5H_10x10x4,5 (rev1).pdf \| 363.2 KB IGS download_igs_WCAP-AS5H_10x10x4,5 (rev1).igs \| 1.8 MB STP Download_STP_865230x570xx (rev1).stp \| 636.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage25 V (DC)	Endurance 5000	Ripple Current240 mA	Leakage Current55 µA	Dissipation Factor16 %	Diameter10 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit –
865230557007	220 µF, 35 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_10x10.5x4 (rev1).pdf \| 363.2 KB 3D download_3d_WCAP-AS5H_10x10x4,5 (rev1).pdf \| 363.2 KB IGS download_igs_WCAP-AS5H_10x10x4,5 (rev1).igs \| 1.8 MB STP Download_STP_865230x570xx (rev1).stp \| 636.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage35 V (DC)	Endurance 5000	Ripple Current280 mA	Leakage Current77 µA	Dissipation Factor13 %	Diameter10 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230364011	220 µF, 16 V (DC), 2000	Simulation–	Downloads5 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 5 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Capacitance220 µF	Rated Voltage16 V (DC)	Endurance 2000	Ripple Current300 mA	Leakage Current35.2 µA	Dissipation Factor16 %	Diameter6.3 mm	Length5.8 mm	Packaging15" Tape & Reel	Design Kit –
865230153006	330 µF, 6.3 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_8x10.5x3 (rev1).pdf \| 3.1 MB 3D download_3d_WCAP-AS5H_8x10,5x3,1 (rev1).pdf \| 3.1 MB IGS download_igs_WCAP-AS5H_8x10,5x3,1 (rev1).igs \| 1.8 MB STP Download_STP_865230x530xx (rev1).stp \| 639.6 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage6.3 V (DC)	Endurance 5000	Ripple Current160 mA	Leakage Current20.8 µA	Dissipation Factor32 %	Diameter8 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230357007	330 µF, 16 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_10x10.5x4 (rev1).pdf \| 363.2 KB 3D download_3d_WCAP-AS5H_10x10x4,5 (rev1).pdf \| 363.2 KB IGS download_igs_WCAP-AS5H_10x10x4,5 (rev1).igs \| 1.8 MB STP Download_STP_865230x570xx (rev1).stp \| 636.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage16 V (DC)	Endurance 5000	Ripple Current300 mA	Leakage Current52.8 µA	Dissipation Factor22 %	Diameter10 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230457008	330 µF, 25 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_10x10.5x4 (rev1).pdf \| 363.2 KB 3D download_3d_WCAP-AS5H_10x10x4,5 (rev1).pdf \| 363.2 KB IGS download_igs_WCAP-AS5H_10x10x4,5 (rev1).igs \| 1.8 MB STP Download_STP_865230x570xx (rev1).stp \| 636.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage25 V (DC)	Endurance 5000	Ripple Current375 mA	Leakage Current82.5 µA	Dissipation Factor16 %	Diameter10 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230257006	330 µF, 10 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_10x10.5x4 (rev1).pdf \| 363.2 KB 3D download_3d_WCAP-AS5H_10x10x4,5 (rev1).pdf \| 363.2 KB IGS download_igs_WCAP-AS5H_10x10x4,5 (rev1).igs \| 1.8 MB STP Download_STP_865230x570xx (rev1).stp \| 636.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage10 V (DC)	Endurance 5000	Ripple Current240 mA	Leakage Current33 µA	Dissipation Factor28 %	Diameter10 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit –
865230657014	330 µF, 50 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_10x10.5x4 (rev1).pdf \| 363.2 KB 3D download_3d_WCAP-AS5H_10x10x4,5 (rev1).pdf \| 363.2 KB IGS download_igs_WCAP-AS5H_10x10x4,5 (rev1).igs \| 1.8 MB STP Download_STP_865230x570xx (rev1).stp \| 636.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance330 µF	Rated Voltage50 V (DC)	Endurance 5000	Ripple Current900 mA	Leakage Current165 µA	Dissipation Factor12 %	Diameter10 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230357008	470 µF, 16 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_10x10.5x4 (rev1).pdf \| 363.2 KB 3D download_3d_WCAP-AS5H_10x10x4,5 (rev1).pdf \| 363.2 KB IGS download_igs_WCAP-AS5H_10x10x4,5 (rev1).igs \| 1.8 MB STP Download_STP_865230x570xx (rev1).stp \| 636.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 µF	Rated Voltage16 V (DC)	Endurance 5000	Ripple Current320 mA	Leakage Current75.2 µA	Dissipation Factor22 %	Diameter10 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit 865230
865230157007	470 µF, 6.3 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_10x10.5x4 (rev1).pdf \| 363.2 KB 3D download_3d_WCAP-AS5H_10x10x4,5 (rev1).pdf \| 363.2 KB IGS download_igs_WCAP-AS5H_10x10x4,5 (rev1).igs \| 1.8 MB STP Download_STP_865230x570xx (rev1).stp \| 636.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 µF	Rated Voltage6.3 V (DC)	Endurance 5000	Ripple Current260 mA	Leakage Current29.7 µA	Dissipation Factor32 %	Diameter10 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit –
865230257007	470 µF, 10 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_10x10.5x4 (rev1).pdf \| 363.2 KB 3D download_3d_WCAP-AS5H_10x10x4,5 (rev1).pdf \| 363.2 KB IGS download_igs_WCAP-AS5H_10x10x4,5 (rev1).igs \| 1.8 MB STP Download_STP_865230x570xx (rev1).stp \| 636.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance470 µF	Rated Voltage10 V (DC)	Endurance 5000	Ripple Current280 mA	Leakage Current47 µA	Dissipation Factor28 %	Diameter10 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit –
865230157008	1000 µF, 6.3 V (DC), 5000	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WCAP-AS5H (rev25a).IntLib \| 730 KB CDS Cadence_WCAP-AS5H (rev25a).zip \| 1.8 MB EAG Eagle_WCAP-AS5H (rev25a).lbr \| 69.1 KB KIC KiCad_WCAP-AS5H (rev25b).zip \| 1.3 MB ZUK Cadstar_WCAP-AS5H (rev20a).zip \| 9.3 KB CAD files ZIP 3D 3D_WCAP_AS5H_10x10.5x4 (rev1).pdf \| 363.2 KB 3D download_3d_WCAP-AS5H_10x10x4,5 (rev1).pdf \| 363.2 KB IGS download_igs_WCAP-AS5H_10x10x4,5 (rev1).igs \| 1.8 MB STP Download_STP_865230x570xx (rev1).stp \| 636.5 KB Electric models ZIP PSP PSpice_WCAP-AS5H (rev25a).zip \| 10.8 KB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Capacitance1000 µF	Rated Voltage6.3 V (DC)	Endurance 5000	Ripple Current340 mA	Leakage Current63 µA	Dissipation Factor32 %	Diameter10 mm	Length10.5 mm	Packaging15" Tape & Reel	Design Kit 865230

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Aluminium Electrolytic Capacitors SMT V-Chip – 5000 H @ 105°C
