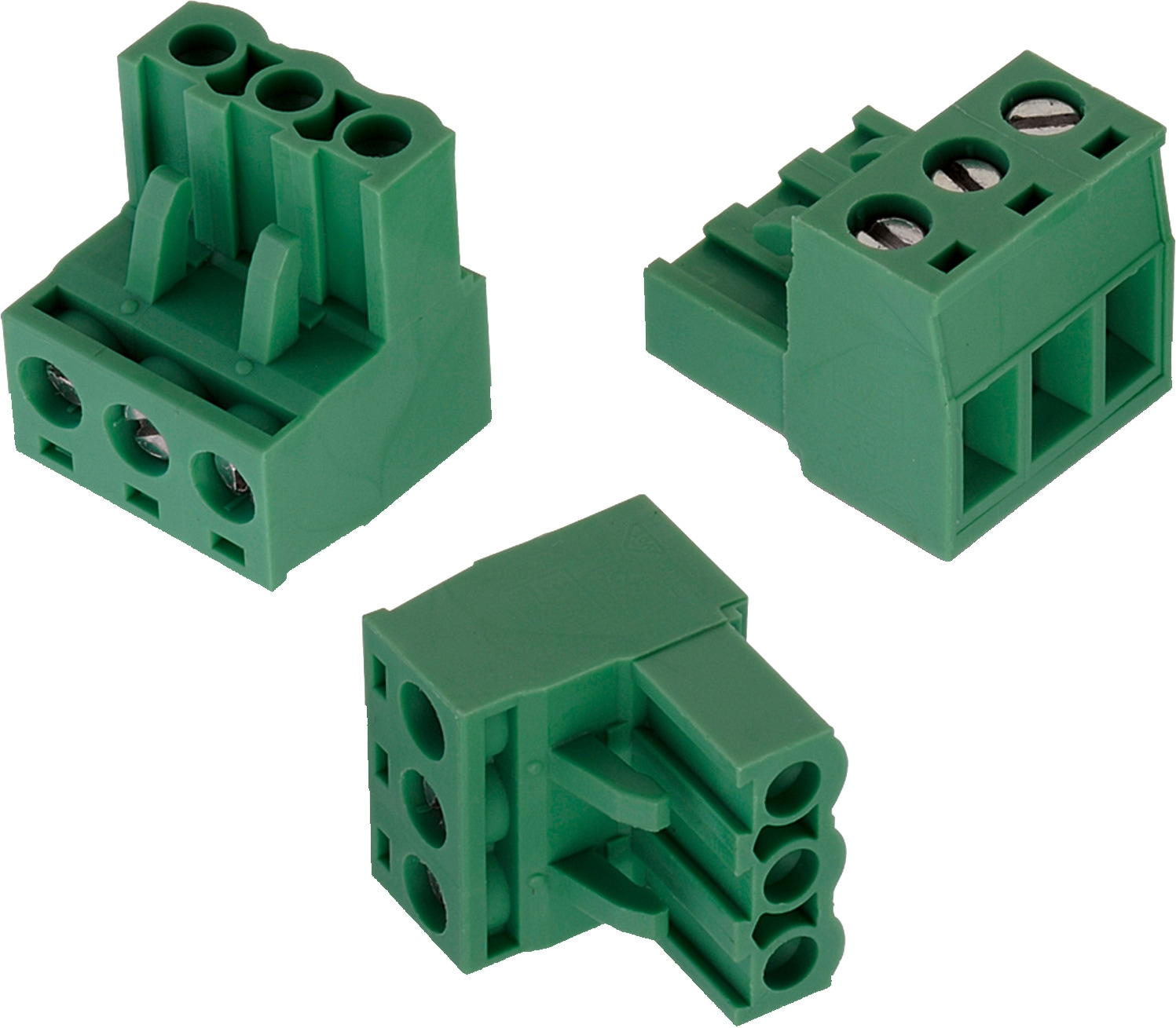

WR-TBL Series 351 - 5.08 mm Vertical | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin over Nickel
Cage Material	Brass
Cage Plating	nickel
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Phosphor Bronze

Electrical Properties
I_R	20 A
I_R[cULus]	20 A
I_R[VDE]	20 A
Working Voltage	300 V (AC); 320 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	320 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2200 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Screw	M3

Wire Properties
Solid Wire Section (AWG)	12 to 24 (AWG)
Solid Wire Section (Metric)	3.31 to 0.205 (mm²)
Stranded Wire Section (AWG)	12 to 24 (AWG)
Stranded Wire Section (Metric)	3.31 to 0.205 (mm²)

Certification
cULus Approval	E315414
VDE Approval	40023195

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691351500002	2, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500002_1 (rev1).pdf \| 234.9 KB IGS 691351500002 (rev1).iges \| 2.3 MB STP 691351500002 (rev1).stp \| 499.3 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 2	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500003	3, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500003_1 (rev1).pdf \| 291.6 KB IGS 691351500003 (rev1).igs \| 3 MB STP 691351500003 (rev1).stp \| 666.1 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 3	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit 691002
691351500004	4, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500004_1 (rev1).pdf \| 334.5 KB IGS 691351500004 (rev1).igs \| 3.6 MB STP 691351500004 (rev1).stp \| 809.4 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 4	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500005	5, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500005_1 (rev1).pdf \| 384.9 KB IGS 691351500005 (rev1).igs \| 4.2 MB STP 691351500005 (rev1).stp \| 951.5 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 5	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500006	6, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500006_1 (rev1).pdf \| 434.5 KB IGS 691351500006 (rev1).igs \| 4.8 MB STP 691351500006 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 6	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500007	7, Pluggable, Cable	Downloads 4 files CAD files ZIP 3D 691351500007_1 (rev1).pdf \| 479.1 KB IGS 691351500007 (rev1).iges \| 5.5 MB IGS 691351500007 (rev1).igs \| 5.4 MB STP 691351500007 (rev1).stp \| 1.2 MB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 7	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500008	8, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500008_1 (rev1).pdf \| 522.3 KB IGS 691351500008 (rev1).igs \| 6 MB STP 691351500008 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 8	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500009	9, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500009_1 (rev1).pdf \| 569.5 KB IGS 691351500009 (rev1).igs \| 6.6 MB STP 691351500009 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 9	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500010	10, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500010_1 (rev1).pdf \| 595.6 KB IGS 691351500010 (rev1).igs \| 7.2 MB STP 691351500010 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 10	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500011	11, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500011_1 (rev1).pdf \| 639 KB IGS 691351500011 (rev1).igs \| 7.8 MB STP 691351500011 (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 11	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500012	12, Pluggable, Cable	Downloads 4 files CAD files ZIP 3D 691351500012_1 (rev1).pdf \| 679.7 KB IGS 691351500012 (rev1).iges \| 8.6 MB IGS 691351500012 (rev1).igs \| 8.4 MB STP 691351500012 (rev1).stp \| 1.9 MB Download all 4 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 12	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500013	13, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500013_1 (rev1).pdf \| 722.4 KB IGS 691351500013 (rev1).igs \| 9 MB STP 691351500013 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 13	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500014	14, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500014_1 (rev1).pdf \| 767.1 KB IGS 691351500014 (rev1).igs \| 9.7 MB STP 691351500014 (rev1).stp \| 2.2 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 14	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500015	15, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500015_1 (rev1).pdf \| 812 KB IGS 691351500015 (rev1).igs \| 10.3 MB STP 691351500015 (rev1).stp \| 2.3 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 15	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500016	16, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500016_1 (rev1).pdf \| 853.2 KB IGS 691351500016 (rev1).igs \| 10.9 MB STP 691351500016 (rev1).stp \| 2.5 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 16	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500017	17, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500017_1 (rev1).pdf \| 899.2 KB IGS 691351500017 (rev1).igs \| 11.5 MB STP 691351500017 (rev1).stp \| 2.6 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 17	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500018	18, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500018_1 (rev1).pdf \| 965 KB IGS 691351500018 (rev1).igs \| 12.1 MB STP 691351500018 (rev1).stp \| 2.8 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 18	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500019	19, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500019_1 (rev1).pdf \| 1005 KB IGS 691351500019 (rev1).igs \| 12.7 MB STP 691351500019 (rev1).stp \| 2.9 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 19	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500020	20, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500020_1 (rev1).pdf \| 1 MB IGS 691351500020 (rev1).igs \| 13.3 MB STP 691351500020 (rev1).stp \| 3.1 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 20	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500021	21, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500021_1 (rev1).pdf \| 1.1 MB IGS 691351500021 (rev1).igs \| 14 MB STP 691351500021 (rev1).stp \| 3.2 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 21	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500022	22, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500022_1 (rev1).pdf \| 1.1 MB IGS 691351500022 (rev1).igs \| 14.6 MB STP 691351500022 (rev1).stp \| 3.3 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 22	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500023	23, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500023_1 (rev1).pdf \| 1.2 MB IGS 691351500023 (rev1).igs \| 15.2 MB STP 691351500023 (rev1).stp \| 3.5 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 23	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –
691351500024	24, Pluggable, Cable	Downloads 3 files CAD files ZIP 3D 691351500024_1 (rev1).pdf \| 1.2 MB IGS 691351500024 (rev1).igs \| 15.8 MB STP 691351500024 (rev1).stp \| 3.6 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Pins 24	PCB/Cable/Panel Cable	Modularity No	Type Vertical	Wire Section 12 to 24 (AWG) 3.31 to 0.205 (mm²)	Design Kit –

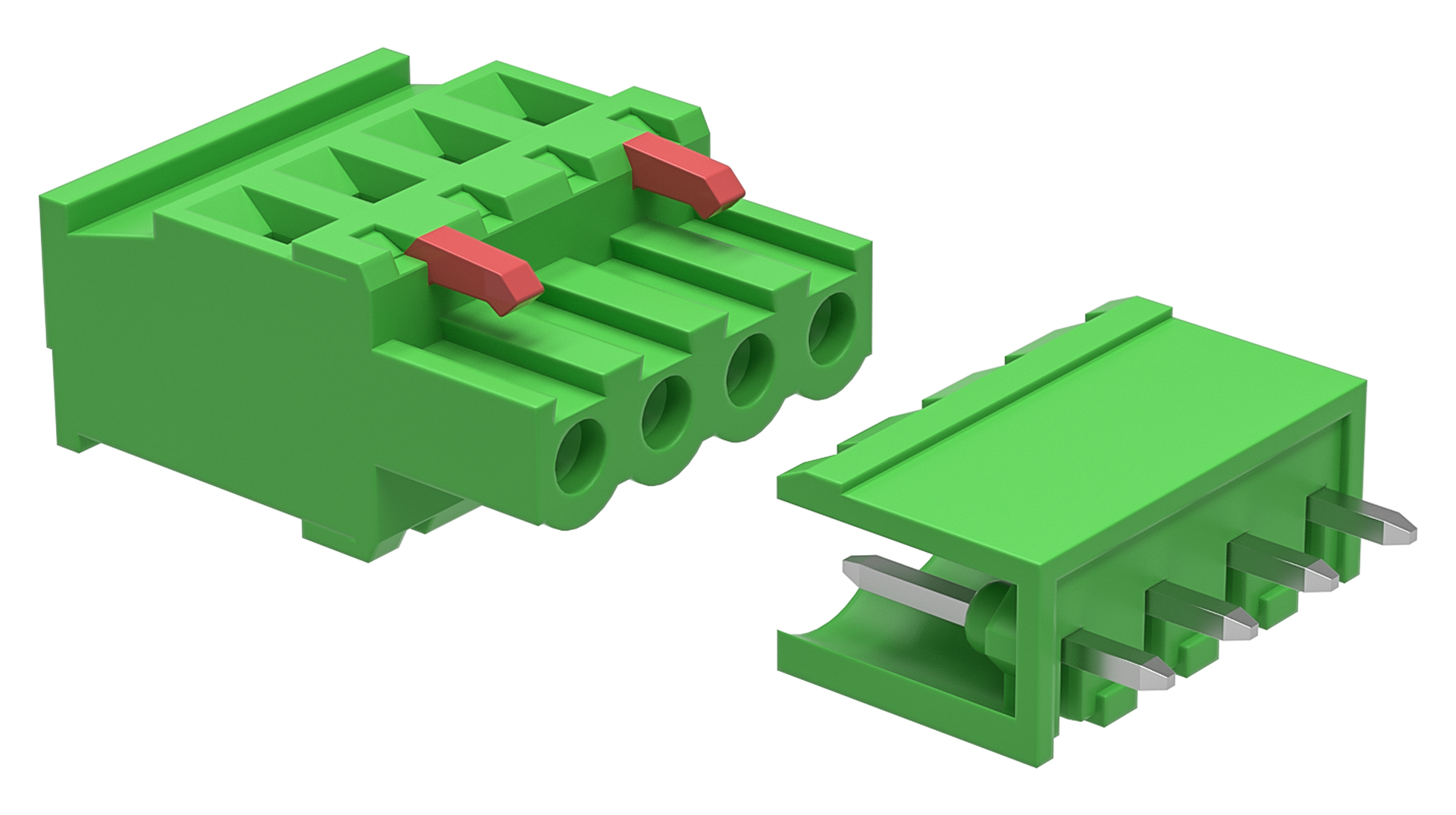

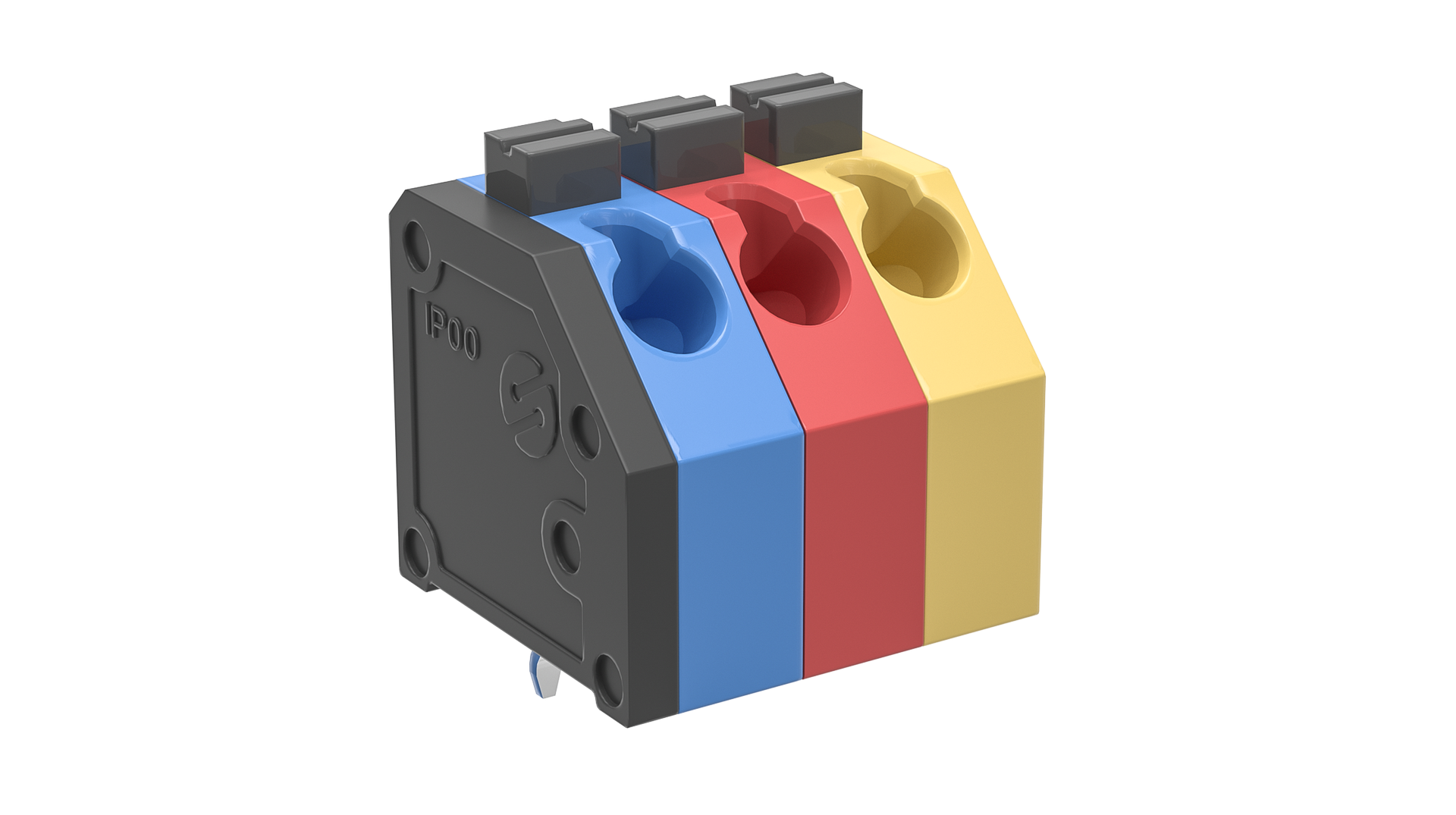

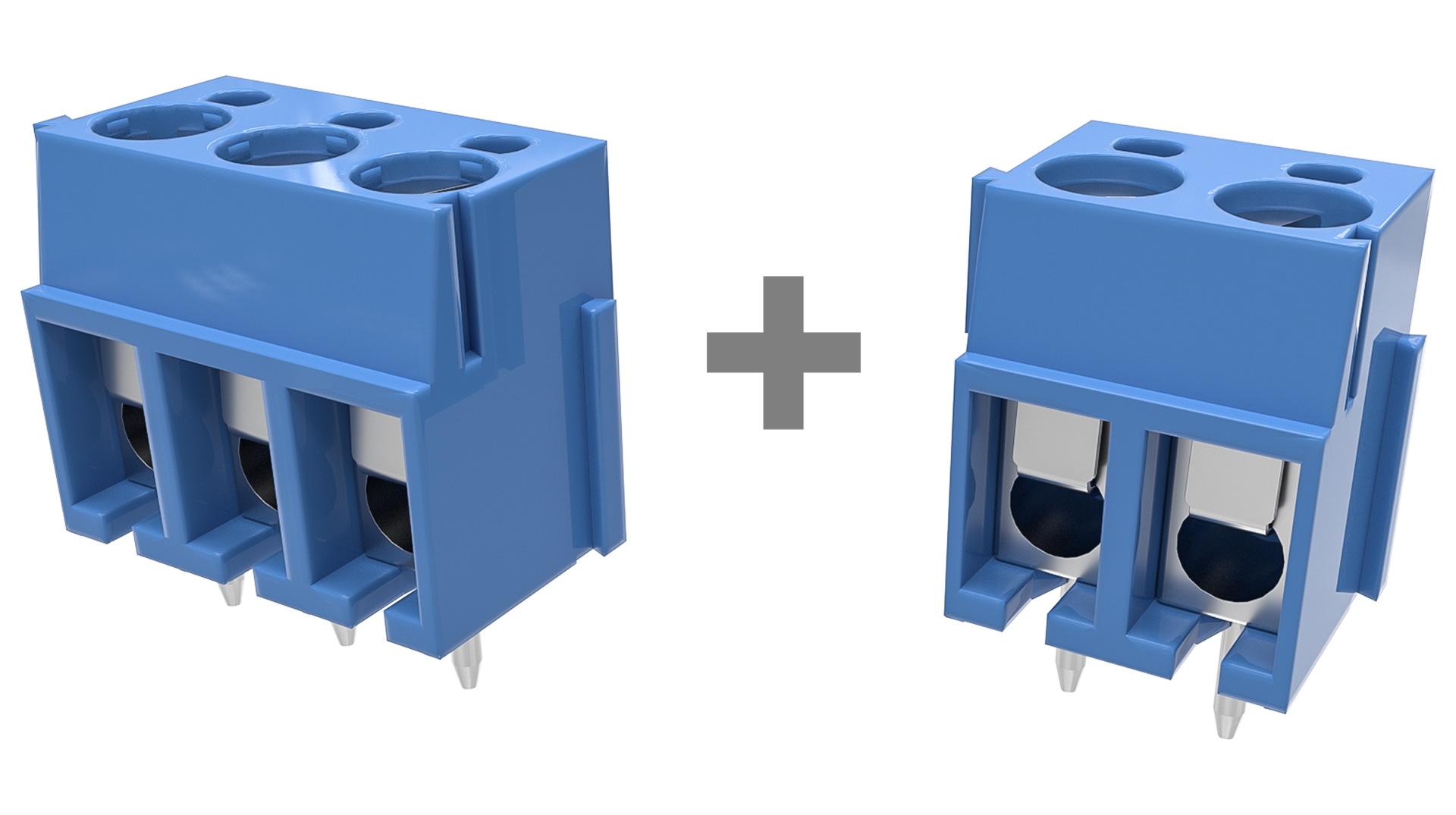

Tailored to your needs

Custom & Standard Terminal Blocks

Tailored to your needs

Custom & Standard Terminal Blocks

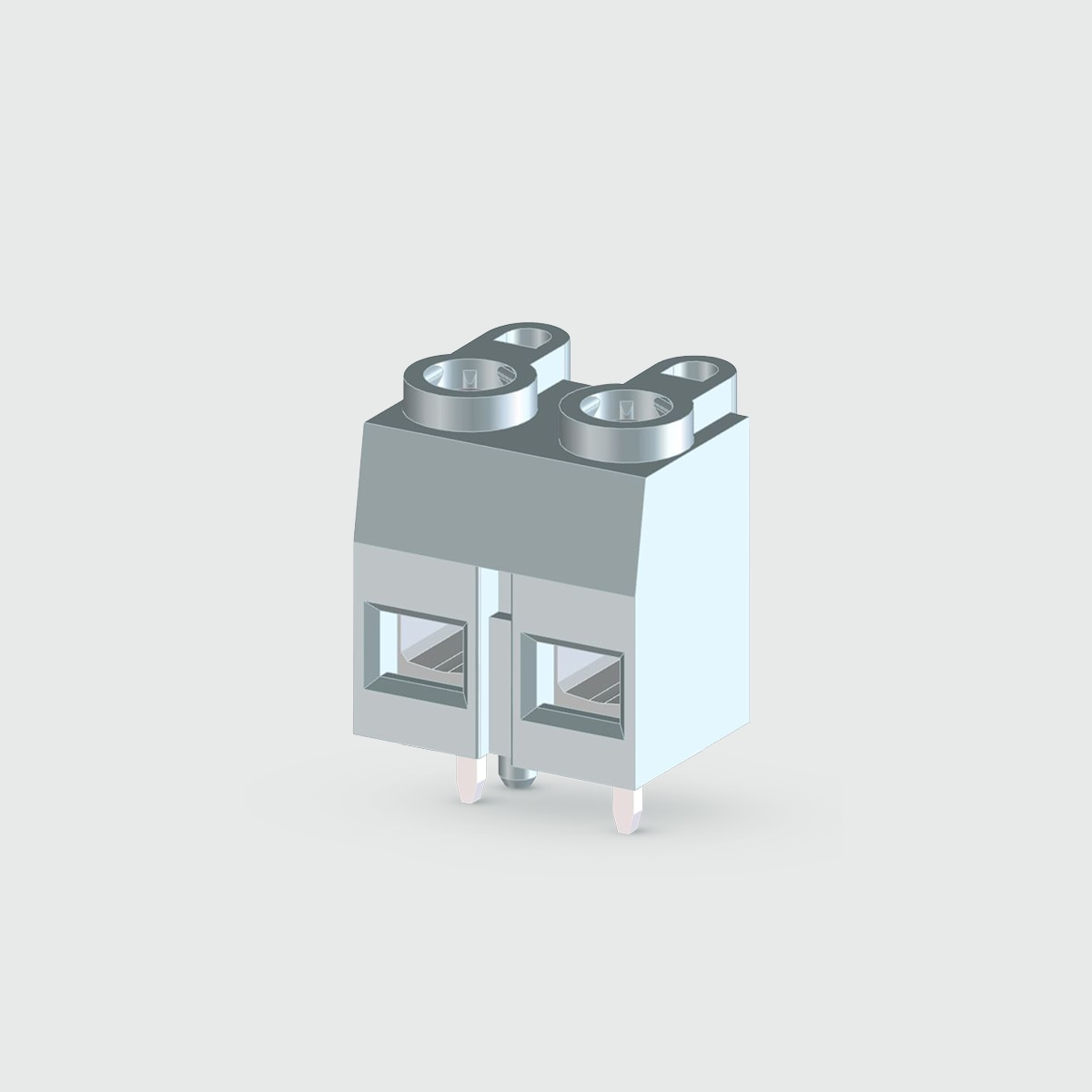

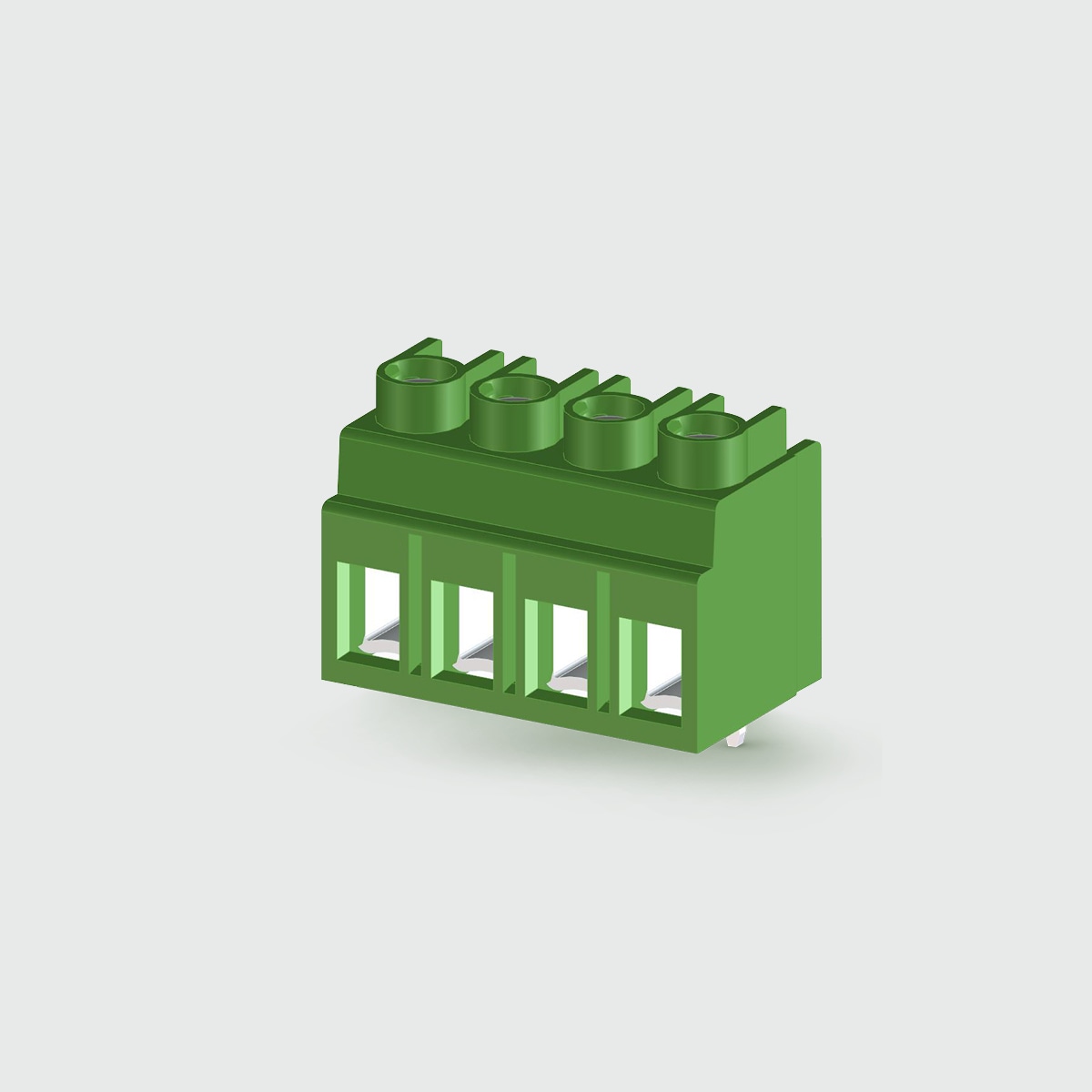

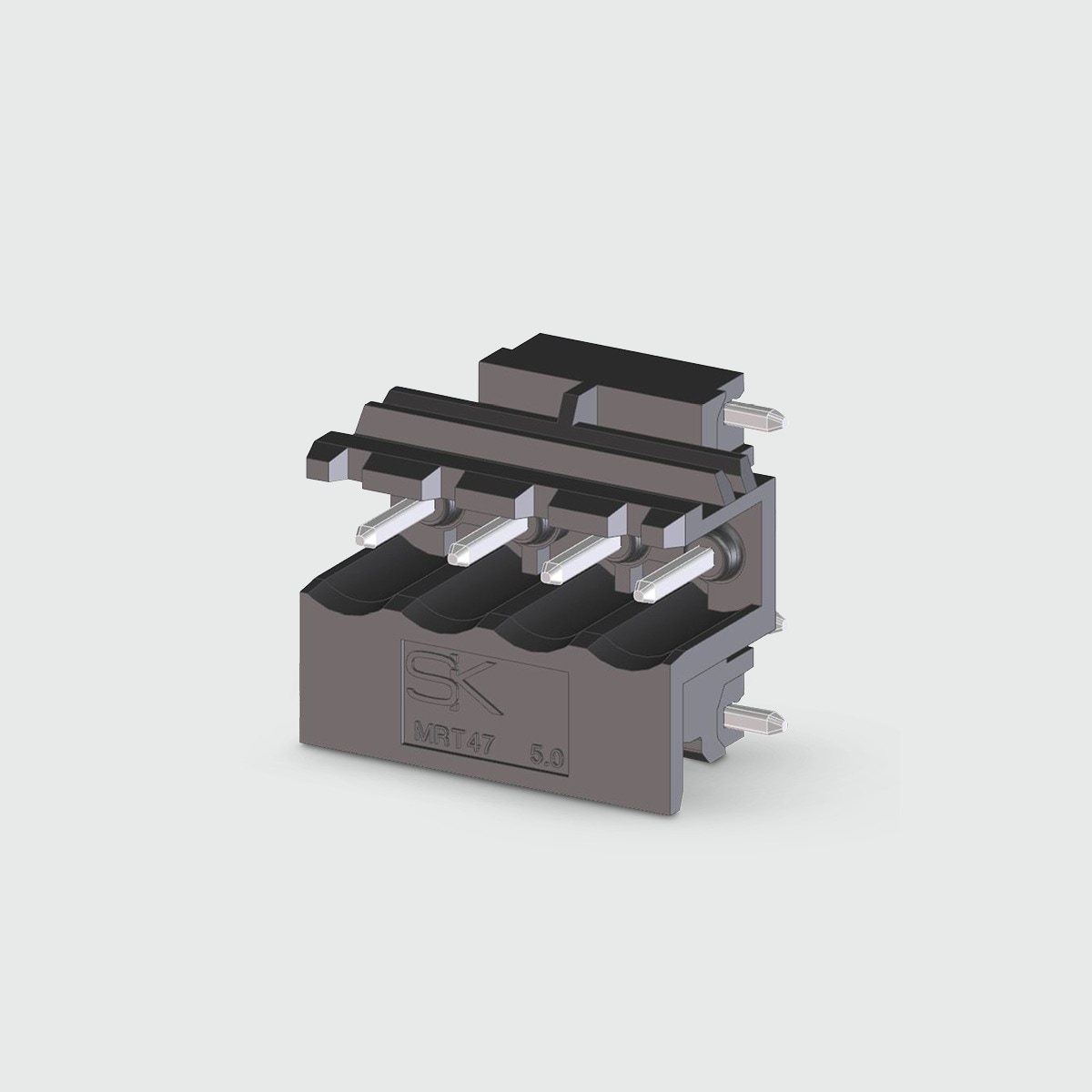

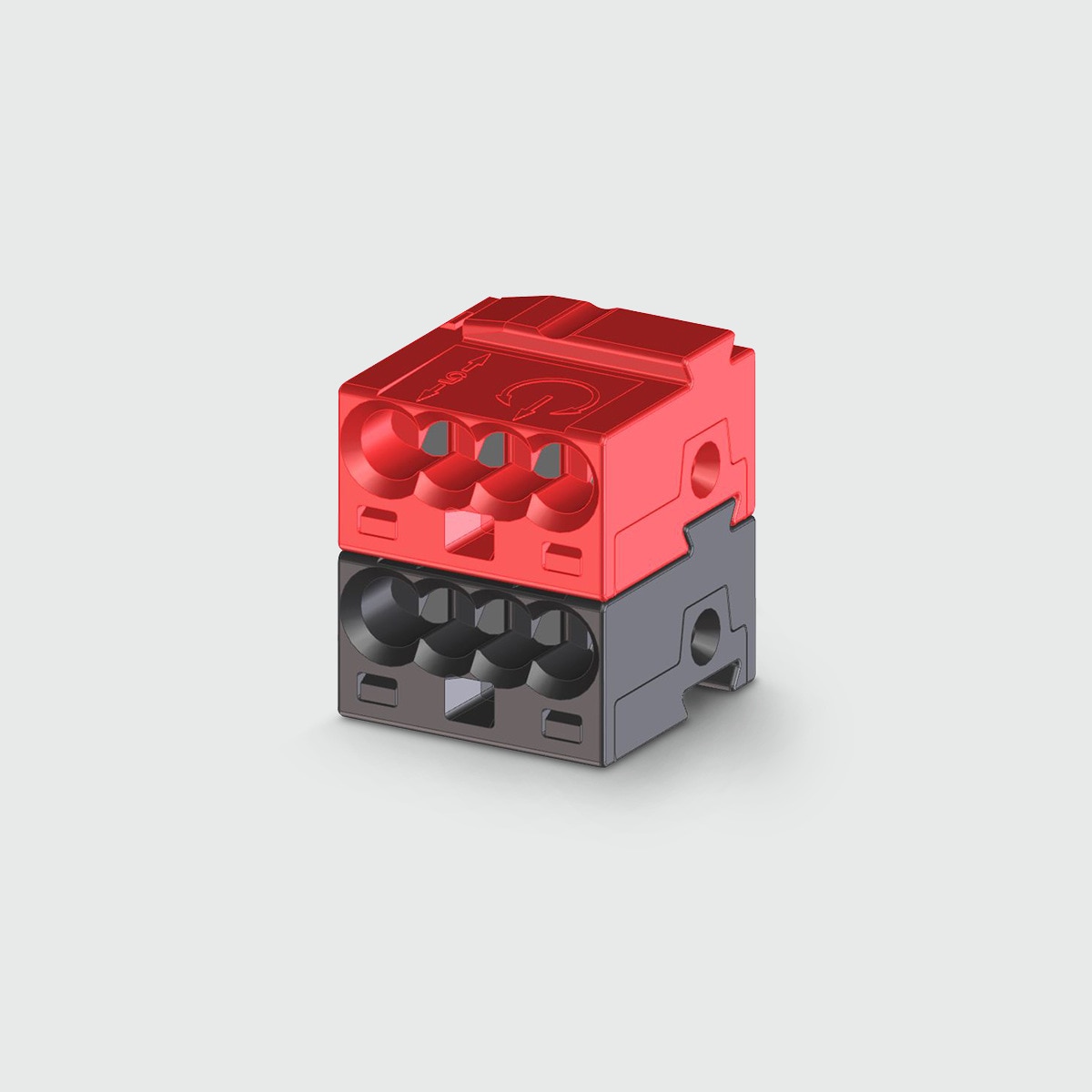

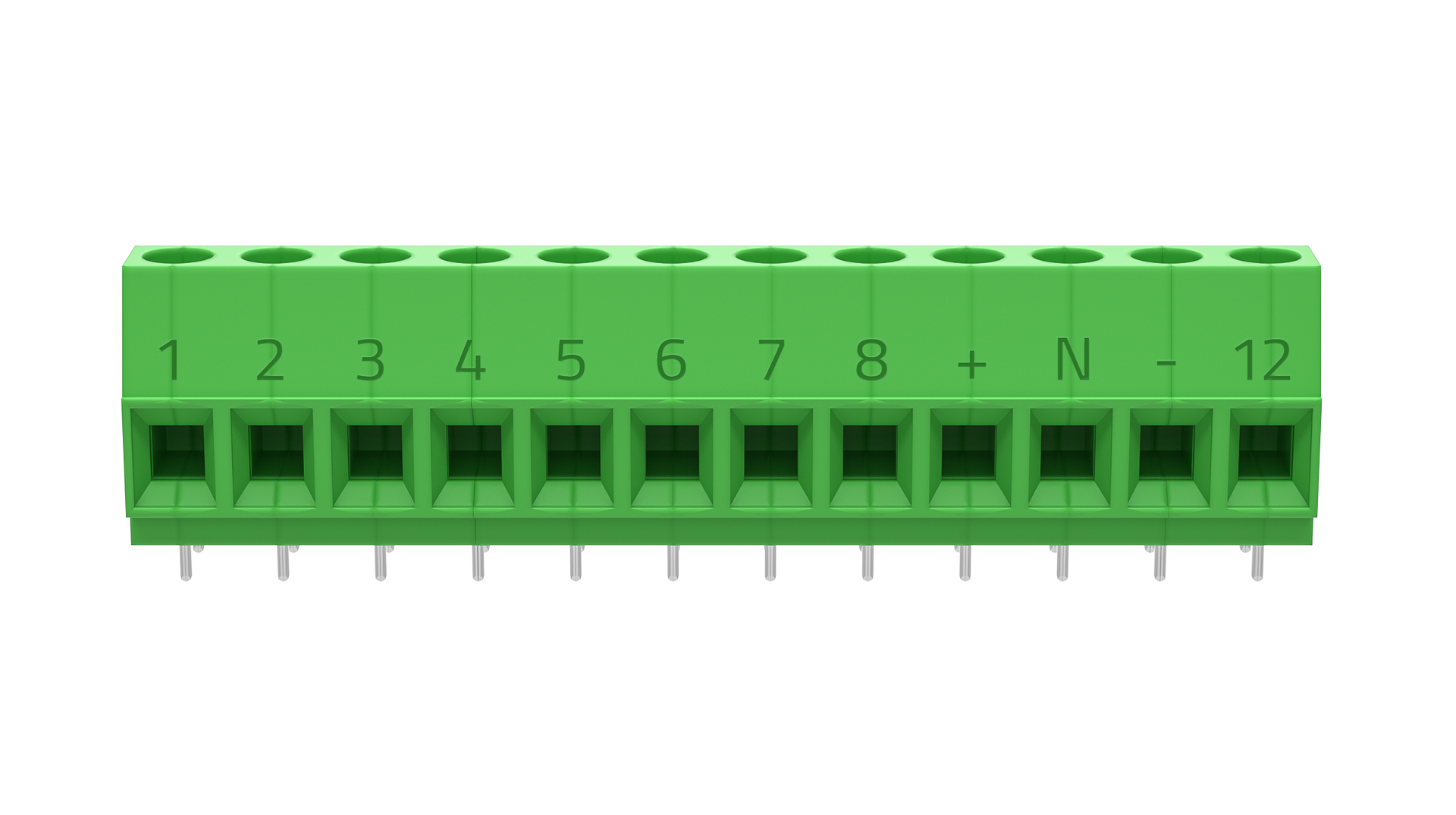

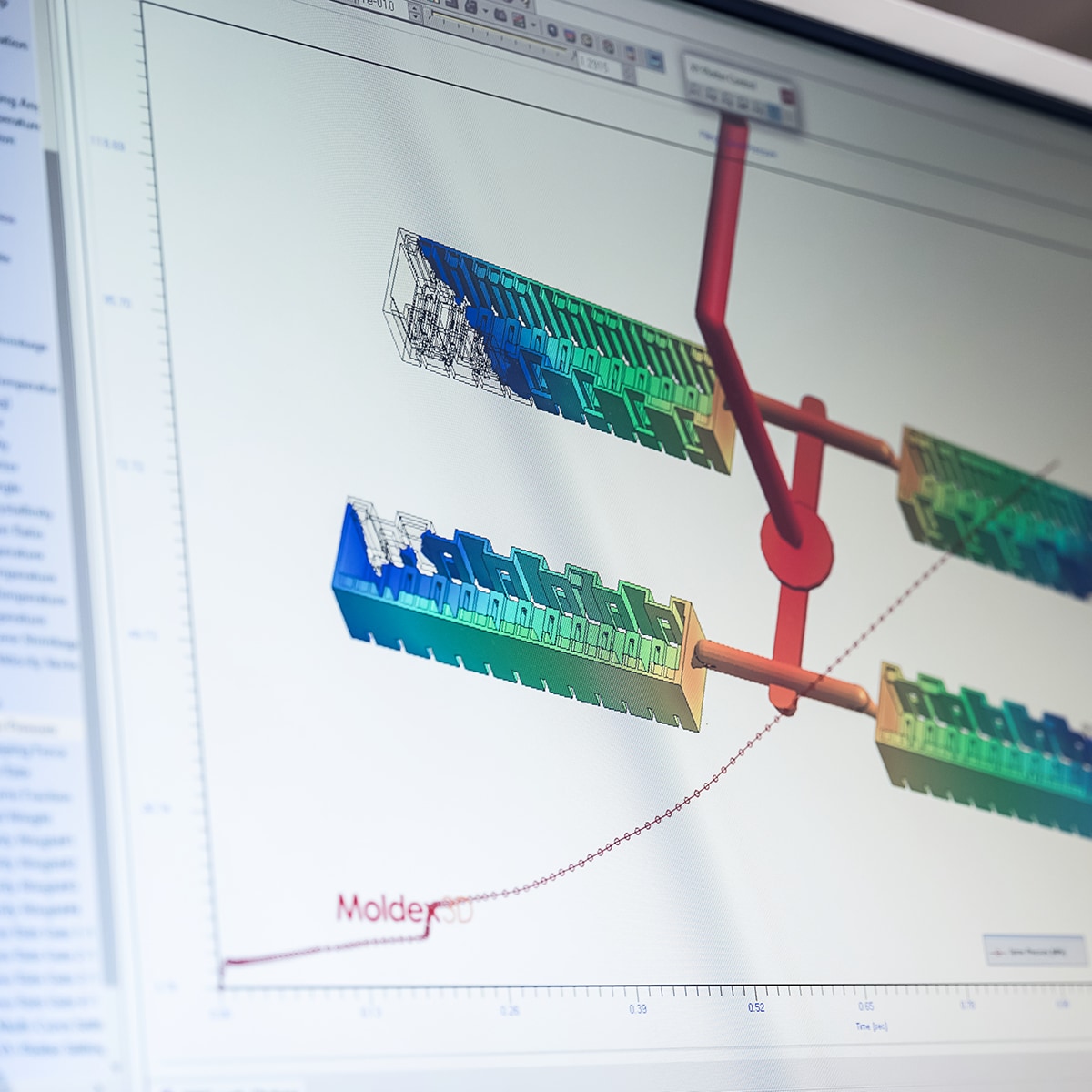

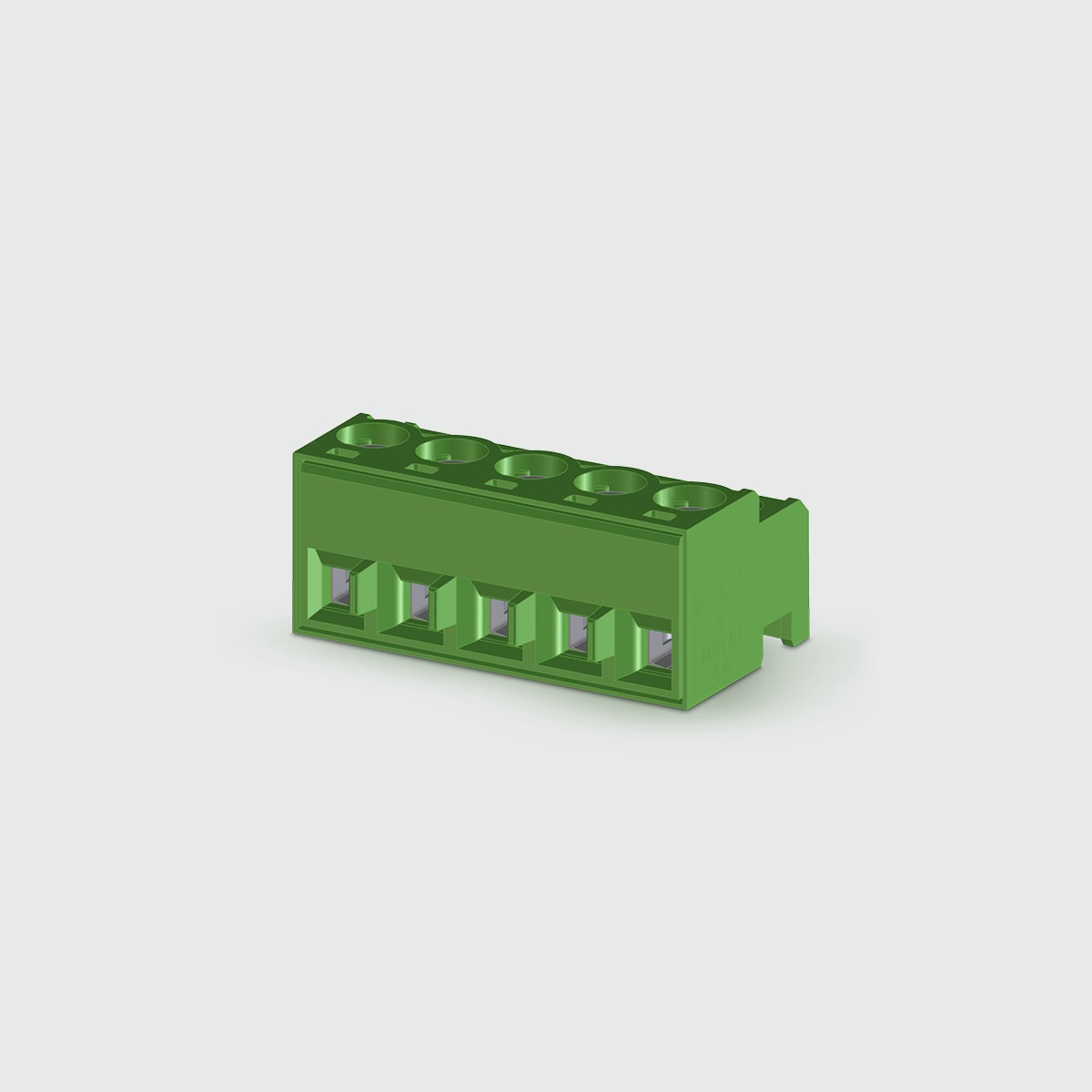

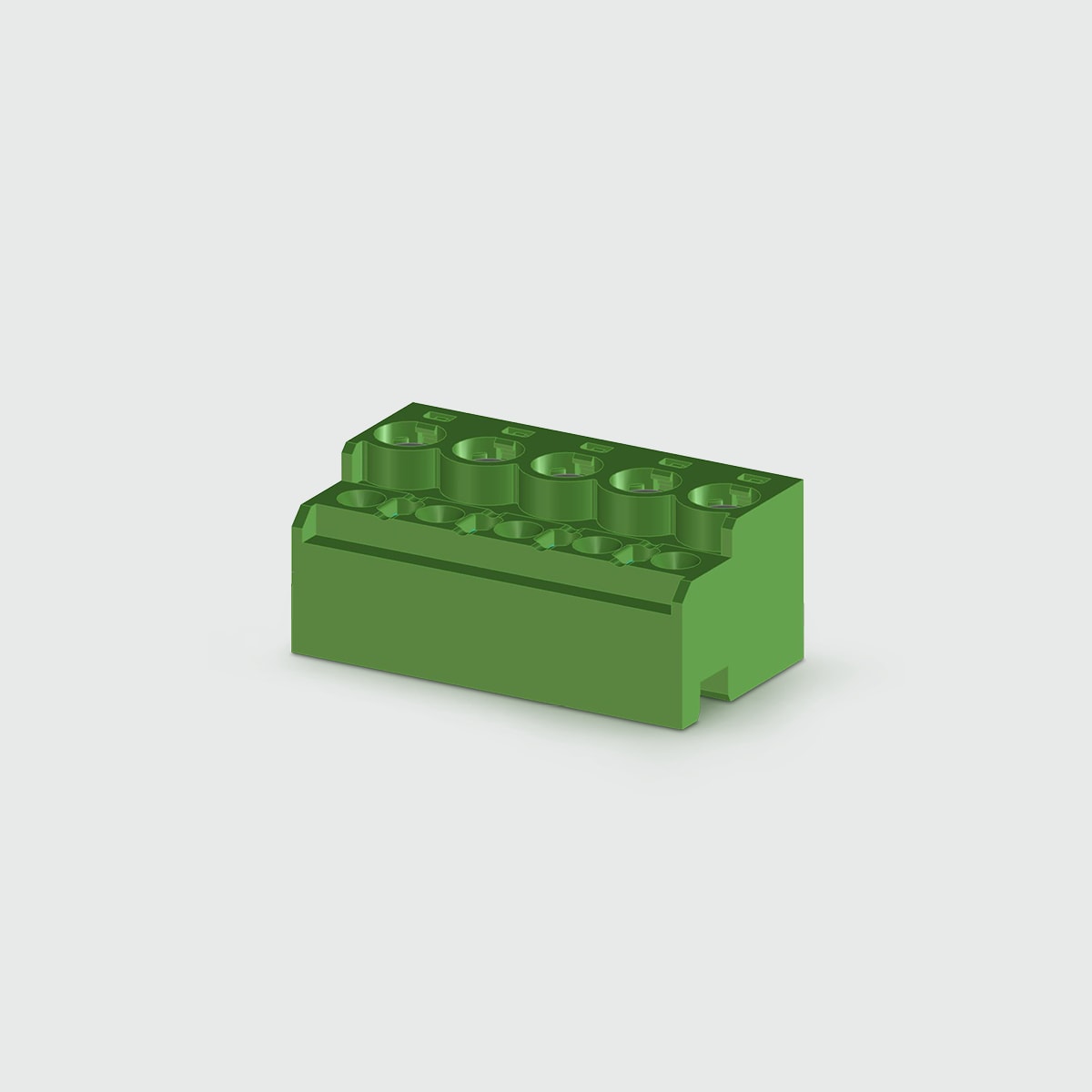

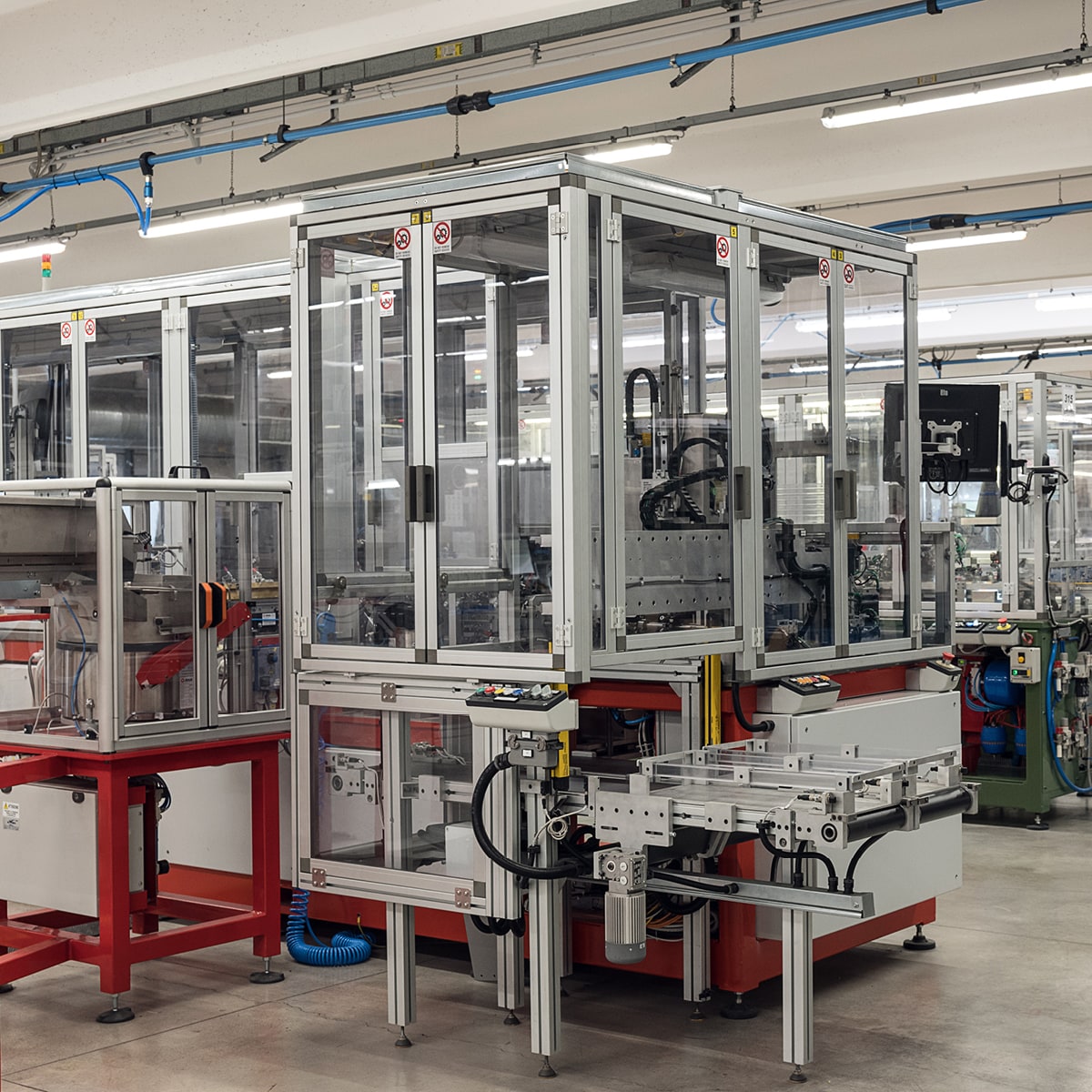

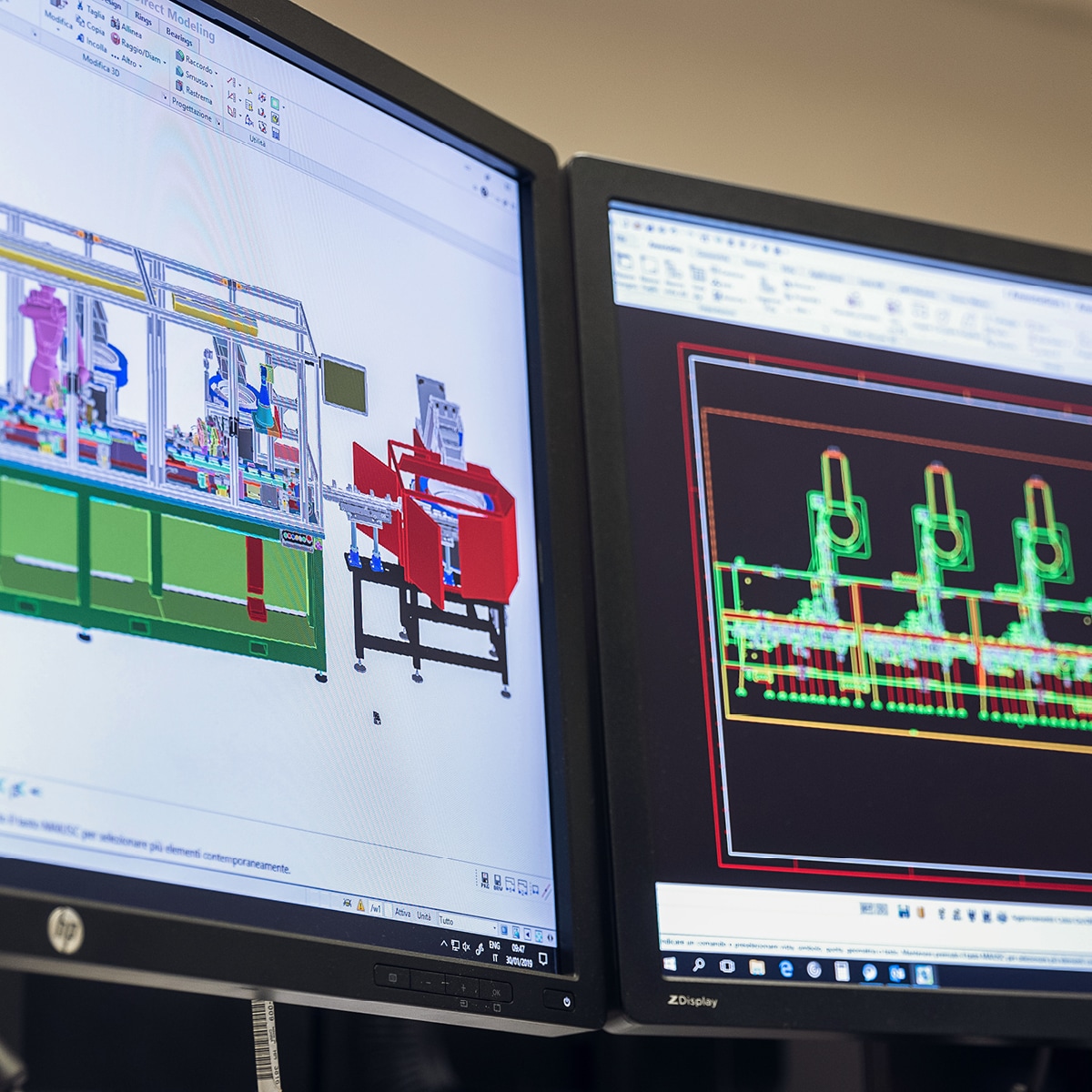

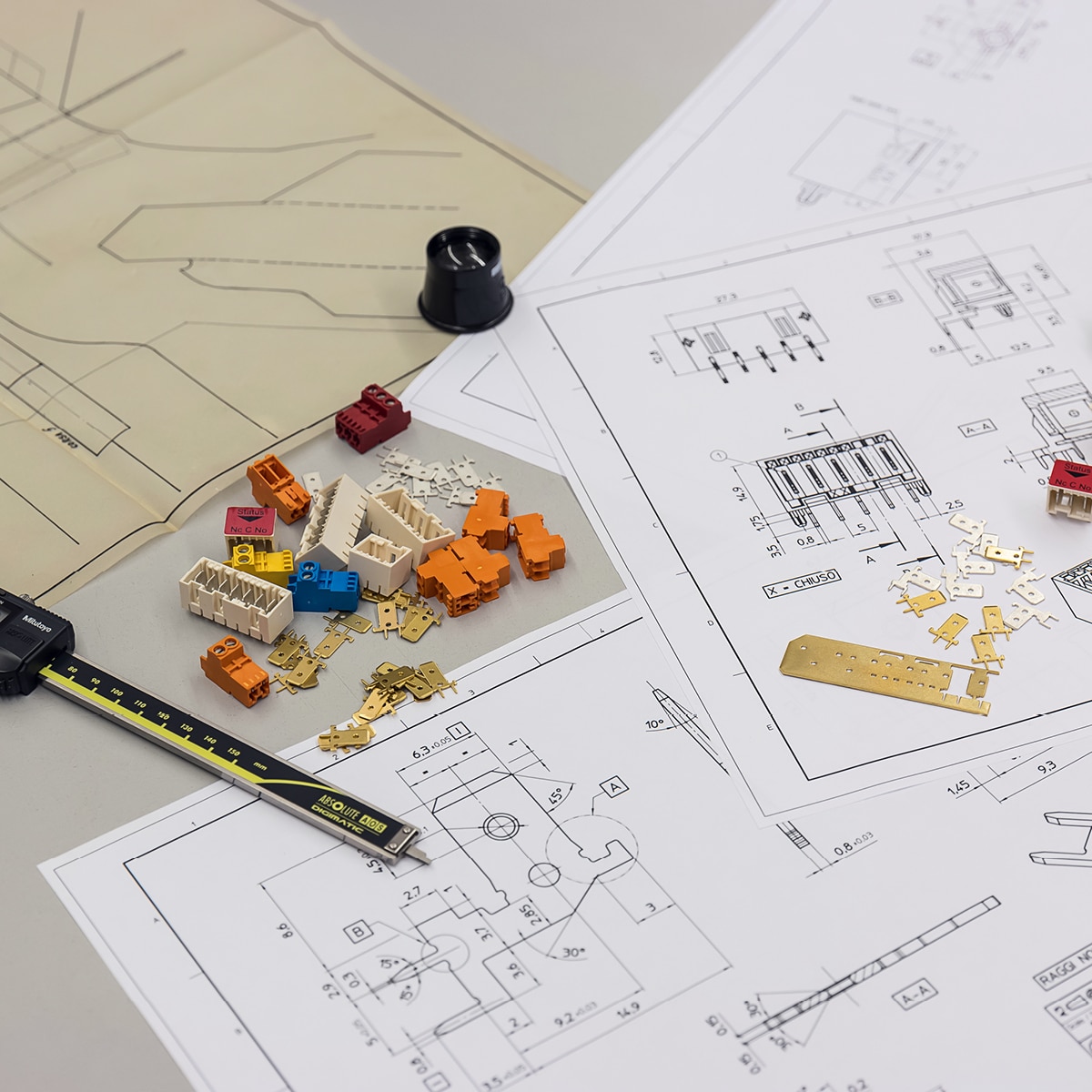

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
