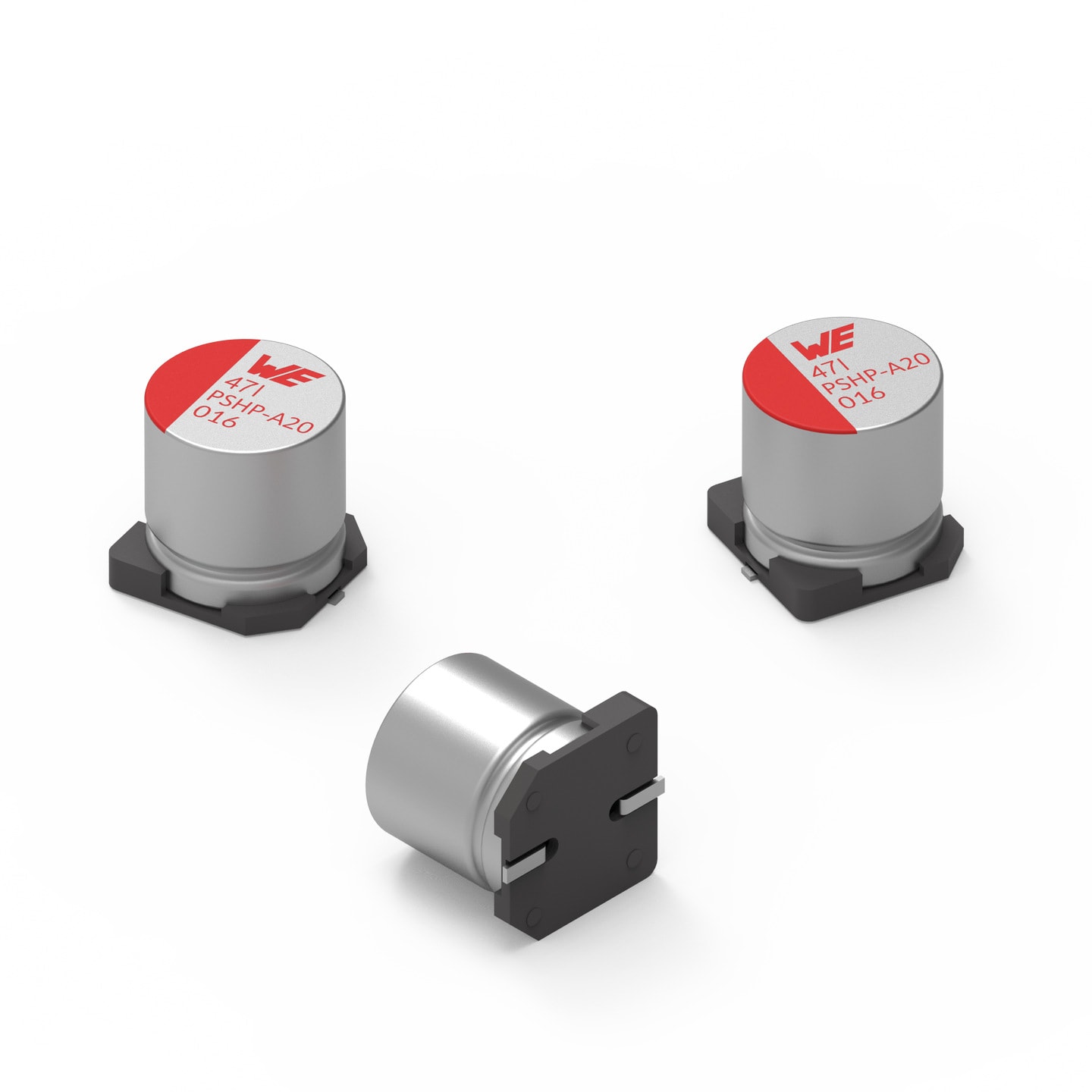

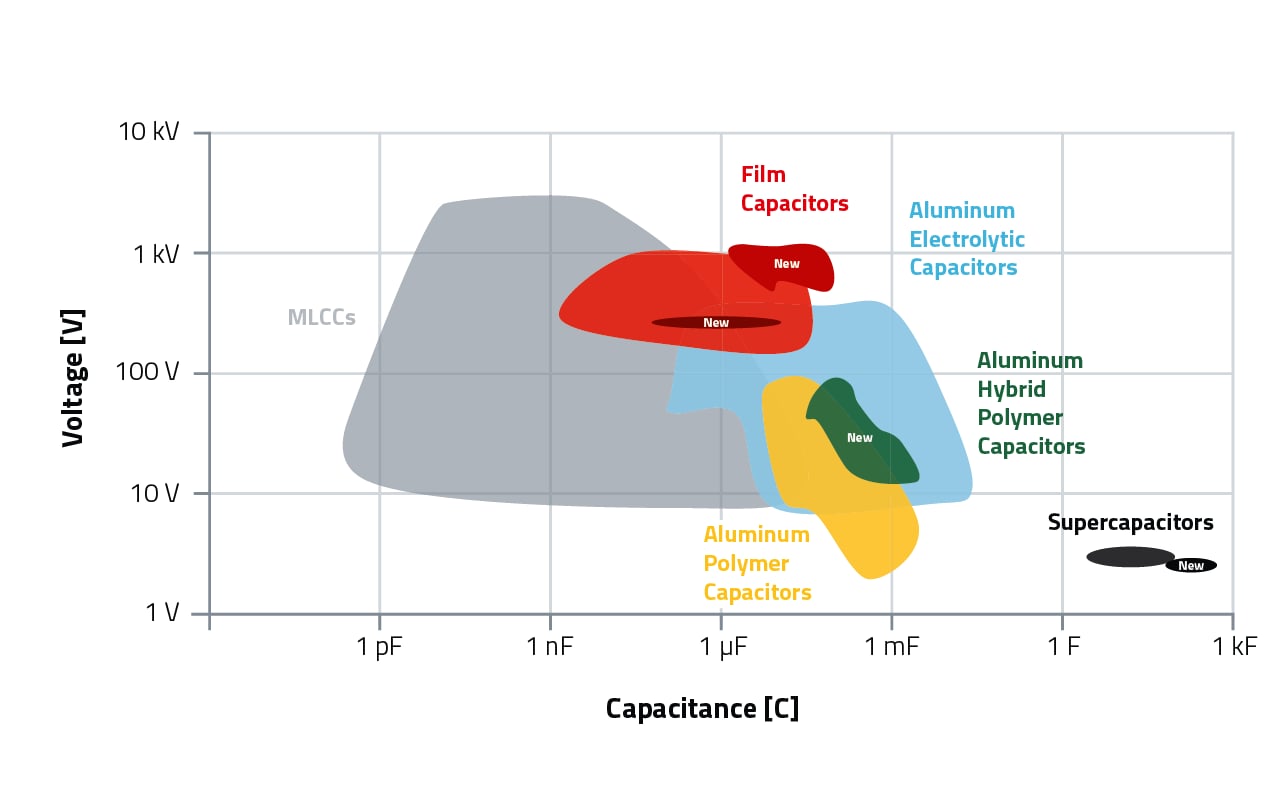

WCAP-PSHP Aluminum Polymer Capacitors

High Ripple Current

LTSpice files

LT

LTSpice_WCAP-PSHP (rev22a).zip

|

3.3 KB

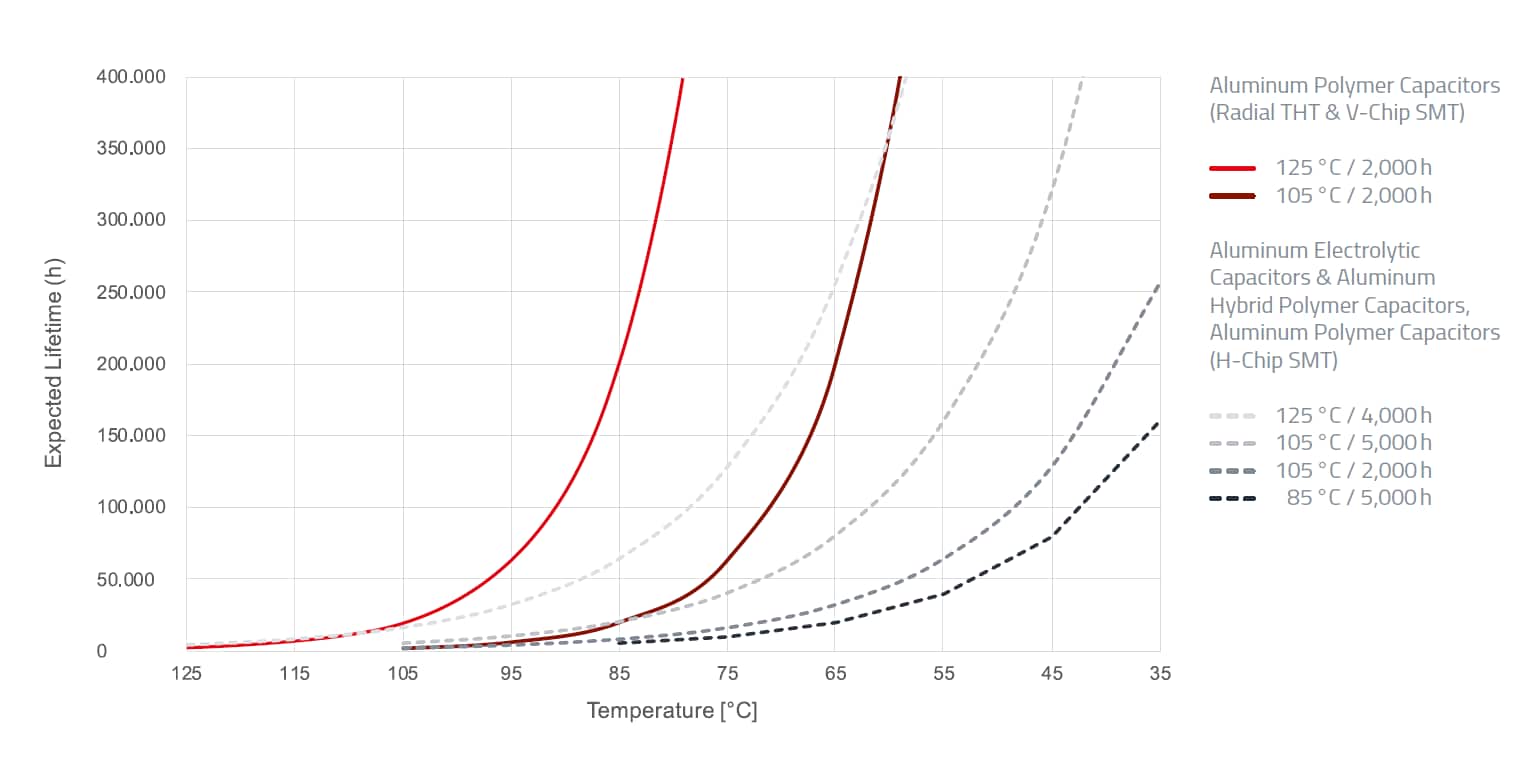

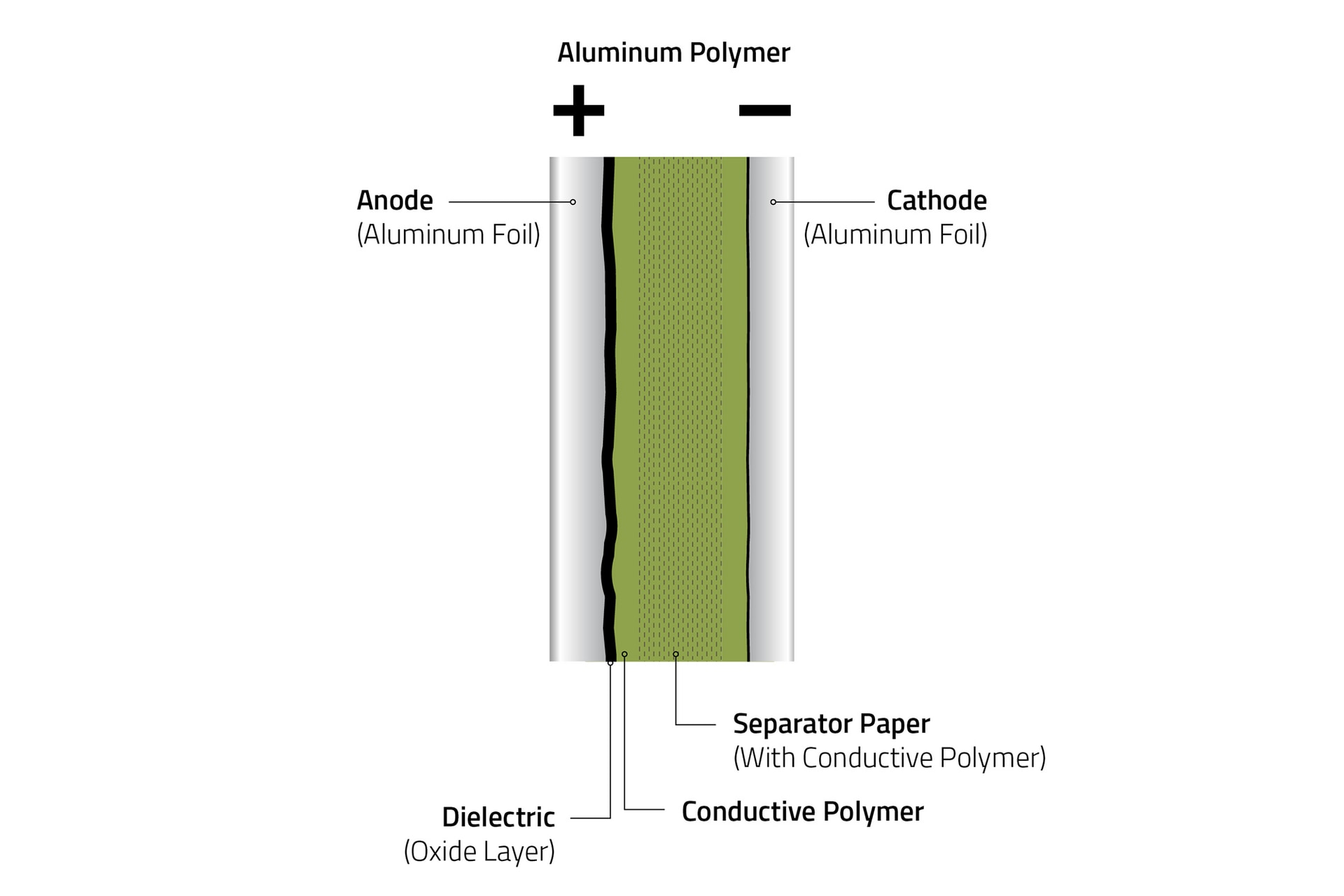

Characteristics

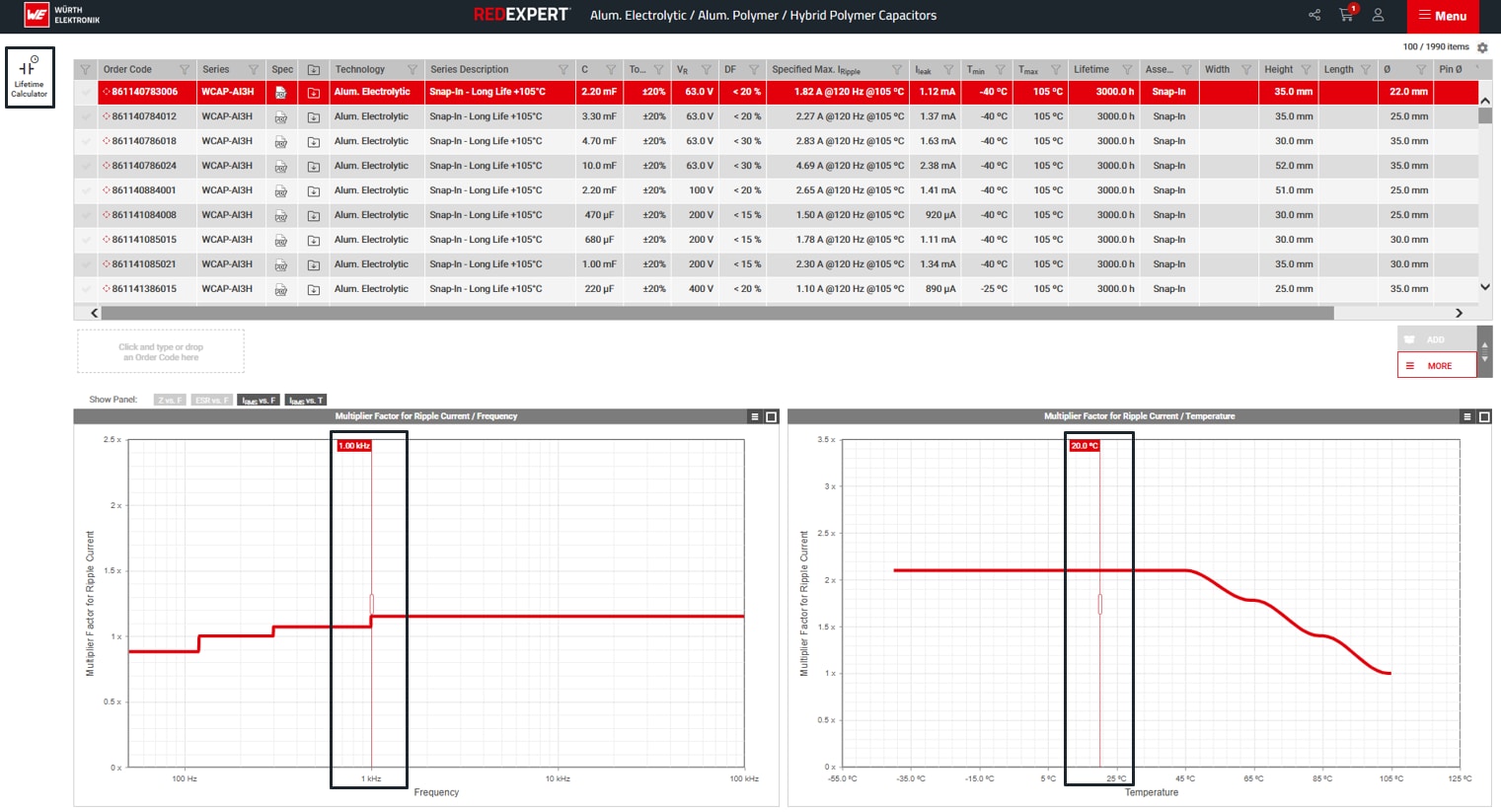

Product series with ultra high permissible ripple current
Low ESR over high frequency range
Mounting style: V-Chip SMT
Recommended soldering: Reflow soldering

Applications

Low ripple voltage at the switching converter
Filtering
Smoothing
Coupling
e.g. High-end power supply, industrial computer, VGA card, charger, digital set-top box

Application Notes

Products

All

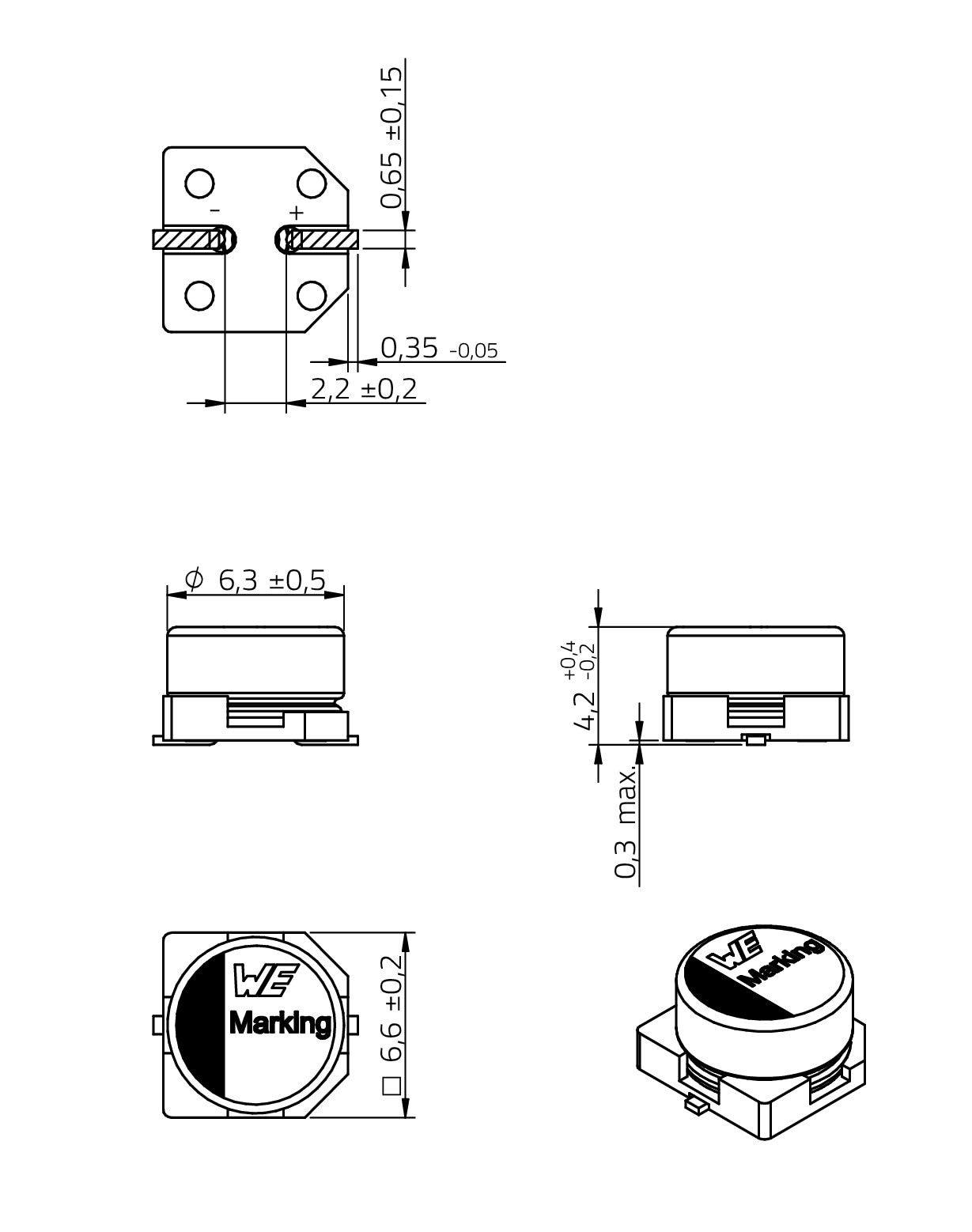

⌀ 6.3 mm

⌀ 8 mm

⌀ 10 mm

Reset all

Filter article data

show article in 3 product lines

article in 3 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	C	V_R (V (DC))	Endurance (h)	I_RIPPLE (mA)	R_ESR (mΩ)	I_Leak (µA)	DF (%)	Ø D (mm)	L (mm)	Packaging	Design Kit
875115952001	6.8 µF, 100 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 6.8 µF	Rated Voltage 100 V (DC)	Endurance 2000	Ripple Current 1500 mA	ESR 48 mΩ	Leakage Current 136 µA	Dissipation Factor 12 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit –
875115644009	10 µF, 35 V (DC), 5000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_6.3x5.8x2 (rev1).igs \| 1.9 MB STP Download_STP_875115644009 (rev1).stp \| 669.5 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 10 µF	Rated Voltage 35 V (DC)	Endurance 5000	Ripple Current 980 mA	ESR 75 mΩ	Leakage Current 600 µA	Dissipation Factor 12 %	Diameter 6.3 mm	Length 5.8 mm	Packaging 15" Tape & Reel	Design Kit –
875116152001	10 µF, 80 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 10 µF	Rated Voltage 80 V (DC)	Endurance 2000	Ripple Current 1600 mA	ESR 45 mΩ	Leakage Current 160 µA	Dissipation Factor 12 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit –
875115752001	10 µF, 50 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 10 µF	Rated Voltage 50 V (DC)	Endurance 2000	Ripple Current 1500 mA	ESR 45 mΩ	Leakage Current 100 µA	Dissipation Factor 12 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit –
875115852001	10 µF, 63 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 10 µF	Rated Voltage 63 V (DC)	Endurance 2000	Ripple Current 1500 mA	ESR 45 mΩ	Leakage Current 126 µA	Dissipation Factor 12 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit –
875115957002	12 µF, 100 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x10.5x4 (rev1).igs \| 1.6 MB STP Download_STP_87511xxx70xx (rev1).stp \| 547.7 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 12 µF	Rated Voltage 100 V (DC)	Endurance 2000	Ripple Current 1900 mA	ESR 45 mΩ	Leakage Current 240 µA	Dissipation Factor 12 %	Diameter 10 mm	Length 10.5 mm	Packaging 15" Tape & Reel	Design Kit –
875116157002	15 µF, 80 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x10.5x4 (rev1).igs \| 1.6 MB STP Download_STP_87511xxx70xx (rev1).stp \| 547.7 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 15 µF	Rated Voltage 80 V (DC)	Endurance 2000	Ripple Current 1900 mA	ESR 40 mΩ	Leakage Current 240 µA	Dissipation Factor 12 %	Diameter 10 mm	Length 10.5 mm	Packaging 15" Tape & Reel	Design Kit –
875115645010	18 µF, 35 V (DC), 5000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_6.3x7.7x2 (rev1).igs \| 1.7 MB STP Download_STP_8751156401x (rev1).stp \| 582 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 18 µF	Rated Voltage 35 V (DC)	Endurance 5000	Ripple Current 1400 mA	ESR 60 mΩ	Leakage Current 600 µA	Dissipation Factor 12 %	Diameter 6.3 mm	Length 7.7 mm	Packaging 15" Tape & Reel	Design Kit –
875115655011	22 µF, 35 V (DC), 5000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x11.7x3 (rev1).igs \| 1.6 MB STP Download_STP_8751156550xx (rev1).stp \| 546.6 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 22 µF	Rated Voltage 35 V (DC)	Endurance 5000	Ripple Current 2300 mA	ESR 35 mΩ	Leakage Current 600 µA	Dissipation Factor 12 %	Diameter 8 mm	Length 11.7 mm	Packaging 15" Tape & Reel	Design Kit –
875115645012	27 µF, 35 V (DC), 5000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_6.3x7.7x2 (rev1).igs \| 1.7 MB STP Download_STP_8751156401x (rev1).stp \| 582 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 27 µF	Rated Voltage 35 V (DC)	Endurance 5000	Ripple Current 1400 mA	ESR 60 mΩ	Leakage Current 600 µA	Dissipation Factor 12 %	Diameter 6.3 mm	Length 7.7 mm	Packaging 15" Tape & Reel	Design Kit –
875115655013	33 µF, 35 V (DC), 5000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x11.7x3 (rev1).igs \| 1.6 MB STP Download_STP_8751156550xx (rev1).stp \| 546.6 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 33 µF	Rated Voltage 35 V (DC)	Endurance 5000	Ripple Current 2300 mA	ESR 35 mΩ	Leakage Current 600 µA	Dissipation Factor 12 %	Diameter 8 mm	Length 11.7 mm	Packaging 15" Tape & Reel	Design Kit –
875115652014	39 µF, 35 V (DC), 5000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 39 µF	Rated Voltage 35 V (DC)	Endurance 5000	Ripple Current 1800 mA	ESR 40 mΩ	Leakage Current 600 µA	Dissipation Factor 12 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit –
875115650005	56 µF, 35 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x7.7x3 (rev1).igs \| 1.6 MB STP STP_WCAP-PSHP_8.0 x 7 (rev1).stp \| 548 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 56 µF	Rated Voltage 35 V (DC)	Endurance 2000	Ripple Current 2200 mA	ESR 40 mΩ	Leakage Current 392 µA	Dissipation Factor 12 %	Diameter 8 mm	Length 7.7 mm	Packaging 15" Tape & Reel	Design Kit –
875115655015	56 µF, 35 V (DC), 5000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x11.7x3 (rev1).igs \| 1.6 MB STP Download_STP_8751156550xx (rev1).stp \| 546.6 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 56 µF	Rated Voltage 35 V (DC)	Endurance 5000	Ripple Current 2300 mA	ESR 35 mΩ	Leakage Current 600 µA	Dissipation Factor 12 %	Diameter 8 mm	Length 11.7 mm	Packaging 15" Tape & Reel	Design Kit –
875115452001	68 µF, 20 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 68 µF	Rated Voltage 20 V (DC)	Endurance 2000	Ripple Current 3500 mA	ESR 20 mΩ	Leakage Current 272 µA	Dissipation Factor 8 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115552001	68 µF, 25 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 68 µF	Rated Voltage 25 V (DC)	Endurance 2000	Ripple Current 3500 mA	ESR 20 mΩ	Leakage Current 340 µA	Dissipation Factor 8 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115657016	68 µF, 35 V (DC), 5000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x10.5x4 (rev1).igs \| 1.6 MB STP Download_STP_87511xxx70xx (rev1).stp \| 547.7 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 68 µF	Rated Voltage 35 V (DC)	Endurance 5000	Ripple Current 2500 mA	ESR 32 mΩ	Leakage Current 600 µA	Dissipation Factor 12 %	Diameter 10 mm	Length 10.5 mm	Packaging 15" Tape & Reel	Design Kit –
875115452002	82 µF, 20 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 82 µF	Rated Voltage 20 V (DC)	Endurance 2000	Ripple Current 3500 mA	ESR 20 mΩ	Leakage Current 328 µA	Dissipation Factor 8 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115552002	82 µF, 25 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 82 µF	Rated Voltage 25 V (DC)	Endurance 2000	Ripple Current 3500 mA	ESR 20 mΩ	Leakage Current 410 µA	Dissipation Factor 10 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115560003	82 µF, 25 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x8.7x4 (rev1).igs \| 1.6 MB STP Download_STP_875115xx000x (rev1).stp \| 546.2 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 82 µF	Rated Voltage 25 V (DC)	Endurance 2000	Ripple Current 3100 mA	ESR 25 mΩ	Leakage Current 410 µA	Dissipation Factor 10 %	Diameter 10 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115652006	82 µF, 35 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 82 µF	Rated Voltage 35 V (DC)	Endurance 2000	Ripple Current 2600 mA	ESR 35 mΩ	Leakage Current 574 µA	Dissipation Factor 12 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit –
875115452003	100 µF, 20 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 100 µF	Rated Voltage 20 V (DC)	Endurance 2000	Ripple Current 3500 mA	ESR 20 mΩ	Leakage Current 400 µA	Dissipation Factor 8 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115560004	100 µF, 25 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x8.7x4 (rev1).igs \| 1.6 MB STP Download_STP_875115xx000x (rev1).stp \| 546.2 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 100 µF	Rated Voltage 25 V (DC)	Endurance 2000	Ripple Current 3100 mA	ESR 25 mΩ	Leakage Current 500 µA	Dissipation Factor 10 %	Diameter 10 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115652007	100 µF, 35 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 100 µF	Rated Voltage 35 V (DC)	Endurance 2000	Ripple Current 3000 mA	ESR 30 mΩ	Leakage Current 700 µA	Dissipation Factor 12 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit –
875115655003	100 µF, 35 V (DC), 5000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x11.7x3 (rev1).igs \| 1.6 MB STP Download_STP_8751156550xx (rev1).stp \| 546.6 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 100 µF	Rated Voltage 35 V (DC)	Endurance 5000	Ripple Current 2800 mA	ESR 30 mΩ	Leakage Current 700 µA	Dissipation Factor 12 %	Diameter 8 mm	Length 11.7 mm	Packaging 15" Tape & Reel	Design Kit –
875115657008	120 µF, 35 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x10.5x4 (rev1).igs \| 1.6 MB STP Download_STP_87511xxx70xx (rev1).stp \| 547.7 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 120 µF	Rated Voltage 35 V (DC)	Endurance 2000	Ripple Current 3200 mA	ESR 30 mΩ	Leakage Current 840 µA	Dissipation Factor 12 %	Diameter 10 mm	Length 10.5 mm	Packaging 15" Tape & Reel	Design Kit –
875115452004	150 µF, 20 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 150 µF	Rated Voltage 20 V (DC)	Endurance 2000	Ripple Current 3500 mA	ESR 20 mΩ	Leakage Current 600 µA	Dissipation Factor 10 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115460005	150 µF, 20 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x8.7x4 (rev1).igs \| 1.6 MB STP Download_STP_875115xx000x (rev1).stp \| 546.2 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 150 µF	Rated Voltage 20 V (DC)	Endurance 2000	Ripple Current 3100 mA	ESR 25 mΩ	Leakage Current 600 µA	Dissipation Factor 10 %	Diameter 10 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115557005	150 µF, 25 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x10.5x4 (rev1).igs \| 1.6 MB STP Download_STP_87511xxx70xx (rev1).stp \| 547.7 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 150 µF	Rated Voltage 25 V (DC)	Endurance 2000	Ripple Current 3700 mA	ESR 20 mΩ	Leakage Current 750 µA	Dissipation Factor 10 %	Diameter 10 mm	Length 10.5 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115350001	180 µF, 16 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x7.7x3 (rev1).igs \| 1.6 MB STP STP_WCAP-PSHP_8.0 x 7 (rev1).stp \| 548 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 180 µF	Rated Voltage 16 V (DC)	Endurance 2000	Ripple Current 3500 mA	ESR 20 mΩ	Leakage Current 288 µA	Dissipation Factor 8 %	Diameter 8 mm	Length 7.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115460006	180 µF, 20 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x8.7x4 (rev1).igs \| 1.6 MB STP Download_STP_875115xx000x (rev1).stp \| 546.2 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 180 µF	Rated Voltage 20 V (DC)	Endurance 2000	Ripple Current 3100 mA	ESR 25 mΩ	Leakage Current 720 µA	Dissipation Factor 10 %	Diameter 10 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115150001	220 µF, 6.3 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x7.7x3 (rev1).igs \| 1.6 MB STP STP_WCAP-PSHP_8.0 x 7 (rev1).stp \| 548 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 220 µF	Rated Voltage 6.3 V (DC)	Endurance 2000	Ripple Current 3500 mA	ESR 20 mΩ	Leakage Current 277.2 µA	Dissipation Factor 8 %	Diameter 8 mm	Length 7.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115350002	220 µF, 16 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x7.7x3 (rev1).igs \| 1.6 MB STP STP_WCAP-PSHP_8.0 x 7 (rev1).stp \| 548 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 220 µF	Rated Voltage 16 V (DC)	Endurance 2000	Ripple Current 3500 mA	ESR 20 mΩ	Leakage Current 352 µA	Dissipation Factor 8 %	Diameter 8 mm	Length 7.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115460007	220 µF, 20 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x8.7x4 (rev1).igs \| 1.6 MB STP Download_STP_875115xx000x (rev1).stp \| 546.2 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 220 µF	Rated Voltage 20 V (DC)	Endurance 2000	Ripple Current 3100 mA	ESR 25 mΩ	Leakage Current 880 µA	Dissipation Factor 10 %	Diameter 10 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115150002	270 µF, 6.3 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x7.7x3 (rev1).igs \| 1.6 MB STP STP_WCAP-PSHP_8.0 x 7 (rev1).stp \| 548 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 270 µF	Rated Voltage 6.3 V (DC)	Endurance 2000	Ripple Current 3500 mA	ESR 20 mΩ	Leakage Current 340.2 µA	Dissipation Factor 8 %	Diameter 8 mm	Length 7.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115352003	270 µF, 16 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 270 µF	Rated Voltage 16 V (DC)	Endurance 2000	Ripple Current 4800 mA	ESR 11 mΩ	Leakage Current 432 µA	Dissipation Factor 10 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit –
875115457008	270 µF, 20 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x10.5x4 (rev1).igs \| 1.6 MB STP Download_STP_87511xxx70xx (rev1).stp \| 547.7 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 270 µF	Rated Voltage 20 V (DC)	Endurance 2000	Ripple Current 3700 mA	ESR 20 mΩ	Leakage Current 1080 µA	Dissipation Factor 10 %	Diameter 10 mm	Length 10.5 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115150003	330 µF, 6.3 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x7.7x3 (rev1).igs \| 1.6 MB STP STP_WCAP-PSHP_8.0 x 7 (rev1).stp \| 548 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 330 µF	Rated Voltage 6.3 V (DC)	Endurance 2000	Ripple Current 3500 mA	ESR 20 mΩ	Leakage Current 415.8 µA	Dissipation Factor 8 %	Diameter 8 mm	Length 7.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115250001	330 µF, 10 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x7.7x3 (rev1).igs \| 1.6 MB STP STP_WCAP-PSHP_8.0 x 7 (rev1).stp \| 548 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 330 µF	Rated Voltage 10 V (DC)	Endurance 2000	Ripple Current 3500 mA	ESR 20 mΩ	Leakage Current 660 µA	Dissipation Factor 8 %	Diameter 8 mm	Length 7.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115360004	330 µF, 16 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x8.7x4 (rev1).igs \| 1.6 MB STP Download_STP_875115xx000x (rev1).stp \| 546.2 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 330 µF	Rated Voltage 16 V (DC)	Endurance 2000	Ripple Current 3700 mA	ESR 20 mΩ	Leakage Current 528 µA	Dissipation Factor 10 %	Diameter 10 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115150004	390 µF, 6.3 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x7.7x3 (rev1).igs \| 1.6 MB STP STP_WCAP-PSHP_8.0 x 7 (rev1).stp \| 548 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 390 µF	Rated Voltage 6.3 V (DC)	Endurance 2000	Ripple Current 3500 mA	ESR 20 mΩ	Leakage Current 491 µA	Dissipation Factor 8 %	Diameter 8 mm	Length 7.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115250002	390 µF, 10 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x7.7x3 (rev1).igs \| 1.6 MB STP STP_WCAP-PSHP_8.0 x 7 (rev1).stp \| 548 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 390 µF	Rated Voltage 10 V (DC)	Endurance 2000	Ripple Current 3500 mA	ESR 20 mΩ	Leakage Current 780 µA	Dissipation Factor 8 %	Diameter 8 mm	Length 7.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115360005	390 µF, 16 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x8.7x4 (rev1).igs \| 1.6 MB STP Download_STP_875115xx000x (rev1).stp \| 546.2 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 390 µF	Rated Voltage 16 V (DC)	Endurance 2000	Ripple Current 3700 mA	ESR 20 mΩ	Leakage Current 624 µA	Dissipation Factor 10 %	Diameter 10 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115150005	470 µF, 6.3 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x7.7x3 (rev1).igs \| 1.6 MB STP STP_WCAP-PSHP_8.0 x 7 (rev1).stp \| 548 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 470 µF	Rated Voltage 6.3 V (DC)	Endurance 2000	Ripple Current 3500 mA	ESR 20 mΩ	Leakage Current 592 µA	Dissipation Factor 8 %	Diameter 8 mm	Length 7.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115252003	470 µF, 10 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 470 µF	Rated Voltage 10 V (DC)	Endurance 2000	Ripple Current 4800 mA	ESR 11 mΩ	Leakage Current 940 µA	Dissipation Factor 8 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115260004	470 µF, 10 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x8.7x4 (rev1).igs \| 1.6 MB STP Download_STP_875115xx000x (rev1).stp \| 546.2 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 470 µF	Rated Voltage 10 V (DC)	Endurance 2000	Ripple Current 3700 mA	ESR 20 mΩ	Leakage Current 940 µA	Dissipation Factor 8 %	Diameter 10 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115357006	470 µF, 16 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x10.5x4 (rev1).igs \| 1.6 MB STP Download_STP_87511xxx70xx (rev1).stp \| 547.7 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 470 µF	Rated Voltage 16 V (DC)	Endurance 2000	Ripple Current 5100 mA	ESR 11 mΩ	Leakage Current 752 µA	Dissipation Factor 10 %	Diameter 10 mm	Length 10.5 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115152006	560 µF, 6.3 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 560 µF	Rated Voltage 6.3 V (DC)	Endurance 2000	Ripple Current 4800 mA	ESR 11 mΩ	Leakage Current 705.6 µA	Dissipation Factor 8 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115260005	560 µF, 10 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x8.7x4 (rev1).igs \| 1.6 MB STP Download_STP_875115xx000x (rev1).stp \| 546.2 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 560 µF	Rated Voltage 10 V (DC)	Endurance 2000	Ripple Current 3700 mA	ESR 20 mΩ	Leakage Current 1120 µA	Dissipation Factor 8 %	Diameter 10 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115152007	680 µF, 6.3 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_8x8.7x3 (rev1).igs \| 1.6 MB STP Download_STP_875115xx20xx (rev1).stp \| 547.9 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 680 µF	Rated Voltage 6.3 V (DC)	Endurance 2000	Ripple Current 4800 mA	ESR 11 mΩ	Leakage Current 856 µA	Dissipation Factor 10 %	Diameter 8 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115260006	680 µF, 10 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x8.7x4 (rev1).igs \| 1.6 MB STP Download_STP_875115xx000x (rev1).stp \| 546.2 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 680 µF	Rated Voltage 10 V (DC)	Endurance 2000	Ripple Current 3700 mA	ESR 20 mΩ	Leakage Current 1360 µA	Dissipation Factor 10 %	Diameter 10 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115160008	820 µF, 6.3 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x8.7x4 (rev1).igs \| 1.6 MB STP Download_STP_875115xx000x (rev1).stp \| 546.2 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 820 µF	Rated Voltage 6.3 V (DC)	Endurance 2000	Ripple Current 3700 mA	ESR 20 mΩ	Leakage Current 1033.2 µA	Dissipation Factor 10 %	Diameter 10 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115257007	820 µF, 10 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x10.5x4 (rev1).igs \| 1.6 MB STP Download_STP_87511xxx70xx (rev1).stp \| 547.7 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 820 µF	Rated Voltage 10 V (DC)	Endurance 2000	Ripple Current 5100 mA	ESR 11 mΩ	Leakage Current 1640 µA	Dissipation Factor 10 %	Diameter 10 mm	Length 10.5 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115160009	1000 µF, 6.3 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x8.7x4 (rev1).igs \| 1.6 MB STP Download_STP_875115xx000x (rev1).stp \| 546.2 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 1000 µF	Rated Voltage 6.3 V (DC)	Endurance 2000	Ripple Current 3700 mA	ESR 20 mΩ	Leakage Current 1260 µA	Dissipation Factor 10 %	Diameter 10 mm	Length 8.7 mm	Packaging 15" Tape & Reel	Design Kit 875115
875115157010	1200 µF, 6.3 V (DC), 2000	Simulation	Downloads 8 files EDA models: Components ZIP ALT Altium_WCAP-PSHP (rev22c).IntLib \| 740 KB CDS Cadence_WCAP-PSHP (rev22a).zip \| 3.6 MB EAG Eagle_WCAP-PSHP (rev20a).lbr \| 85 KB KIC KiCad_WCAP-PSHP (rev25b).zip \| 1 MB ZUK Cadstar_WCAP-PSHP (rev19a).zip \| 8.7 KB CAD files ZIP IGS IGS_PSHP_10x10.5x4 (rev1).igs \| 1.6 MB STP Download_STP_87511xxx70xx (rev1).stp \| 547.7 KB Electric models ZIP PSP PSpice_WCAP-PSHP (rev22a).zip \| 11.7 KB Download all 8 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Capacitance 1200 µF	Rated Voltage 6.3 V (DC)	Endurance 2000	Ripple Current 5100 mA	ESR 11 mΩ	Leakage Current 1260 µA	Dissipation Factor 10 %	Diameter 10 mm	Length 10.5 mm	Packaging 15" Tape & Reel	Design Kit 875115

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WCAP-PSHP Aluminum Polymer Capacitors
