Beschreibung

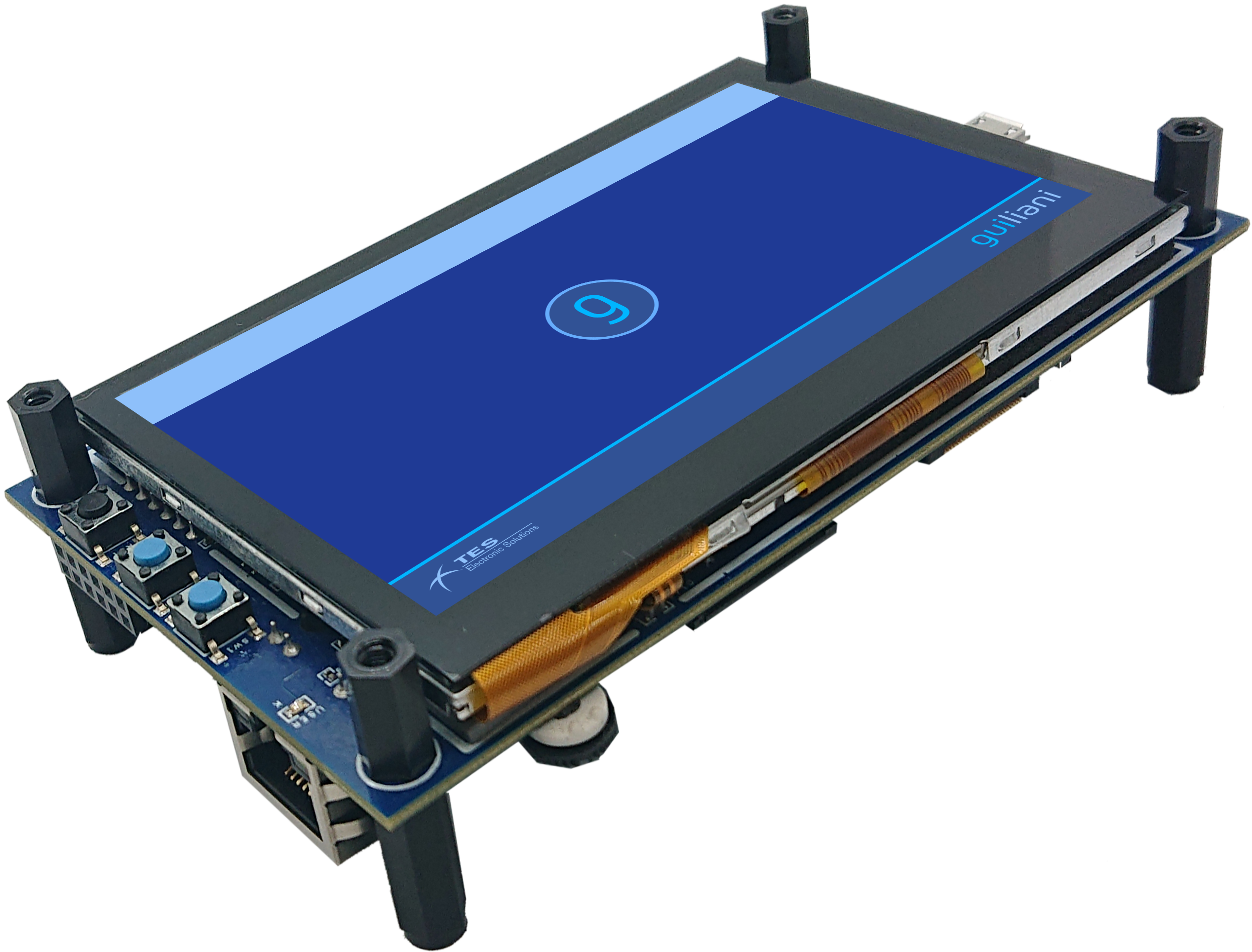

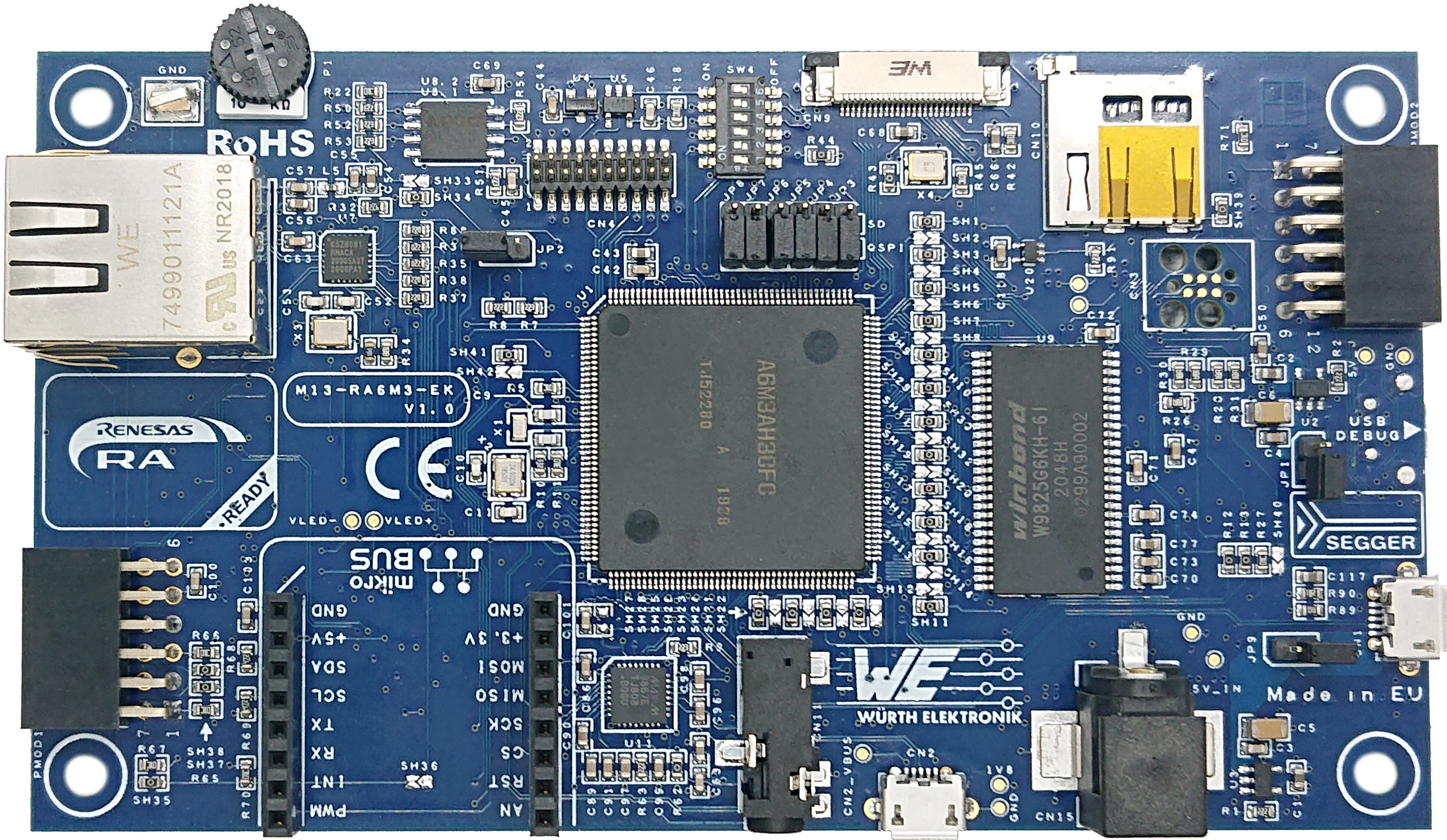

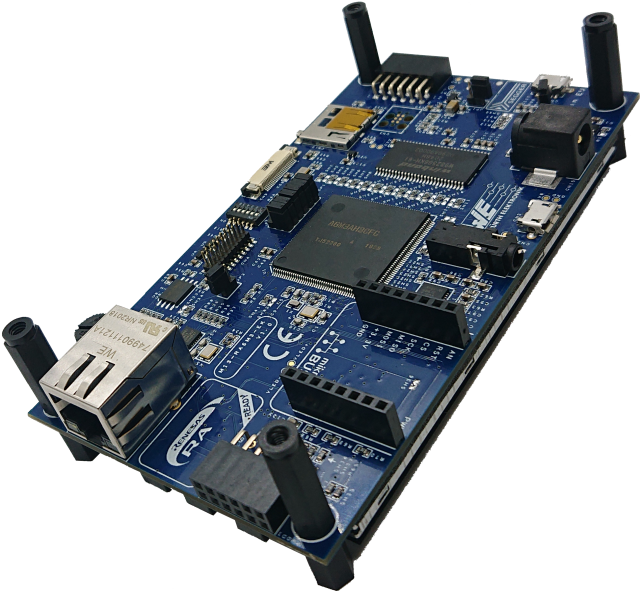

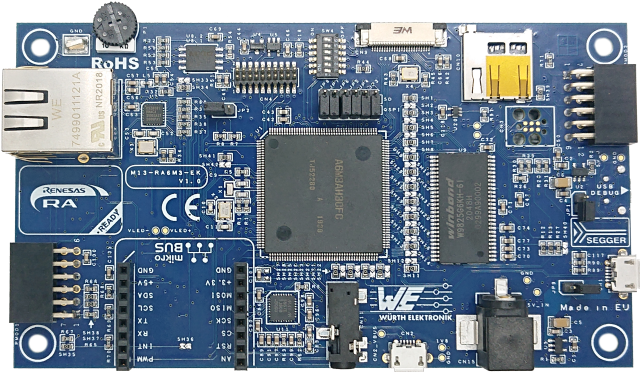

The M13-RA6M3-EK is a complete evaluation and development platform for the Renesas Electronics® based RA6M3 Cortex®-M4 R7FA6M3AH3CFC microcontroller. The many hardware features on the board helps users to quickly evaluate all the available peripherals (10/100-Mbit Ethernet, microSDTM card, USB host/device, Audio codec with 4-pole Jack, SDRAM, Quad-SPI Flash memory, 4.3-inch colour LCD-TFT with capacitive touch panel, and many others) and to develop their custom applications. PMOD™ and Mikrobus™ connectors make it possible to easily extent the boards features (Sensors, communication and network modules and many more). The integrated JLink-OB debug probe provides in-circuit debug and programming for the RA6M3 device and also a built-in VCOM functionality.
Eigenschaften
- Renesas RA6M3 (Cortex®-M4) Microcontroller R7FA6M3AH3CFC
- LQFP176 Package
- 2Mbyte Internal Flash
- 640Kbyte Internal RAM
- 32Mbyte external Serial Flash
- 16Kbit I²C EEPROM
- 4.3-inch 480x272 TFT LCD with capacitive touch panel
- USB Interface
- LAN Interface
- SD/MMC Host Interface (4 bits)
- I2S Audio codec
- 3-Axis accelerometer
- On-board JLINK-OB debugger with VCOM
- 19-pins 1.27mm pitch JTAG connector
