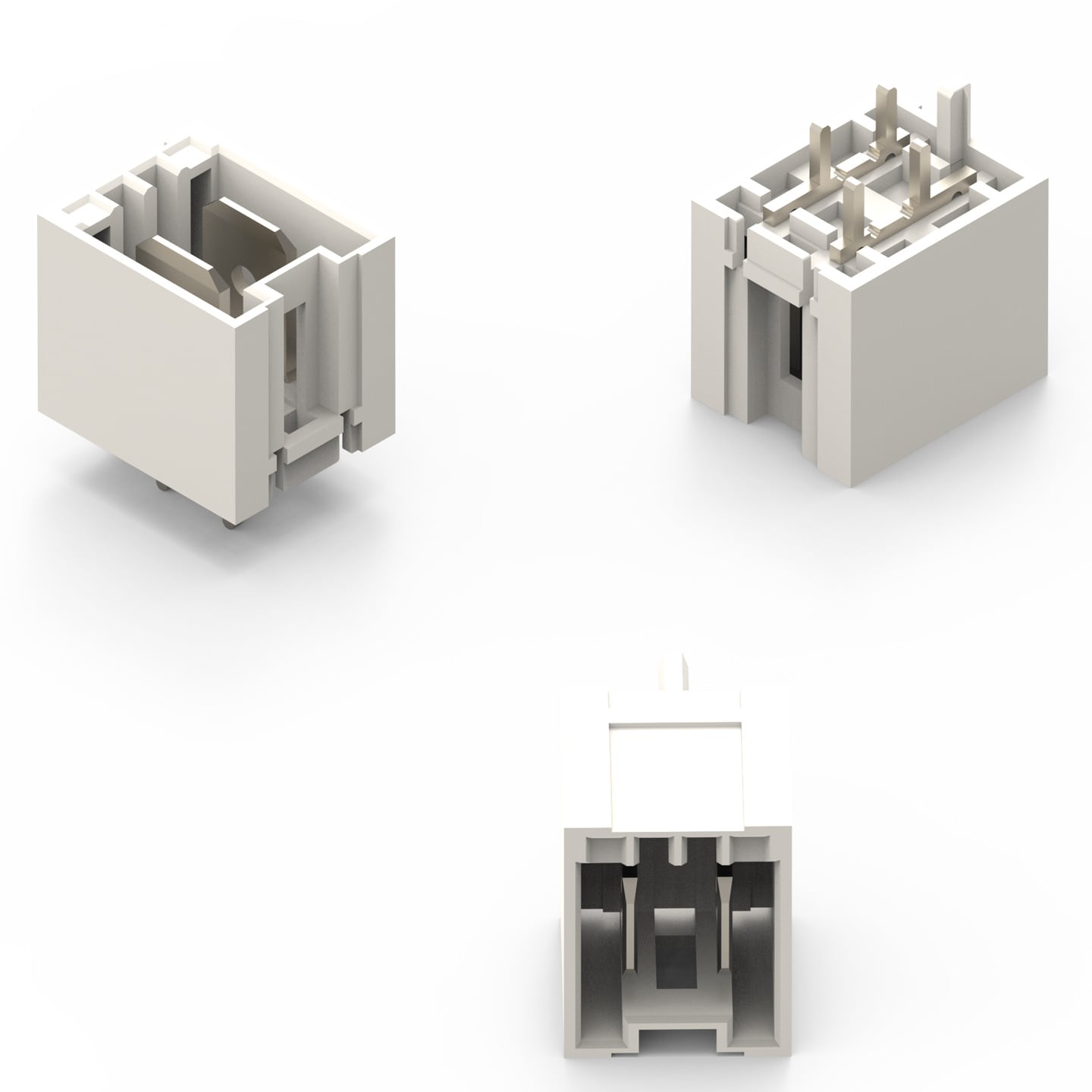

WR-RAST 5mm Male Vertical Header

Characteristics

Pitch: 5mm
Operating Temperature: -40 °C up to +110 °C
Contact Type: Stamped
Insulator Material: PA66
Insulator Flammability Rating: UL94 V-0
Insulator Color: Natural
Contact Material: Copper Alloy
Contact Plating: Tin
Withstanding Voltage: 500 V (AC)

Glow-Wire Compliancy

Conform to IEC 60335-1
Tested at 750 °C and 850 °C
Perform by third party laboratory
Suitable for non-attended appliances and many other applications

Applications

White goods
Unattended appliance

Products

	Order Code	Datasheet	Downloads	Status	Polarity	Pitch (mm)	Coding	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Insulator Material	Insulator Color	Packaging	Samples
	637101110102	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110102 (rev1).igs \| 1.3 MB STP STP_ConRAST_637101110102 (rev1).stp \| 314.8 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	5	0A	16	380	20	PA66	Natural	Tray
	637101110202	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110202 (rev1).igs \| 1.4 MB STP STP_ConRAST_637101110202 (rev1).stp \| 324.2 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	5	0B	16	380	20	PA66	Natural	Tray
	637101110108	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110108 (rev1).igs \| 4.1 MB STP STP_ConRAST_637101110108 (rev1).stp \| 986.2 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	5	0A	16	380	20	PA66	Natural	Tray
	637101110103	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110103 (rev1).igs \| 1.9 MB STP STP_ConRAST_637101110103 (rev1).stp \| 454.9 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	5	0A	16	380	20	PA66	Natural	Tray
	637101110203	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110203 (rev1).igs \| 1.9 MB STP STP_ConRAST_637101110203 (rev1).stp \| 451.8 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	5	0B	16	380	20	PA66	Natural	Tray
	637101110503	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110503 (rev1).igs \| 1.9 MB STP STP_ConRAST_637101110503 (rev1).stp \| 450.6 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	5	0F	16	380	20	PA66	Natural	Tray
	637101110703	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110703 (rev1).igs \| 1.9 MB STP STP_ConRAST_637101110703 (rev1).stp \| 449.3 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	5	0K	16	380	20	PA66	Natural	Tray
	637101110104	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110104 (rev1).igs \| 2.3 MB STP STP_ConRAST_637101110104 (rev1).stp \| 548.8 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	5	0A	16	380	20	PA66	Natural	Tray
	637101110204	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110204 (rev1).igs \| 2.3 MB STP STP_ConRAST_637101110204 (rev1).stp \| 544.4 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	5	0B	16	380	20	PA66	Natural	Tray
	637101110105	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110105 (rev1).igs \| 2.8 MB STP STP_ConRAST_637101110105 (rev1).stp \| 652.6 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	5	0A	16	380	20	PA66	Natural	Tray
	637101110205	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110205 (rev1).igs \| 2.7 MB STP STP_ConRAST_637101110205 (rev1).stp \| 645.5 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	5	0B	16	380	20	PA66	Natural	Tray
	637101110106	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110106 (rev1).igs \| 3.2 MB STP STP_ConRAST_637101110106 (rev1).stp \| 755.4 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	5	0A	16	380	20	PA66	Natural	Tray
	637101110107	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110107 (rev1).igs \| 3.7 MB STP STP_ConRAST_637101110107 (rev1).stp \| 872.2 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	5	0A	16	380	20	PA66	Natural	Tray
	637101110207	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110207 (rev1).igs \| 3.6 MB STP STP_ConRAST_637101110207 (rev1).stp \| 869.4 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	5	0B	16	380	20	PA66	Natural	Tray
	637101110307	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110307 (rev1).igs \| 3.6 MB STP STP_ConRAST_637101110307 (rev1).stp \| 862.5 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	5	0C	16	380	20	PA66	Natural	Tray
	637101110109	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110109 (rev1).igs \| 4.5 MB STP STP_ConRAST_637101110109 (rev1).stp \| 1.1 MB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	5	0A	16	380	20	PA66	Natural	Tray
	637101110110	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-RAST (rev24a).IntLib \| 3.3 MB CDS Cadence_WR-RAST (rev24a).zip \| 10.4 MB EAG Eagle_WR-RAST (rev24a).lbr \| 216.5 KB CAD files ZIP IGS IGS_ConRAST_637101110110 (rev1).igs \| 4.9 MB STP STP_ConRAST_637101110110 (rev1).stp \| 1.2 MB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	5	0A	16	380	20	PA66	Natural	Tray
