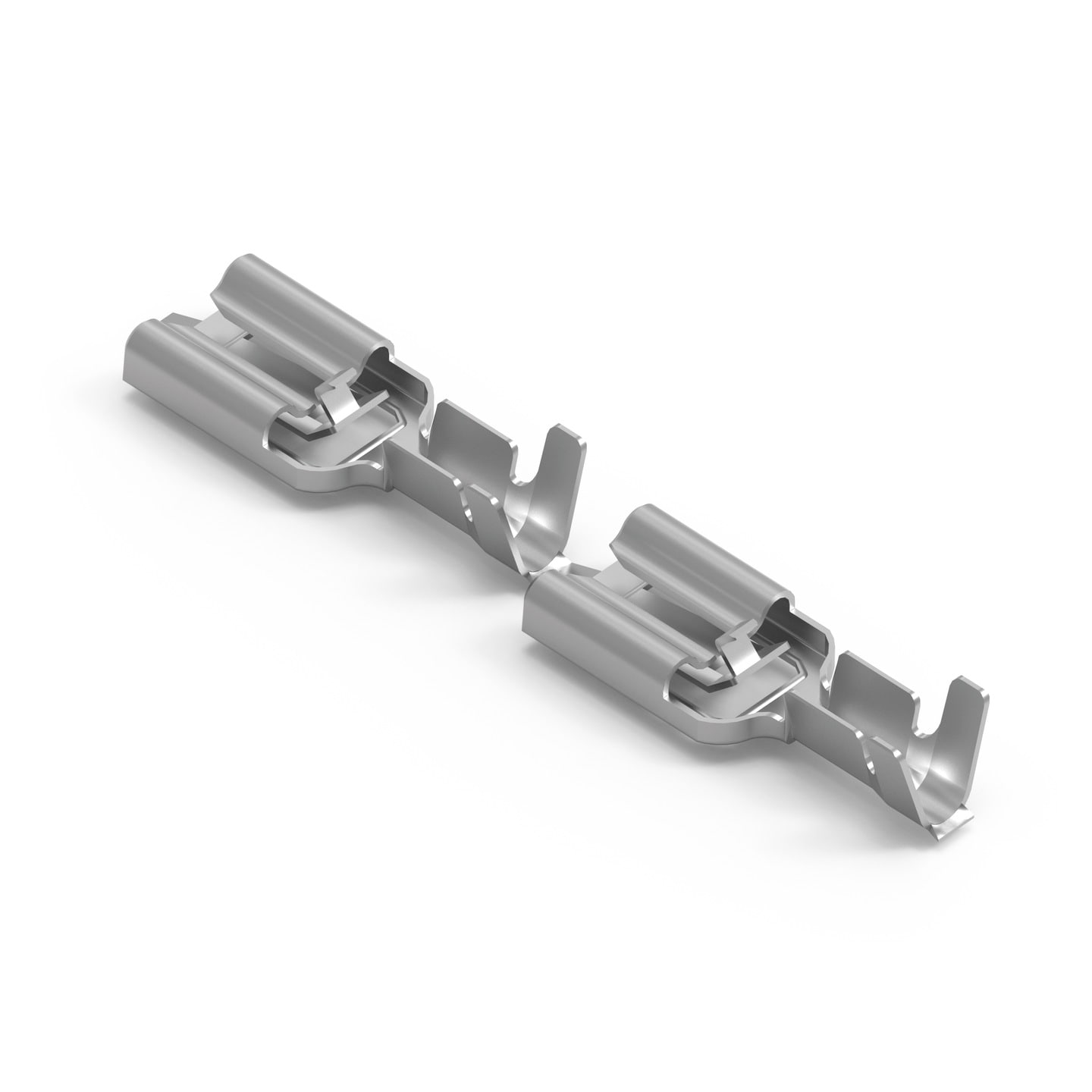

WR-RAST Female Crimping Terminal

EXTENDED
WR-RAST Female Crimping Terminal

Characteristics

  • Rated Current: 16 A
  • Working Voltage: 380 V
  • Operating temperature: -40 °C up to +120 °C
  • UL approval: E323964
  • UL 94-V0

Products

Filter article data
Filter by
Delete all
 show  article in 0 product lines
 article in 0 product lines
Reset all
Order Code
Data­sheet
Downloads
Status
Stranded Wire Section
Contact Material
Contact Plating
Packaging
Manual Crimping Tool
Samples
WR-RAST Female Crimping Terminal
637301310000
18-14 AWG, Copper Alloy, Tin
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Stranded Wire Section 18-14 AWG
Contact MaterialCopper Alloy
Contact PlatingTin
PackagingReel
Manual Crimping Tool
600500500001600500500002
WR-RAST Female Crimping Terminal
637301310000DEC
18-14 AWG, Copper Alloy, Tin
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Stranded Wire Section 18-14 AWG
Contact MaterialCopper Alloy
Contact PlatingTin
PackagingBag
Manual Crimping Tool –
WR-RAST Female Crimping Terminal
637301320000DEC
20-22 AWG, Copper Alloy, Tin
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Newi| Product is new in our portfolio and production is active. Expected lifetime: >10 years.
Stranded Wire Section 20-22 AWG
Contact MaterialCopper Alloy
Contact PlatingTin
PackagingBag
Manual Crimping Tool –
WR-RAST Female Crimping Terminal
637301320000
22-20 AWG, Copper Alloy, Tin
Downloads3 files

CAD files ZIP

Download all 3 files as zip archive
ZIP

Status Activei| Production is active. Expected lifetime: >10 years.
Stranded Wire Section 22-20 AWG
Contact MaterialCopper Alloy
Contact PlatingTin
PackagingReel
Manual Crimping Tool
600500500003

RAST 5 Coding

Overview about coding options

Info RAST Coding Options
Info RAST Coding Options
Rast Coding 2 Poles
Rast Coding 2 Poles
Rast Coding 3 Poles
Rast Coding 3 Poles
Rast Coding 4 Poles
Rast Coding 4 Poles
Rast Coding 5 Poles
Rast Coding 5 Poles
Rast Coding 6 Poles
Rast Coding 6 Poles
Rast Coding 7 Poles
Rast Coding 7 Poles
Rast Coding 8 Poles
Rast Coding 8 Poles
Rast Coding 9 Poles
Rast Coding 9 Poles
Rast Coding 10 Poles
Rast Coding 10 Poles
Rast Coding 11 Poles
Rast Coding 11 Poles
Rast Coding 12 Poles
Rast Coding 12 Poles

Mates with

WR-RAST Male Header Crimp 5 mm
