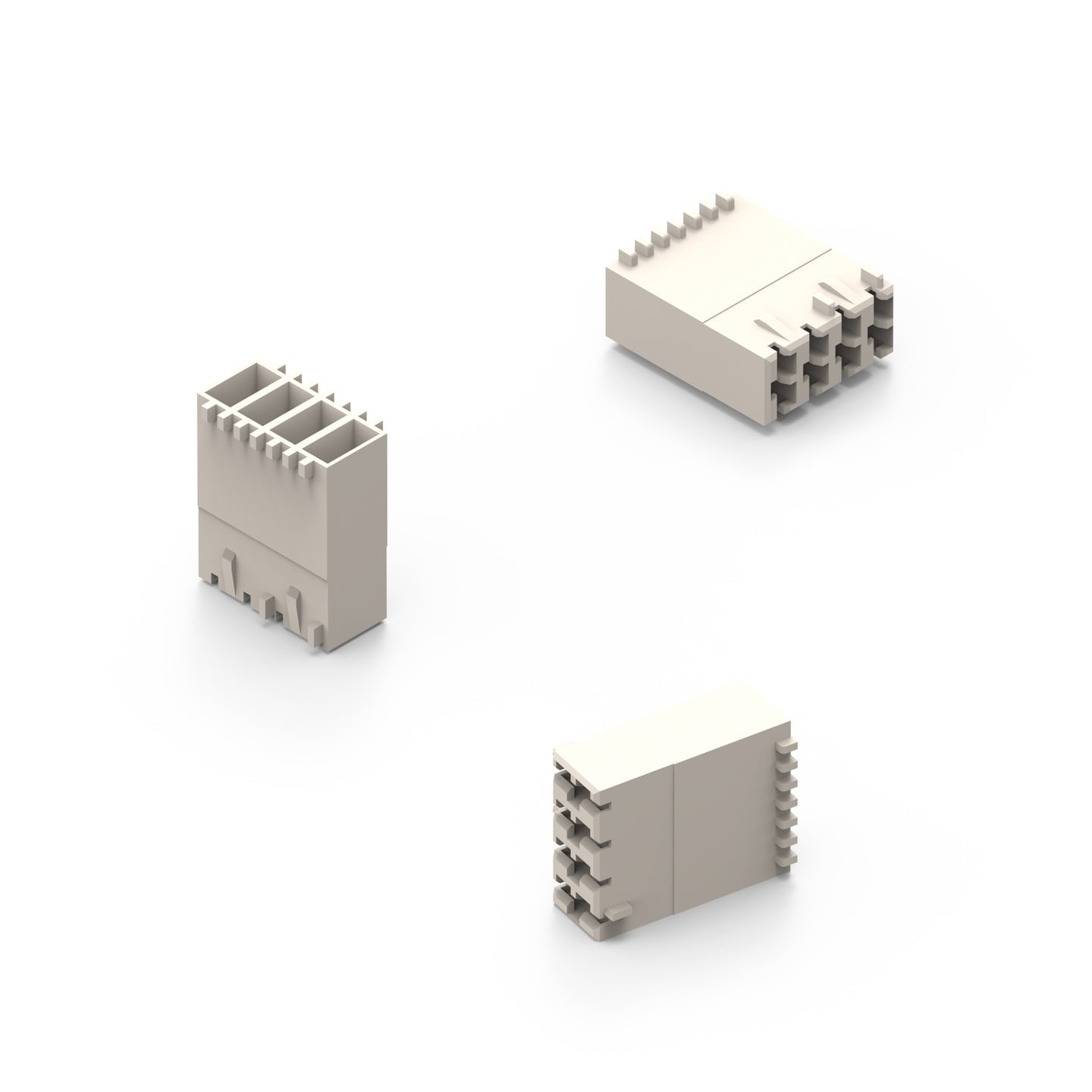

WR-RAST Female Housing Crimp 5 mm

Characteristics

Rated Current: 16 A
Working Voltage: 380 V
Operating Temperature: -40 °C up to +120 °C
Insulator Color: Natural
Insulator Flammability Rating: UL94 V-0
Glow-Wire Compliancy
Conform to IEC 60335-1
Tested at 750 °C and 850 °C
Perform by third party laboratory
Suitable for non-attended appliances and many other applications

Applications

White goods
Unattended appliance

Other polarities, plastic housing color and printings are possible. Please contact your local sales contact if you are interested in this variant.

Products

Filter article data

show article in 0 product lines

article in 0 product lines

	Order Code	Datasheet	Downloads	Status	Polarity	Pitch (mm)	Coding	Packaging	Mates with	Samples
	637100210102	2, 5 mm, 0A	Downloads 3 files CAD files ZIP 3D 637100210102_3D (rev1).pdf \| 58.2 KB IGS 637100210102 (rev1).igs \| 1004.1 KB STP 637100210102 (rev1).stp \| 236.9 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 2	Pitch 5 mm	Coding 0A	Packaging Bag	Mates with 637101110102 637101110202 637101120102 637101120202
	637100210202	2, 5 mm, 0B	Downloads 3 files CAD files ZIP 3D 637100210202_3D (rev1).pdf \| 56.5 KB IGS 637100210202 (rev1).igs \| 962.2 KB STP 637100210202 (rev1).stp \| 227.4 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 2	Pitch 5 mm	Coding 0B	Packaging Bag	Mates with 637101110102 637101110202 637101120102 637101120202
	637100210103	3, 5 mm, 0A	Downloads 3 files CAD files ZIP 3D 637100210103_3D (rev1).pdf \| 77.2 KB IGS 637100210103 (rev1).igs \| 1.3 MB STP 637100210103 (rev1).stp \| 320.3 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 3	Pitch 5 mm	Coding 0A	Packaging Bag	Mates with 637101110103 637101110203 637101110503 637101110703 637101120103 637101120203 637101120503 637101120703
	637100210203	3, 5 mm, 0B	Downloads 3 files CAD files ZIP 3D 637100210203_3D (rev1).pdf \| 79 KB IGS 637100210203 (rev1).igs \| 1.4 MB STP 637100210203 (rev1).stp \| 329.7 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 3	Pitch 5 mm	Coding 0B	Packaging Bag	Mates with 637101110103 637101110203 637101110503 637101110703 637101120103 637101120203 637101120503 637101120703
	637100210503	3, 5 mm, 0F	Downloads 3 files CAD files ZIP 3D 637100210503_3D (rev1).pdf \| 77.2 KB IGS 637100210503 (rev1).igs \| 1.3 MB STP 637100210503 (rev1).stp \| 320.7 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 3	Pitch 5 mm	Coding 0F	Packaging Bag	Mates with 637101110103 637101110203 637101110503 637101110703 637101120103 637101120203 637101120503 637101120703
	637100210703	3, 5 mm, 0K	Downloads 3 files CAD files ZIP 3D 637100210703_3D (rev1).pdf \| 77.2 KB IGS 637100210703 (rev1).igs \| 1.3 MB STP 637100210703 (rev1).stp \| 320.3 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 3	Pitch 5 mm	Coding 0K	Packaging Bag	Mates with 637101110103 637101110203 637101110503 637101110703 637101120103 637101120203 637101120503 637101120703
	637100210104	4, 5 mm, 0A	Downloads 3 files CAD files ZIP 3D 637100210104_3D (rev1).pdf \| 99.4 KB IGS 637100210104 (rev1).igs \| 1.7 MB STP 637100210104 (rev1).stp \| 419.6 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 4	Pitch 5 mm	Coding 0A	Packaging Bag	Mates with 637101110104 637101110204 637101120104 637101120204
	637100210204	4, 5 mm, 0B	Downloads 3 files CAD files ZIP 3D 637100210204_3D (rev1).pdf \| 99.4 KB IGS 637100210204 (rev1).igs \| 1.7 MB STP 637100210204 (rev1).stp \| 419.8 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 4	Pitch 5 mm	Coding 0B	Packaging Bag	Mates with 637101110104 637101110204 637101120104 637101120204
	637100210105	5, 5 mm, 0A	Downloads 3 files CAD files ZIP 3D 637100210105_3D (rev1).pdf \| 124.5 KB IGS 637100210105 (rev1).igs \| 2.2 MB STP 637100210105 (rev1).stp \| 526.6 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 5	Pitch 5 mm	Coding 0A	Packaging Bag	Mates with 637101110105 637101110205 637101120105 637101120205
	637100210205	5, 5 mm, 0B	Downloads 3 files CAD files ZIP 3D 637100210205_3D (rev1).pdf \| 120.8 KB IGS 637100210205 (rev1).igs \| 2.1 MB STP 637100210205 (rev1).stp \| 507.9 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 5	Pitch 5 mm	Coding 0B	Packaging Bag	Mates with 637101110105 637101110205 637101120105 637101120205
	637100210106	6, 5 mm, 0A	Downloads 3 files CAD files ZIP 3D 637100210106_3D (rev1).pdf \| 145.6 KB IGS 637100210106 (rev1).igs \| 2.5 MB STP 637100210106 (rev1).stp \| 616.4 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 6	Pitch 5 mm	Coding 0A	Packaging Bag	Mates with 637101110106 637101120106
	637100210107	7, 5 mm, 0A	Downloads 3 files CAD files ZIP 3D 637100210107_3D (rev1).pdf \| 167.5 KB IGS 637100210107 (rev1).igs \| 2.9 MB STP 637100210107 (rev1).stp \| 713.9 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 7	Pitch 5 mm	Coding 0A	Packaging Bag	Mates with 637101110107 637101110207 637101110307 637101120107 637101120207 637101120307
	637100210207	7, 5 mm, 0B	Downloads 3 files CAD files ZIP 3D 637100210207_3D (rev1).pdf \| 165.6 KB IGS 637100210207 (rev1).igs \| 2.9 MB STP 637100210207 (rev1).stp \| 704.6 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 7	Pitch 5 mm	Coding 0B	Packaging Bag	Mates with 637101110107 637101110207 637101110307 637101120107 637101120207 637101120307
	637100210307	7, 5 mm, 0C	Downloads 3 files CAD files ZIP 3D 637100210307_3D (rev1).pdf \| 167.5 KB IGS 637100210307 (rev1).igs \| 2.9 MB STP 637100210307 (rev1).stp \| 713.8 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 7	Pitch 5 mm	Coding 0C	Packaging Bag	Mates with 637101110107 637101110207 637101110307 637101120107 637101120207 637101120307
	637100210108	8, 5 mm, 0A	Downloads 3 files CAD files ZIP 3D 637100210108_3D (rev1).pdf \| 193.9 KB IGS 637100210108 (rev1).igs \| 3.4 MB STP 637100210108 (rev1).stp \| 834.2 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 8	Pitch 5 mm	Coding 0A	Packaging Bag	Mates with 637101110108 637101120108
	637100210109	9, 5 mm, 0A	Downloads 2 files CAD files ZIP IGS IGS_ConRAST_637100210109 (rev1).igs \| 3.6 MB STP STP_ConRAST_637100210109 (rev1).stp \| 885.6 KB Download all 2 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 9	Pitch 5 mm	Coding 0A	Packaging Bag	Mates with 637101110109 637101120109
	637100210110	10, 5 mm, 0A	Downloads 3 files CAD files ZIP 3D 637100210110_3D (rev1).pdf \| 230.3 KB IGS 637100210110 (rev1).igs \| 4 MB STP 637100210110 (rev1).stp \| 992.8 KB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Polarity 10	Pitch 5 mm	Coding 0A	Packaging Bag	Mates with 637101110110 637101120110

RAST 5 Coding

Overview about coding options

Info RAST Coding Options

Info RAST Coding Options

Rast Coding 2 Poles

Rast Coding 2 Poles

Rast Coding 3 Poles

Rast Coding 3 Poles

Rast Coding 4 Poles

Rast Coding 4 Poles

Rast Coding 5 Poles

Rast Coding 5 Poles

Rast Coding 6 Poles

Rast Coding 6 Poles

Rast Coding 7 Poles

Rast Coding 7 Poles

Rast Coding 8 Poles

Rast Coding 8 Poles

Rast Coding 9 Poles

Rast Coding 9 Poles

Rast Coding 10 Poles

Rast Coding 10 Poles

Rast Coding 11 Poles

Rast Coding 11 Poles

Rast Coding 12 Poles

Rast Coding 12 Poles

Mates with

WR-RAST Male Header Crimp 5 mm
