WR-CXASY N Type to SMA Series

Size	Dimensions

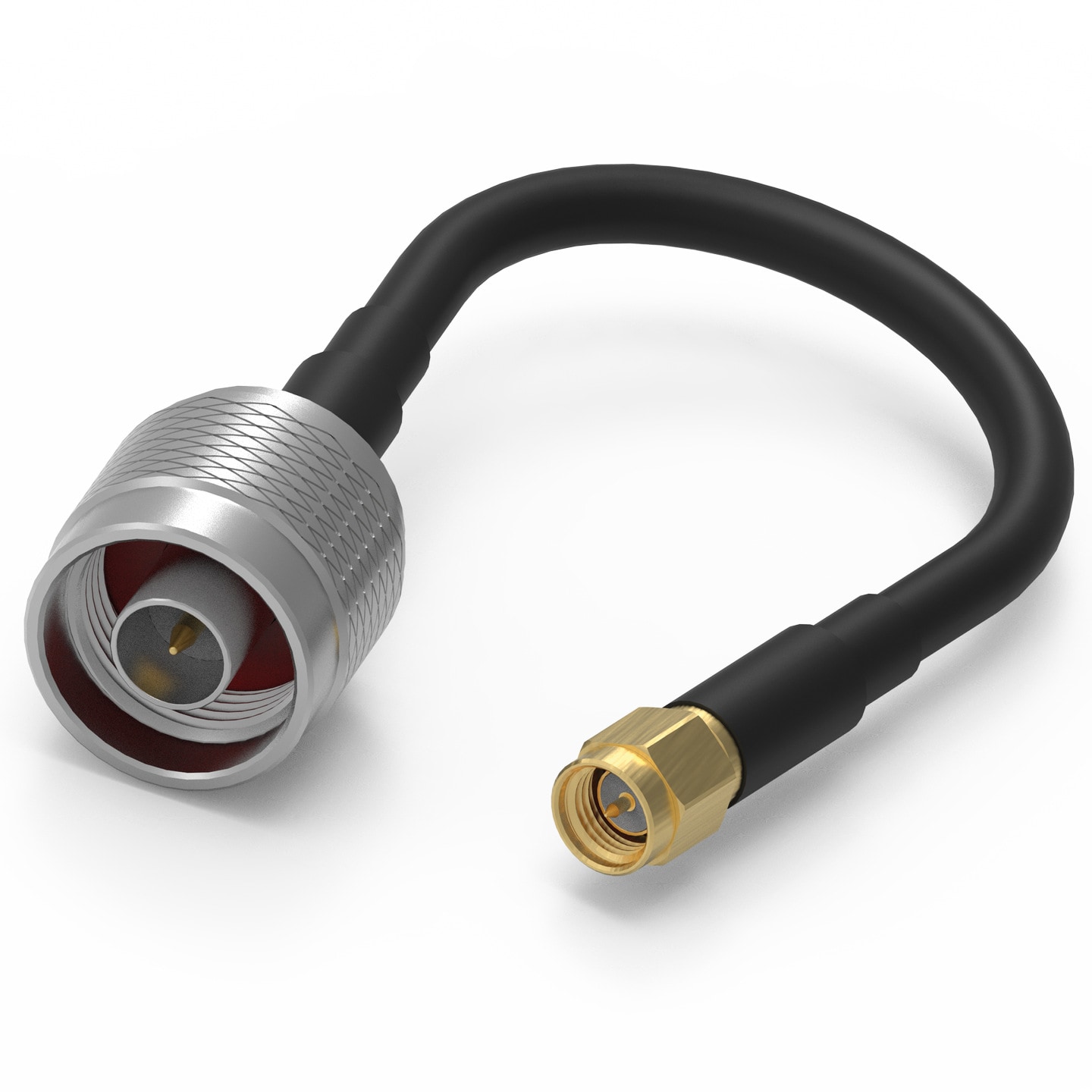

N Type Straight Plug \| SMA Straight Plug
N Type Straight Plug \| SMA Straight Jack

Characteristics

Interface: MIL-STD-348
Mating Cycle: 500 Cycles
Impedance: 50 Ohm
Insulation Resistance: 5000 MOhm (min.)
Withstanding Voltage: 1000 Vrms (min.)

Applications

Network and Communications
RF Test and Measurement Equipment
Industrial Application
Electronic Consumer and Device

Application Notes

ANE016 Coaxial cables and cable assemblies
PDF

Products

All

N Type Straight Plug | SMA Straight Plug

N Type Straight Plug | SMA Straight Jack

Order Code	Datasheet	Downloads	Cable	Cable Type	Nominal Cable Length (mm)	f	Nominal Outer Cable Diameter (mm)	Min. Bend Radius (mm)	Operating Temperature	Samples
65507012430501	SPEC	3 files CAD files ZIP 3D 3D_65507012430501 (rev1).pdf \| 5 MB IGS Download_IGS_65507012430501 (rev1).igs \| 35 MB STP Download_STP_65507012430501 (rev1).stp \| 18.1 MB Download all 3 files as zip archive ZIP	Low Loss 195	Flexible	304.8	DC~6 GHz	4.95	30	-40 °C up to +85 °C
65506812430501	SPEC	3 files CAD files ZIP 3D 3D_65506812430501 (rev1).pdf \| 4.4 MB IGS Download_IGS_65506812430501 (rev1).igs \| 10.5 MB STP Download_STP_65506812430501 (rev1).stp \| 6 MB Download all 3 files as zip archive ZIP	Low Loss 195	Flexible	304.8	DC~6 GHz	4.95	12.7	-40 °C up to +85 °C
65507011630501	SPEC	3 files CAD files ZIP 3D 3D_65507011630501 (rev1).pdf \| 4.5 MB IGS Download_IGS_65507011630501 (rev1).igs \| 31.5 MB STP Download_STP_65507011630501 (rev1).stp \| 15.3 MB Download all 3 files as zip archive ZIP	RG-316/U	Flexible	304.8	DC~6 GHz	2.49	12.7	-55 °C up to +165 °C
65507010330501	SPEC	3 files CAD files ZIP 3D 3D_65507010330501 (rev1).pdf \| 4.5 MB IGS Download_IGS_65507010330501 (rev1).igs \| 31.6 MB STP Download_STP_65507010330501 (rev1).stp \| 15.3 MB Download all 3 files as zip archive ZIP	RG-174/U	Flexible	304.8	DC~1 GHz	2.7	30	-55 °C up to +165 °C
65506811630501	SPEC	3 files CAD files ZIP 3D 3D_65506811630501 (rev1).pdf \| 829.3 KB IGS Download_IGS_65506811630501 (rev1).igs \| 10.5 MB STP Download_STP_65506811630501 (rev1).stp \| 6 MB Download all 3 files as zip archive ZIP	RG-316/U	Flexible	304.8	DC~6 GHz	2.49	12.7	-55 °C up to +165 °C
65506810330501	SPEC	3 files CAD files ZIP 3D 3D_65506810330501 (rev1).pdf \| 4.7 MB IGS Download_IGS_65506810330501 (rev1).igs \| 10.5 MB STP Download_STP_65506810330501 (rev1).stp \| 6 MB Download all 3 files as zip archive ZIP	RG-174/U	Flexible	304.8	DC~1 GHz	2.7	30	-20 °C up to +80 °C
