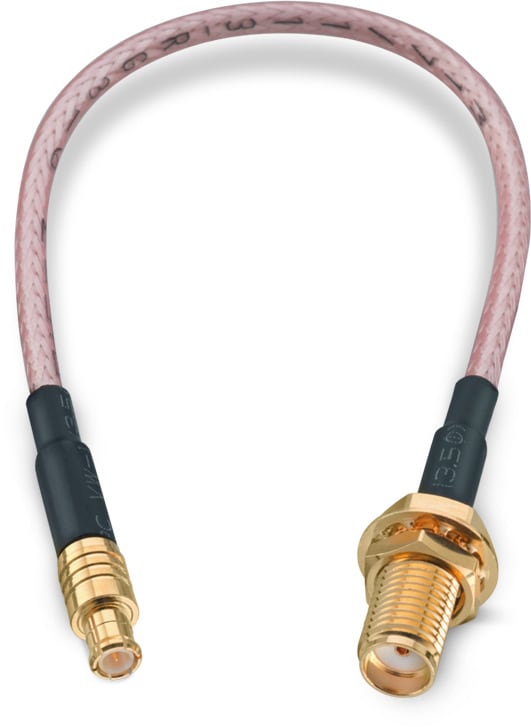

WR-CXASY SMA Bulkhead Jack to MCX Straight Plug / RG-316/U Flexible Cable / 152.4 mm length

WR-CXASY SMA Bulkhead Jack to MCX Straight Plug / RG-316/U Flexible Cable / 152.4 mm length
Material Properties
CableRG-316/U
General Information
Operating Temperature-55 °C up to +155 °C
Cable TypeFlexible
Cable ShieldingBraid
Connector Type 1SMA
Connector Type 2MCX
Gender 1Jack
Gender 2Plug
Orientation Type 1Straight
Orientation Type 2Straight
Mechanical Properties
Min. Bend Radius12.7 mm

Application Notes

Products

Order Code Data­sheet Downloads Statusf Samples
65503206515305SPEC

PCN pending

Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff.

3 files

CAD files
ZIP

Download all 3 files as zip archive
ZIP

 Active i| Production is active. Expected lifetime: >10 years. DC~6 GHz
