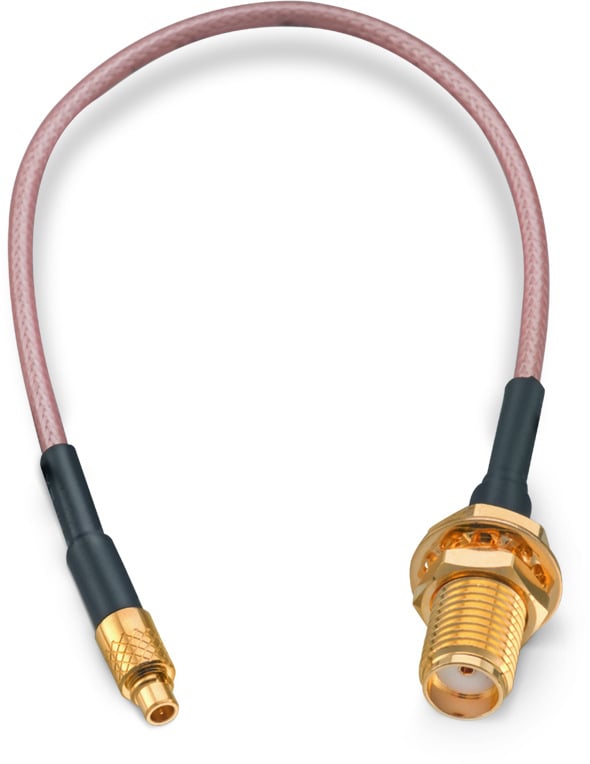

WR-CXASY SMA Bulkhead Jack to MMCX Straight Plug/ RG-178/U Flexible Cable / 152.4 mm length

WR-CXASY SMA Bulkhead Jack to MMCX Straight Plug/ RG-178/U Flexible Cable / 152.4 mm length
Material Properties
CableRG-178/U
General Information
Operating Temperature-55 °C up to +155 °C
Cable TypeFlexible
Cable ShieldingBraid
Connector Type 1SMA
Connector Type 2MMCX
Gender 1Jack
Gender 2Plug
Orientation Type 1Straight
Orientation Type 2Straight
Mechanical Properties
Min. Bend Radius10.2 mm

Application Notes

Didn't find the right cable? Configure and request directly

Products

Order Code Data­sheet Downloads StatusConnector Type 1Connector Type 2Nominal Cable Length
(mm)		fZ
(Ω)		 Samples
65503260515304SPEC
3 files

CAD files
ZIP

Download all 3 files as zip archive
ZIP

 Active i| Production is active. Expected lifetime: >10 years. SMA MMCX 152.4 DC~3 GHz 50
Order Code Data­sheet
65503260515304SPEC
Samples
Order Code Data­sheet Downloads StatusConnector Type 1Connector Type 2Nominal Cable Length
(mm)		fZ
(Ω)		 Samples

Mates with

WR-MMCX PCB THT/SMT
