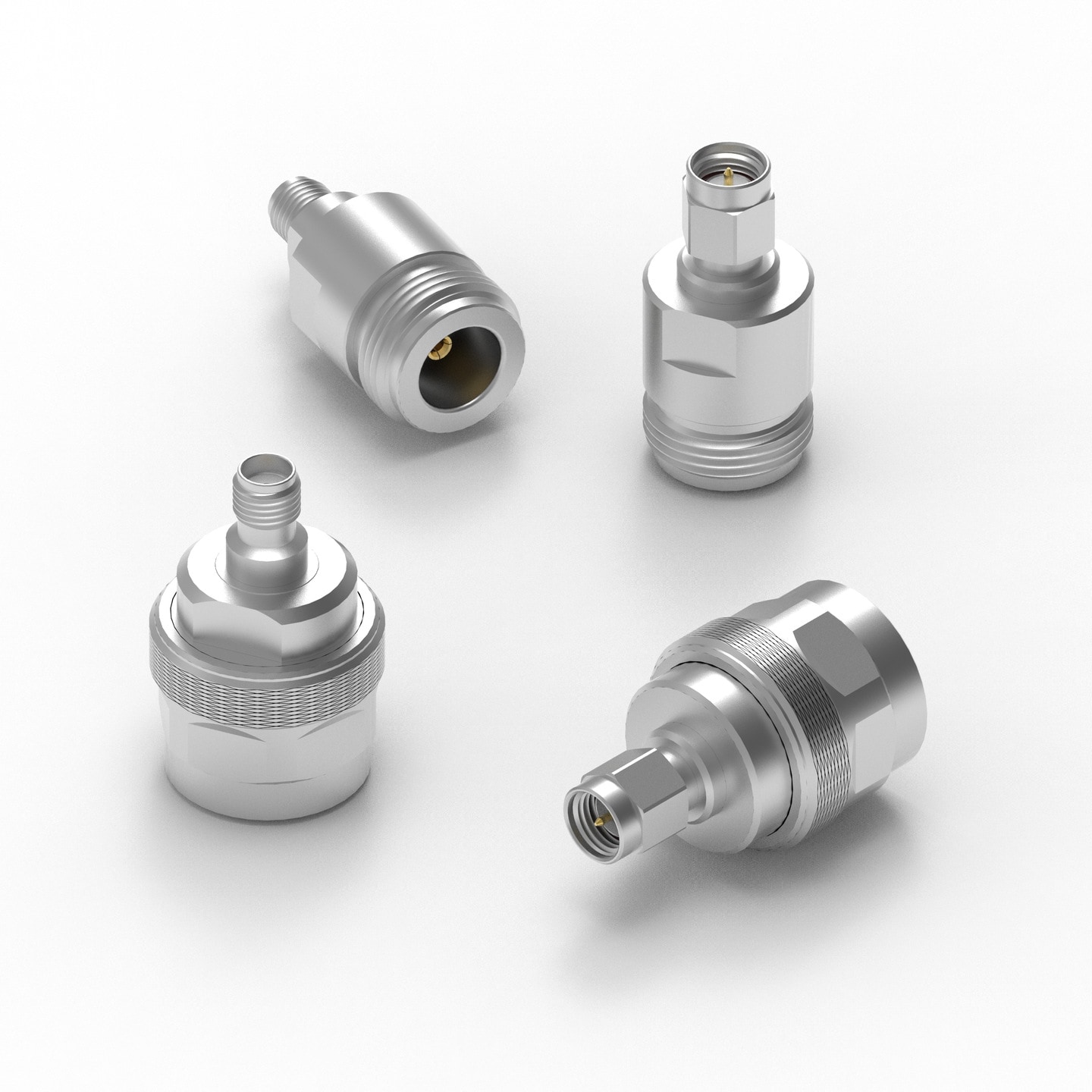

WR-ADPT SMA to N Type

General Information
Operating Temperature	-65 °C up to +165 °C
Interface	MIL-STD-348

Material Properties
Insulator Material	PTFE
Insulator Color	White
Center Contact Material	Beryllium Copper; Brass; Phosphor Bronze
Center Contact Plating	Gold, min. 0.076µm over Nickel
Body Material	Brass
Body Plating	Nickel, min. 2,54 µm over Copper
Coupling Nut Material	Brass
Coupling Nut Plating	Nickel, min. 2,54 µm over Copper

Electrical Properties
f	DC~18 GHz

Order Code	Datasheet	Downloads	Connector Type 1	Gender 1	Connector Type 2	Gender 2	f	Operating Temperature
64403104111000	SPEC	3 files CAD files ZIP 3D 3D_64403104111000 (rev1).pdf \| 504.8 KB IGS IGS_64403104111000 (rev1).igs \| 1.5 MB STP STP_64403104111000 (rev1).stp \| 466.1 KB Download all 3 files as zip archive ZIP	SMA	Jack	N Type	Jack	DC~18 GHz	-65 °C up to +165 °C
64403104211000	SPEC	3 files CAD files ZIP 3D 3D_64403104211000 (rev1).pdf \| 2.6 MB IGS IGS_64403104211000 (rev1).igs \| 18.7 MB STP STP_64403104211000 (rev1).stp \| 7.3 MB Download all 3 files as zip archive ZIP	SMA	Jack	N Type	Plug	DC~18 GHz	-65 °C up to +165 °C
64403204111000	SPEC	3 files CAD files ZIP 3D 3D_64403204111000 (rev1).pdf \| 514.4 KB IGS IGS_64403204111000 (rev1).igs \| 1.5 MB STP STP_64403204111000 (rev1).stp \| 376.2 KB Download all 3 files as zip archive ZIP	SMA	Plug	N Type	Jack	DC~18 GHz	-65 °C up to +165 °C
64403204211000	SPEC	3 files CAD files ZIP 3D 3D_64403204211000 (rev1).pdf \| 2.6 MB IGS IGS_64403204211000 (rev1).igs \| 18.8 MB STP STP_64403204211000 (rev1).stp \| 7.3 MB Download all 3 files as zip archive ZIP	SMA	Plug	N Type	Plug	DC~18 GHz	-65 °C up to +165 °C
