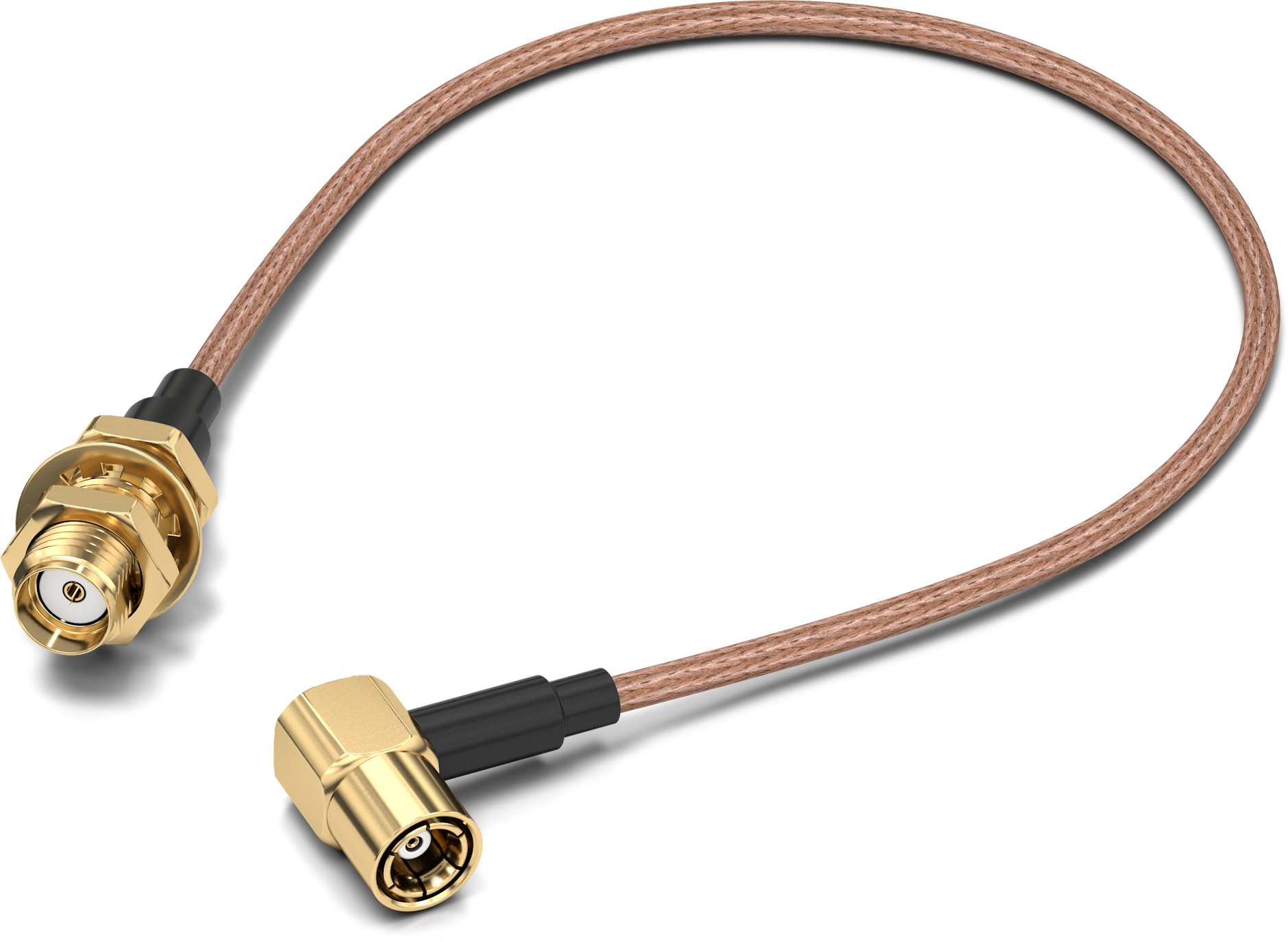

WR-CXASY SMB Right Angle Plug to SMA Bulkhead Jack / RG-178/U Flexible Cable / 152.4 mm length

WR-CXASY SMB Right Angle Plug to SMA Bulkhead Jack / RG-178/U Flexible Cable / 152.4 mm length
Material Properties
CableRG-178/U
General Information
Operating Temperature-55 °C up to +165 °C
InterfaceMIL-STD-348
Cable TypeFlexible
Cable ShieldingBraid
Connector Type 1SMA
Connector Type 2SMB
Gender 1Jack
Gender 2Plug
Orientation Type 1Straight
Orientation Type 2Right Angle
Mechanical Properties
Min. Bend Radius10.2 mm
