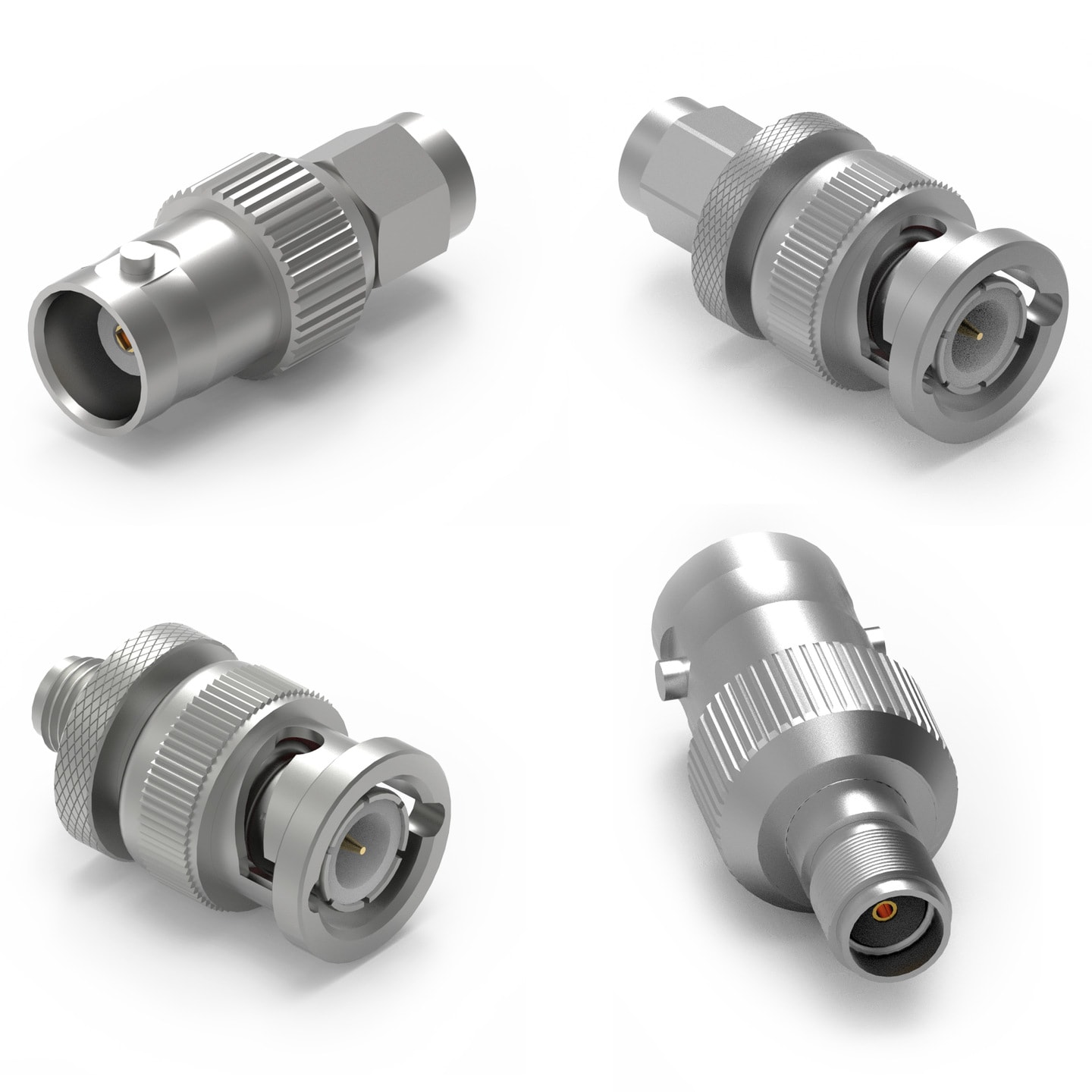

WR-ADPT SMA to BNC

Size	Dimensions
EXT.SMA Straight Plug \| BNC Straight Plug
EXT.SMA Straight Plug \| BNC Straight Jack
EXT.SMA Straight Jack \| BNC Straight Plug
EXT.SMA Straight Jack \| BNC Straight Jack

Characteristics

Interface: MIL-STD-348
Mating Cycle: 100 Cycles
Impedance: 50Ω
Plating: Nickel and Gold
Mating: Screw_SMA (Recommended by torque wrench tool) | Bayonet lock_BNC

Applications

Network and communications
RF Test and measurement equipment
Industrial applications
High power machinery
Outdoor or humidity environment

Products

All

SMA Straight Plug | BNC Straight Plug

SMA Straight Plug | BNC Straight Jack

SMA Straight Jack | BNC Straight Plug

SMA Straight Jack | BNC Straight Jack

Filter article data

show article in 4 product lines

article in 4 product lines

	Order Code	Datasheet	Downloads	Status	Connector Type 1	Gender 1	Connector Type 2	Gender 2	f	Operating Temperature	Samples
	64403207211000	SMA, Plug, BNC	Downloads3 files CAD files ZIP 3D 3D_conADPT_64403207211000 (rev1).pdf \| 1.8 MB IGS IGS_conADPT_64403207211000 (rev1).igs \| 21.7 MB STP STP_conADPT_64403207211000 (rev1).stp \| 9.2 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Gender 1Plug	Connector Type 2BNC	Gender 2Plug	Frequency RangeDC~4 GHz	Operating Temperature -65 °C up to +165 °C
	64403207111000	SMA, Plug, BNC	Downloads3 files CAD files ZIP 3D 3D_conADPT_64403207111000 (rev1).pdf \| 451.3 KB IGS IGS_conADPT_64403207111000 (rev1).igs \| 3.3 MB STP STP_conADPT_64403207111000 (rev1).stp \| 792.6 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Gender 1Plug	Connector Type 2BNC	Gender 2Jack	Frequency RangeDC~4 GHz	Operating Temperature -65 °C up to +165 °C
	64403107211000	SMA, Jack, BNC	Downloads3 files CAD files ZIP 3D 3D_conADPT_64403107211000 (rev1).pdf \| 1.5 MB IGS IGS_conADPT_64403107211000 (rev1).igs \| 16.9 MB STP STP_conADPT_64403107211000 (rev1).stp \| 6.9 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Gender 1Jack	Connector Type 2BNC	Gender 2Plug	Frequency RangeDC~4 GHz	Operating Temperature -65 °C up to +165 °C
	64403107111000	SMA, Jack, BNC	Downloads3 files CAD files ZIP 3D 3D_conADPT_64403107111000 (rev1).pdf \| 561.4 KB IGS ING_conADPT_64403107111000 (rev1).igs \| 4.6 MB STP STP_conADPT_64403107111000 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Connector Type 1SMA	Gender 1Jack	Connector Type 2BNC	Gender 2Jack	Frequency RangeDC~4 GHz	Operating Temperature -65 °C up to +165 °C

Mates with

WR-SMA Panel 2-Hole and 4-Hole Flange

WR-BNC BNC PCB Connectors

WR-SMA PCB THT/THR/SMT

WR-SMA PCB Solderless

WR-SMA PCB End Launch
