WR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-316/U Flexible Cable / 152.4mm length | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyCoaxial Connectors Product sub-familyCable Assemblies TypeSMA Combinations TypeSMA Bulkhead Jack to MCX Right Angle Plug TypeWR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-316/U Flexible Cable / 152.4mm length

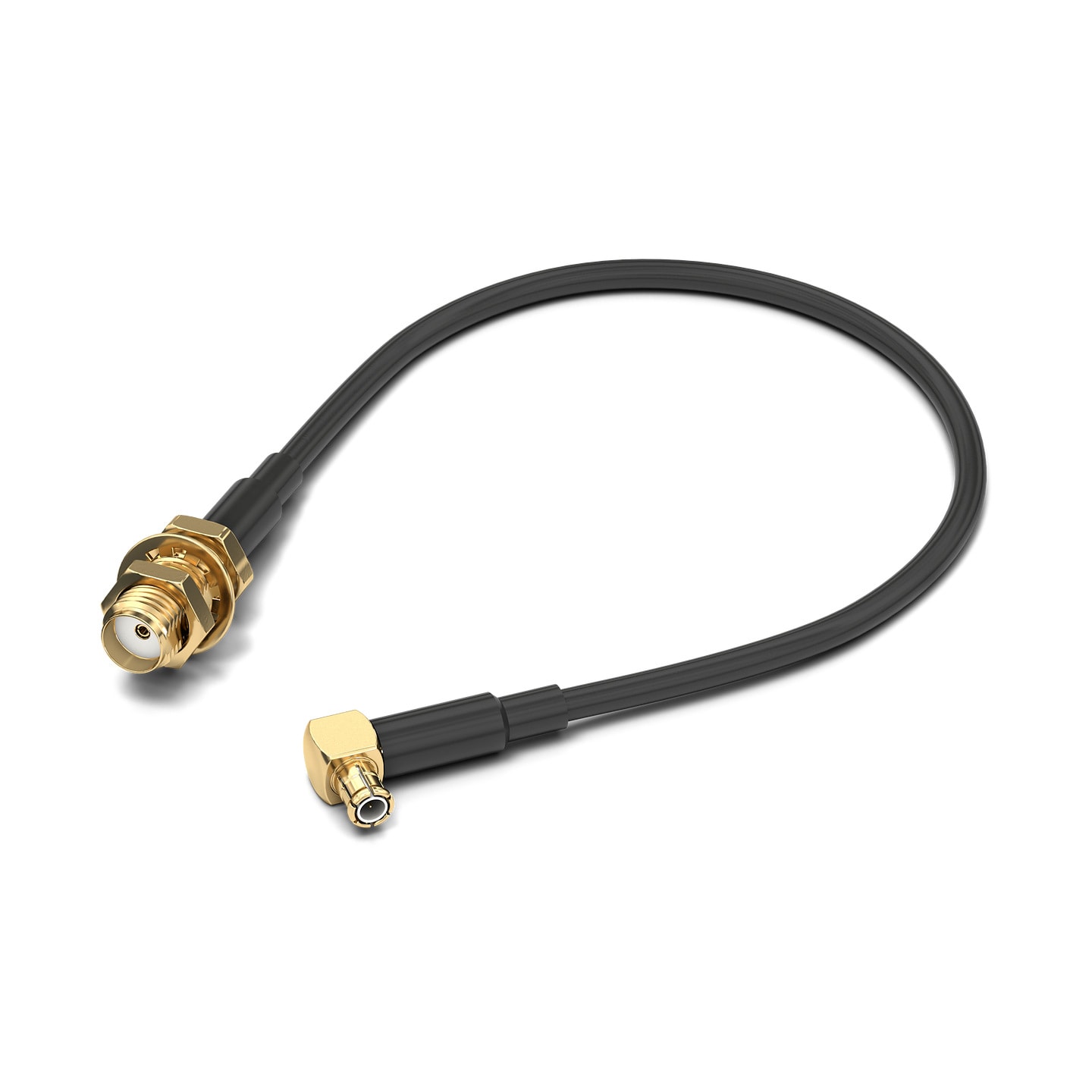

WR-CXASY SMA Bulkhead Jack to MCX Right Angle Plug / RG-316/U Flexible Cable / 152.4mm length

Material Properties
Cable	RG-316/U

General Information
Operating Temperature	-55 °C up to +155 °C
Cable Type	Flexible
Cable Shielding	Braid
Connector Type 1	SMA
Connector Type 2	MCX
Gender 1	Jack
Gender 2	Plug
Orientation Type 1	Straight
Orientation Type 2	Right Angle

Mechanical Properties
Min. Bend Radius	12.7 mm

Application Notes

ANE016 Coaxial cables and cable assemblies
PDF

Products

Order Code	Datasheet	Downloads	Status	f	Samples
65501710515301	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	3 files CAD files ZIP 3D 3D_65501710515301 (rev1).pdf \| 2 MB IGS IGES_65501710515301 (rev1).iges \| 21.2 MB STP STEP_65501710515301 (rev1).stp \| 6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	DC~6 GHz
