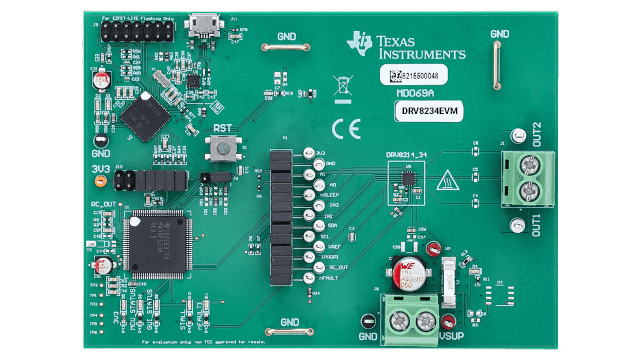

Texas Instruments DRV8234 | Demoboard DRV8234EVM
38-V 2-A H-bridge motor driver with ripple counting, sensorless stall detection and I²C interface
Overview
| Topology | Motor Drive |
| Input voltage | 4.5-38 V |
| IC revision | A |
Description
The DRV8234 is a high-performance integrated H-bridge motor driver with integrated speed and position detection using ripple counting along with additional features like motor speed and voltage regulation, stall detection, current sense output, current regulation, and protection circuitry.The integrated ripple counting algorithm counts the number of ripples in the motor current to determine motor relative position and speed eliminating the potential need for encoders, hall sensors, or optical sensors. This reduces board space and design complexity, and saves on overall system cost. Integrated speed regulation is used to maintain constant motor speed over varying input supply voltages which minimizes current consumption and saves power over time. This is critical in applications that have different loading conditions or rely on battery power for operation where the input voltage is not constant. Soft-start and stop allows for a controlled turn-on and turn-off time, reducing large inrush currents to protect the motor windings from damage, thereby increasing system reliability and longevity.An internal current mirror implements current sensing and regulation. This eliminates the need for a large power shunt resistor, saving board area and reducing system cost. The IPROPI current sense output allows a microcontroller to detect motor stall or changes in load conditions. Using the VREF pin, this device can regulate the motor current during startup and high-load events without interaction from a microcontroller. The device supports sensorless motor stall detection and reporting to microcontroller.
Features
- N-channel H-bridge brushed DC motor driver
- 4.5-V to 38-V operating supply voltage range
- Ripple counting feature for:
- On-chip Speed and Position detection
- Integrated Voltage and Speed regulation
- Soft-Start and Stop feature for inrush current protection
- 600-mΩ RDS(on) (High-Side + Low-Side)
- High output current capability: 3.7-A Peak, 2-A RMS
- PWM with I2C control interface
- Configuration and diagnostics on I2C registers
- Multi-follower operation support
- Supports standard and fast I2C mode
- Supports 3.3-V, and 5-V logic inputs
- Integrated current sensing and current regulation
- Analog current sense output (IPROPI)
- Internal charge pump with 100% duty cycle
- Long battery life with low-power sleep mode
- < 1 µA maximum sleep current
- Small package and footprint
- 16-Pin WQFN with PowerPAD™, 3 × 3 mm
- Integrated protection features
- VM undervoltage lockout (UVLO)
- Overcurrent protection (OCP)
- Thermal shutdown (TSD)
- Stall detection
- Overvoltage protection (OVP)
Typical applications
- water and gas meters, Brushed DC motor, Solenoid & relay driving
- Infusion pumps and other medical equipments
- Point-of-sale (POS) devices, Portable printers, beuty and Grooming, Elctronic smart lock, Electric toothbrush, Electronic and robotic toys
More information
