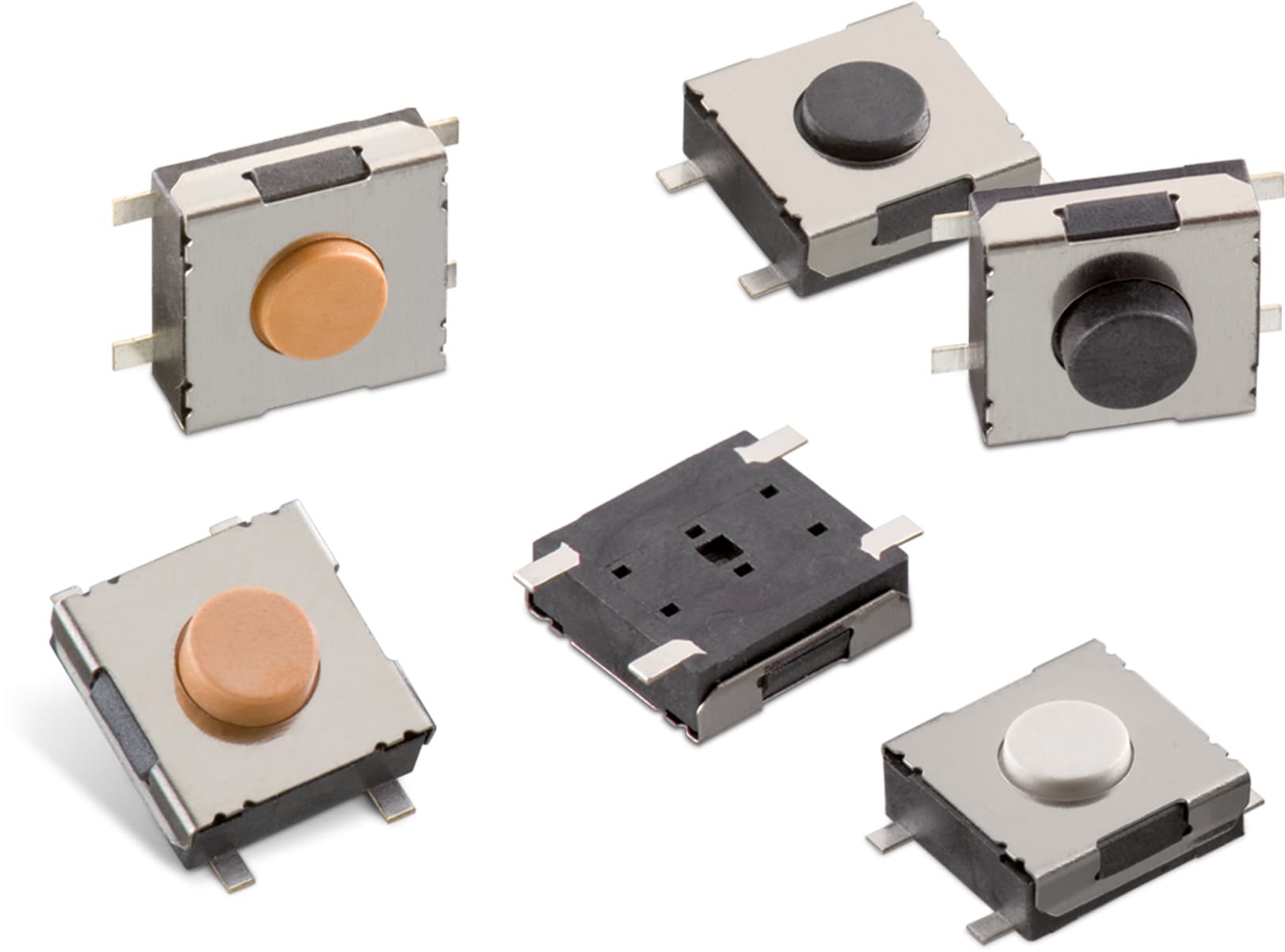

WS-TASV SMT Washable Tact Switch 6x6 mm

General Information
Operating Temperature	-40 °C up to +85 °C
Washable	Yes
Ingress Protection Code	None

Material Properties
Actuator Material	LCP
Actuator Flammability Rating	UL94 V-0
Frame Material	LCP
Frame Flammability Rating	UL94 V-0
Contact Plating	Silver
Terminal Plating	Silver

Electrical Properties
I_R	50 mA
V_R	12 V (DC)
Contact Resistance Initial	100 mΩ
R_ISO	100 MΩ
Withstanding Voltage	250 V (AC)

Mechanical Properties
Operation Force	160 g; 260 g; 360 g
Electrical Life	200000 Cycles; 500000 Cycles; 1000000 Cycles

Packaging Properties
Packaging	Tape and Reel

Application Notes

SN015 Contact debounce circuit for switches
PDF

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	H(mm)	Operation Force(g)	Electrical Life(Cycles)	Actuator Color	Washable	Vaporphase process	Design Kit	Demoboard	SamplesAvailability & Sample
430481025816	SPEC2.5 mm, 160 g, 1000000 Cycles PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26b).zip \| 3.8 MB CAD files ZIP 3D Download_3D_WS-TASV_430481025816 (rev1).pdf \| 94.2 KB IGS Download_IGS_WS-TASV_430481025816 (rev1).igs \| 921.5 KB STP Download_STP_WS-TASV_430481025816 (rev1).stp \| 227.1 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height2.5 mm	Operation Force160 g	Electrical Life1000000 Cycles	Actuator ColorBlack	WashableYes	Vaporphase processnot specified	Design Kit 499001	Demoboard –	–Check availability
430471025826	SPEC2.5 mm, 260 g, 500000 Cycles PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26b).zip \| 3.8 MB CAD files ZIP 3D Download_3D_WS-TASV_430471025826 (rev1).pdf \| 94.5 KB IGS Download_IGS_WS-TASV_430471025826 (rev1).igs \| 920.6 KB STP Download_STP_WS-TASV_430471025826 (rev1).stp \| 227.2 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height2.5 mm	Operation Force260 g	Electrical Life500000 Cycles	Actuator ColorWhite	WashableYes	Vaporphase processnot specified	Design Kit 499001	Demoboard –	–Check availability
430451025836	SPEC2.5 mm, 360 g, 200000 Cycles PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26b).zip \| 3.8 MB CAD files ZIP 3D Download_3D_WS-TASV_430451025836 (rev1).pdf \| 94.5 KB IGS Download_IGS_WS-TASV_430451025836 (rev1).igs \| 921.5 KB STP Download_STP_WS-TASV_430451025836 (rev1).stp \| 227.2 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height2.5 mm	Operation Force360 g	Electrical Life200000 Cycles	Actuator ColorSalmon	WashableYes	Vaporphase processnot specified	Design Kit 499001	Demoboard –	–Check availability
430481031816	SPEC3.1 mm, 160 g, 1000000 Cycles PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26b).zip \| 3.8 MB CAD files ZIP 3D Download_3D_WS-TASV_430481031816 (rev1).pdf \| 91.5 KB IGS Download_IGS_WS-TASV_430481031816 (rev1).igs \| 921.5 KB STP Download_STP_WS-TASV_430481031816 (rev1).stp \| 227.1 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.1 mm	Operation Force160 g	Electrical Life1000000 Cycles	Actuator ColorBlack	WashableYes	Vaporphase processnot specified	Design Kit 499001	Demoboard 9999003	–Check availability
430471031826	SPEC3.1 mm, 260 g, 500000 Cycles PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26b).zip \| 3.8 MB CAD files ZIP 3D Download_3D_WS-TASV_430471031826 (rev1).pdf \| 91.4 KB IGS Download_IGS_WS-TASV_430471031826 (rev1).igs \| 920.6 KB STP Donwload_STP_WS-TASV_430471031826 (rev1).stp \| 227.1 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.1 mm	Operation Force260 g	Electrical Life500000 Cycles	Actuator ColorWhite	WashableYes	Vaporphase processnot specified	Design Kit 499001	Demoboard –	–Check availability
430451031836	SPEC3.1 mm, 360 g, 200000 Cycles PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26b).zip \| 3.8 MB CAD files ZIP 3D Download_3D_WS-TASV_430451031836 (rev1).pdf \| 91.4 KB IGS Download_IGS_WS-TASV_430451031836 (rev1).igs \| 921.5 KB STP Download_STP_WS-TASV_430451031836 (rev1).stp \| 227.2 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.1 mm	Operation Force360 g	Electrical Life200000 Cycles	Actuator ColorSalmon	WashableYes	Vaporphase processnot specified	Design Kit 499001	Demoboard –	–Check availability
430481035816	SPEC3.5 mm, 160 g, 1000000 Cycles PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26b).zip \| 3.8 MB CAD files ZIP 3D Download_3D_WS-TASV_430481035816 (rev1).pdf \| 93.6 KB IGS Download_IGS_WS-TASV_430481035816 (rev1).igs \| 921.7 KB STP Download_STP_WS-TASV_430481035816 (rev1).stp \| 227.2 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.5 mm	Operation Force160 g	Electrical Life1000000 Cycles	Actuator ColorBlack	WashableYes	Vaporphase processnot specified	Design Kit 499001	Demoboard –	–Check availability
430471035826	SPEC3.5 mm, 260 g, 500000 Cycles PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26b).zip \| 3.8 MB CAD files ZIP 3D Download_3D_WS-TASV_430471035826 (rev1).pdf \| 93.6 KB IGS Download_IGS_WS-TASV_430471035826 (rev1).igs \| 920.7 KB STP Download_STP_WS-TASV_430471035826 (rev1).stp \| 227.3 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.5 mm	Operation Force260 g	Electrical Life500000 Cycles	Actuator ColorWhite	WashableYes	Vaporphase processnot specified	Design Kit 499001	Demoboard –	–Check availability
430451035836	SPEC3.5 mm, 360 g, 200000 Cycles PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	Availability –	Downloads7 files EDA models: Components ZIP ALT Altium_WS-TASV (rev26a).IntLib \| 2.1 MB CDS Cadence_WS-TASV (rev26a).zip \| 14 MB EAG Eagle_WS-TASV (rev26a).lbr \| 460.5 KB KIC KiCad_WS-TASV (rev26b).zip \| 3.8 MB CAD files ZIP 3D Download_3D_WS-TASV_430451035836 (rev1).pdf \| 93.5 KB IGS Download_IGS_WS-TASV_430451035836 (rev1).igs \| 921.7 KB STP Download_STP_WS-TASV_430451035836 (rev1).stp \| 227.3 KB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Height3.5 mm	Operation Force360 g	Electrical Life200000 Cycles	Actuator ColorSalmon	WashableYes	Vaporphase processnot specified	Design Kit 499001	Demoboard –	–Check availability

Expected Availability	Opening inventory	Quantity
Current Availability	–	–
