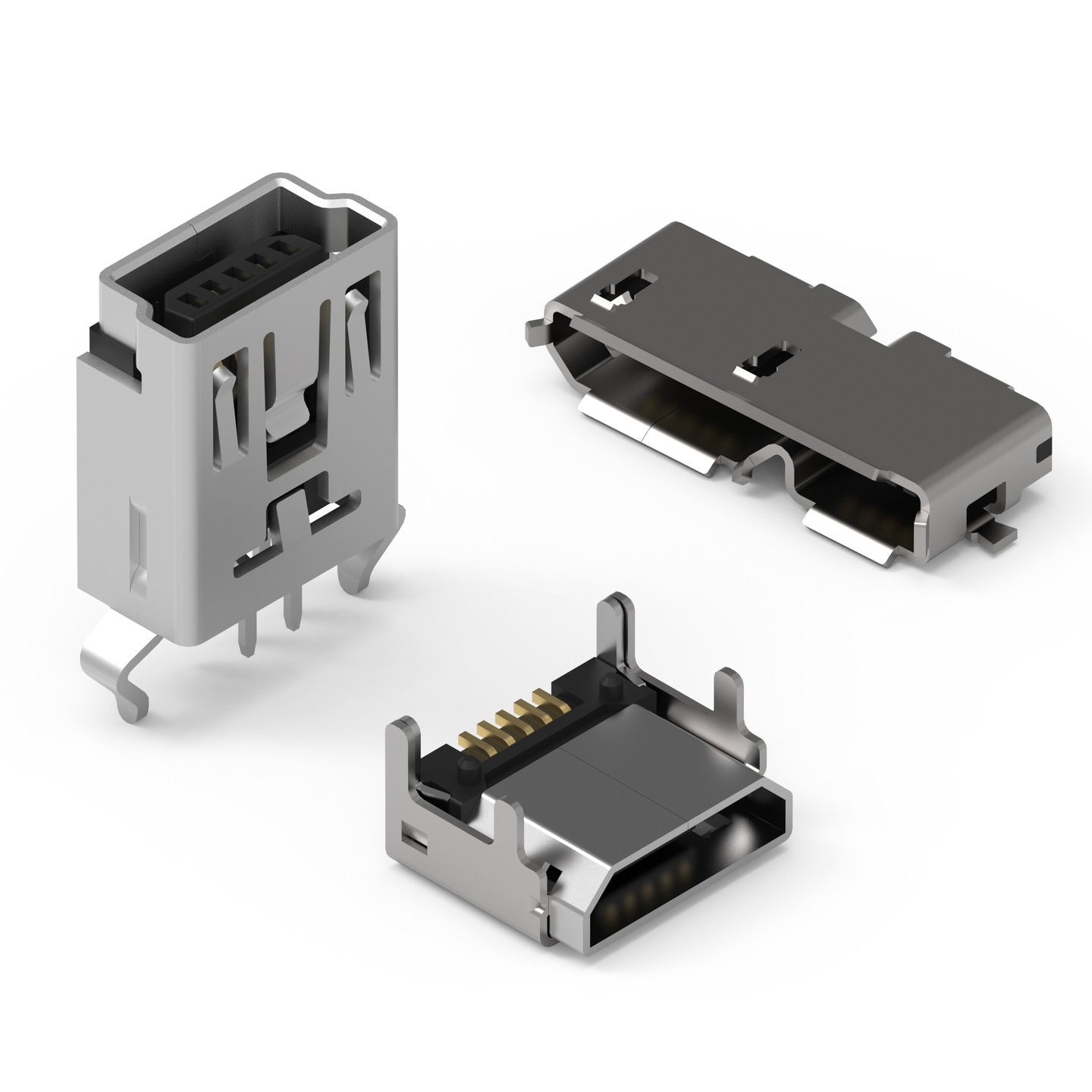

WR-USB Mini/Micro Connectors

Size	Dimensions	Mount
Mini USB 2.0		-
Micro USB 2.0		-
Micro USB 3.0		SMT

Characteristics

Mini and Micro form factors, ideal for space-constrained designs
Pin configuration: 5 pins for USB 2.0 / 10 pins for USB 3.x
Designed for high cycle durability
UL, TID listing for USB standards

Applications

Mobile and handheld devices
Wearables and portable accessories
Embedded systems and IoT modules

Products

All

Mini USB 2.0

Micro USB 2.0

Micro USB 3.0

Reset all

Filter article data

show article in 3 product lines

article in 3 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Interface Type	Type	Variant	Gender	Pins	Mount	PCB Thickness(mm)	I_R(A)	Working Voltage(V (AC))	Packaging	Design Kit	Filter Bag
614105150621	Micro USB 2.0, Type AB, Vertical	Downloads6 files EDA models: Components ZIP ALT Altium_WR-USB (rev26a).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev26a).zip \| 64.4 MB EAG Eagle_WR-USB (rev26a).lbr \| 460.9 KB CAD files ZIP 3D 614105150621_1 (rev1).pdf \| 154.2 KB IGS 614105150621 (rev1).igs \| 2.2 MB STP 614105150621 (rev1).stp \| 885.3 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Interface TypeType AB	TypeVertical	–	GenderReceptacle	Pins5	MountTHT	–	Rated Current1.8 A	Working Voltage30 V (AC)	PackagingTape and Reel	Design Kit 612690 614001	Filter Bag –
614105150721	Micro USB 2.0, Type B, Vertical	Downloads6 files EDA models: Components ZIP ALT Altium_WR-USB (rev26a).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev26a).zip \| 64.4 MB EAG Eagle_WR-USB (rev26a).lbr \| 460.9 KB CAD files ZIP 3D 614105150721_1 (rev1).pdf \| 178.5 KB IGS 614105150721 (rev1).iges \| 2.7 MB STP 614105150721 (rev1).stp \| 599.5 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Interface TypeType B	TypeVertical	–	GenderReceptacle	Pins5	MountTHT	–	Rated Current1.8 A	Working Voltage30 V (AC)	PackagingTape and Reel	Design Kit 614001	Filter Bag –
629105150521	Micro USB 2.0, Type B, Horizontal	Downloads6 files EDA models: Components ZIP ALT Altium_WR-USB (rev26a).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev26a).zip \| 64.4 MB EAG Eagle_WR-USB (rev26a).lbr \| 460.9 KB CAD files ZIP 3D 629105150521 (rev1).pdf \| 314.3 KB IGS Download_IGES_629105150521 (rev1).iges \| 3.6 MB STP 629105150521 (rev1).stp \| 803.3 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Interface TypeType B	TypeHorizontal	Variantwith Pegs - High Current	GenderReceptacle	Pins5	MountSMT	–	Rated Current3 A	Working Voltage30 V (AC)	PackagingTape and Reel	Design Kit 612690 614001	Filter Bag –
692622420101	Micro USB 3.0, Type B, Vertical	Downloads6 files EDA models: Components ZIP ALT Altium_WR-USB (rev26a).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev26a).zip \| 64.4 MB EAG Eagle_WR-USB (rev26a).lbr \| 460.9 KB CAD files ZIP 3D 3D_692622420101 (rev1).pdf \| 356.4 KB IGS Download_IGES_692622420101 (rev1).iges \| 5.3 MB STP Download_STP_692622420101 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Interface TypeType B	TypeVertical	Variantwith Pads & Pegs	GenderReceptacle	Pins10	MountSMT	PCB Thickness1.6 mm	Rated Current1.8 A	Working Voltage30 V (AC)	PackagingTape and Reel with Cap	Design Kit 612690 614001	Filter Bag 829993BAG
629105136821	Micro USB 2.0, Type B, Horizontal	Downloads6 files EDA models: Components ZIP ALT Altium_WR-USB (rev26a).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev26a).zip \| 64.4 MB EAG Eagle_WR-USB (rev26a).lbr \| 460.9 KB CAD files ZIP 3D 629105136821_1 (rev1).pdf \| 250.4 KB IGS Download_IGES_629105136821 (rev1).iges \| 3.4 MB STP 629105136821 (rev1).stp \| 776.9 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Interface TypeType B	TypeHorizontal	Variantwith Pads & Pegs	GenderReceptacle	Pins5	MountSMT	–	Rated Current1 A	Working Voltage30 V (AC)	PackagingTape and Reel	Design Kit 614001	Filter Bag –
629105150921	Micro USB 2.0, Type AB, Horizontal	Downloads6 files EDA models: Components ZIP ALT Altium_WR-USB (rev26a).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev26a).zip \| 64.4 MB EAG Eagle_WR-USB (rev26a).lbr \| 460.9 KB CAD files ZIP 3D 3D_629105150921 (rev1).pdf \| 1000.2 KB IGS Download_IGS_629105150921 (rev1).igs \| 3.3 MB STP Download_STP_629105150921 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Interface TypeType AB	TypeHorizontal	–	GenderReceptacle	Pins5	MountSMT	PCB Thickness1.2 mm	Rated Current1.8 A	Working Voltage30 V (AC)	PackagingTape and Reel	Design Kit 614001	Filter Bag –
692622030100	Micro USB 3.0, Type B, Horizontal	Downloads6 files EDA models: Components ZIP ALT Altium_WR-USB (rev26a).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev26a).zip \| 64.4 MB EAG Eagle_WR-USB (rev26a).lbr \| 460.9 KB CAD files ZIP 3D 3D_692622030100 (rev1).pdf \| 234.1 KB IGS Download_IGS_692622030100 (rev1).igs \| 3.5 MB STP Download_STP_692622030100 (rev1).stp \| 1.3 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Interface TypeType B	TypeHorizontal	Variantwith Pads	GenderReceptacle	Pins10	MountSMT	–	Rated Current1.8 A	Working Voltage30 V (AC)	PackagingTape and Reel	Design Kit 614001	Filter Bag –
651005136421	Mini USB 2.0, Type B, Vertical	Downloads6 files EDA models: Components ZIP ALT Altium_WR-USB (rev26a).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev26a).zip \| 64.4 MB EAG Eagle_WR-USB (rev26a).lbr \| 460.9 KB CAD files ZIP 3D 651005136421_1 (rev1).pdf \| 216.4 KB IGS 651005136421 (rev1).iges \| 3.1 MB STP 651005136421 (rev1).stp \| 678 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Interface TypeType B	TypeVertical	–	GenderReceptacle	Pins5	MountTHT	–	Rated Current1 A	Working Voltage30 V (AC)	PackagingTray	Design Kit 614001	Filter Bag –
65100516121	Mini USB 2.0, Type B, Horizontal	Downloads6 files EDA models: Components ZIP ALT Altium_WR-USB (rev26a).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev26a).zip \| 64.4 MB EAG Eagle_WR-USB (rev26a).lbr \| 460.9 KB CAD files ZIP 3D 3D_65100516121 (rev1).pdf \| 224.5 KB IGS Download_IGS_65100516121 (rev1).igs \| 3.2 MB STP Download_STP_65100516121 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Interface TypeType B	TypeHorizontal	Variantwith Pads & Pegs	GenderReceptacle	Pins5	MountSMT	–	Rated Current1 A	Working Voltage30 V (AC)	PackagingTape and Reel & Mylar	Design Kit 614001	Filter Bag –
651305142821	Mini USB 2.0, Type AB, Horizontal	Downloads6 files EDA models: Components ZIP ALT Altium_WR-USB (rev26a).IntLib \| 12.1 MB CDS Cadence_WR-COM_USB (rev26a).zip \| 64.4 MB EAG Eagle_WR-USB (rev26a).lbr \| 460.9 KB CAD files ZIP 3D 3D_651305142821 (rev1).pdf \| 217.8 KB IGS Download_IGS_651305142821 (rev1).igs \| 3.2 MB STP Download_STP_651305142821 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Interface TypeType AB	TypeHorizontal	Variantwith Pads	GenderReceptacle	Pins5	MountSMT	PCB Thickness1.6 mm	Rated Current1 A	Working Voltage30 V (AC)	PackagingTape and Reel	Design Kit 612690 614001	Filter Bag –

Wave Soldering Profile

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.
